Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

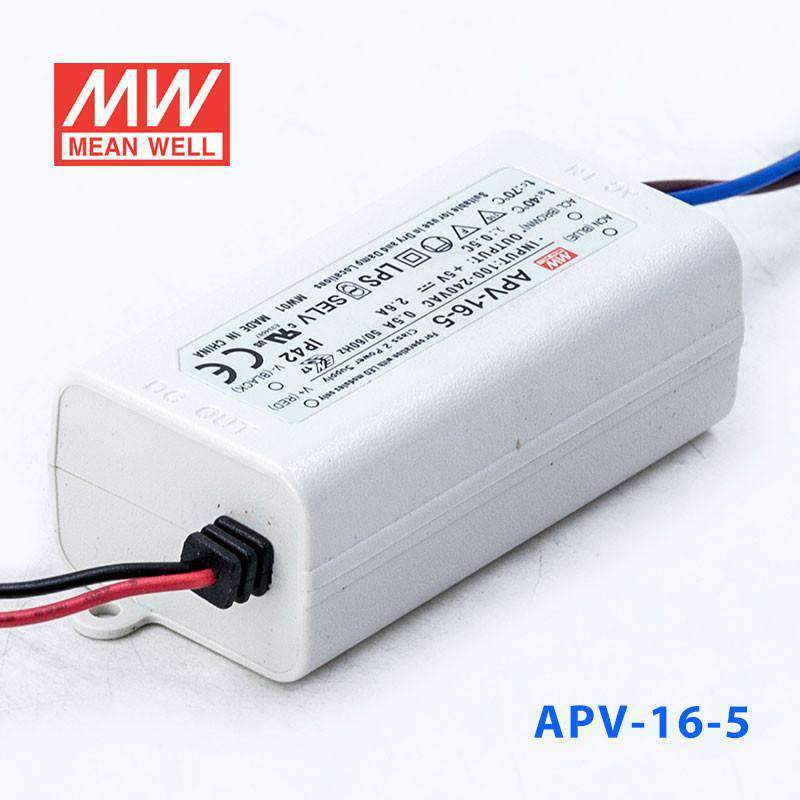

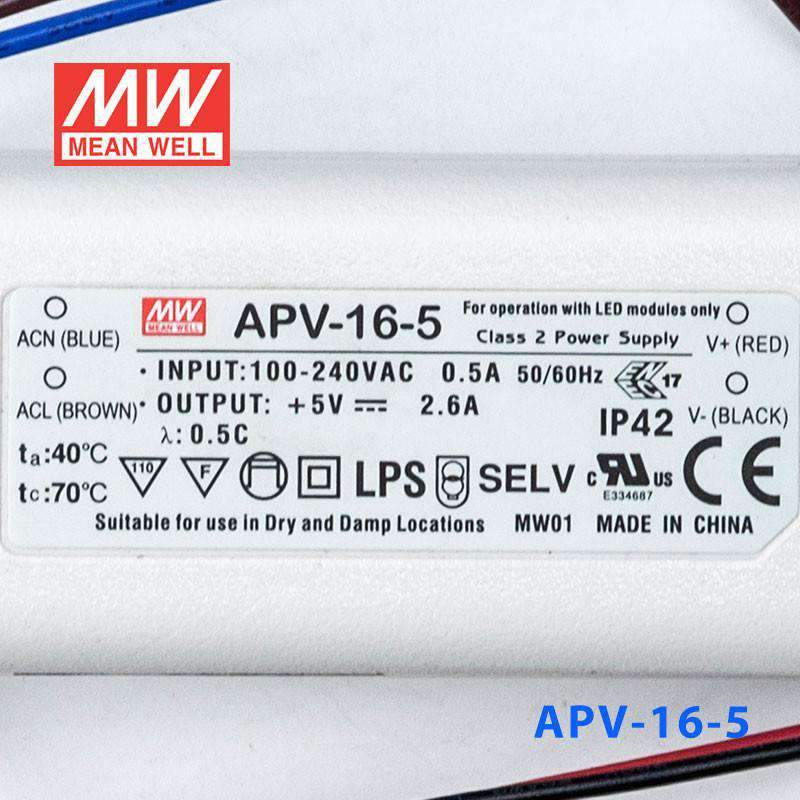

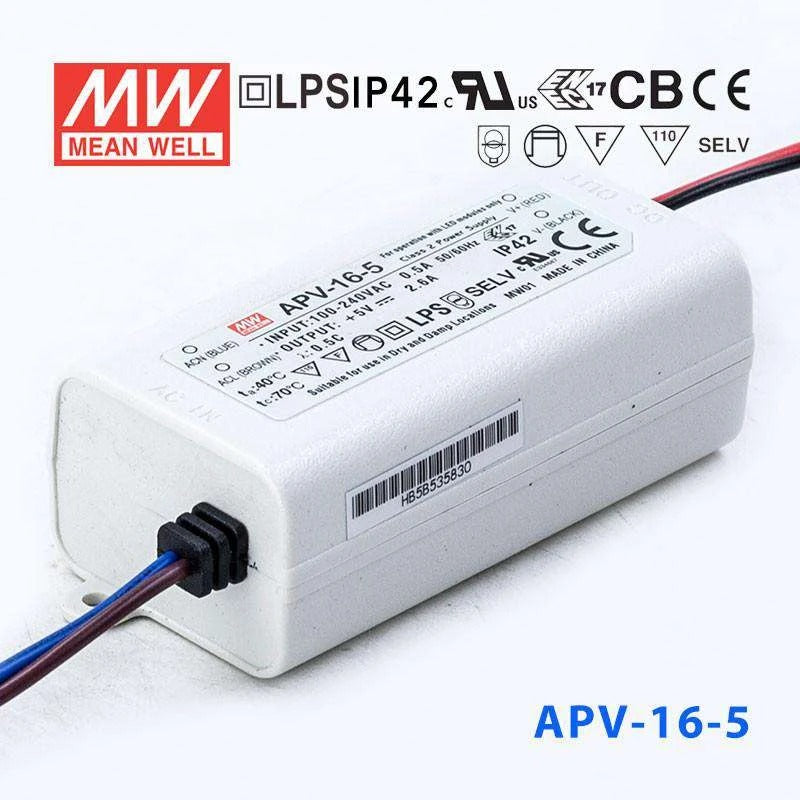

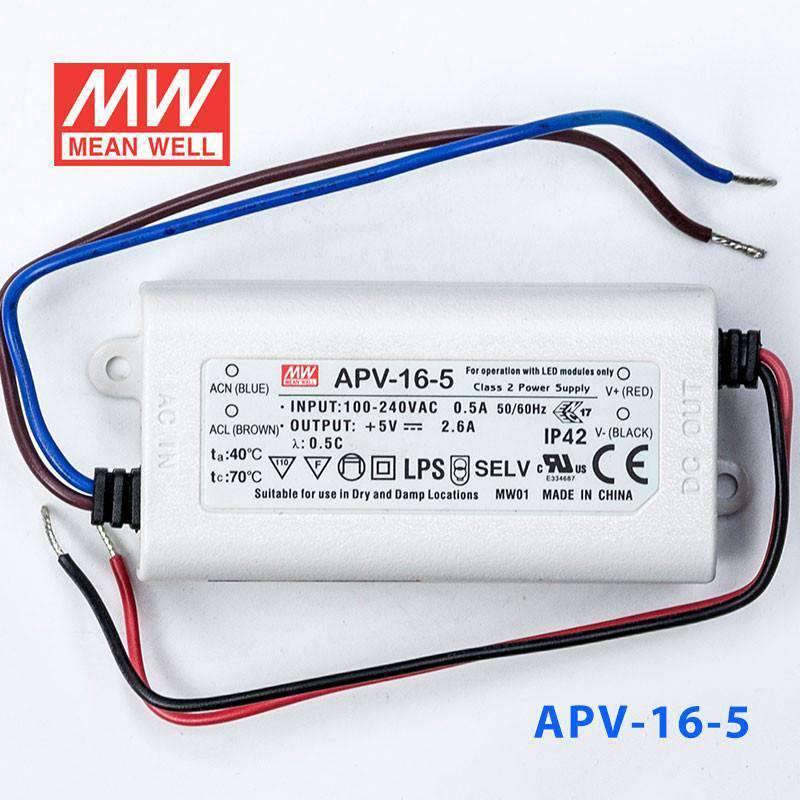

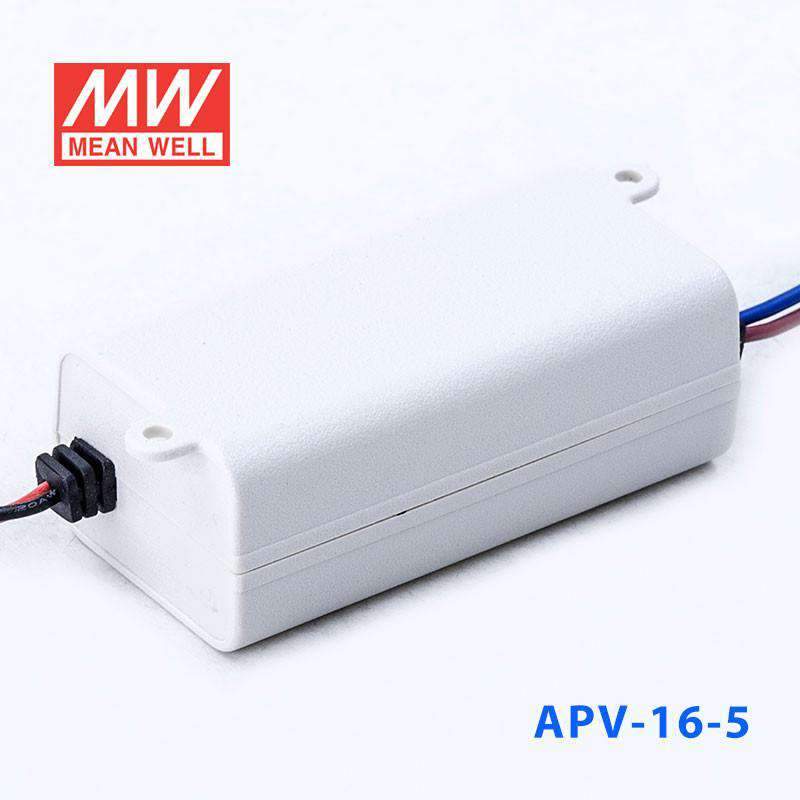

Mean Well APV-16-5 Power Supply 12W 5V 2.6A
$8.44 USD
Unit price /
Unavailable
Description
Description
The APV-16 is a 13W Mean Well AC-DC constant voltage LED driver (input: 90~264VAC, output: 5V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage: 5V
- ✓ Rated output current: 2.6A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CE, EAC, ENEC, UL
- ✓ 2 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating13 Watt
-
Output Voltage5 Volt
-
Rated Current2.6 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.03 in
-
Width1.57 in
-
Height1.14 in
-
Weight0.22 lb
File Downloads
File Downloads
::specification::
