Mean Well

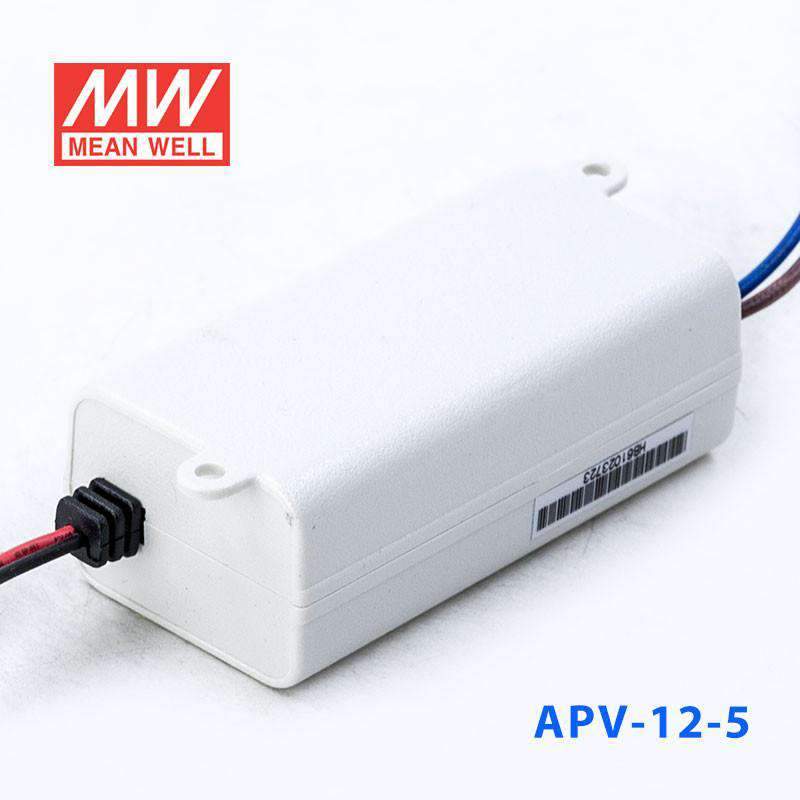

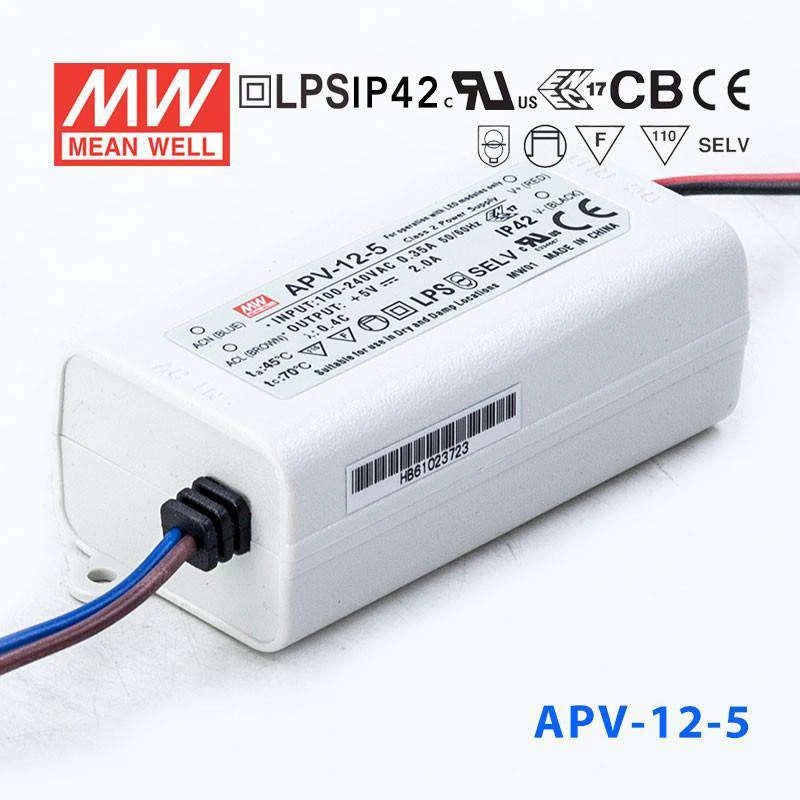

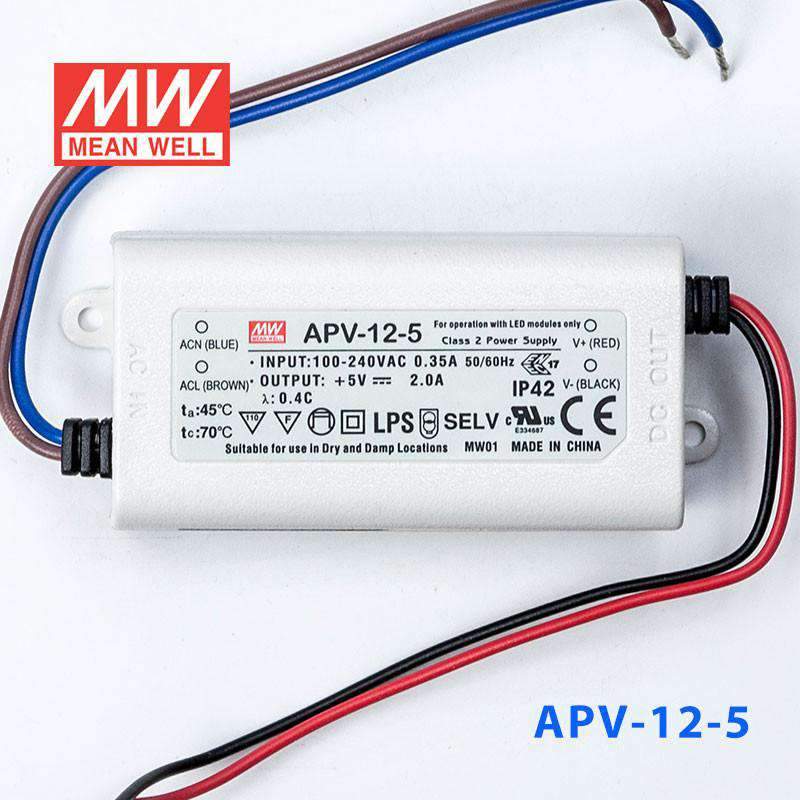

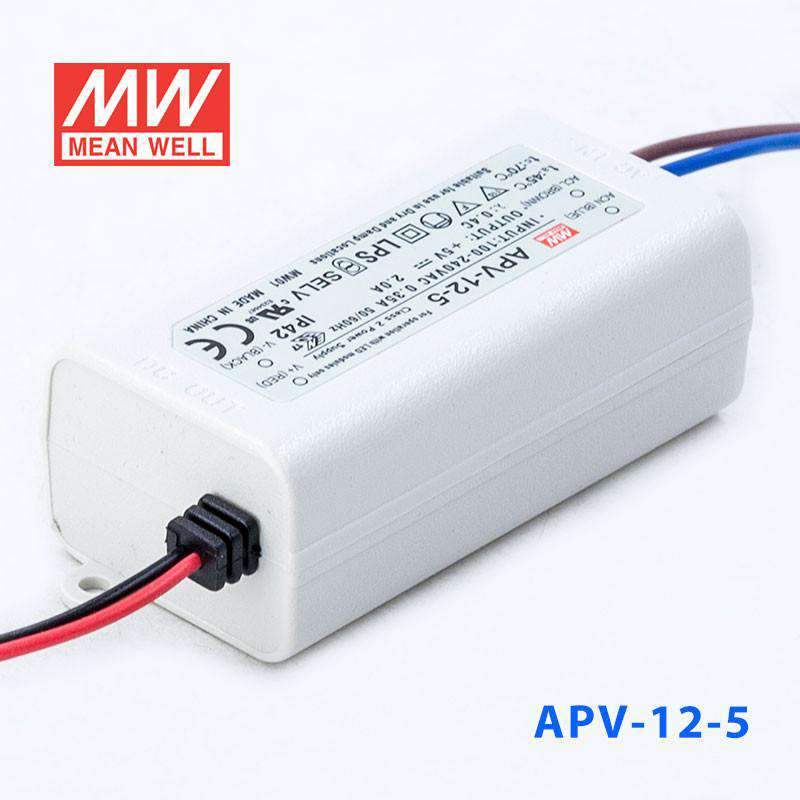

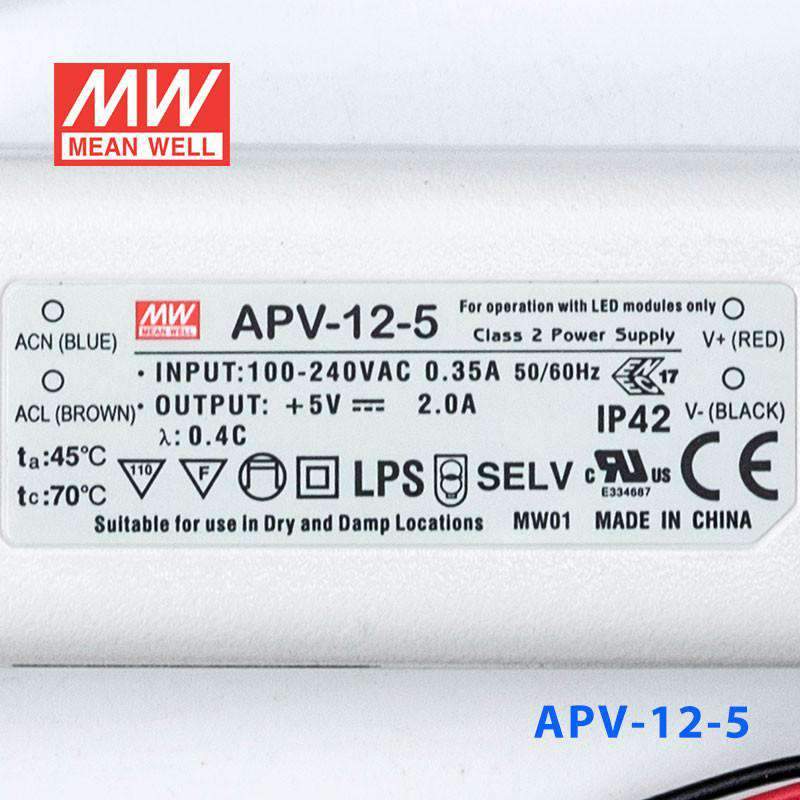

Mean Well APV-12-5 Power Supply 10W 5V 2A

Class II designlow costsmall and compactIP42
SKU APV-12-5
$8.78 USD
Shipping calculated at checkout.

Select model — 5 in this family

APV-12-5
In stock
|

Overview

APV-12-5 is the 5V output model of this series: rated current 2A, rated power 10W, typical efficiency 76%.

Features

  • Constant voltage design
  • Universal AC input / Full range
  • Protections: Short circuit / Over load / Over voltage
  • Fully isolated plastic case
  • Cooling by free air convection
  • Small and compact size
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • Pass LPS
  • IP42 design
  • Display devices for decorative & advertising accessories (Note.7)
  • General-purpose electronics operated in dusty or damp environments
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty

Specifications

APV-12-5Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
2A
CURRENT RANGE
0 ~ 2A
RATED POWER
10W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE TOLERANCENote.3
±5.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±2.0%
SETUP, RISE TIMENote.6
1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
HOLD UP TIME (Typ.)
20ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
76%
AC CURRENT
0.2A/230VAC 0.35A/115VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=185μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
0.25mA / 240VAC

PROTECTION

OVER LOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF
7488.9K hrs min. Telcordia SR-332 (Bellcore) ; 1132.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
77*40*29(L*W*H)
PACKING
0.08Kg; 120pcs/11.8Kg/1.06CUFT

Certifications & ratings

Marked features
LPS
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. Please connect L line to the positive pole and N line to the negative pole under DC input.
  5. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
  10. 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

APV-12-5 Mechanical Specification
Mechanical Specification
APV-12-5 Block Diagram
Block Diagram
APV-12-5 Derating Curve
Derating Curve

Downloads

FAQ

What LED lighting use cases fit a 5V, 10W constant-voltage driver?

The APV-12-5 outputs 5V at 2A for a maximum of 10W. It is suited to 5V LED pixel strips, addressable LED modules such as WS2812-style strips, and small 5V LED signage panels. Confirm your LED product operates at 5V and that the total load does not exceed 10W.

How does the APV-12-5 compare to the APV-16-5 and APV-25-5 for 5V LED applications?

The APV-12-5 provides 10W at 5V and 2A in a 77 × 40 × 29 mm housing; it is the only 5V model of the APV-12 series, whose other models are rated 12W. The APV-16-5 and APV-25-5 are not covered by this datasheet, so compare their ratings on their own spec sheets. Choose based on the wattage your LED load requires.

Is the APV-12-5 approved for use in moisture-prone environments?

The APV-12-5 is rated IP42 and is specified for 20–90% RH non-condensing working humidity. It is not suitable for outdoor, wet, or condensing environments without additional enclosure protection. For damp or wet locations, specify a driver with at least an IP65 rating.

How many meters of 5V addressable LED strip can the APV-12-5 support?

The APV-12-5 delivers 10W at 5V. At a typical 5V addressable strip consumption of 5 W/m at full white, that supports roughly 2 m. Divide 10W by your strip's rated power per meter to find your specific limit, and verify your strip's rated power per meter before purchasing.
