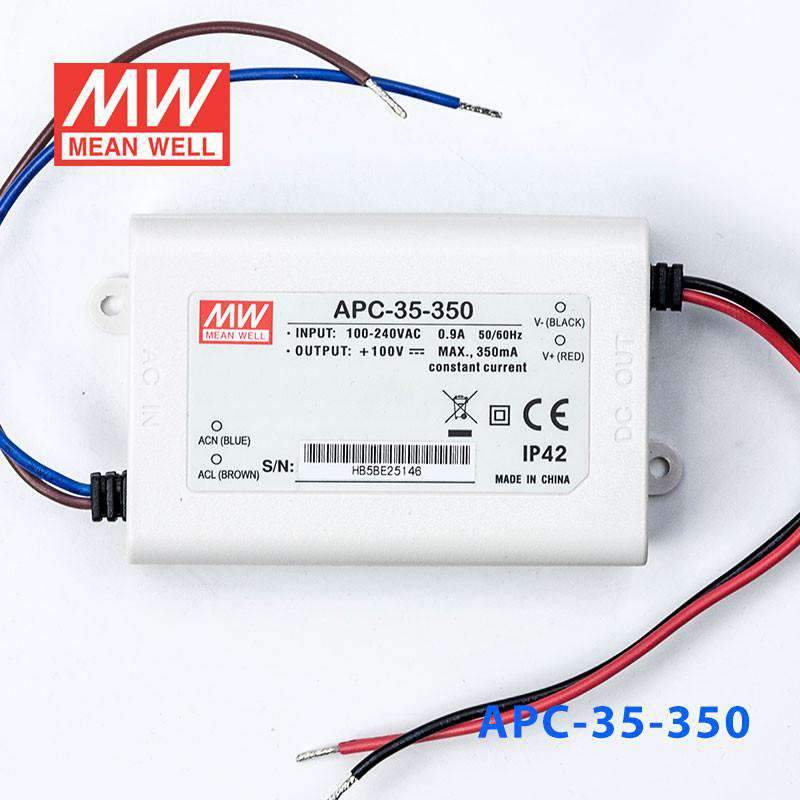

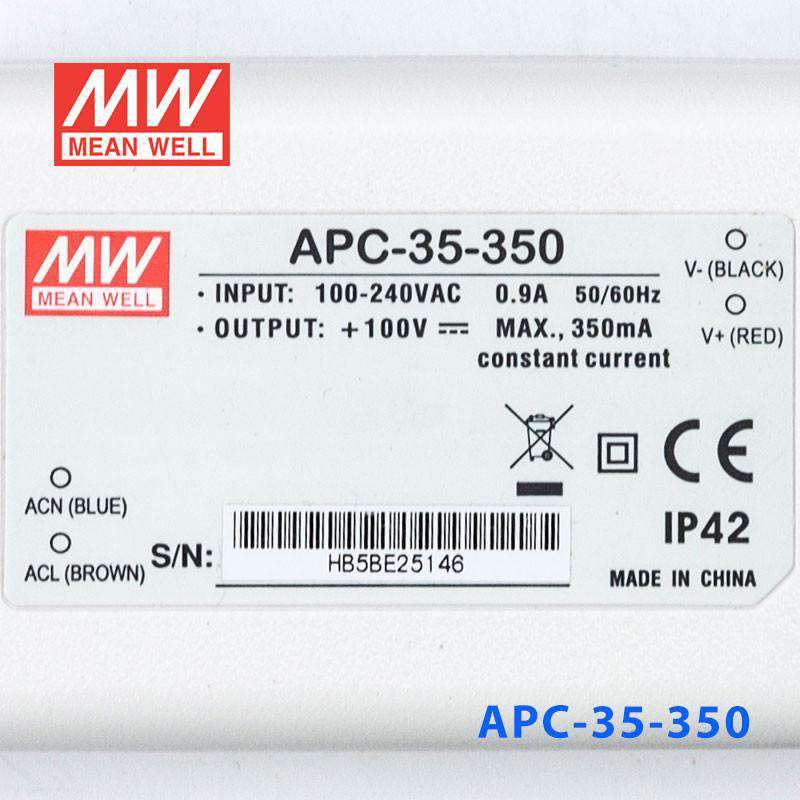

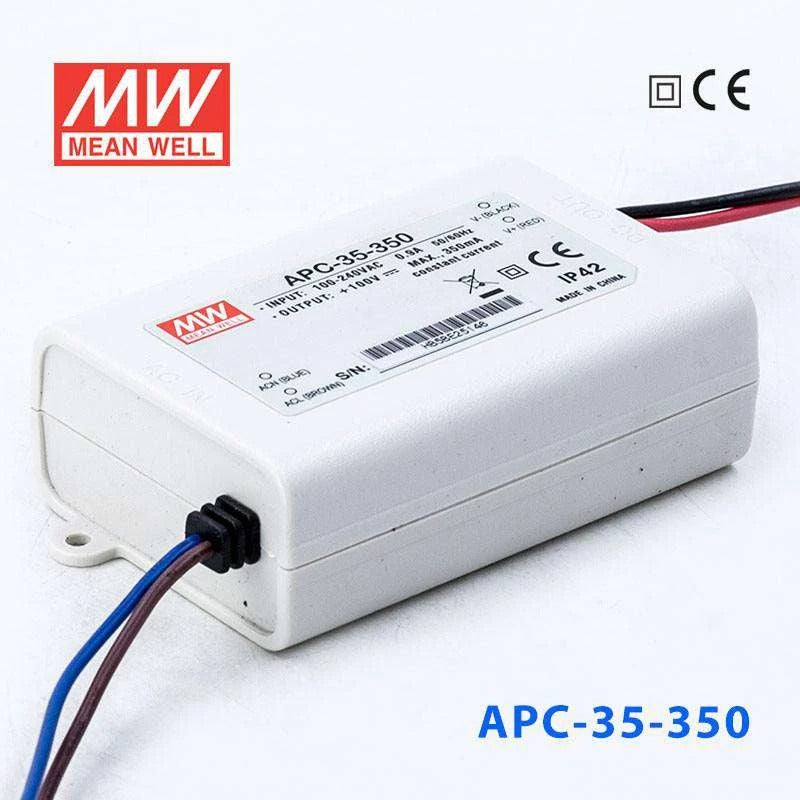

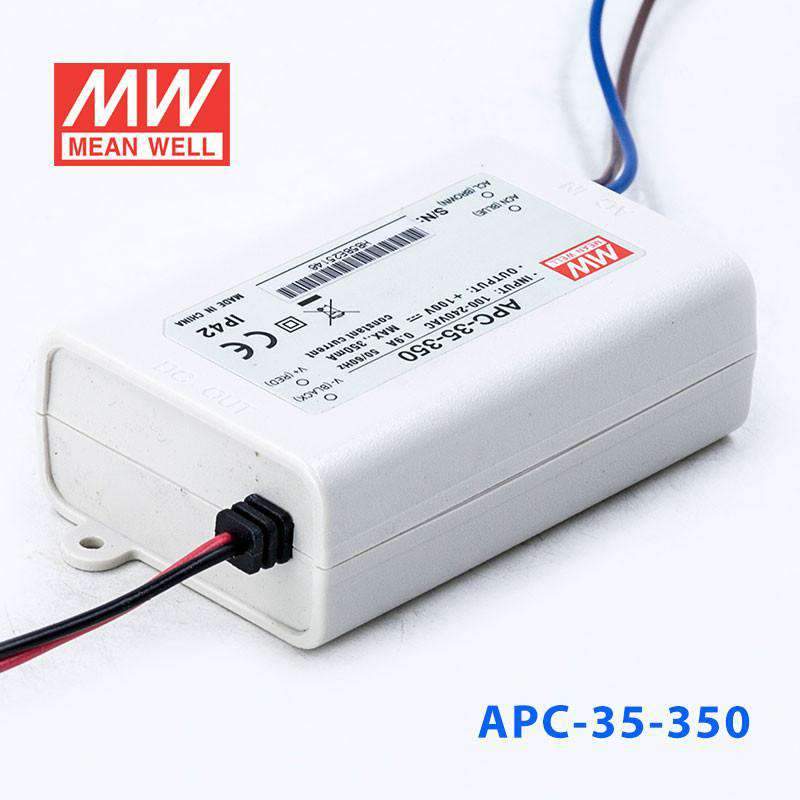

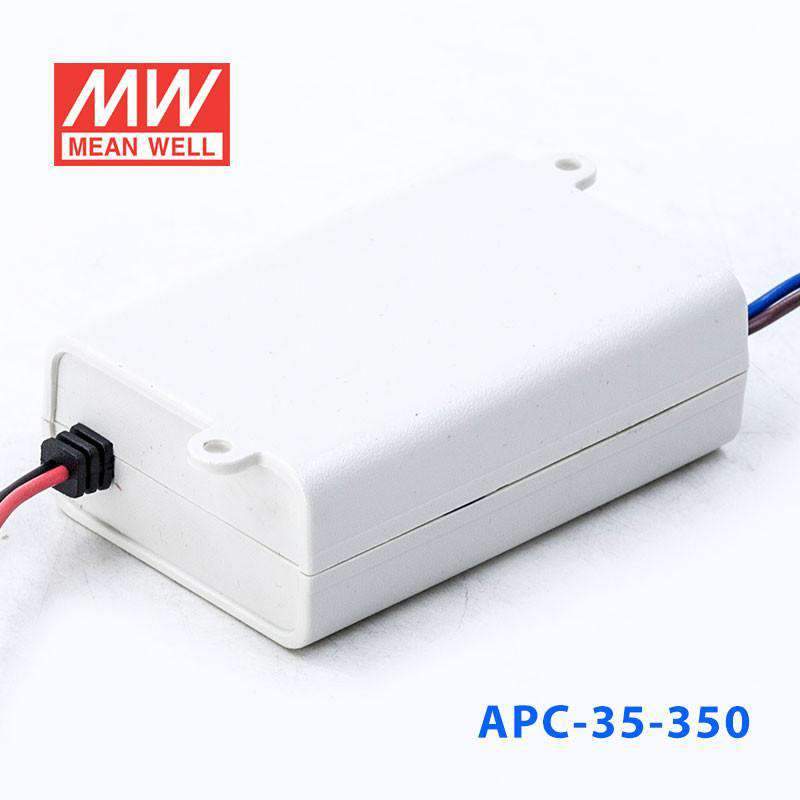

Mean Well APC-35-350 Power Supply 35W 350mA
Overview
APC-35-350 is the model of this series: rated current 350mA, rated power 35W, typical efficiency 84%.
Features
- Constant current mode power supply
- Universal AC input / Full range
- Withstand 300VAC Surge input for 5 seconds
- Protections:Short circuit / Over voltage
- Fully isolated plastic case
- Small and compact size
- Cooling by free air convection
- IP42 design
- 100% full load burn-in test
- Display devices for decorative & advertising accessories (Note.6)
- Low cost / High reliability
- 2 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 350mA
- DC VOLTAGE RANGE
- 28~100V
- RATED POWER
- 35W
- CURRENT RIPPLE
- 5.0%
- CURRENT ACCURACY
- ±8.0%
- SETUP, RISE TIME
- 1500ms, 40ms / 230VAC 1500ms, 40ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.2
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 84%
- AC CURRENT
- 0.5A/230VAC;0.75A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=490μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER VOLTAGE
- 110 ~ 130V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ 70℃(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.2%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), BIS IS15885(only for APC-35-700&1050), EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 550.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 84*57*29.5(L*W*H)
- PACKING
- 0.18Kg; 72pcs/14Kg/0.92CUFT
Certifications & ratings
- IP42
- IP42
- Marked features
- LPS
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Derating may be needed under low input voltage. Please check the static characteristic for more details.
- 3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 6. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
Technical drawings
Downloads
FAQ
What kinds of LED applications is the APC-35-350 designed for?
The Mean Well APC-35-350 is designed for constant-current LED lighting and moving sign applications that need a 350mA drive current. With 35W rated power and a 28-100V DC output voltage range, it is suited to 350mA LED loads whose forward voltage falls within that range.
Is the APC-35-350 a good fit for 350mA LED loads?
Yes. The APC-35-350 is a constant-current LED driver rated at 350mA, so it should be matched to LED loads designed for that current level. The load also needs to stay within the driver's voltage and power capability.
Can the APC-35-350 be used for longer or higher-voltage 350mA LED strings than the APC-25-350?
The APC-35-350 drives 350mA over a 28-100V DC output range with 35W rated power, so it can supply 350mA strings whose total forward voltage stays within 28-100V. The APC-25-350 is not covered by this datasheet, so compare against its own sheet before choosing.
Will the APC-35-350 run on standard AC mains supplies?
Yes. The specified input range is 90-264VAC, so the APC-35-350 can operate from common 120V and 240V mains systems within that range. That helps standardize the same driver across multiple indoor lighting environments.
Is the APC-35-350 intended for direct outdoor installation?
No. The APC-35-350 is rated IP42, which means it is better suited to indoor use or protected enclosures rather than direct exposure to weather. Its listed working temperature is -30°C to +70°C (refer to the derating curve), but ingress protection remains limited.
How does the APC-35-350 compare with other APC-35 drivers?
The APC-35-350 provides 35W at 350mA, while the APC-35-500, APC-35-700, and APC-35-1050 are designed for 500mA, 700mA, and 1050mA LED loads respectively. The main selection rule is to match the constant-current rating to the LED load rather than choosing only by wattage.
