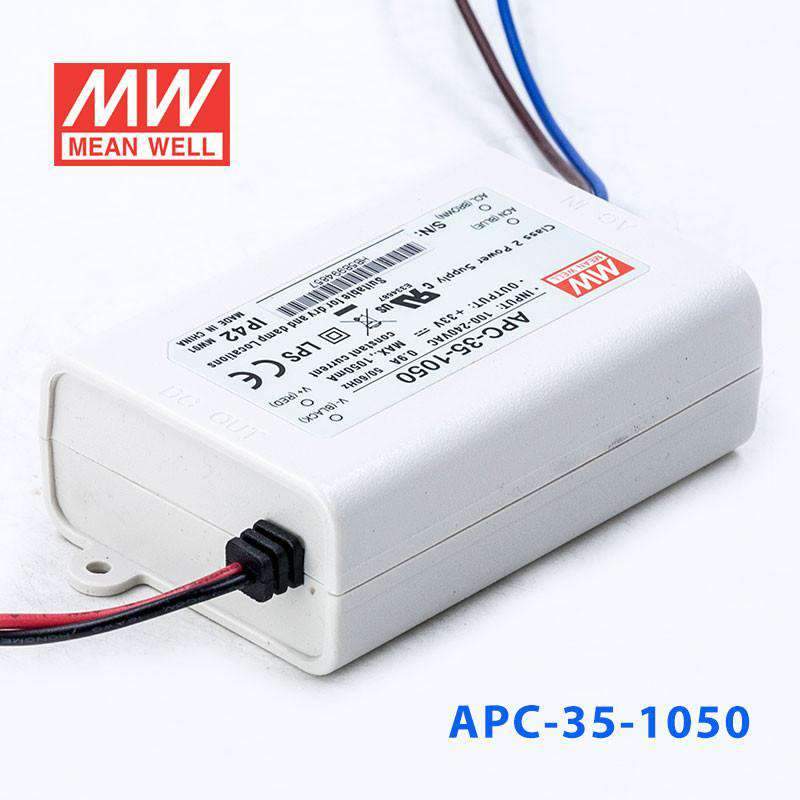

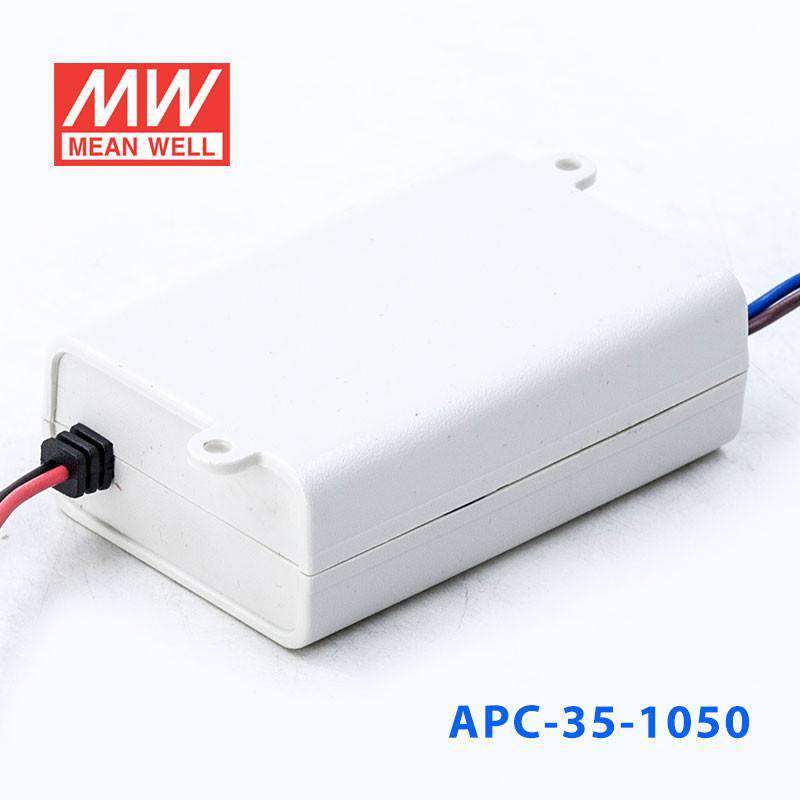

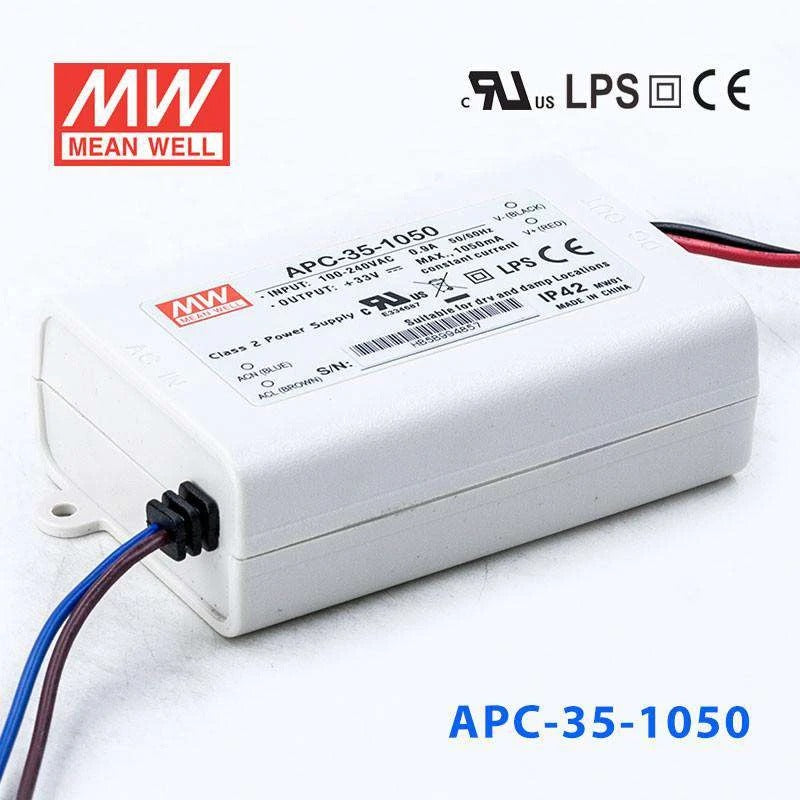

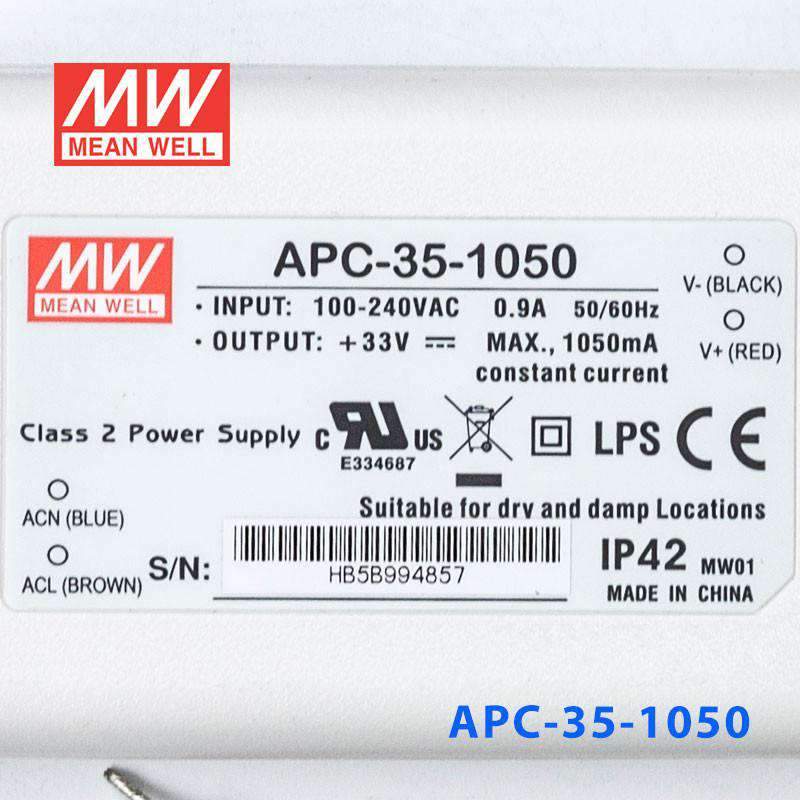

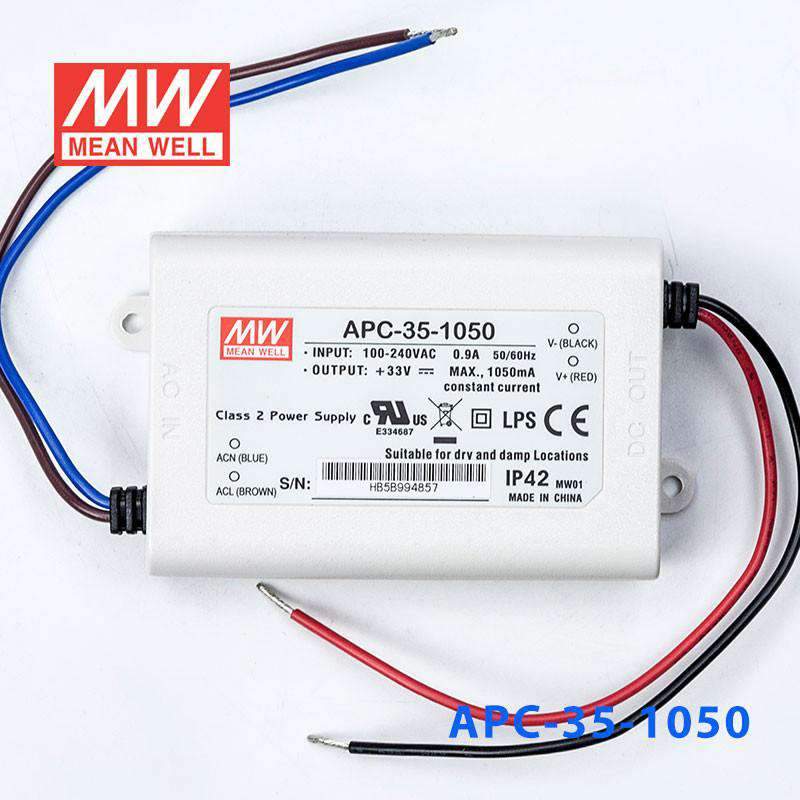

Mean Well APC-35-1050 Power Supply 35W 1050mA
Overview
APC-35-1050 is the model of this series: rated current 1050mA, rated power 34.7W, typical efficiency 84%.
Features
- Constant current mode power supply
- Universal AC input / Full range
- Withstand 300VAC Surge input for 5 seconds
- Protections:Short circuit / Over voltage
- Fully isolated plastic case
- Small and compact size
- Cooling by free air convection
- IP42 design
- 100% full load burn-in test
- Display devices for decorative & advertising accessories (Note.6)
- Low cost / High reliability
- 2 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1050mA
- DC VOLTAGE RANGE
- 11~33V
- RATED POWER
- 34.7W
- CURRENT RIPPLE
- 5.0%
- CURRENT ACCURACY
- ±8.0%
- SETUP, RISE TIME
- 1500ms, 40ms / 230VAC 1500ms, 40ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.2
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 84%
- AC CURRENT
- 0.5A/230VAC;0.75A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A(twidth=490μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER VOLTAGE
- 36 ~ 43V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ 70℃(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.2%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), BIS IS15885(only for APC-35-700&1050), EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2 Class A,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 4955.9K hrs min. Telcordia SR-332 (Bellcore) ; 550.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 84*57*29.5(L*W*H)
- PACKING
- 0.18Kg; 72pcs/14Kg/0.92CUFT
Certifications & ratings
- IP42
- IP42
- Marked features
- LPS
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Derating may be needed under low input voltage. Please check the static characteristic for more details.
- 3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 6. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
Technical drawings
Downloads
FAQ
What is the APC-35-1050 typically used for?
The Mean Well APC-35-1050 is typically used for constant-current LED lighting and moving sign applications that need a 1050mA drive current. It is rated at 34.7W with an 11-33V DC output voltage range, so the LED load's forward voltage needs to fall within that range.
Is the APC-35-1050 a good fit for 1050mA LED loads?
Yes. The APC-35-1050 is designed as a constant-current LED driver rated at 1050mA, so it should be matched to LED loads specified for that current level. The connected load also needs to stay within the driver's output capability and rated power.
Can the APC-35-1050 be used for indoor LED lighting or moving sign projects?
Yes. The APC-35-1050 is suitable for indoor sign and lighting assemblies that are designed for 1050mA constant-current operation and fit within the driver's electrical rating. Note that the sheet states it is not intended for LED lighting luminaire applications in the EU and China.
Will the APC-35-1050 operate from common AC mains input?
Yes. The listed AC input range is 90-264VAC, so the APC-35-1050 can operate from common 120V and 240V AC mains systems within that range. That makes it practical for a wide range of standard lighting installations.
Is the APC-35-1050 suitable for exposed outdoor use?
No. The APC-35-1050 is rated IP42, so it should generally be used indoors or in a protective enclosure rather than in direct outdoor exposure. Its working temperature is listed as -30°C to +70°C (refer to the derating curve), but ingress protection is still limited.
How does the APC-35-1050 compare with other APC models?
The APC-35-1050 provides 34.7W at 1050mA, while the APC-35-350, APC-35-500, and APC-35-700 serve lower current classes at 350mA, 500mA, and 700mA with 35W each. The key choice is matching the driver current to the LED load and then checking that the load's voltage fits the model's output range.
