Mean Well

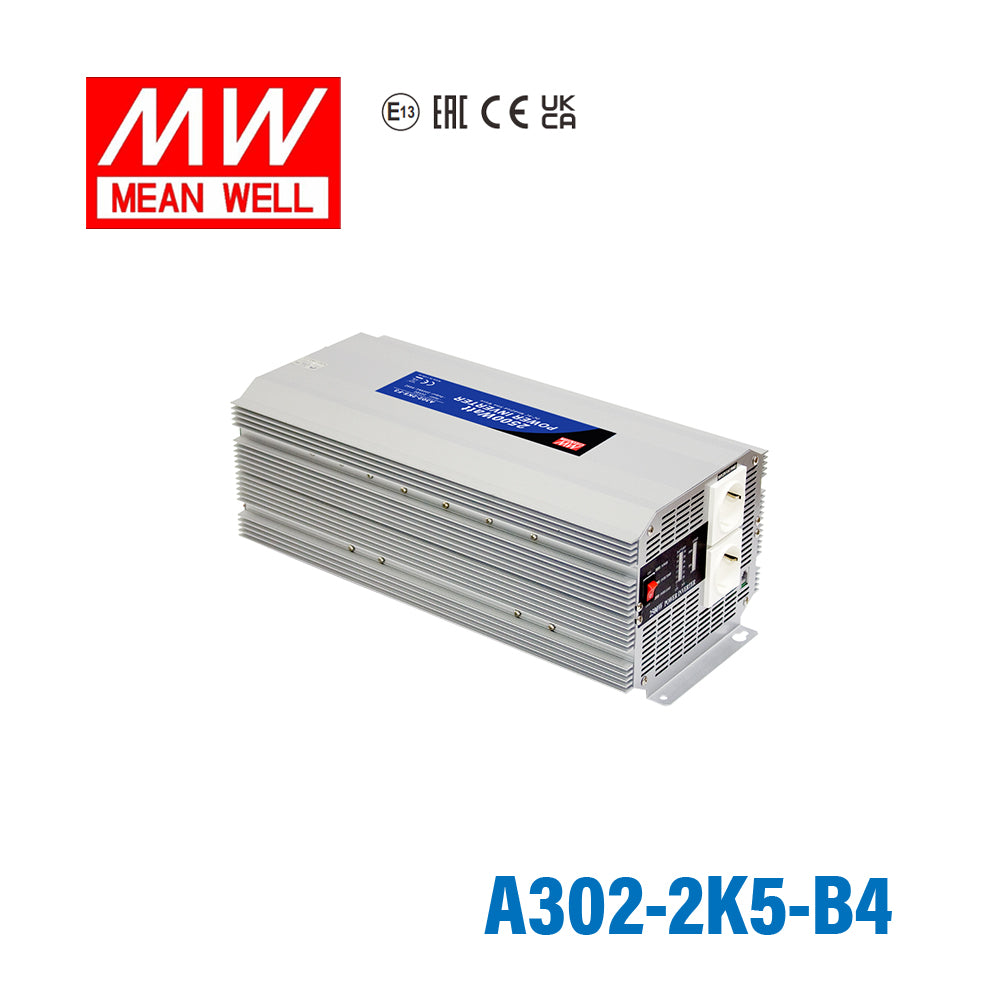

Mean Well A302-2K5-B4 Modified sine wave 2500W 110V - DC-AC Inverter

SKU A302-2K5-B4
$683.73 USD
Shipping calculated at checkout.
Available to order
|

Overview

A302-2K5-B4 is the model of this series: rated power 2500W, typical efficiency 85%.

Features

  • 12V or 24V DC input
  • Power ON-OFF switch
  • Input voltage range: -15% ~ +25%
  • Output voltage regulation:±10%
  • Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
  • Output waveform: Modified sine wave
  • Cooling fan ON-OFF control
  • ON/OFF remote control(Optional/Order No.: RC-2500)
  • Approvals: E13/ EAC / CE / UKCA
  • 1 year warranty

Specifications

A302-2K5-B4Specifications from the official datasheet (2023-05-02 edition)Download datasheet PDF

OUTPUT

SAFETY MODEL NO.
A302-2K5
AC VOLTAGE
110V
RATED POWER
2500W
SURGE POWER
5000W
WAVEFORM
Modified Sine Wave
FREQUENCY
60Hz±1%
AC REGULATION
±10%
STANDARD RECEPTACLES
TYPE-2* 2ea
LED INDICATOR
Green LED for power on; Yellow LED for O.T.P.; Red LED for O.L.P.; Battery V/A meter

INPUT

DC CURRENT
130A
NO LOAD CURRENT DRAW
0.6A
DC VOLTAGE
24V
VOLTAGE RANGE
21 ~ 30VDC
EFFICIENCY (Typ.)
85%
DC CONNECTOR
None
FUSE
15A*12

PROTECTION

BAT. LOW ALARM
21±0.8V
BAT. LOW SHUTDOWN
20±0.8V
OVER LOAD
>2700W shut down o/p voltage, re-power to recover
OVER VOLTAGE
30 ~ 32V
OVER TEMPERATURE
60±5℃/ 140±9oF
OUTPUT SHORT
Shut-off
BAT. POLARITY
By fuse open

ENVIRONMENT

WORKING TEMP.
0 ~ +25℃@100% load
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 004 approved
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMI RADIATION
Compliance to BS EN/EN55014-1, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
LVD
Compliance to BS EN/EN62368-1

OTHERS

MTBF
37Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
430*210*159mm (L*W*H)
PACKING
8.7kg ; 2pcs / 19kg / CARTON
COOLING
>40℃ (NTC) fan on
APPLICATIONS
Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.

Technical drawings

A302-2K5-B4 Mechanical Specification
Mechanical Specification

Downloads

FAQ

What is the Mean Well A302-2K5-B4 designed for?

The Mean Well A302-2K5-B4 is a DC-AC inverter built to deliver up to 2500W of AC output power. It is intended for applications that need 110V AC output from a DC power source and use a modified sine wave inverter.

What output does this inverter provide?

This model is rated for 2500W output power and provides 110V AC output. Its output waveform is modified sine wave, and the listed output voltage regulation is plus or minus 10%.

Is the A302-2K5-B4 a pure sine wave inverter?

No, this model uses a modified sine wave output rather than a pure sine wave output. That makes it important for buyers to confirm that their intended equipment is suitable for operation on a modified sine wave inverter.

What DC input options are supported by this model family?

The A302-2K5-B4 runs from a 24V DC battery system, with an input voltage range of 21 to 30VDC. Within the A301/302-2K5 series, the 12V DC input versions are the A301 models, so buyers should confirm their battery voltage before ordering.

What protection features are included on the A302-2K5-B4?

This inverter includes battery low alarm, battery low shutdown, over voltage, over temperature, output short, battery reverse polarity (by fuse open), and overload protection. The product data also notes shut-off behavior for output short conditions.

What operating environment is this inverter rated for?

The listed working temperature is 0 to +25 degrees C at 100% load. The over temperature protection is specified at 60 plus or minus 5 degrees C, and the cooling fan is NTC-controlled and turns on above 40 degrees C.

What certifications and warranty come with this model?

The A302-2K5-B4 is EAC TP TC 004 approved and carries the E13 mark on its spec sheet, with compliance to BS EN/EN62368-1 and BS EN/EN55014-1/-2. The spec sheet does not state a warranty period.
