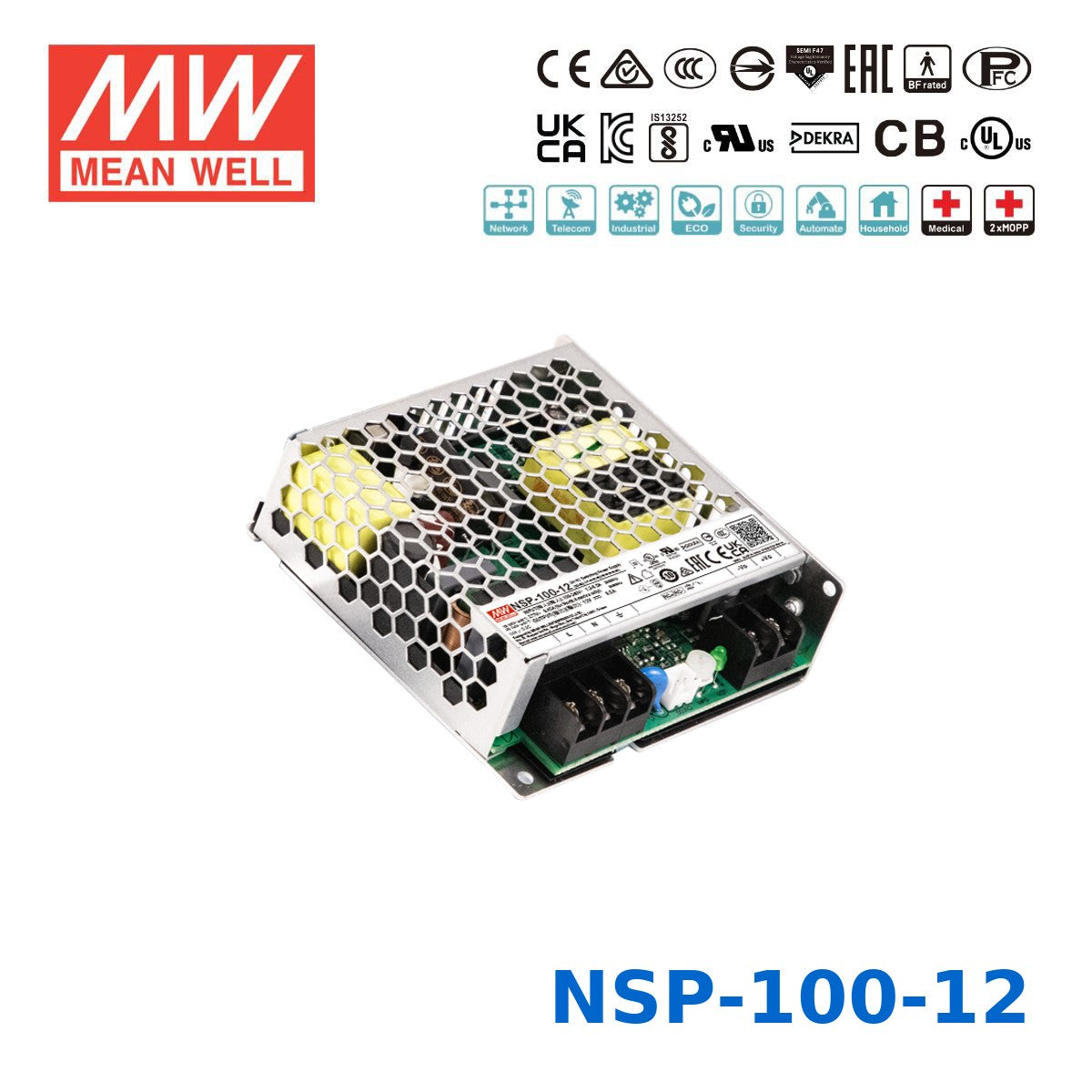

Mean Well 102W High Reliable Multi-Industries Power Supply 12V 8.5A

Name: Mean Well 102W High Reliable Multi-Industries Power Supply 12V 8.5A
Brand: Mean Well
SKU: NSP-100-12
Price: 32.77 USD
Availability: InStock

$32.77 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.

Key Features

Specifications

Brand

Mean Well
Series

NSP Series
Power Rating

102 Watt
Output Voltage

12 Volt
Rated Current

8.5 Ampere
Input Voltage

85V~305V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

3.9 in
Width

3.82 in
Height

1.18 in
Weight

0.66 lb

File Downloads

::specification::
