Description
Description

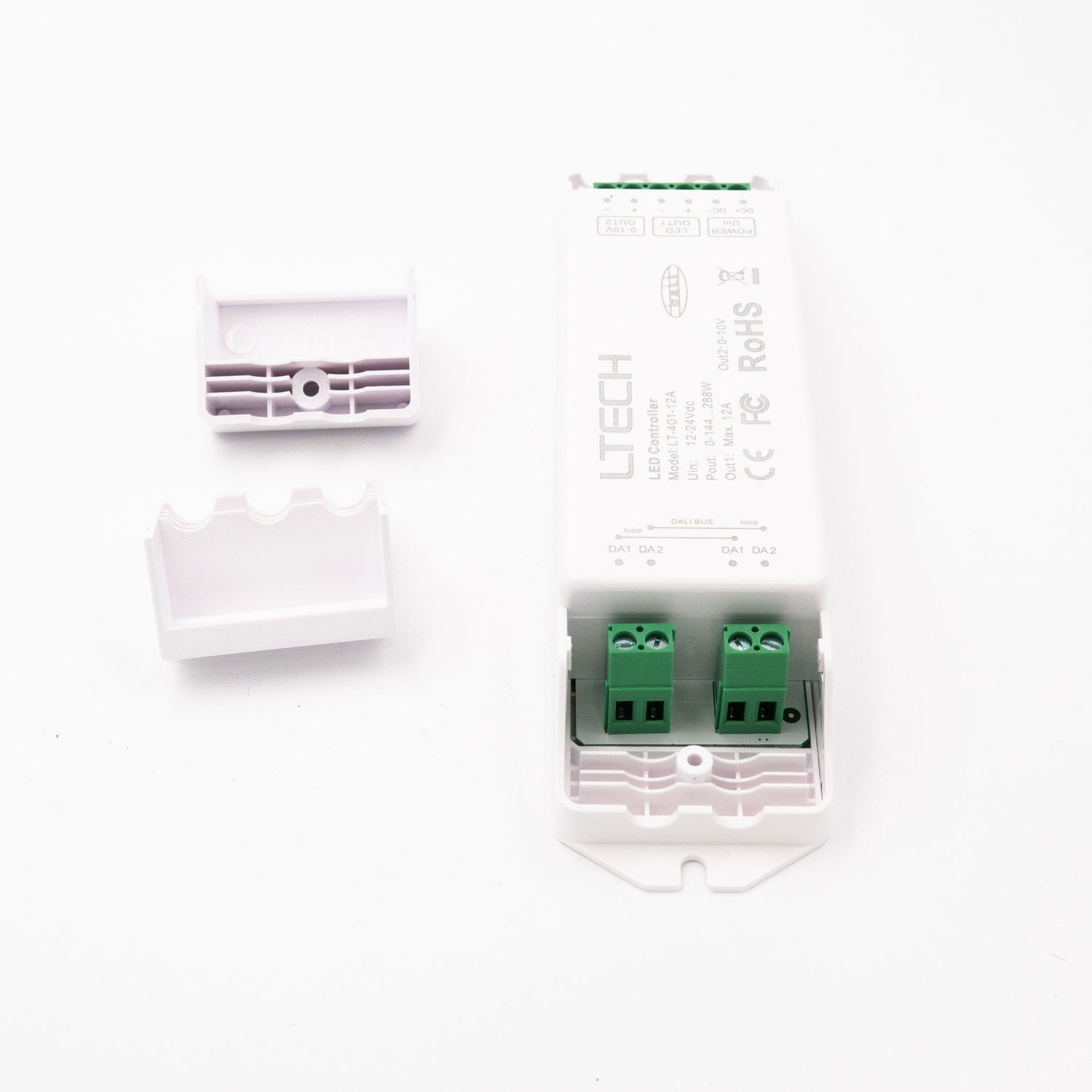

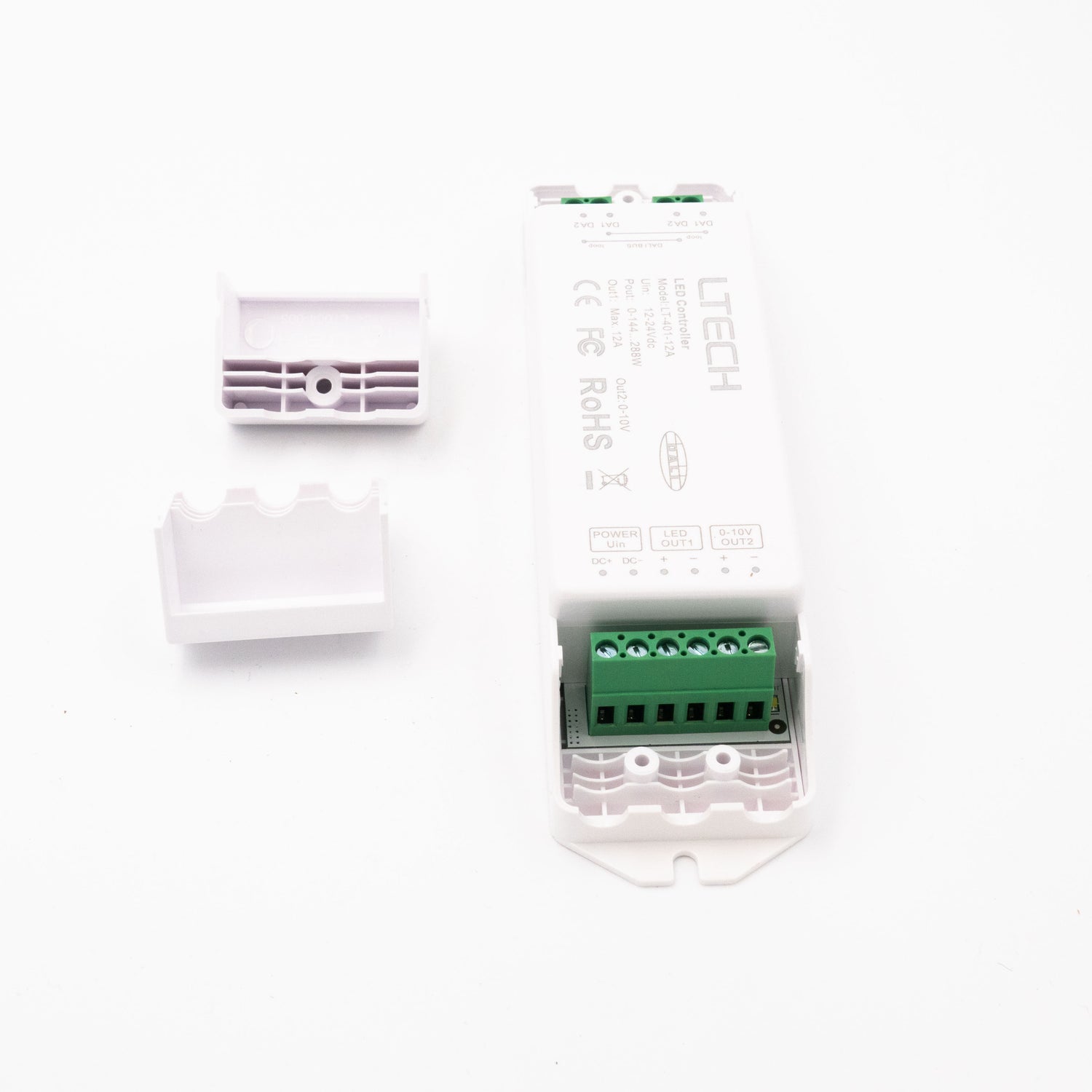

The dimmer module requires a low voltage input and a DALI signal from a suitable DALI Controller. The input and output is via screw terminals on the sides of the unit.
The DALI dimmer module operates on a low voltage 12~24V DC circuit, providing a PWM output for powering and dimming LED's. A 0-10V signal output is also provided.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating288 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.31 lb
