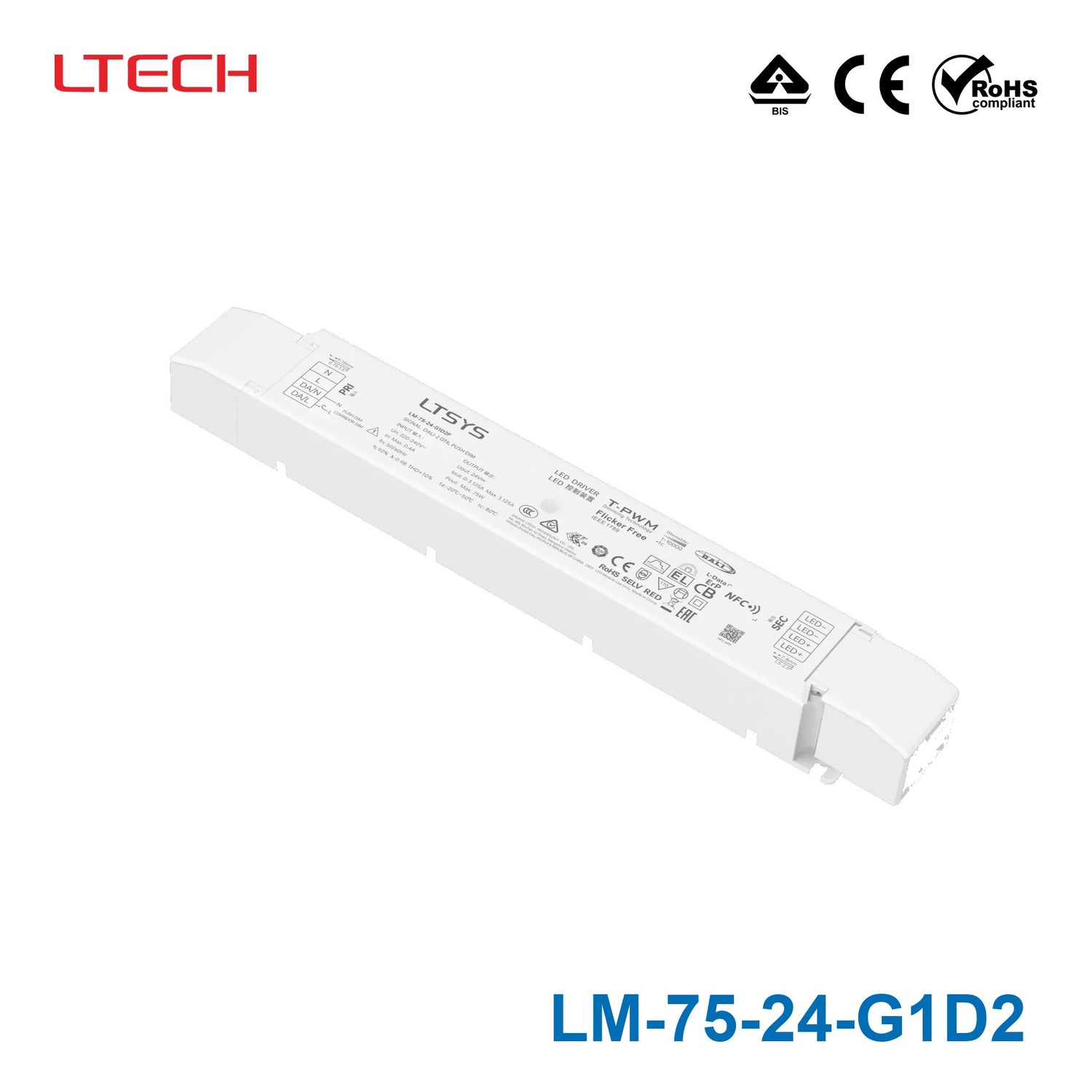

Ltech LM-75-24-G1D2 75W 24VDC CV DALI2 LED Driver 3.125A
$78.95 USD
$172.83
Unit price /
Unavailable
Description
Description
The Ltech LM-75-24-G1D2 is a constant voltage LED driver rated for 24VDC output. It delivers up to 75W of power with a rated output current of 3.125A. the LM-75-24-G1D2 is designed for lighting applications that require DALI dimming control.
Input 220~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 220~240VAC
- ✓Dimming: DALI, Push DIM
- ✓Output voltage: 24V
- ✓Rated output current: 3.125A
- ✓Rated power: 75W
- ✓Ingress protection: IP20
- ✓Operating temperature: -20~+50°C
- ✓Certifications: BIS, CE, ROHS
- ✓Dimensions: 293 x 43 x 30mm
- ✓5 year warranty
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
