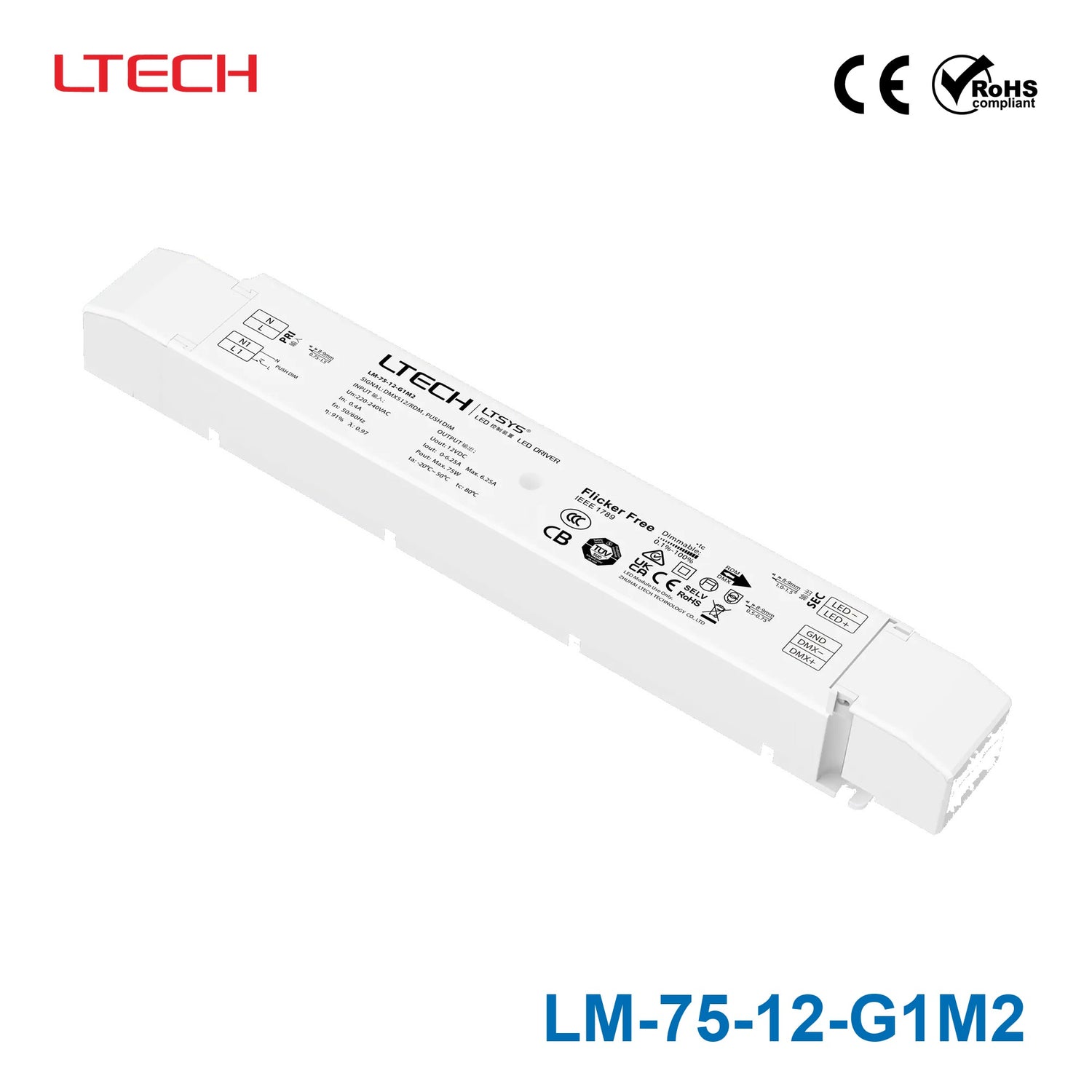

Ltech LM-75-12-G1M2 75W 24VDC CV DMX LED Driver - DMX dimmable
$69.86 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: DMX512/RDM
- Push DIM.
- Supports RDM remote device management protocol.
- Withsoft-onandfadeinfunction
- visualmorecomfortable
- 0-100% flicker-free
- High Frequency Exemption
- In line with the EU energy efficiency ERP directive
- standby power consumption < 0.5W
- Innovative thermal management technology
- intelligent power life protection.
- Short circuit / Over-heat / Over load protection
- short circuit protection
- recover automatically
- Full protective plastic housing.
- Suitable for indoor I/II/IIItype lamps application
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage220V~240V
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
