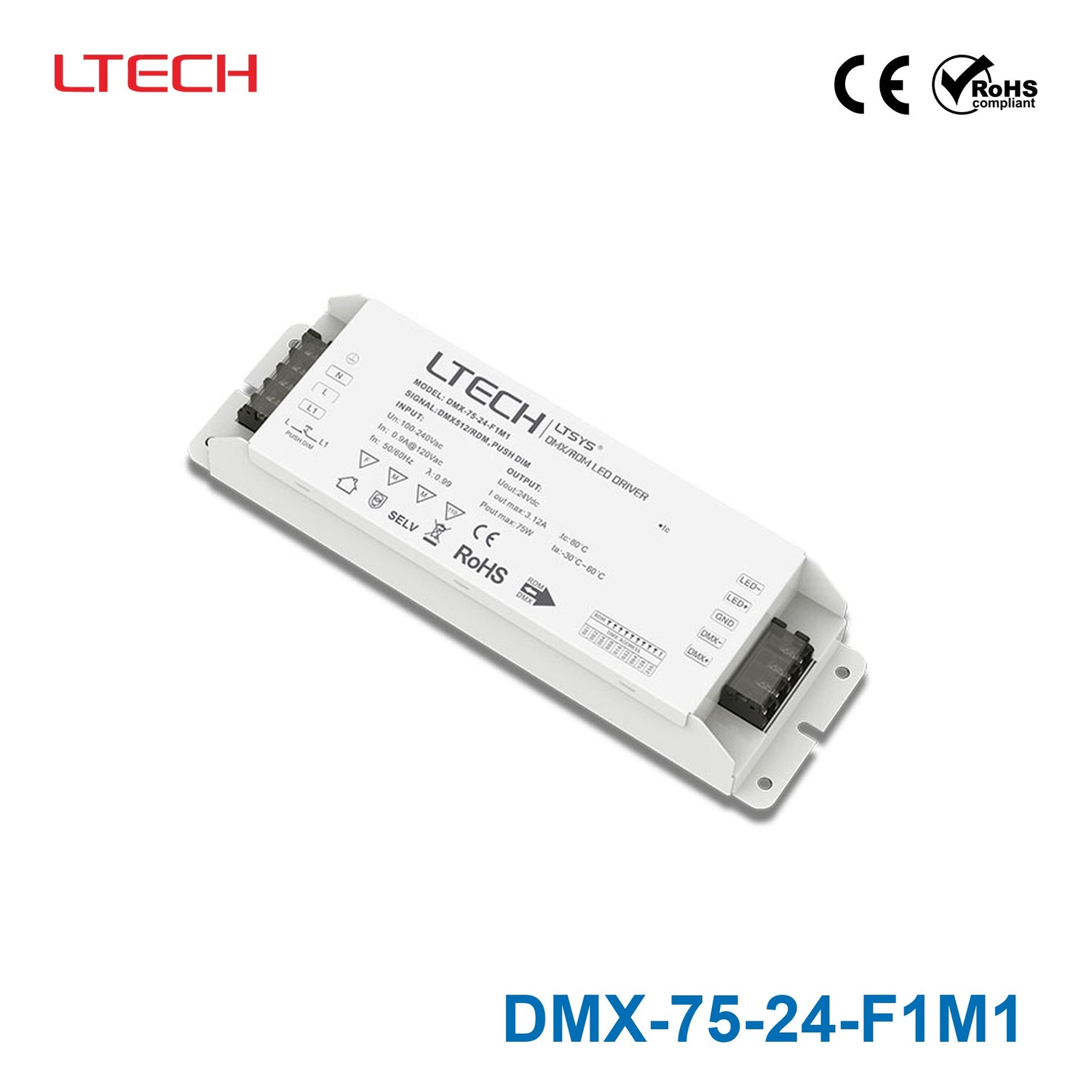

LTECH DMX-75-24-F1M1 75W 24VDC CV DMX LED Driver - DMX dimmable

$72.96 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

  • Dimming interface: DMX512/RDM
  • Push DIM.
  • With the RDM remote device management protocol.
  • Supports DMX512 signal bi-directional communication.
  • PWM digital dimming
  • no alter LED colorrendering index.
  • 0~100% flicker-free
  • achieve the level of exemption assessment.
  • Dimming range from 0-100%
  • LED start at 0.1%possible.
  • Short circuit / Over-heat / Over load protection
  • short circuit protection
  • recover automatically
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for indoor I/II/IIItype lamps application

Specifications

  • Brand
    Ltech
  • Series
    Ltech DMX Series
  • Power Rating
    75 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.12 Ampere
  • Input Voltage
    100V~240V
  • Standards Met
    CE,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~60°C
  • Warranty
    5 Year
  • Length
    8.03 in
  • Width
    2.44 in
  • Height
    1.34 in
  • Weight
    1.08 lb

File Downloads

::specification::
