Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

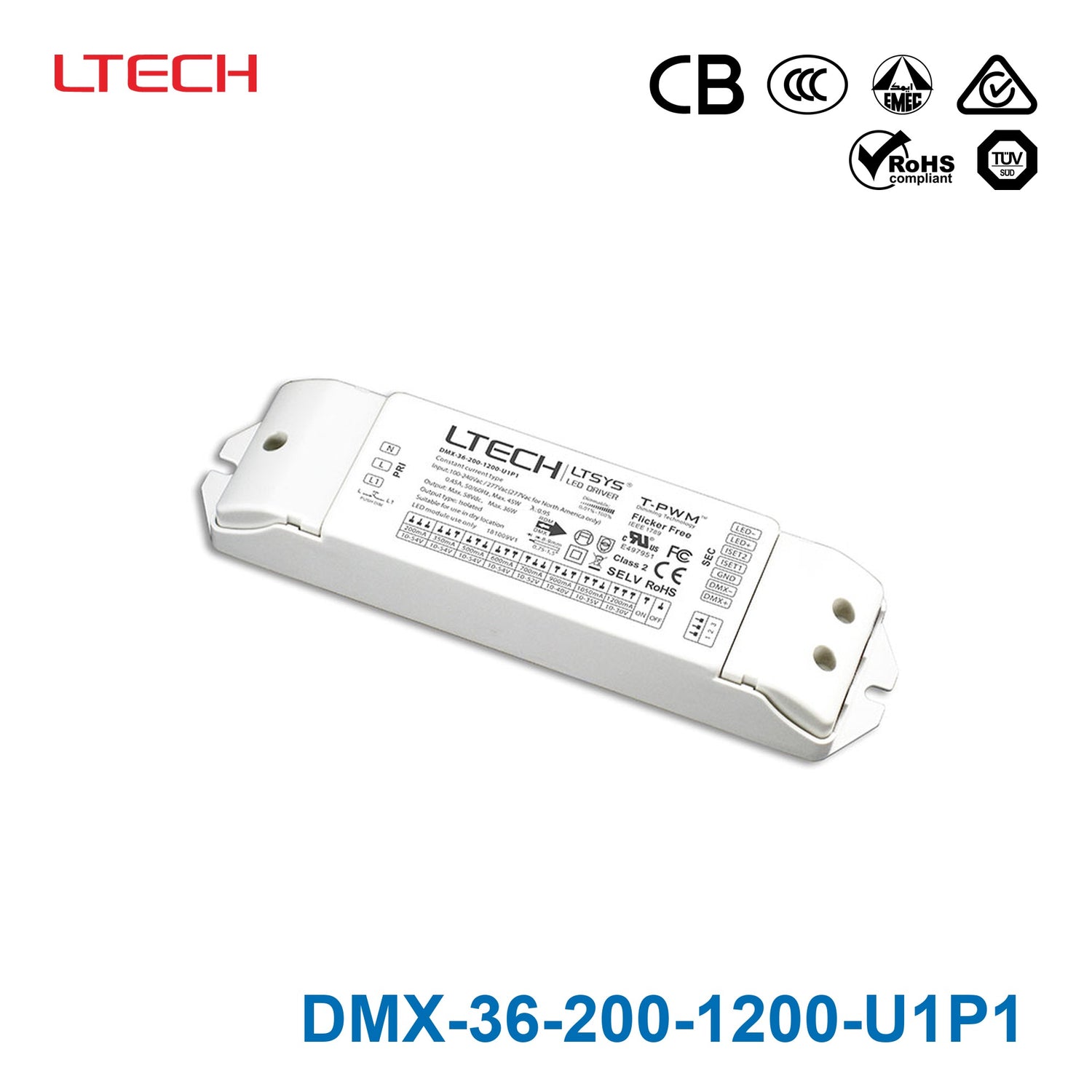

Ltech DMX-36-200-1200-U1P1 36W 200~1200mA CC DMX LED Driver - Selec...
$54.78 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: DMX512/RDM
- Push DIM
- T-PWM digital dimming
- With RDM remote device management protocol.
- DIP switch for 8 optional currents' quick selection.
- 0-100% flicker-free
- High Frequency Exemption
- Dimming range from 0-100%
- LED start at 0.01%possible.
- Innovative thermal management technology
- intelligent power life protection.
- Multi-current & wide voltage
- suitable for different power LED.
- Short circuit / Over load/Over heat/Over voltage
- Non-load protection
- recover automatically
- Non-load output voltage 0V to prevent damages to LED caused by poor contact
- Suitable for indoor I/II/III
- 5 years warranty (Rubycon capacitor).
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating36 Watt
-
Output Voltage58 Volt
-
Rated Current0.2 Ampere
-
Input Voltage100V~277V
-
Standards MetCB,CCC,EMEC,RCM,ROHS,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.02 lb
File Downloads
File Downloads
::specification::
