Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

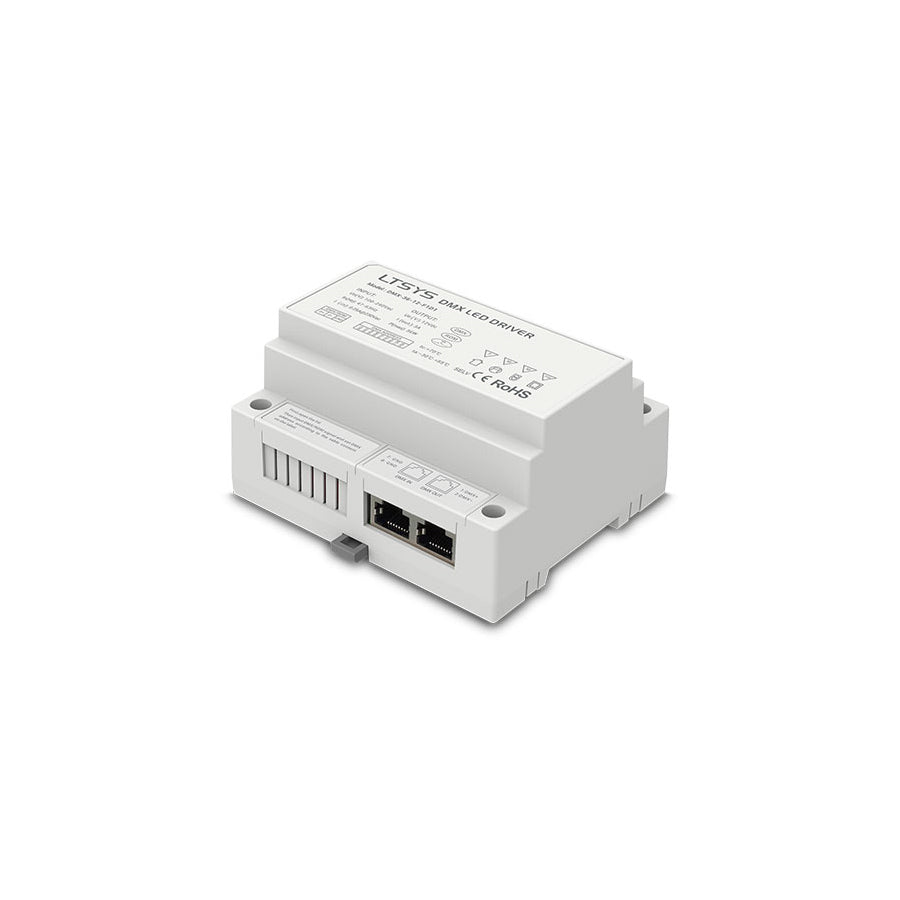

LTECH DMX-36-12-F1D1 36W 12VDC CV DMX LED Driver - DMX dimmable
$36.96 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: DMX512/RDM
- Push DIM.
- With the RDM remote device management protocol.
- Supports DMX512 signal bi-directional communication.
- PWM digital dimming
- no alter LED colorrendering index.
- Power factor > 0.99
- efficiency > 84%
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Short circuit / Over-heat / Over load protection
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor environments
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.21 in
-
Width3.5 in
-
Height2.28 in
-
Weight0.62 lb
File Downloads
File Downloads
::specification::
