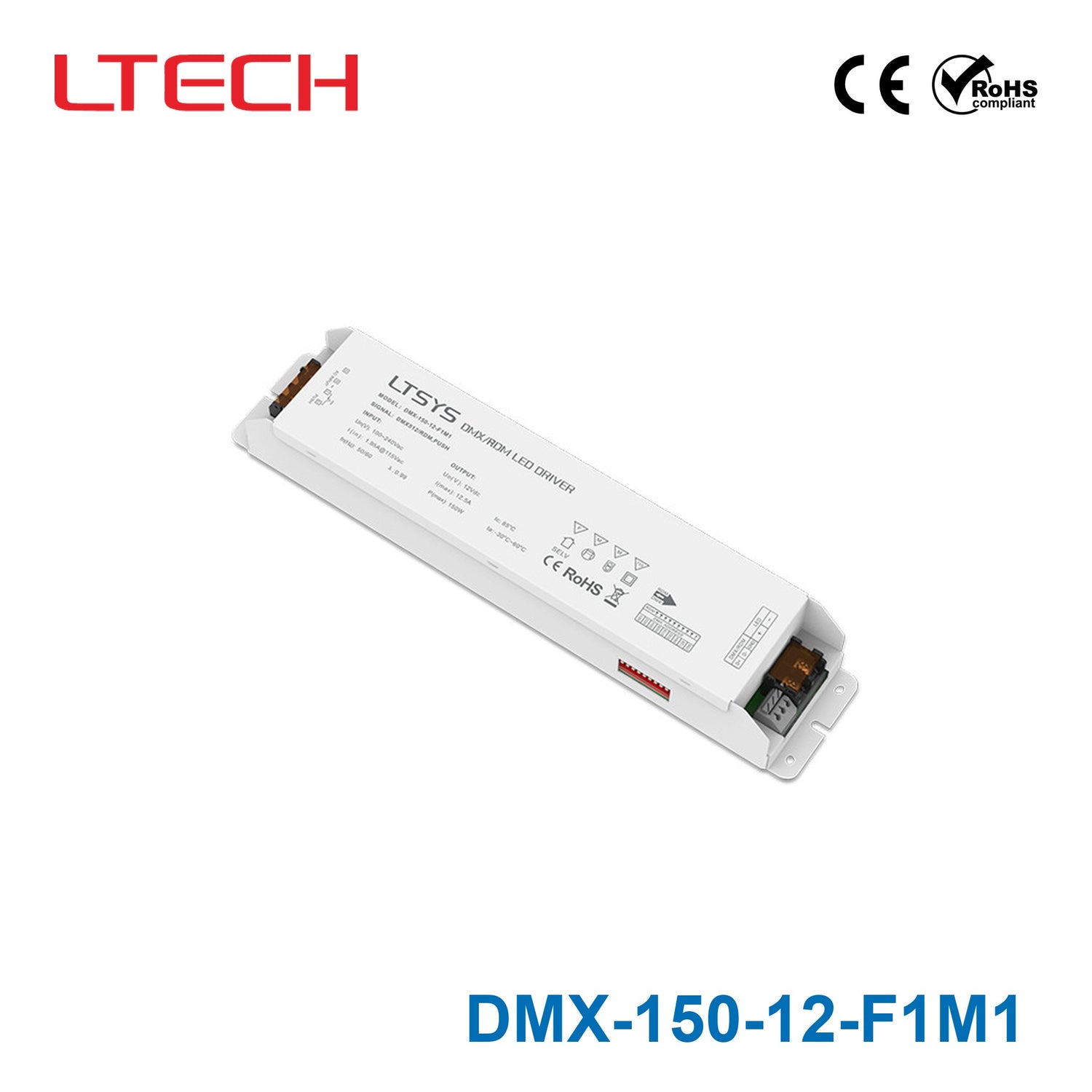

LTECH DMX-150-12-F1M1 150W 12VDC CV DMX LED Driver - DMX dimmable 1...
$108.28 USD
$202.32
Unit price /
Unavailable
- Dimming interface: DMX512/RDM
- Push DIM.
- With the RDM remote device management protocol.
- PWM digital dimming
- no alter LED colorrendering index.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Short circuit / Over-heat / Over load protection
- short circuit protection
- recover automatically
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/IIItype lamps application
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length10.75 in
-
Width2.24 in
-
Height1.46 in
-
Weight1.74 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DMX-150 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Ltech DMX-150-12-F4M1 150W 12VDC CV DMX LED Driver - DMX dimmable 12.5A | 150W | 12V | 12.5A | Indoor | View |
