Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

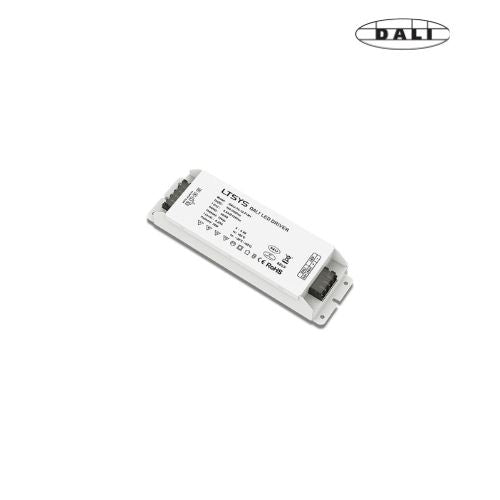

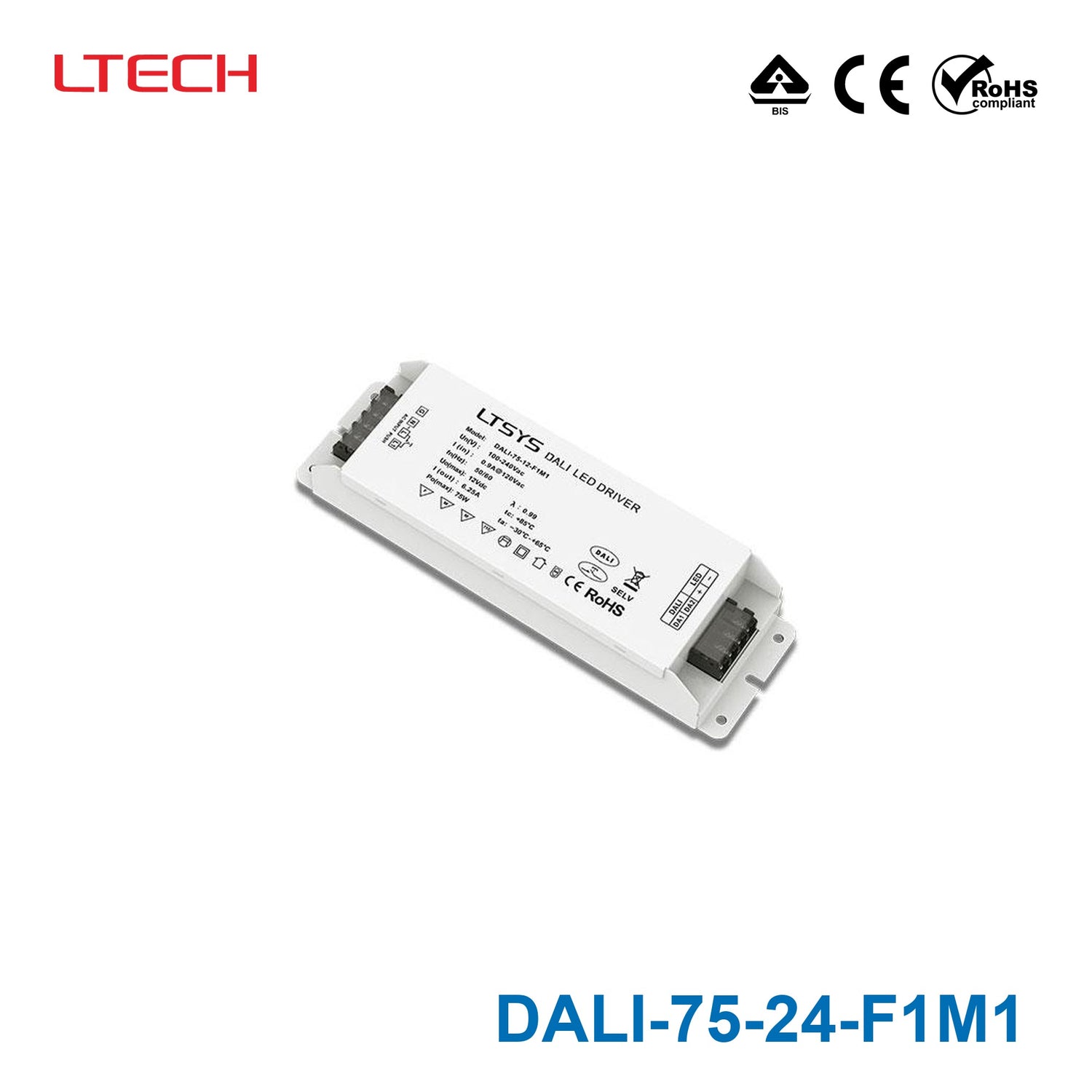

LTECH DALI-75-24-F1M1 75W 24VDC CV DALI LED Driver
$75.87 USD
Unit price /
Unavailable
Description
Description
| Dimming interface | DALI/PUSH DIM |
| Dimming range | 0-100% |
| Input voltage | 100-240VAC |
| Power factor | >0.99 |
| Efficiency | >86% |
| Output voltage | 24VDC |
| Output power | 75W |
| Output current | 3.1A |
| Working temperature | -30℃～65℃ |
| Dimension | 204x62x34mm(LxWxH) |
| Package Size | 206x64x36mm(LxWxH) |
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage100V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length8.03 in
-
Width2.44 in
-
Height1.34 in
-
Weight1.08 lb
