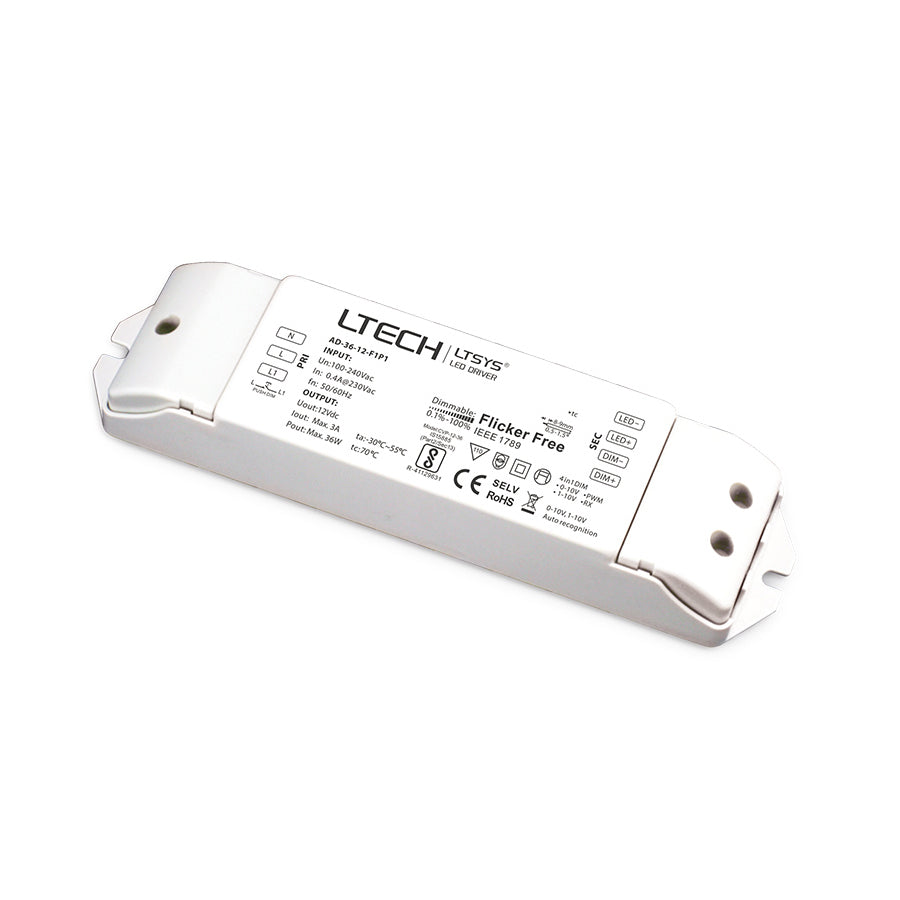

LTECH AD-36-12-F1P1 36W 12Vdc CV LED Driver - 0/1-10Vdimmable
$34.37 USD
Unit price /
Unavailable
Description
Description
- Dimming interface: 0-10V (1-10V/10V PWM/RX)
- Push Dim
- Built-in SCM
- dimming curve and smoothing time of power on can be customized
- Automatic recognition of 0-10V
- 1-10V input signal
- Dimming range:0~100%
- LED start at 0.1% possible.
- 0-100% flicker-free
- achieve the level of exemption assessment.
- Short circuit / Over-heat / Over load protection
- recover automatically
- Class 2 power supply. Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard
- Over load / Over-heat / Short circuit protection
- Suitable for indoor lamps application for I/II/III
Specifications
Specifications
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage100V~240V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.42 lb
