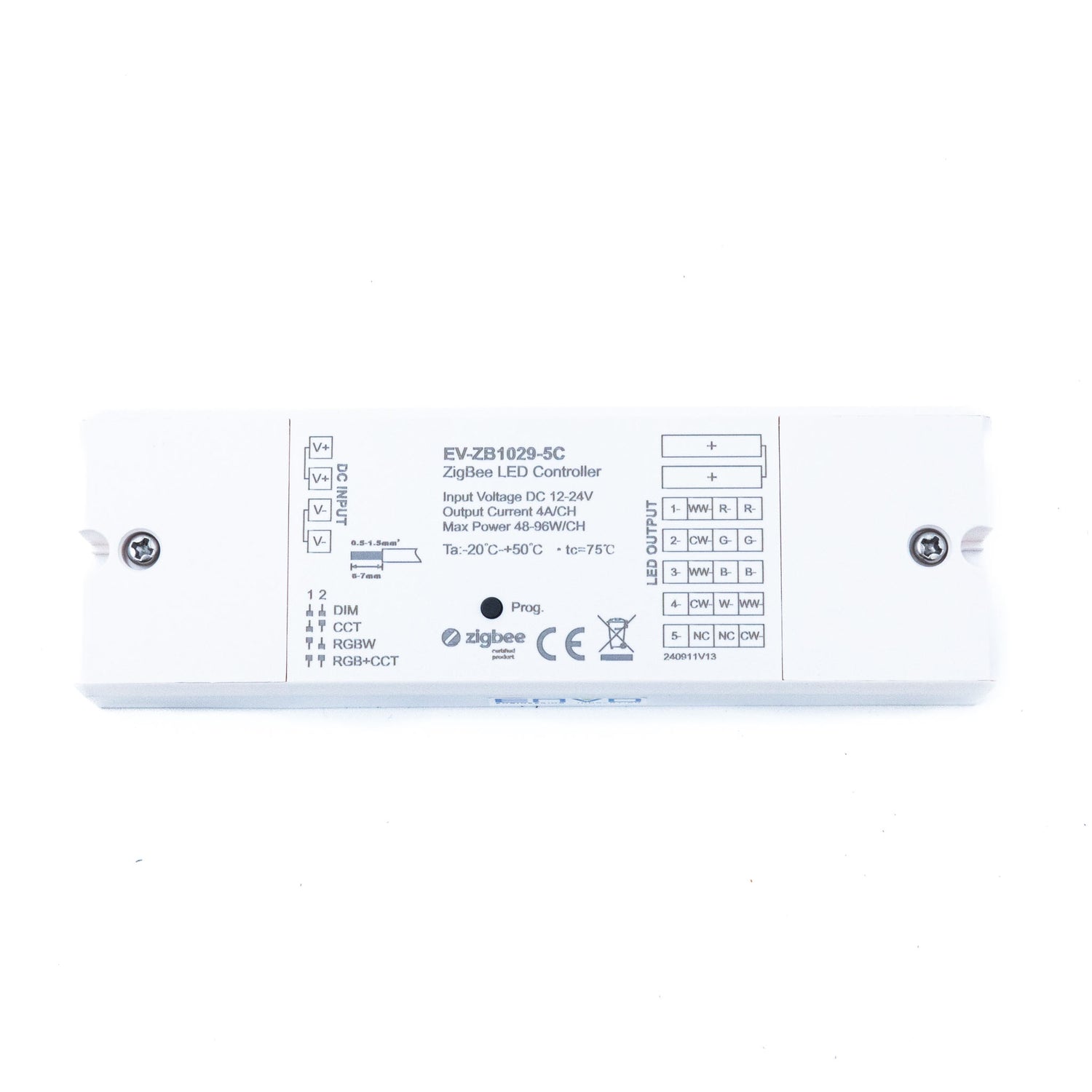

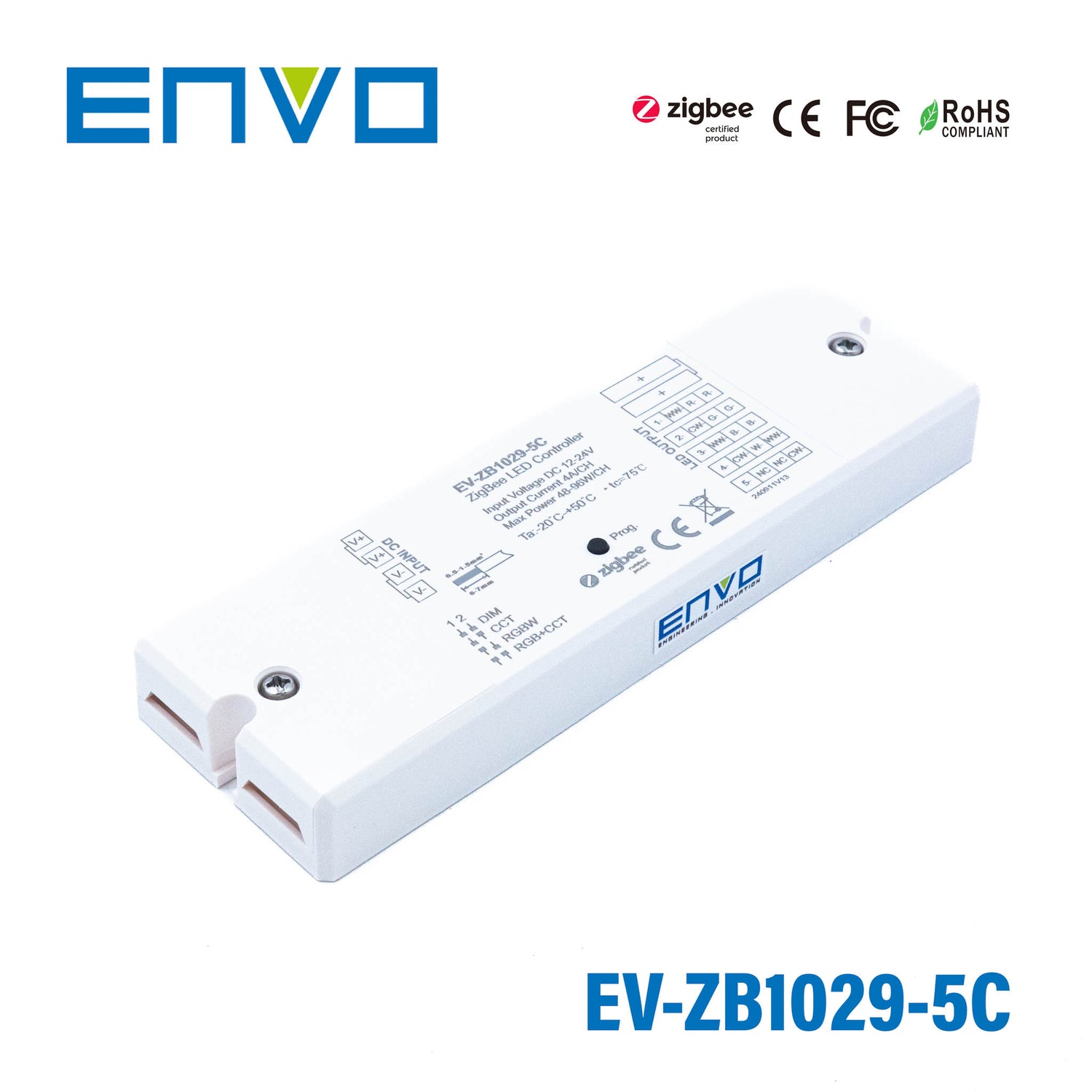

ENVO ZigBee Super Thin 5 Channel Controller 12-24V 4A per Channel

$49.03 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features:

  • 4 in 1 universal Zigbee LED controller based on the latest ZigBee 3.0 protocol

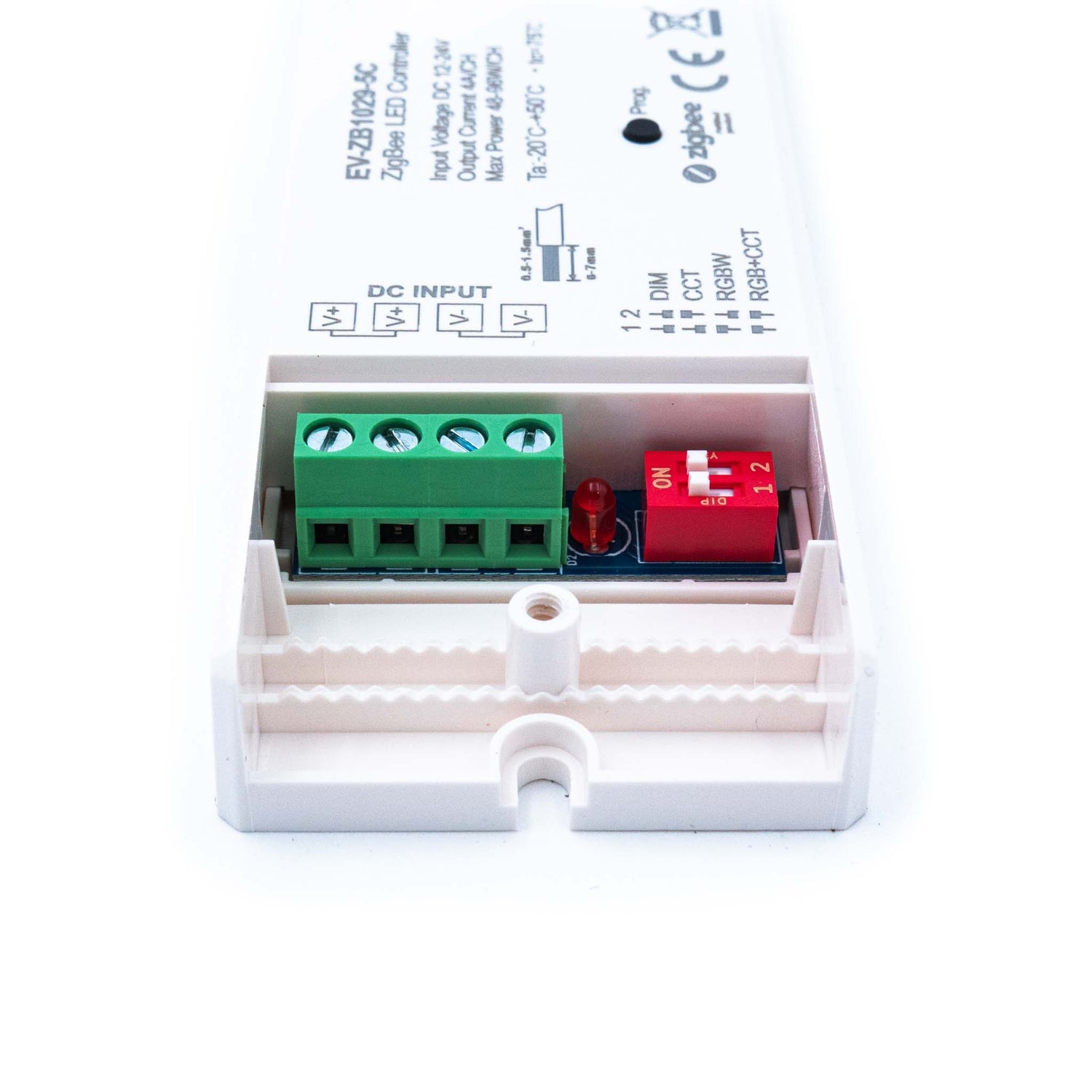

  • 4 different device modes DIM, CCT, RGBW, and RGB+CCT in 1 controller, and selectable by dial switch
  • Enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights
  • Can directly pair to a compatible ZigBee remote via Touchlink
  • Supports self-forming Zigbee network without a coordinator
  • Supports find and bind mode to bind a ZigBee remote
  • It supports Zigbee green power and can bind max. 20 Zigbee Green power remotes
  • Compatible with universal Zigbee gateway or hub products
  • Compatible with universal Zigbee remotes
  • Waterproof grade: IP20

General Specification

Input Voltage

12-24VDC

Output Current

4A/CH

Output Power

48-96W/CH

Output Type

Constant Voltage

Ambient Temperature

-20°C ~ +50°C

Max. Casing Temperature

75°C

Dimension (LxWxH)

145x46.5x16mm

Specifications

  • Brand
    Envo
  • Series
    ENVO Zigbee Series
  • Power Rating
    240 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    12V~24V
  • Standards Met
    CE,FC,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~50°C
  • Warranty
    5 Year
  • Length
    5.71 in
  • Width
    1.83 in
  • Height
    0.63 in
