Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

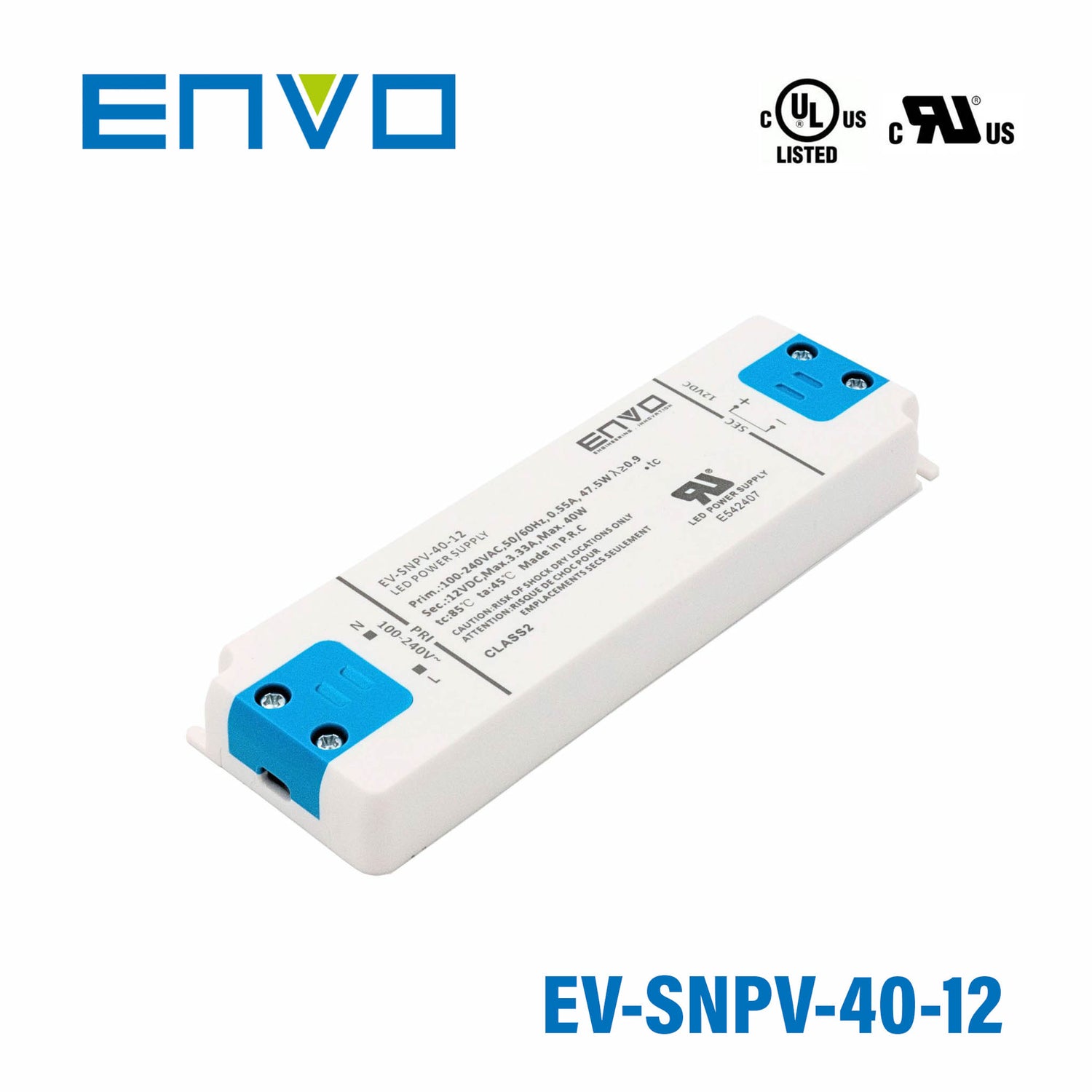

ENVO EV-SNPV-40-12 LED Driver 40W 12V
$13.08 USD
Unit price /
Unavailable
Description
Description
- Output constant voltage
- Range: 90-264Vac
- Efficiency up to 86%
- Protection:Open circuit/Over load/Short circuit/Over temperature/Over voltage/Auto recovery/Latch off
- SELV Open circuit
- Full protection plastic case
- IP20 for indoor installation
- Flat and slim design
- Helpful for funiture or cabinet lighting application
- 5 years warranty
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO SNPV Series
-
Power Rating40 Watt
-
Output Voltage12 Volt
-
Rated Current3.33 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length6.14 in
-
Width0.67 in
-
Height1.97 in
-
Weight0.53 lb
File Downloads
File Downloads
::specification::
