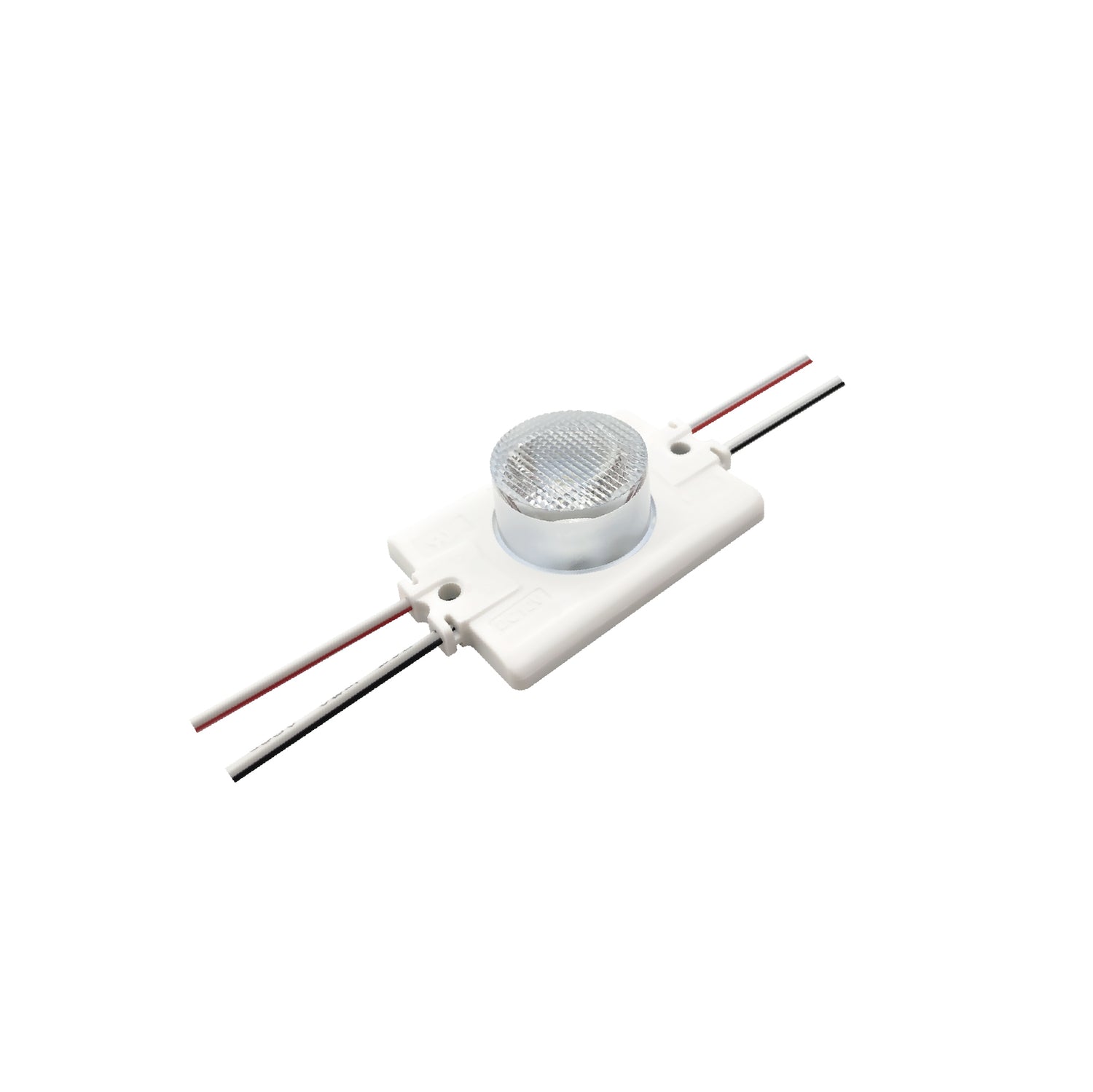

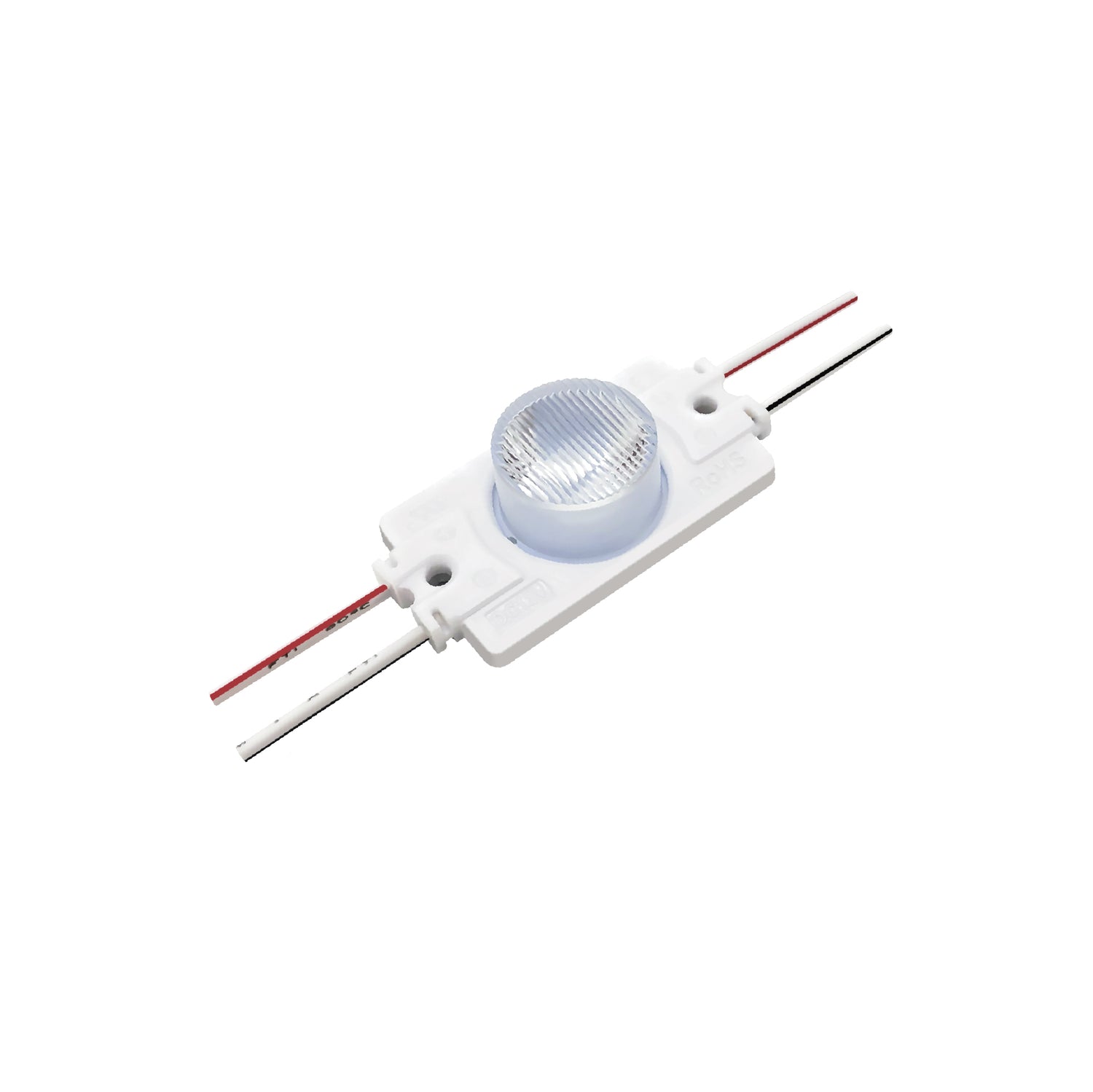

ENVO EdgeFlare LED Module Sidelit - Single LED

Name: ENVO EdgeFlare LED Module Sidelit - Single LED
Brand: Envo
SKU: EV-SLEF01LBY-CW
Price: 2.54 USD
Availability: InStock

$2.54 USD

Shipping calculated at checkout.

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The ENVO EdgeFlare Sidelit Single LED module is a 12V sidelit backlighting module designed for sidelit channel letters and slim sign faces where the LED is mounted on the letter return rather than the back face to achieve a smooth, even glow across the front panel. Its 15°×45° beam provides a slightly wider spread than tighter edge-lit modules, making it well suited to letter returns with a wider depth or front panels requiring more diffused illumination without hard dark bands at module intervals. Running on a standard 12V DC supply and fully dimmable, it carries IP67 water and dust resistance for indoor and light outdoor installations, certified to CB, CE, cUL, RoHS, TÜV, and UL standards.

Key Features

✓ Input voltage: 12V DC
✓ Power: 2.5W per module
✓ Beam angle: 15°×45°
✓ Module dimensions: 45 × 32 × 14.8 mm
✓ Module pitch: 185.4 mm
✓ Max modules per series: 10
✓ Rated current: 0.21A
✓ CRI: 75
✓ Dimmable
✓ Ingress protection: IP67
✓ Operating temperature: −25°C to +60°C
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
✓ 7 year warranty

Specifications

Brand

Envo
Series

EdgeFlare
Power Rating

2.5 Watt
Rated Current

0.21 Ampere
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

1.77 in
Width

1.26 in
Height

0.58 in
Weight

0.05 lb

File Downloads

::specification::
