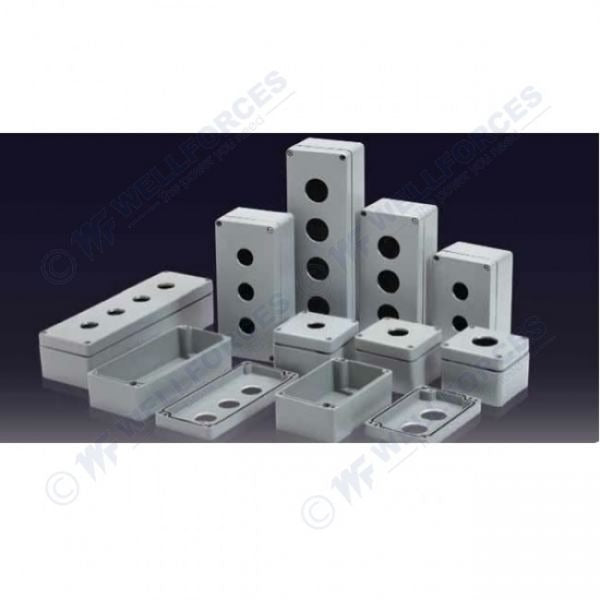

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco Push Button Box, 3.15 x 6.89 x 2.24 Inches(80 x 175 x 57mm) 3 HOLE, IP67, IK10, Aluminium Die Casting

Name: Boxco Push Button Box, 3.15 x 6.89 x 2.24 Inches(80 x 175 x 57mm) 3 HOLE, IP67, IK10, Aluminium Die Casting
Brand: Boxco
SKU: BC-AL-3003-081806
Price: 103.02 USD
Availability: InStock

SKU BC-AL-3003-081806

$103.02 USD

Shipping calculated at checkout.

Available to order

Boxco push button enclosures are made from ABS and polycarbonate material. It has 1-3 push button entries and molded knock outs in base for easy installation. This product does not require additional machining when installing 22, 25 or 30 push button and switches.

Features

Screw type
This series has a pre-cut hole on the cover

Frequently Asked Questions

What is this Boxco push button box designed for?

This model is intended for applications that need a compact enclosure with three pre-cut push button openings. It is suited to industrial and commercial control setups where enclosure durability and environmental protection are important.

What are the key specifications of this enclosure?

This Boxco enclosure measures 3.15 x 6.89 x 2.24 inches (80 x 175 x 57 mm) and weighs 0.576 kg. It is rated IP67 for dust and water resistance, IK10 for impact resistance, and uses an aluminium die-cast construction.

How many operator openings does this model have?

This version has 3 pre-cut holes on the cover for push button or switch mounting. That makes it a better fit than single-hole or two-hole models when you need more operator positions in one enclosure.

Is this enclosure suitable for harsh environments?

Yes, this model is built for demanding environments with an IP67 ingress rating and IK10 impact rating. It is also rated for operation from -40 degrees C to 85 degrees C, which supports use across a wide temperature range.

What types of push button sizes is this box compatible with?

According to the provided product information, this enclosure is intended for 22 mm, 25 mm, or 30 mm push buttons and switches. The product description also notes that no additional machining is required for those sizes.

What makes this model different from a standard empty enclosure?

Unlike a plain enclosure that requires custom cutouts, this model includes three pre-cut cover holes for push button use. That makes it more specific to operator-control applications and helps distinguish it from general-purpose box enclosures.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Material	Cover
Boxco Push Button Box, 3.15 x 9.84 x 2.24 Inches(80 x 250 x 57mm) 4 HOLE, IP67, IK10, Aluminium Die Casting../	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 4.92 x 2.24 Inches(80 x 125 x 57mm)2 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 2.95 x 2.24 Inches(80 x 75 x 57mm) 1 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 9.84 x 2.24 Inches(80 x 250 x 57mm) 4 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 6.89 x 2.24 Inches(80 x 175 x 57mm) 3 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 4.92 x 2.24 Inches(80 x 125 x 57mm) 2 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 2.95 x 2.24 Inches(80 x 75 x 57mm) 1 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 9.84 x 2.24 Inches(80 x 250 x 57mm) 4 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 6.89 x 2.24 Inches(80 x 175 x 57mm) 3 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 4.92 x 2.24 Inches(80 x 125 x 57mm) 2 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
Boxco Push Button Box, 3.15 x 2.95 x 2.24 Inches(80 x 75 x 57mm) 1 HOLE, IP67, IK10, Aluminium Die Casting	Aluminium	Silver	View
