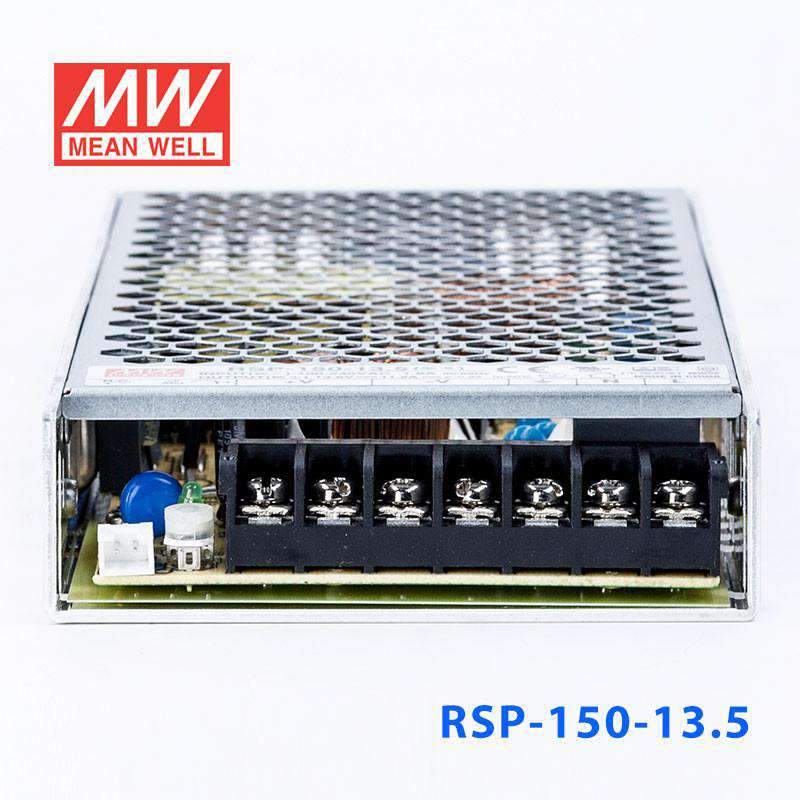

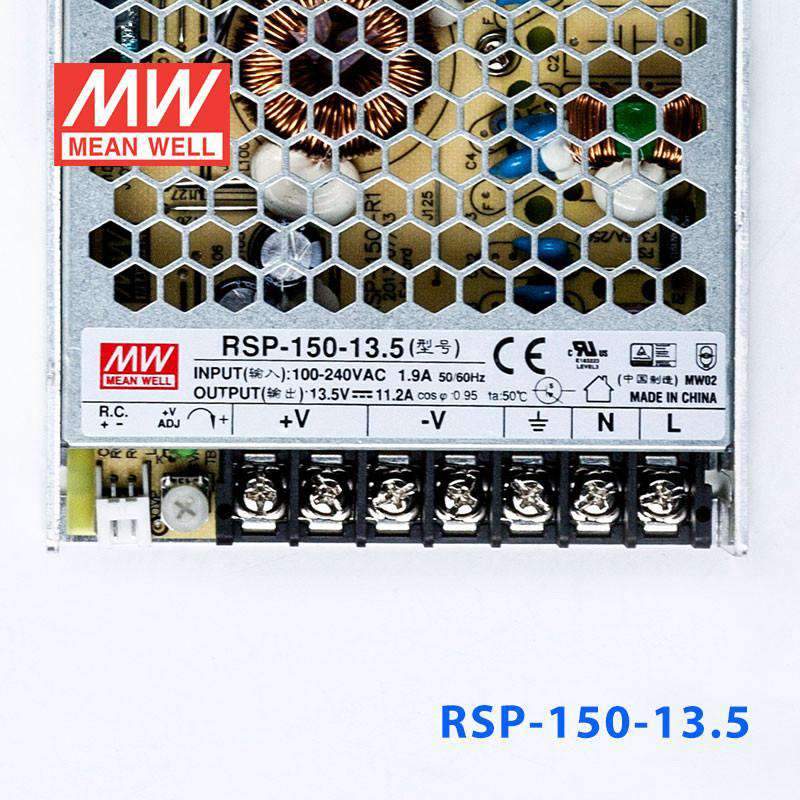

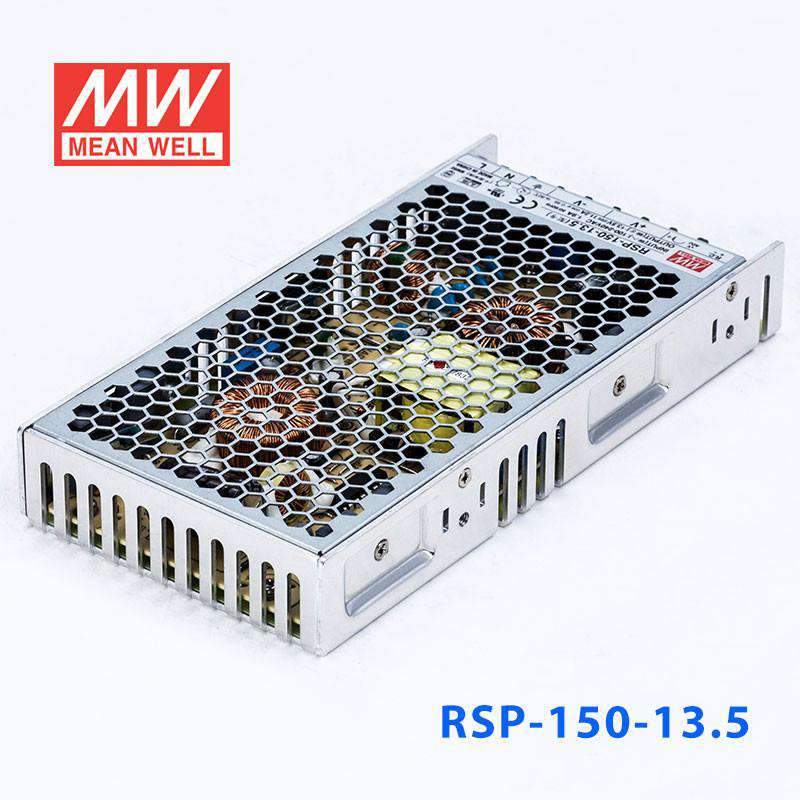

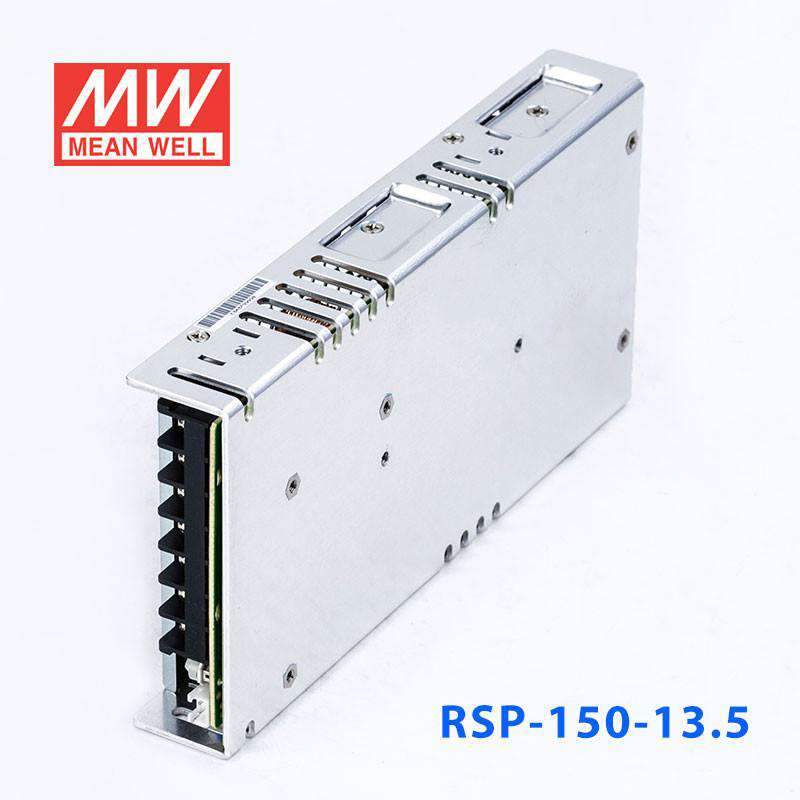

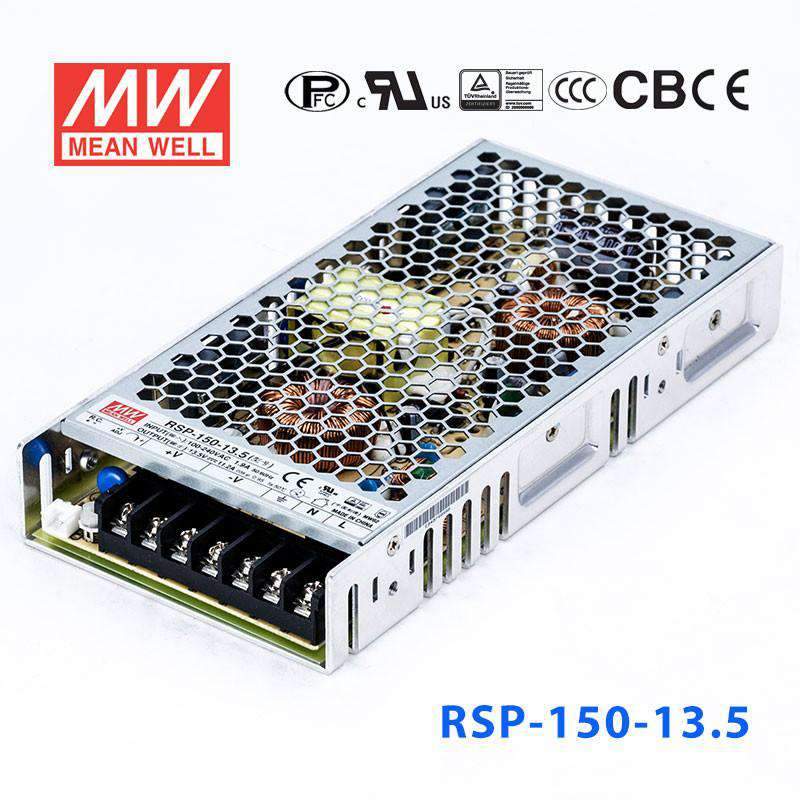

Mean Well RSP-150-13.5 Power Supply 150W 13.5V 11.2A

Name: Mean Well RSP-150-13.5 Power Supply 150W 13.5V 11.2A
Brand: Mean Well
SKU: RSP-150-13.5
Price: 47.55 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU RSP-150-13.5

$47.55 USD

Shipping calculated at checkout.

Select model — 5 in this family

RSP-150-13.5

RSP-75-13.5 75W 13.5V Low stock$40.88 USD

RSP-100-13.5 100W 13.5V Low stock$44.76 USD

RSP-150-13.5 150W 13.5V Low stock$47.55 USD

RSP-200-13.5 200W 13.5V Low stock$54.28 USD

RSP-320-13.5 320W 13.5V Low stock$65.60 USD

Product variants

In stock

Overview

RSP-150-13.5 is the 13.5V output model of this series: rated current 11.2A, rated power 151.2W, typical efficiency 87.5%.

RSP-150 is a 150W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection , working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Cooling by free air convection
Built-in remote ON-OFF control
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
Operating altitude up to 5000 meters (see OVER VOLTAGE CATEGORY)
3 years warranty

Specifications

RSP-150-13.5Specifications from the official datasheet (2025-09-22 edition)

OUTPUT

DC VOLTAGE: 13.5V
RATED CURRENT: 11.2A
CURRENT RANGE: 0 ~ 11.2A
RATED POWER: 151.2W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 12.8 ~ 14.9V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 600ms, 30ms at full load
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 87.5%
AC CURRENT (Typ.): 1.6A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14.85 ~ 18.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters Ⅱ; According to UL/IEC/EN 62368; altitude up to 5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, AS/NZS 62368.1, IS13252(Part1)/IEC60950-1(except for 7.5V,13.5V,48V)approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1,CNS15936 Class B
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2253.9K hrs min. Telcordia SR-332 (Bellcore) ; 290.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*99*30mm (L*W*H)
PACKING: 0.6Kg; 24pcs/15.4Kg/0.89CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSP-150-3.3/-5/-7.5/-12)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-150-13.5 Mechanical Specification — Mechanical Specification

RSP-150-13.5 Block Diagram — Block Diagram

RSP-150-13.5 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates4

CB Certificate (RSP-150)(EN) PDF Download

TUV Certificate (RSP-150)(EN)) PDF Download

EMC Certificate (RSP-150)(EN) PDF Download

CCC Certificate (RSP-150)(CN) PDF Download

Test reports1

Test Report (RSP-150-13.5)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

When would a designer choose the RSP-150-13.5 over the RSP-150-12 or RSP-150-15?

The RSP-150-13.5 provides 13.5V at 11.2A (151.2W), positioned between the 12V (12.5A) and 15V (10A) options. A 13.5V output is appropriate for battery float charging of 12V lead-acid batteries, certain motor controllers with mid-range voltage requirements, and telecom auxiliary circuits that specify a 13.5V nominal supply.

Can the RSP-150-13.5 operate in an outdoor enclosure in a cold climate?

The RSP-150-13.5 is rated from -30°C to +70°C ambient (with derating per the derating curve) and 20–90% RH non-condensing. No IP ingress rating is specified, so it must not be exposed outdoors; any enclosure must keep it dry and non-condensing. The -30°C lower limit supports cold-climate operation when the enclosure maintains this minimum.

What certifications does the RSP-150-13.5 hold?

The RSP-150-13.5 is approved to UL62368-1, TÜV BS EN/EN62368-1, BS EN/EN61558-1 and BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1 and AS/NZS 62368.1. This covers North America, Europe, the Eurasian Economic Union, China, Taiwan and Australia/New Zealand.

What is the form factor of the RSP-150-13.5 and is it rack-mountable?

The RSP-150-13.5 is an enclosed unit measuring 199.0 × 99.0 × 30.0 mm and weighing 0.6 kg. It mounts with M4 screws (2 holes on the base, 4 on the sides); the datasheet does not specify rack mounting.
