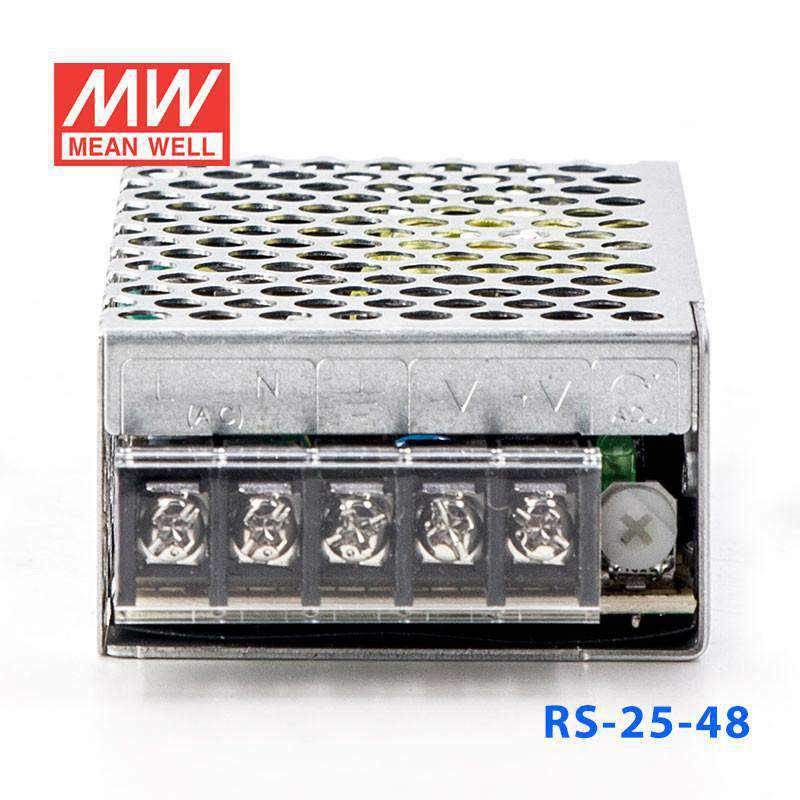

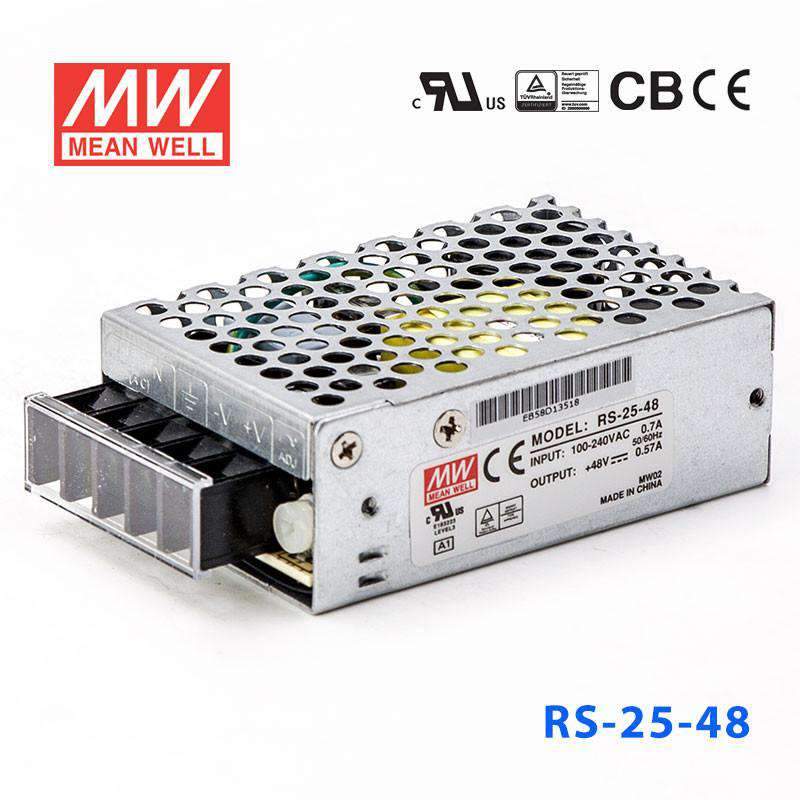

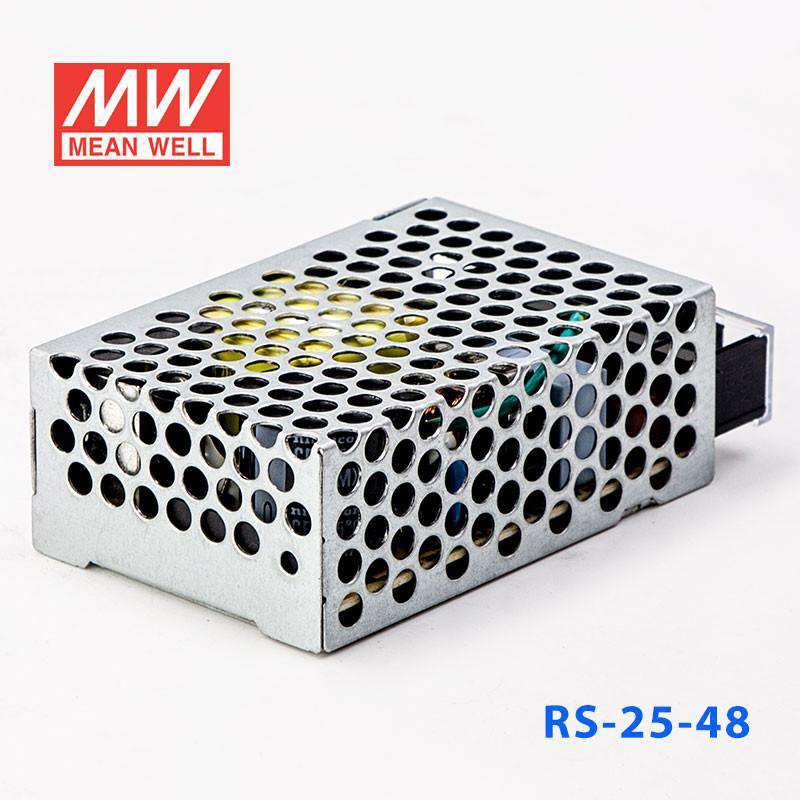

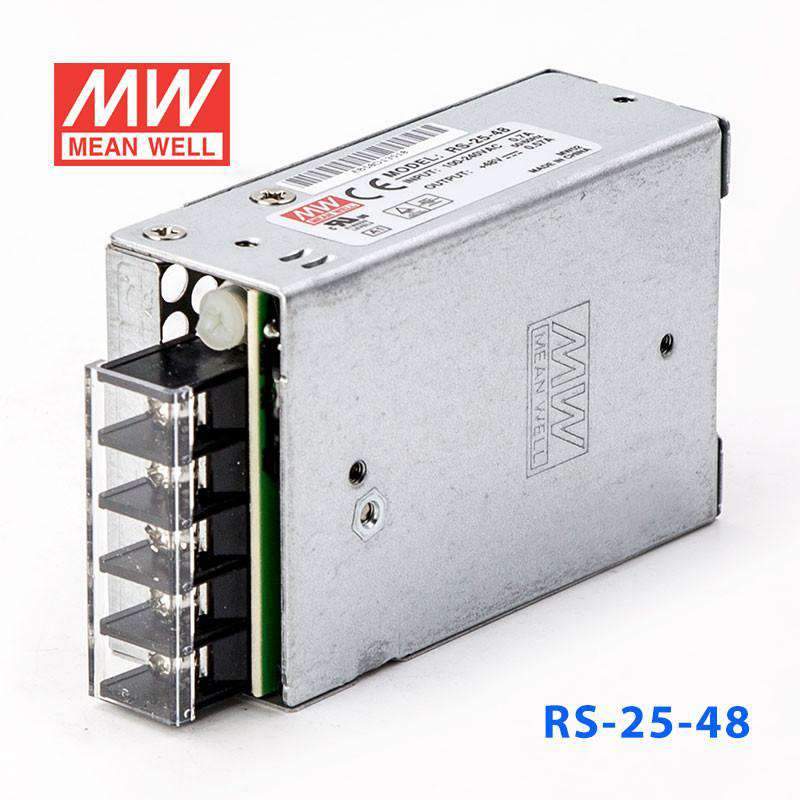

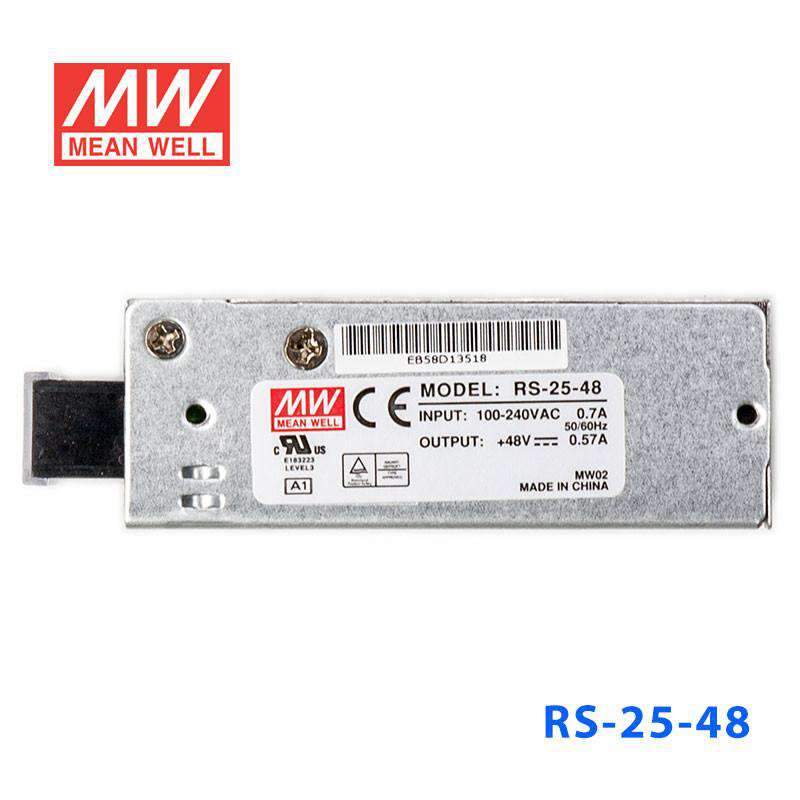

Mean Well RS-25-48 Power Supply 25W 48V 570mA

Name: Mean Well RS-25-48 Power Supply 25W 48V 570mA
Brand: Mean Well
SKU: RS-25-48
Price: 12.61 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-25-48

$12.61 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-25-48

RS-15-48 15W 48V In stock$10.75 USD

RS-25-48 25W 48V In stock$12.61 USD

RS-35-48 35W 48V Low stock$17.43 USD

RS-50-48 50W 48V Low stock$18.73 USD

RS-75-48 75W 48V Low stock$19.99 USD

RS-100-48 100W 48V In stock$30.44 USD

RS-150-48 150W 48V Backorder$32.69 USD

Product variants

In stock

Overview

RS-25-48 is the 48V output model of this series: rated current 0.57A, rated power 27.36W, typical efficiency 85%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
No load power consumption<0.5W
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-25-48Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 0.57A
CURRENT RANGE: 0 ~ 0.57A
RATED POWER: 27.36W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 42 ~ 54V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 1800ms, 23ms/230VAC 4000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 80ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 85%
AC CURRENT (Typ.): 0.7A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 55.2 ~ 64.8V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1 , EAC TP TC 004, CCC GB4943 .1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 3992.0K hrs min. Telcordia SR-332 (Bellcore) ; 663.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 78*51*28mm (L*W*H)
PACKING: 0.2Kg; 60pcs/13Kg/0.46CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-25-48 Mechanical Specification — Mechanical Specification

RS-25-48 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-25)(EN) PDF Download

CB Certificate (RS-25)(EN) PDF Download

TUV Certificate (RS-25)(EN) PDF Download

EMC Certificate (RS-25)(EN) PDF Download

Test reports1

Test Report (RS-25-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-25-48 for a small 48V industrial control or communications device?

Yes, if the equipment requires a 48V constant voltage input and draws no more than 0.57A or 27.36W. That makes it suitable for lower-power 48V control and communications electronics within that load range.

Is the RS-25-48 suitable for compact 48V embedded or networking equipment?

It can be used for compact 48V equipment because the housing is 78.0 x 51.0 x 28.0 mm and the weight is 0.2 kg. Its output rating is 48V constant voltage up to 0.57A.

Can this power supply support a low-power 48V automation subsystem?

It can support a low-power 48V subsystem as long as the connected load does not exceed 0.57A and 27.36W. The wide 88-264VAC input also supports deployment where AC input range flexibility is needed.

Would the RS-25-48 be a match for a 48V device in a vibration-prone machine enclosure?

The feature list states that it withstands 5G vibration and can operate up to 70 degrees C. For lower-power 48V electronics in machine or control enclosures, those stated limits are relevant if the electrical load stays within 0.57A.

Is the RS-25-48 intended for outdoor use?

The provided data lists an operating temperature range of -20 degrees C to +70 degrees C, but no IP rating is given. Based on the stated specs, temperature capability is defined, while outdoor weather exposure or sealed-enclosure performance is not.

How does the RS-25-48 compare with the other RS-25 voltage options?

The RS-25 family includes RS-25-3.3 at 19.8W, 3.3V, 6A; RS-25-5 at 25W, 5V, 5A; RS-25-12 at 25.2W, 12V, 2.1A; RS-25-15 at 25.5W, 15V, 1.7A; RS-25-24 at 26.4W, 24V, 1.1A; and RS-25-48 at 27.36W, 48V, 0.57A. This is the highest-voltage RS-25 option in the listed group and correspondingly has the lowest output current.
