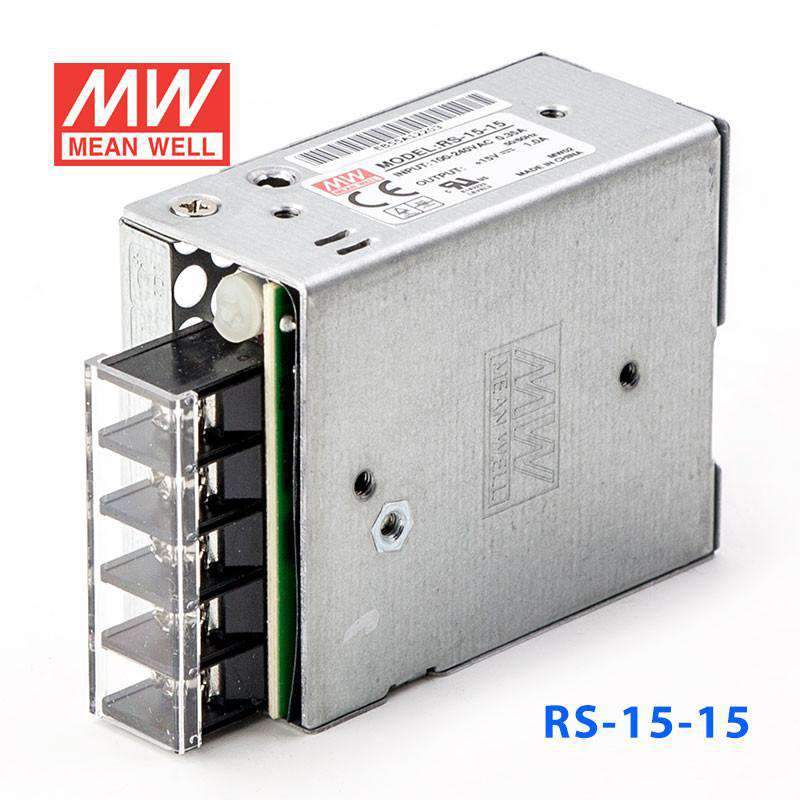

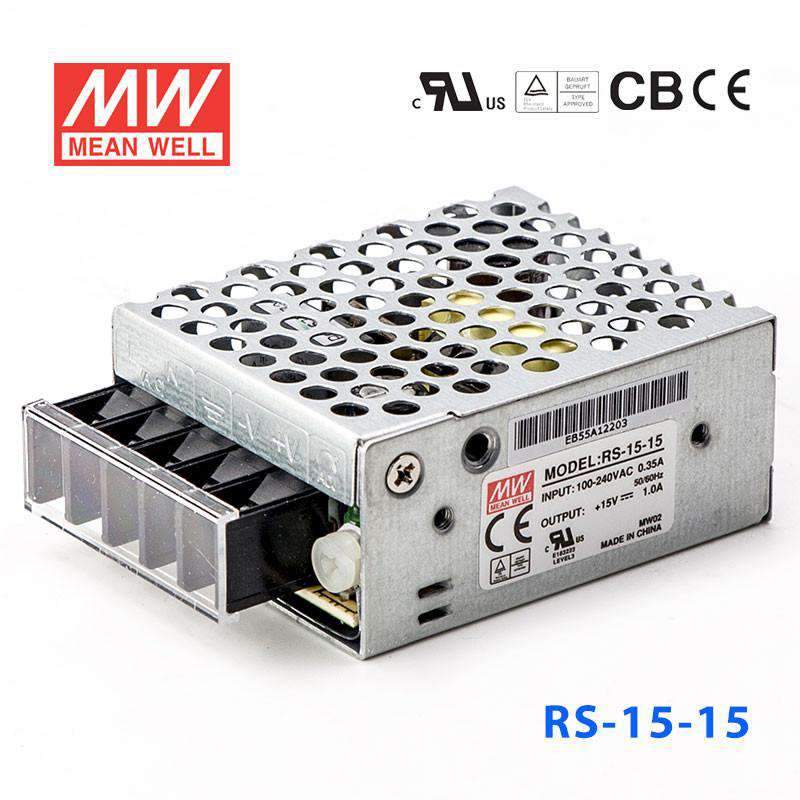

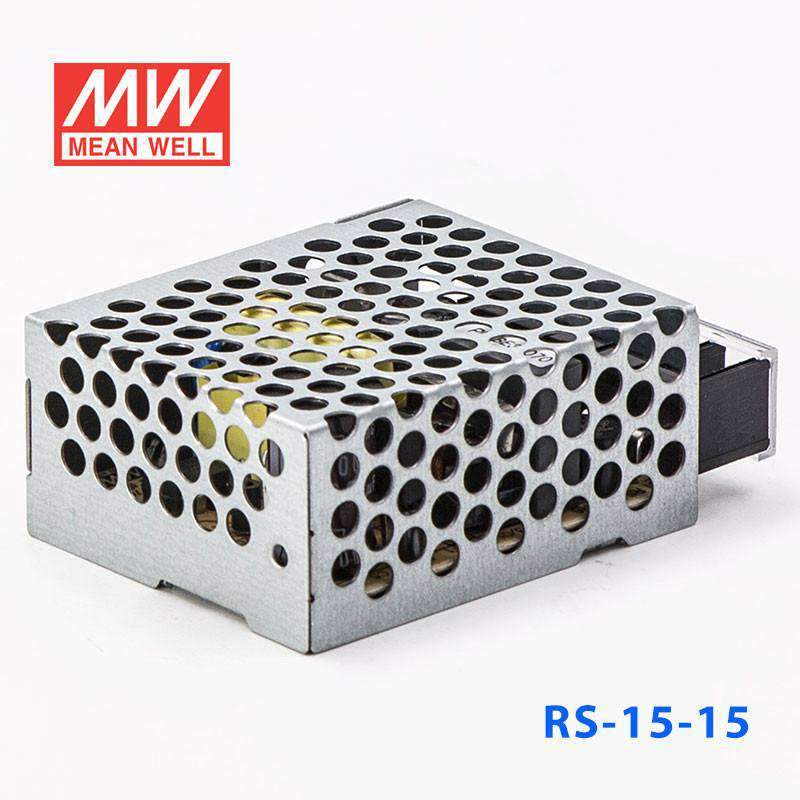

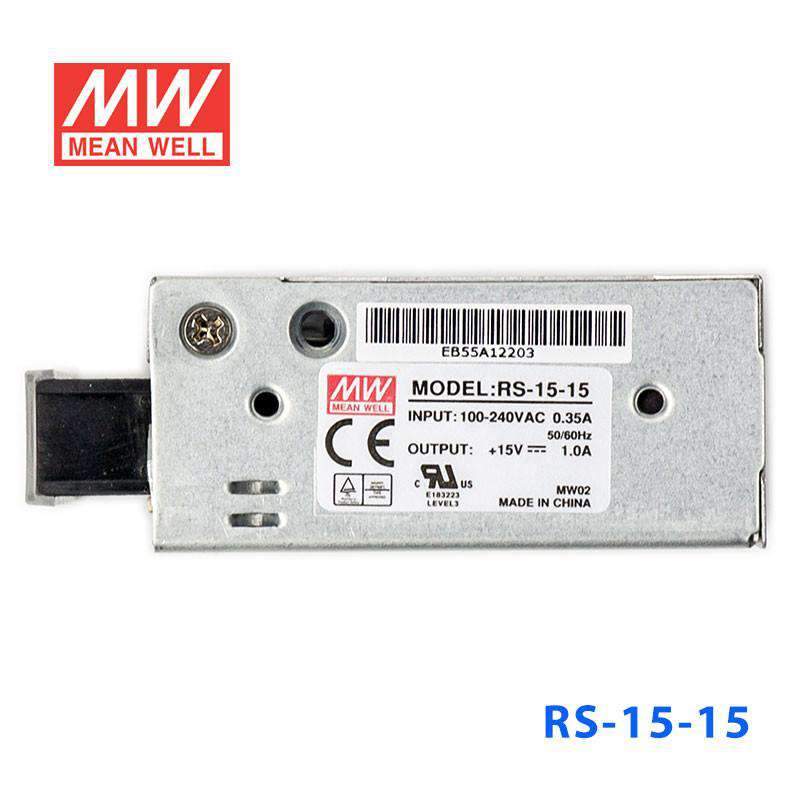

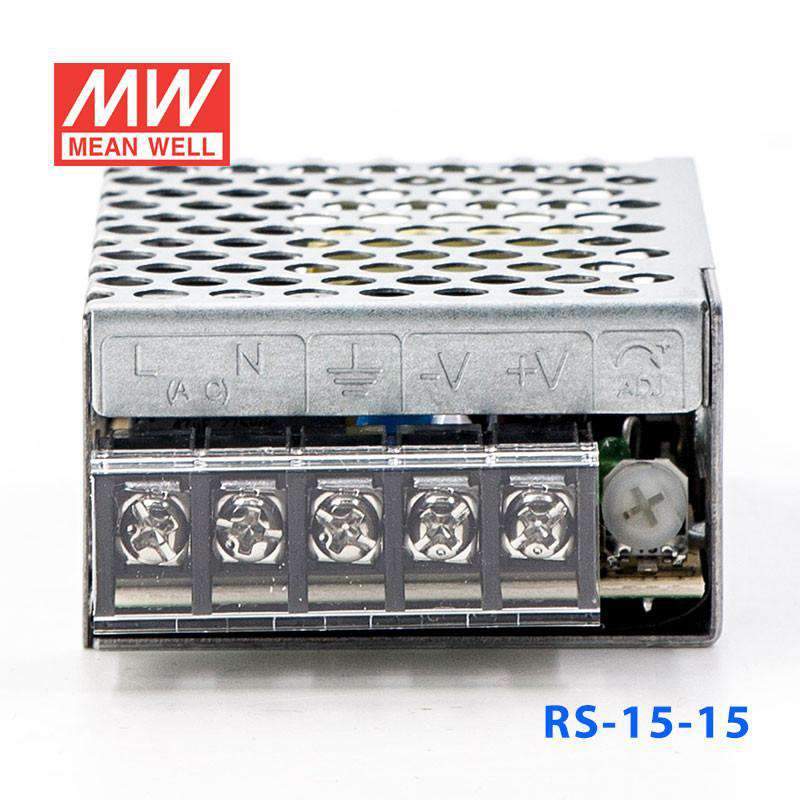

Mean Well RS-15-15 Power Supply 15W 15V 1A

Name: Mean Well RS-15-15 Power Supply 15W 15V 1A
Brand: Mean Well
SKU: RS-15-15
Price: 10.75 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-15-15

$10.75 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-15-15

RS-15-15 15W 15V In stock$10.75 USD

RS-25-15 25W 15V In stock$12.61 USD

RS-35-15 35W 15V Low stock$17.32 USD

RS-50-15 50W 15V Low stock$18.74 USD

RS-75-15 75W 15V In stock$20.57 USD

RS-100-15 100W 15V Low stock$26.79 USD

RS-150-15 150W 15V In stock$32.60 USD

Product variants

In stock

Overview

RS-15-15 is the 15V output model of this series: rated current 1A, rated power 15W, typical efficiency 81%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-15-15Specifications from the official datasheet (2026-04-10 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 1A
CURRENT RANGE: 0 ~ 1A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 70ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 81%
AC CURRENT (Typ.): 0.35A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.): COLD START 65A / 230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8,11, BS EN/EN55035, BS EN/EN61000-6-1, light industry level, EAC TP TC 020

OTHERS

MTBF: 4914.9K hrs min. Telcordia SR-332 (Bellcore) ; 1608.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 62.5*51*28mm (L*W*H)
PACKING: 0.13Kg; 108pcs/15Kg/0.8CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 230mm*230mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-15-15 Mechanical Specification — Mechanical Specification

RS-15-15 Derating Curve — Derating Curve

Downloads

Certificates3

UL Certificate (RS-15)(EN) PDF Download

CB Certificate (RS-15)(EN) PDF Download

TUV Certificate (RS-15)(EN) PDF Download

Test reports1

Test Report (RS-15-15)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-15-15 for a small 15V analog or instrumentation circuit?

Yes, it provides a constant 15V output with up to 1A and 15W available. That suits lower-power 15V electronics that need a regulated DC rail rather than a higher-current supply.

Is the RS-15-15 appropriate for embedded control boards that require 15V DC?

It can be, as long as the board stays within 1A and 15W at 15V. Its small 62.5 × 51.0 × 28.0 mm housing and 0.13 kg weight also make it practical in compact equipment.

Can this power supply run a low-power 15V industrial interface or signal-conditioning device?

Yes, if the device is designed for constant 15V input and does not exceed 1A. The 85-264VAC input range is useful for equipment deployed in varied AC mains environments.

Can the RS-15-15 handle challenging ambient conditions?

The specified operating temperature range is -20°C to +70°C, with output derating at higher ambient temperatures, and the specifications list 5G vibration resistance. No IP rating is provided, so these specs indicate temperature and vibration capability but not sealed outdoor exposure.
