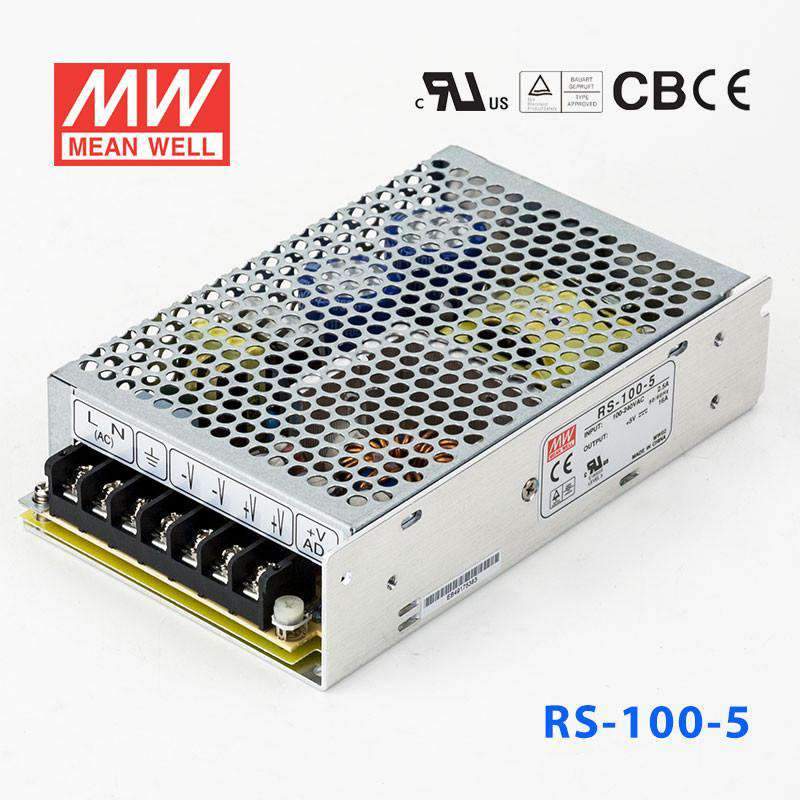

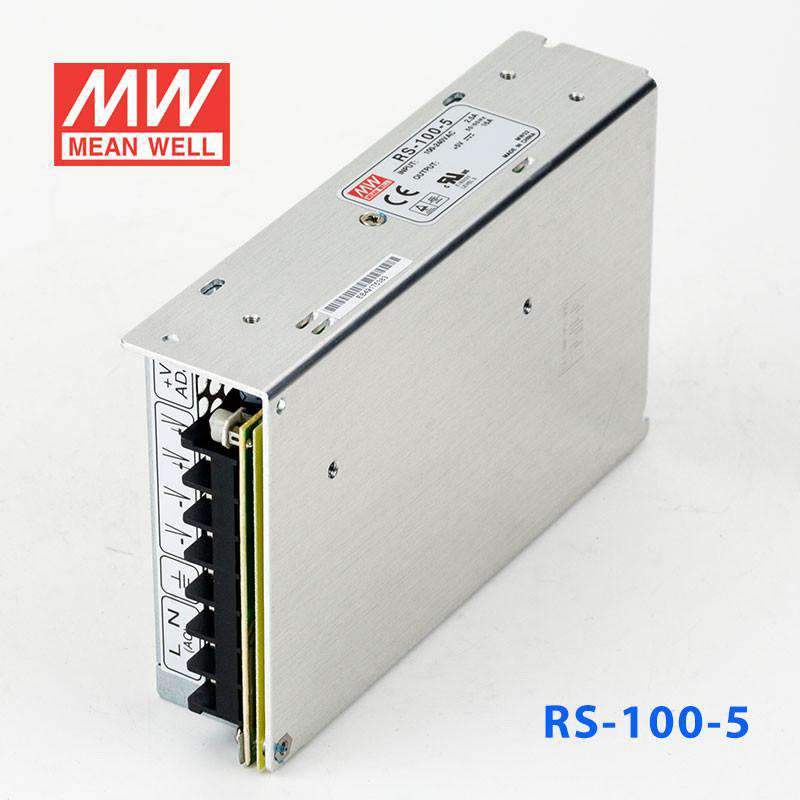

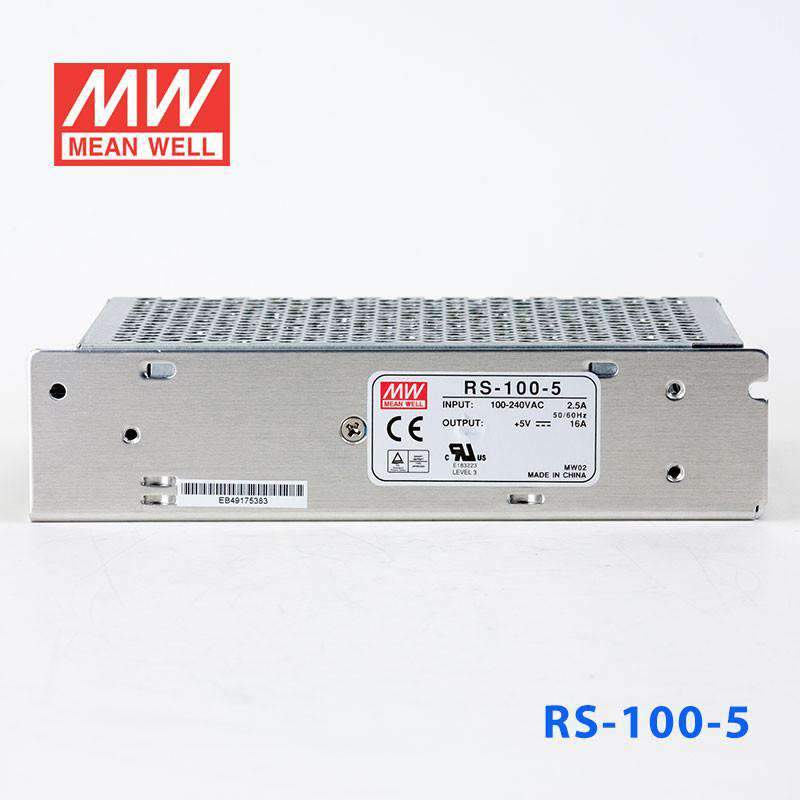

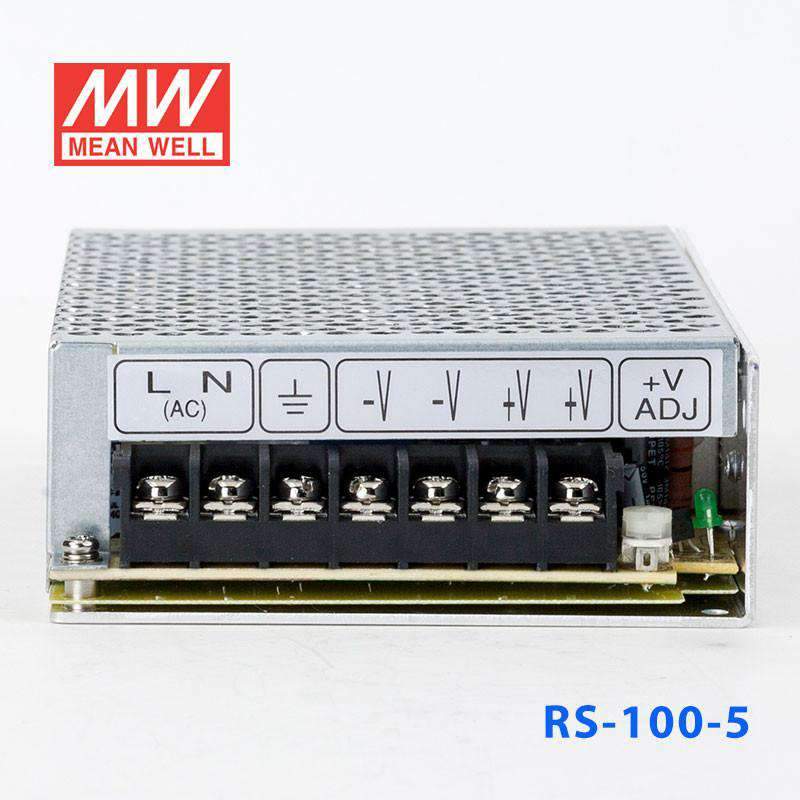

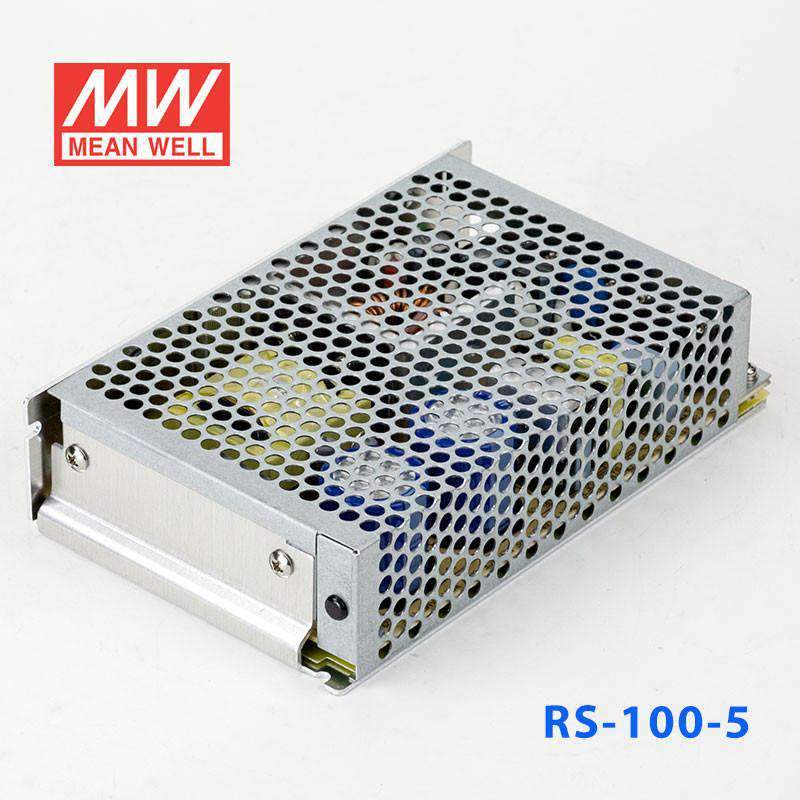

Mean Well RS-100-5 Power Supply 100W 5V 16A

Name: Mean Well RS-100-5 Power Supply 100W 5V 16A
Brand: Mean Well
SKU: RS-100-5
Price: 30.44 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-100-5

$30.44 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-100-5

RS-15-5 15W 5V In stock$10.75 USD

RS-25-5 25W 5V In stock$12.61 USD

RS-35-5 35W 5V In stock$17.32 USD

RS-50-5 50W 5V In stock$18.74 USD

RS-75-5 75W 5V In stock$22.70 USD

RS-100-5 100W 5V In stock$30.44 USD

RS-150-5 150W 5V In stock$32.60 USD

Product variants

In stock

Overview

RS-100-5 is the 5V output model of this series: rated current 16A, rated power 80W, typical efficiency 77%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-100-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 16A
CURRENT RANGE: 0 ~ 16A
RATED POWER: 80W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 4.75 ~ 5.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±1.0%
SETUP, RISE TIME: 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 95ms/230VAC 17ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 77%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 40A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3196.6K hrs min. Telcordia SR-332 (Bellcore) ; 526.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.6Kg; 24pcs/15.4Kg/0.83CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-100-5 Mechanical Specification — Mechanical Specification

RS-100-5 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-100)(EN) PDF Download

CB Certificate (RS-100)(EN) PDF Download

TUV Certificate (RS-100)(EN) PDF Download

EMC Certificate (RS-100)(EN) PDF Download

Test reports1

Test Report (RS-100-5)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-100-5 for a high-current 5V embedded or industrial computing system?

Yes, this model provides a constant 5V output with up to 16A and 80W available. That makes it a fit for 5V systems that need much more current than smaller 5V supplies in the same series.

Is the RS-100-5 suitable for 5V logic, controller, or HMI loads in a machine enclosure?

It can be, as long as the total load stays within 16A and 80W at 5V. The 88-264VAC input range is also useful where the same equipment may be used across different AC mains conditions.

Can this model power a 5V LED or display-related load that needs higher current?

Yes, it is a constant-voltage 5V supply with 16A output capacity, so it fits 5V loads that require a regulated 5V rail. The key limit is that the connected 5V equipment must stay at or below 80W total.

How does the RS-100-5 compare with other 5V RS power supplies?

Among the listed 5V siblings, the RS-15-5 is 15W at 3A, the RS-25-5 is 25W at 5A, the RS-35-5 is 35W at 7A, the RS-50-5 is 50W at 10A, the RS-75-5 is 60W at 12A, this RS-100-5 is 80W at 16A, and the RS-150-5 is 130W at 26A. The series steps up mainly by output current and total wattage while keeping a 5V output.

Can the RS-100-5 be used in harsh temperature environments?

Its operating temperature range is -25°C to +70°C, and the specs also note 5G vibration resistance. No IP rating is provided, so the temperature range is defined, but outdoor or washdown suitability is not established by these specs.
