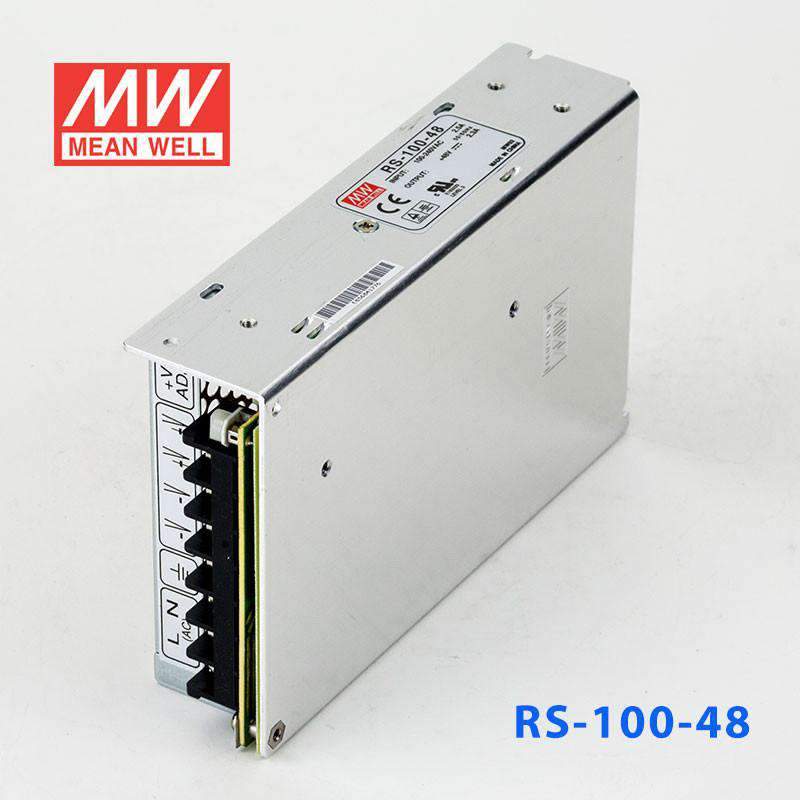

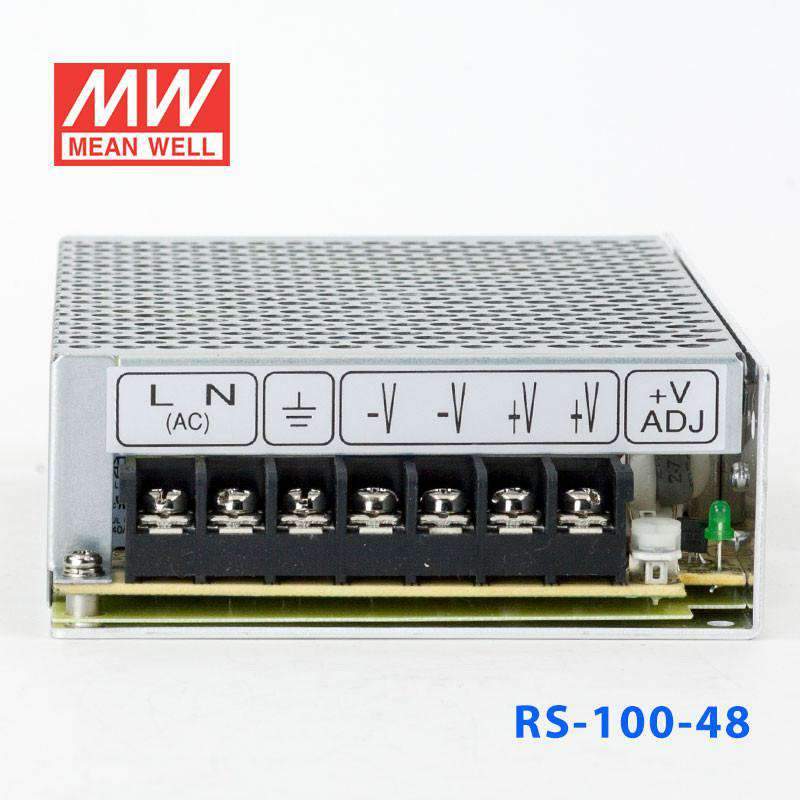

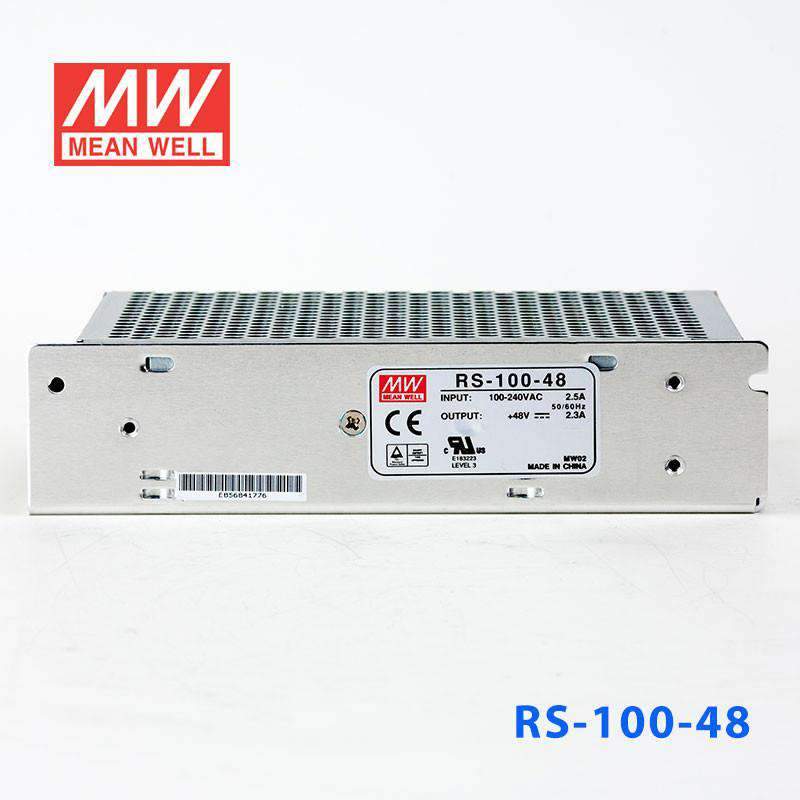

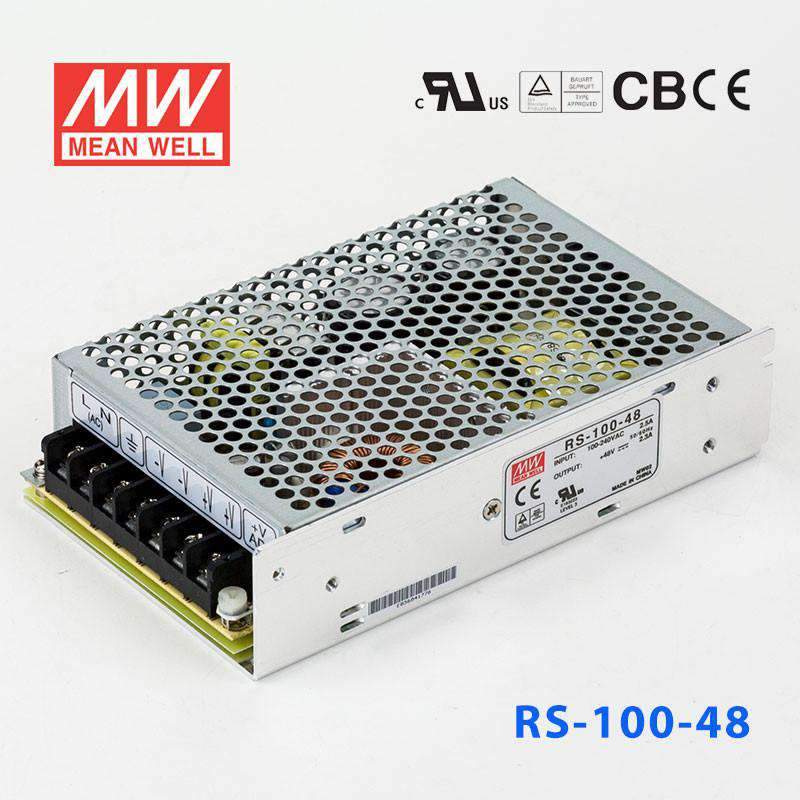

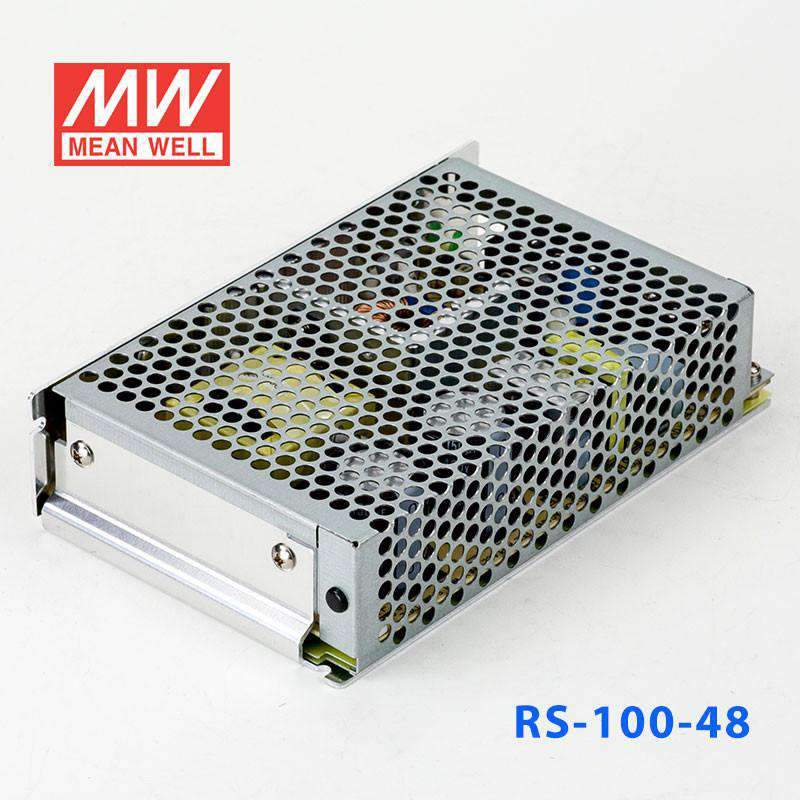

Mean Well RS-100-48 Power Supply 100W 48V 2.3A

Name: Mean Well RS-100-48 Power Supply 100W 48V 2.3A
Brand: Mean Well
SKU: RS-100-48
Price: 30.44 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-100-48

$30.44 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-100-48

RS-15-48 15W 48V In stock$10.75 USD

RS-25-48 25W 48V In stock$12.61 USD

RS-35-48 35W 48V Low stock$17.43 USD

RS-50-48 50W 48V Low stock$18.73 USD

RS-75-48 75W 48V Low stock$19.99 USD

RS-100-48 100W 48V In stock$30.44 USD

RS-150-48 150W 48V Backorder$32.69 USD

Product variants

In stock

Overview

RS-100-48 is the 48V output model of this series: rated current 2.3A, rated power 110.4W, typical efficiency 84%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-100-48Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 2.3A
CURRENT RANGE: 0 ~ 2.3A
RATED POWER: 110.4W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 45.6 ~ 52.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 95ms/230VAC 17ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 84%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 40A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 55.2 ~ 64.8V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3196.6K hrs min. Telcordia SR-332 (Bellcore) ; 526.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.6Kg; 24pcs/15.4Kg/0.83CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-100-48 Mechanical Specification — Mechanical Specification

RS-100-48 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-100)(EN) PDF Download

CB Certificate (RS-100)(EN) PDF Download

TUV Certificate (RS-100)(EN) PDF Download

EMC Certificate (RS-100)(EN) PDF Download

Test reports1

Test Report (RS-100-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-100-48 for a 48V industrial control or automation panel?

Yes, it is a constant-voltage 48V supply with up to 2.3A output and 110.4W capacity, which fits equipment designed for a 48V DC rail. The wide 88-264VAC input also suits panels used in different AC power environments.

Is the RS-100-48 suitable for 48V telecom or network equipment?

It can be suitable for 48V DC equipment that stays within 2.3A and 110.4W. This model is a constant-voltage power supply, so it fits loads that specifically require a 48V regulated output.

Can this power supply run a 48V embedded system or test fixture?

Yes, if the fixture or embedded system needs a stable 48V output and draws no more than 2.3A. Its compact 159.0 × 97.0 × 38.0 mm size and 0.6 kg weight also help where enclosure space is limited.

How does the RS-100-48 compare with other 48V models in the RS series?

The RS-100-48 provides 110.4W at 2.3A. Other 48V models in the RS series include the RS-15-48 (15W), RS-25-48 (27.36W), RS-35-48 (35W), RS-50-48 (52.8W), RS-75-48 (76.8W), and RS-150-48 (158.4W). The main difference is available output current and power at the same 48V nominal output.

Is the RS-100-48 meant for indoor or outdoor use?

The operating temperature range is -25°C to +70°C, and the unit is specified to withstand 5G vibration. No IP rating is listed in the provided specs, so these specs support temperature tolerance but do not establish outdoor or weather-exposed use.
