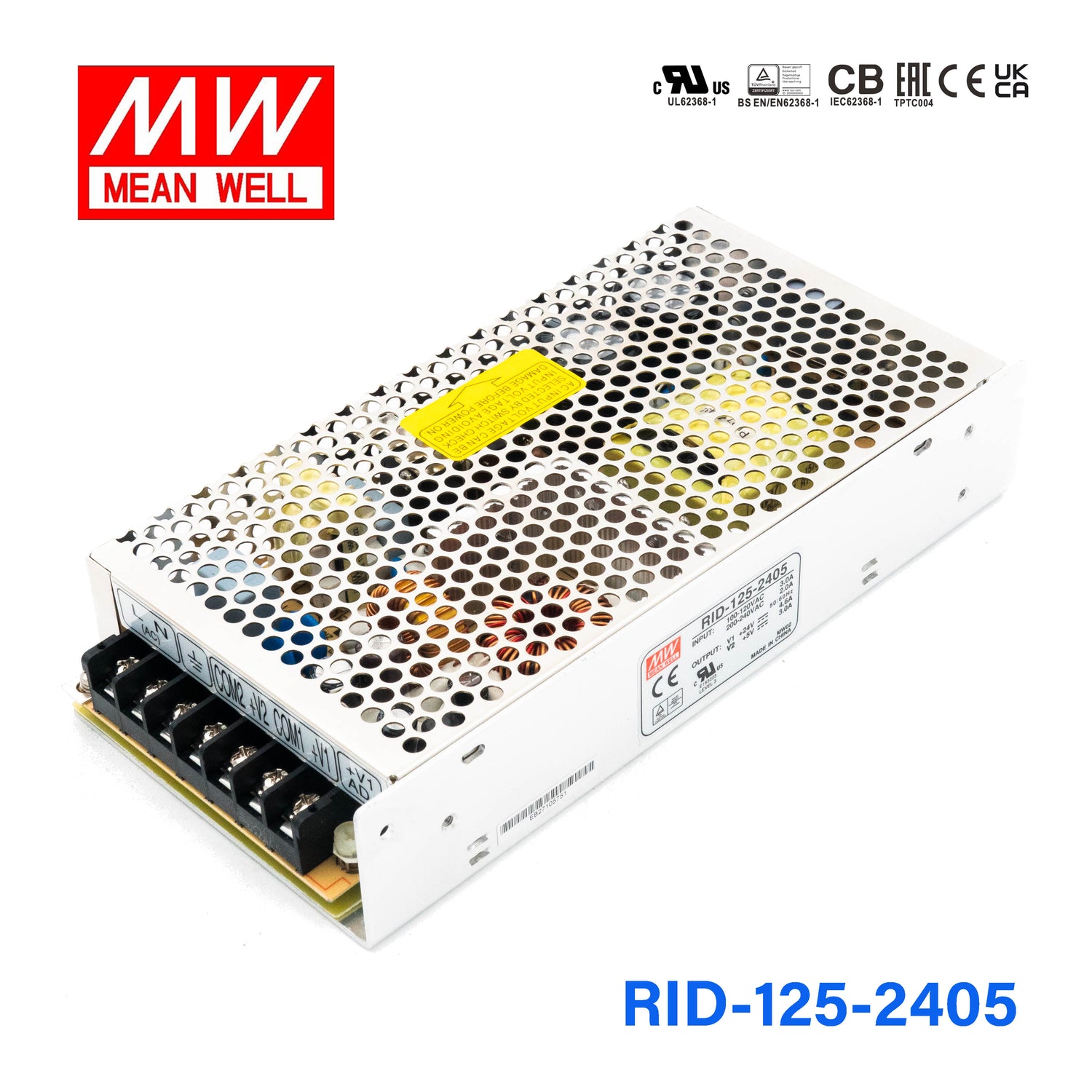

Mean Well RID-125-2405 AC-DC Dual output enclosed power supply 125W 3A

Name: Mean Well RID-125-2405 AC-DC Dual output enclosed power supply 125W 3A
Brand: Mean Well
SKU: RID-125-2405
Price: 45.45 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operationisolated dual output

SKU RID-125-2405

$45.45 USD

Shipping calculated at checkout.

In stock

Overview

RID-125-2405 is the CH1: 24V / CH2: 5V output model of this series: rated current CH1: 4.6A / CH2: 3A, rated power 125.4W, typical efficiency 83%.

Features

Isolated output & GND for CH1,CH2
AC input range selectable by switch
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
170% peak load for CH1
All using 105℃ long life electrolytic capacitors
Withstand 5G vibration test
LED indicator for power on
100% full load burn-in test
High realibility
3 years warranty

Specifications

RID-125-2405Specifications from the official datasheet (2025-12-19 edition)

OUTPUT

OUTPUT NUMBER: CH1 / CH2
DC VOLTAGE: CH1: 24V / CH2: 5V
RATED CURRENT: CH1: 4.6A / CH2: 3A
CURRENT RANGE^Note.6: CH1: 0 ~ 5.3A / CH2: 0 ~ 3A
PEAK LOAD^Note.9: CH1: 7.8A / CH2: 3A
RATED POWER: 125.4W
RIPPLE & NOISE (max.)^Note.2: CH1: 120mVp-p / CH2: 80mVp-p
VOLTAGE ADJ. RANGE: CH1: 22.8 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: CH1: ±2.0% / CH2: ±3.0%
LINE REGULATION^Note.4: CH1: ±0.5% / CH2: ±0.5%
LOAD REGULATION^Note.5: CH1: ±1.0% / CH2: ±2.0%
SETUP, RISE TIME: 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 35ms/230VAC 30ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(300VAC peak 5sec., no damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 83%
AC CURRENT (Typ.): 3A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: >165% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: CH1: 27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)on CH1 output
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 7)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note 10),-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 218.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*98*38mm (L*W*H)
PACKING: 0.59Kg; 20pcs/12.85Kg/0.85CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6. Each output can work within current range. But total output power can't exceed rated output power.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
9. 10% duty cycle maximum within every second. Average output power should not exceed the rated power.
10. Testing harmonic current at 85%load.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

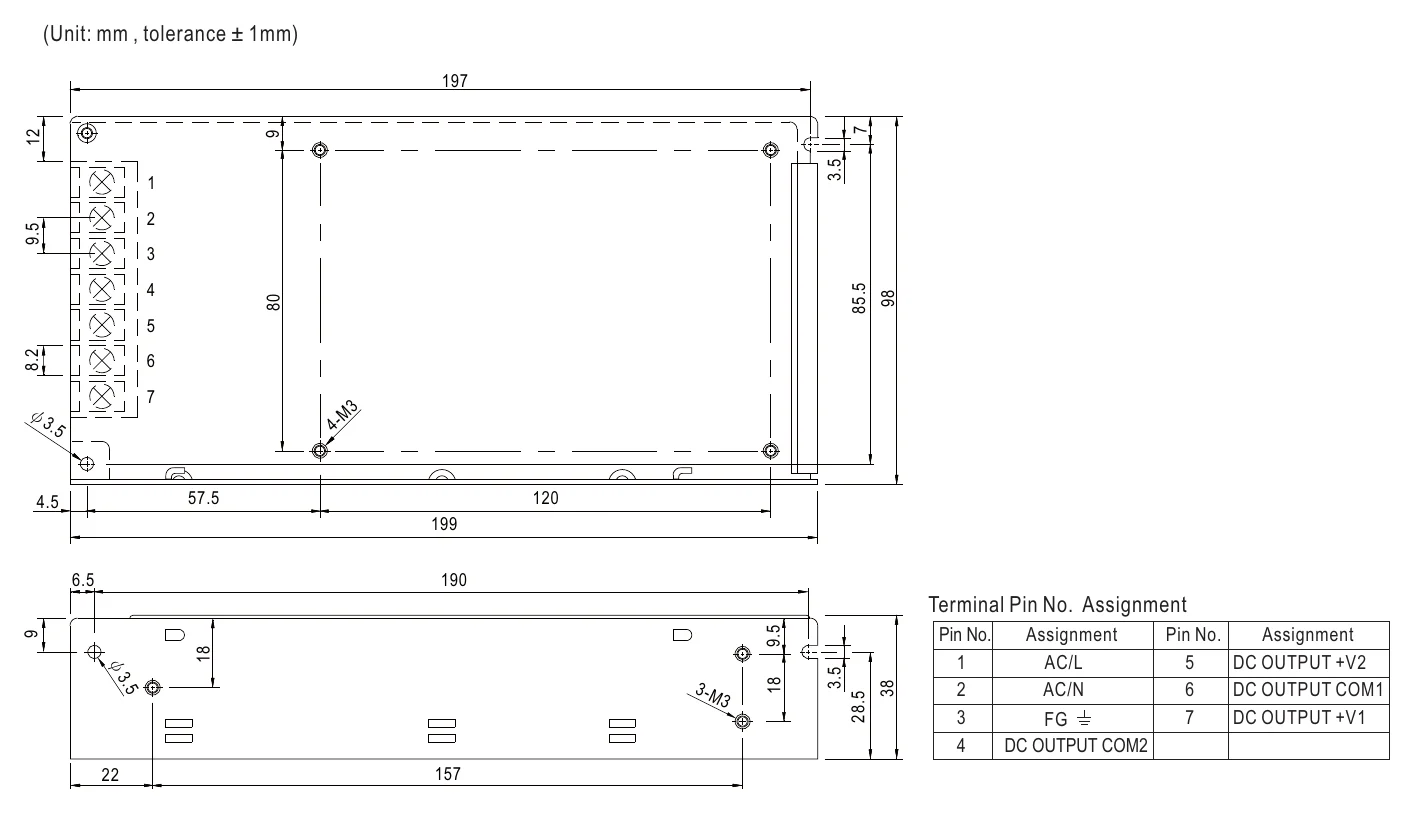

RID-125-2405 Mechanical Specification — Mechanical Specification

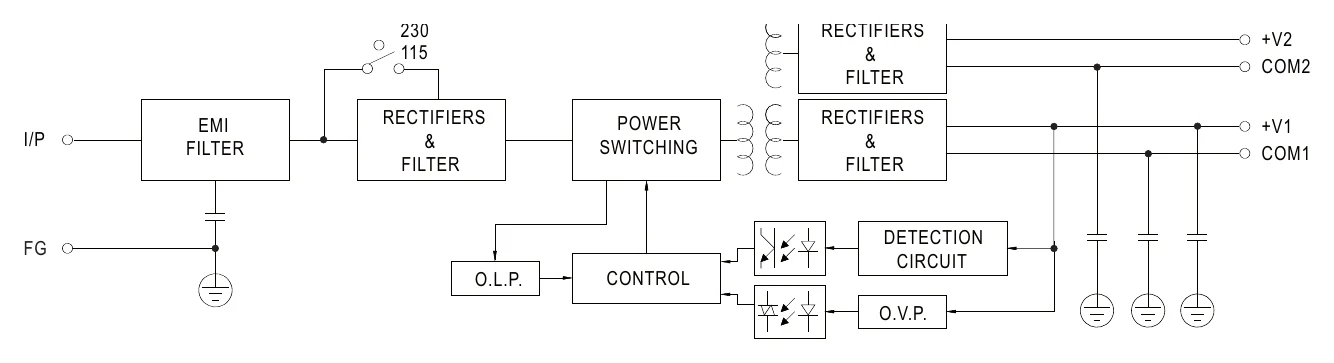

RID-125-2405 Block Diagram — Block Diagram

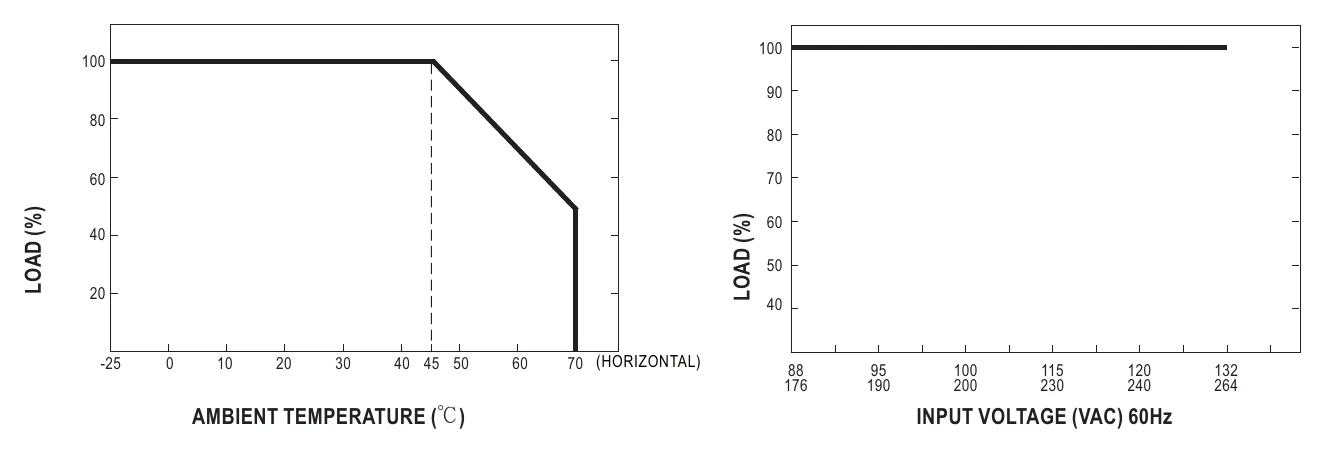

RID-125-2405 Derating Curve — Derating Curve

Downloads

Certificates1

Mean Well EAC Certificate PDF Download

FAQ

Can I use the RID-125-2405 for 5V embedded computing or controller boards in industrial equipment?

It can fit 5V embedded computing or controller boards when the load stays within its 3A output current and 125W power rating. The enclosed design supports use inside industrial equipment rather than in exposed environments.

Is the RID-125-2405 suitable for 5V HMI, display, or interface electronics?

Yes, it is aligned with 5V electronics such as display or interface hardware because the rated output is 5V at 3A. It is best matched to equipment that specifically requires a 5V rail.

Can the RID-125-2405 power 5V monitoring or communications hardware in automation systems?

This model can support 5V monitoring or communications hardware if the total load remains within 3A and 125W. The isolated dual-output design can also matter in systems where output separation is required.

Is the RID-125-2405 rated for indoor control cabinets or exposed outdoor use?

Its operating temperature range is -25°C to +70°C, so it is suitable for a broad range of indoor equipment conditions. The provided specifications do not include an IP rating, so exposed outdoor use is not confirmed.

How does the RID-125-2405 differ from the other RID models in this group?

The sibling list includes RID-125-1205 at 125W, 12V/5V; RID-125-1224 at 133.2W, 12V/24V; RID-125-1248 at 138W, 12V/48V; RID-125-2448 at 144W, 24V/48V. The RID-125-2405 is the 125.4W model with 24V and 5V outputs.
