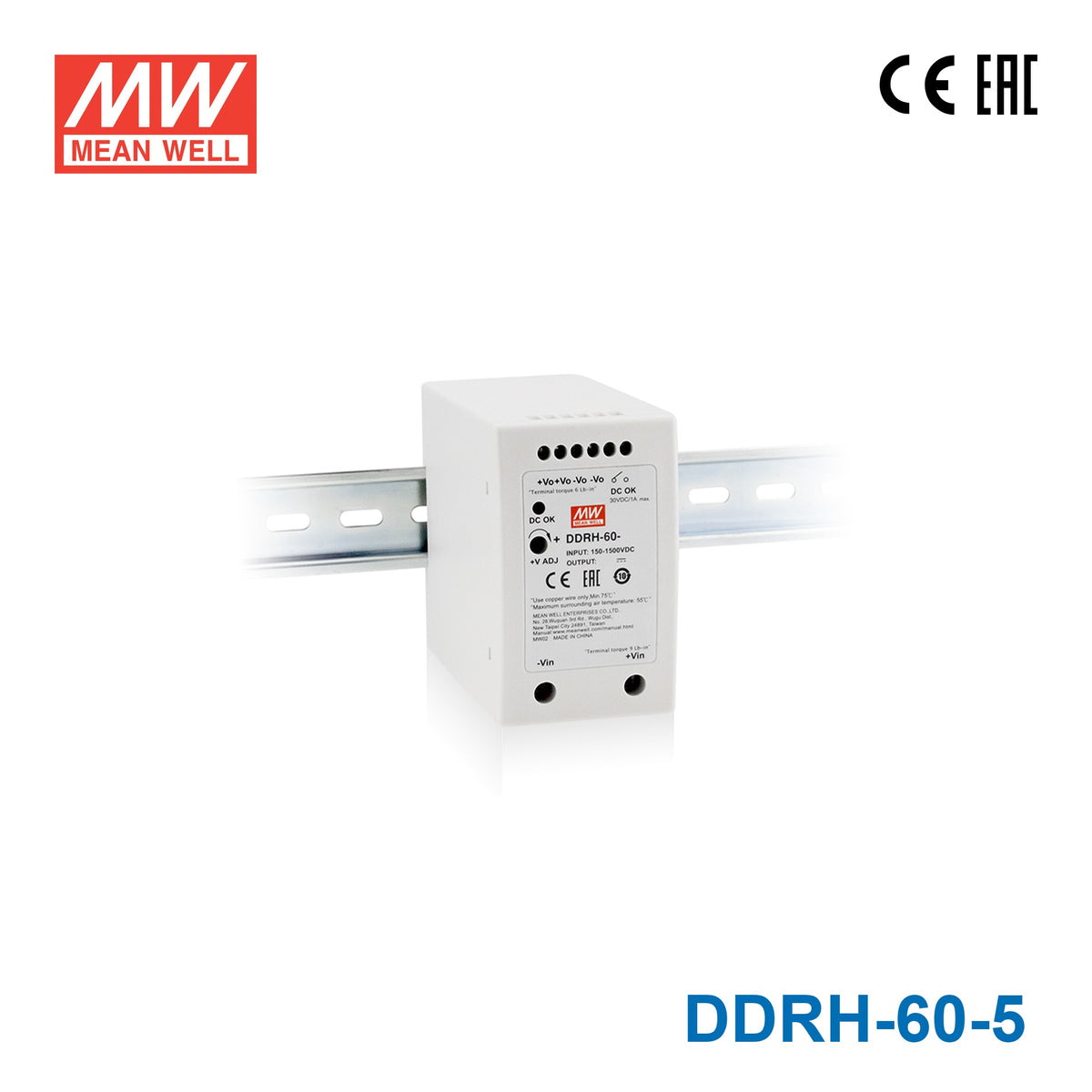

Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V 10A

Name: Mean Well DDRH-60-5 Ultra Wide Input DC-DC Converter, 50W 5V 10A
Brand: Mean Well
SKU: DDRH-60-5
Price: 128.57 USD
Availability: InStock

$128.57 USD

Shipping calculated at checkout.

Model

10W 5V Din 10W 5V PCB 10W 5V Screw 50W 5V

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DDRH-60-5 is the 5V output model of this series: rated current 10A, rated power 50W, typical efficiency 80%.

DDRH-60 series is a 150 ~ 1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: easy to install DIN rail type, narrow width(57mm) in slim design, -30~+80°C wide range operating temperature, 4KVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. DDRH-60 is compliant with UL1741 and BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application and so forth.

Features

150~ 1500Vdc 10:1 ultra - wide input range
57mm slim width
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature DC input under voltage / DC input reverse polarity
Fanless design, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
-30~+80°C ultra-wide operating temperature (＞+55°C derating)
Over voltage categoryⅡ
Operating altitude up to 5000 meters
DC OK relay contact
DC output voltage adjustable(+20%)
Full encapsulated
3 years warranty

Specifications

DDRH-60-5Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 50W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 5 ~ 6V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
EXTERNAL CAPACITANCE LOAD (Max.): 6000μF

INPUT

VOLTAGE RANGE^Note.4: 150 ~ 1500Vdc
EFFICIENCY (Typ.) 200Vdc: 80%
EFFICIENCY (Typ.) 800Vdc: 81%
EFFICIENCY (Typ.) 1500Vdc: 76%
INRUSH CURRENT (max.): COLD START 120A /1500Vdc 80A/800Vdc 30A/150Vdc

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup up mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage
OVER VOLTAGE: 6.6 ~ 8.4V Protection type : Hiccup up mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Protection type : Hiccup up mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT: Under voltage protection range:120 ~ 130Vdc , Under voltage release range:130 ~ 146.5Vdc

FUNCTION

DC OK SIGNAL: Relay contact rating(max.) : 30V / 1A resistive

ENVIRONMENT

WORKING TEMP.: -30 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.5: 5000 meters /OVCⅡ
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC (Note.7)

SAFETY STANDARDS: UL1741, CSA C22.2 No.107.1-16 , IEC62109-1(LVD) , EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A
Radiated	BS EN/EN55032(CISPR32)	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 454.5K hrs min. MIL-HDBK-217F (25℃); 1439.7K hrs min. Telcordia TR/SR-332 (Bellcore) (25℃)
DIMENSION: 57*93.5*105mm (W*H*D)
PACKING: 0.8Kg; 16pcs/12.8Kg/0.84CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 600Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

DDRH-60-5 Derating Curve — Derating Curve

DDRH-60-5 Static Characteristics — Static Characteristics

DDRH-60-5 Mechanical Specification — Mechanical Specification

DDRH-60-5 External FUSE wiring instruction — External FUSE wiring instruction

DDRH-60-5 Installation Instruction — Installation Instruction

Typical applications

Downloads

Certificates2

CE Certificate(DDRH-60)(EN) PDF Download

EMC Certificate(DDRH-60)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can the DDRH-60-5 power 5V embedded computing modules or single-board computers in industrial control systems?

Yes. The DDRH-60-5 provides 5V at 10A (50W), which is sufficient to power multiple embedded SBCs, Raspberry Pi-class industrial computers, or 5V microcontroller platforms in automation systems drawing from a high-voltage DC bus.

Is the DDRH-60-5 suitable for supplying 5V to barcode scanners, RFID readers, or HMI touch panels in a warehouse automation system?

At 50W and 10A on a 5V rail, the DDRH-60-5 can simultaneously supply several barcode scanners, RFID readers, and small HMI panels used in warehouse automation or logistics conveyor systems.

Can the DDRH-60-5 handle input from photovoltaic or energy storage systems with high open-circuit voltages?

Yes. The 150–1500VDC ultra-wide input range accommodates high-voltage PV string outputs and battery bank systems that exceed standard low-voltage thresholds, converting them to a regulated 5V, 10A supply.

Is the DDRH-60-5 appropriate for DIN rail mounting in outdoor or temperature-extreme environments?

The operating range of –30°C to +80°C (with derating at higher temperatures, see the derating curve) suits most industrial indoor and protected outdoor installations. No IP rating is stated, so the mounting enclosure must provide the required weather or contamination protection.

Can the output voltage of the DDRH-60-5 be adjusted above 5V for specific load requirements?

Yes. The output is adjustable up to +20% above the nominal 5V, allowing the output to be set to approximately 6V, which can be useful for applications requiring a slightly elevated supply or cable drop compensation.

How does the DDRH-60-5 differ from the DDRH-60-12, DDRH-60-24, and DDRH-60-48 in the DDRH-60 series?

All four DDRH-60 models share the 150–1500VDC input and 57mm slim-width form factor, and each has an adjustable output. The DDRH-60-5 delivers 5V at 10A (50W, adjustable 5–6V), compared to 12V at 5A (60W, 12–15V), 24V at 2.5A (60W, 24–29V), and 48V at 1.25A (60W, 48–54V) for the other three variants.
