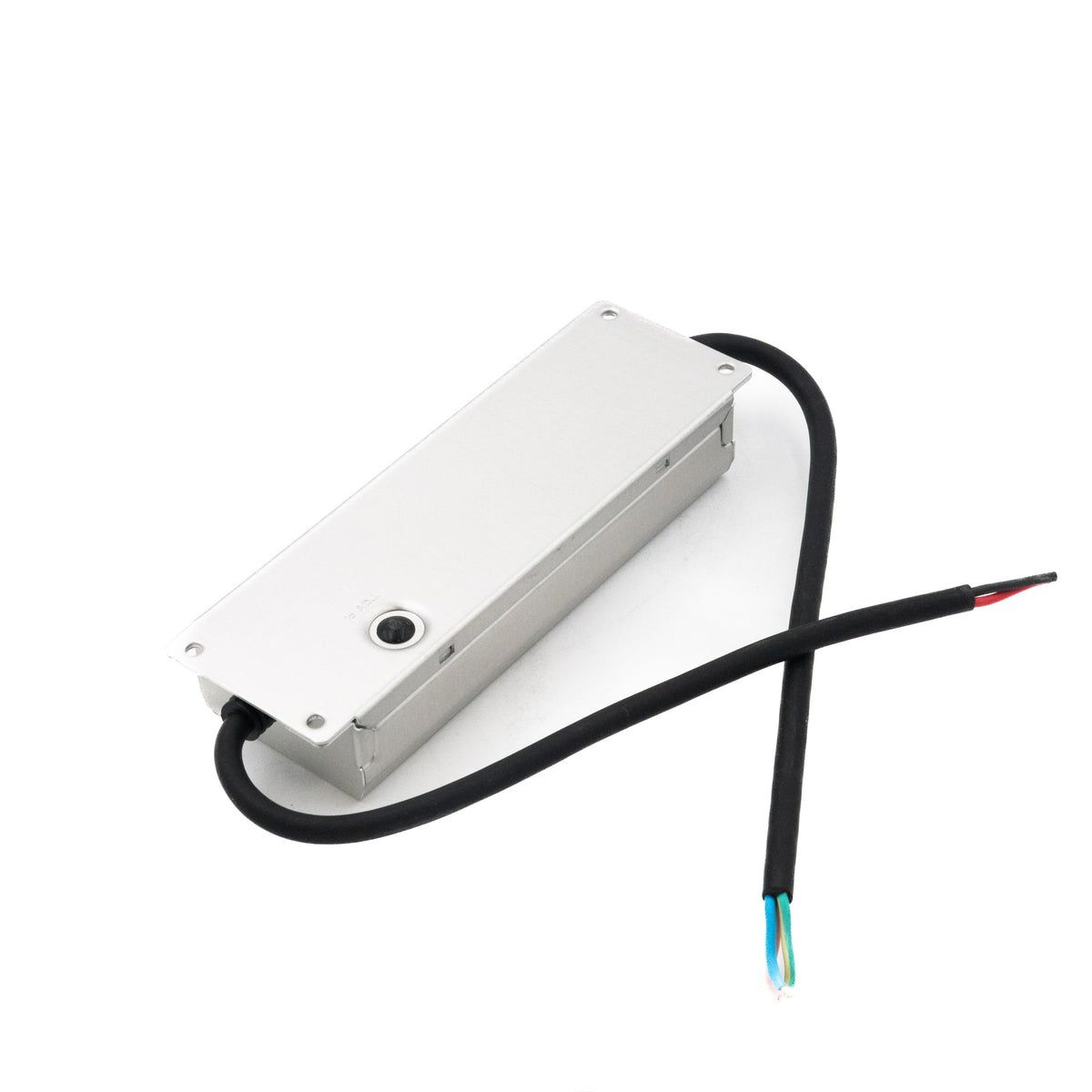

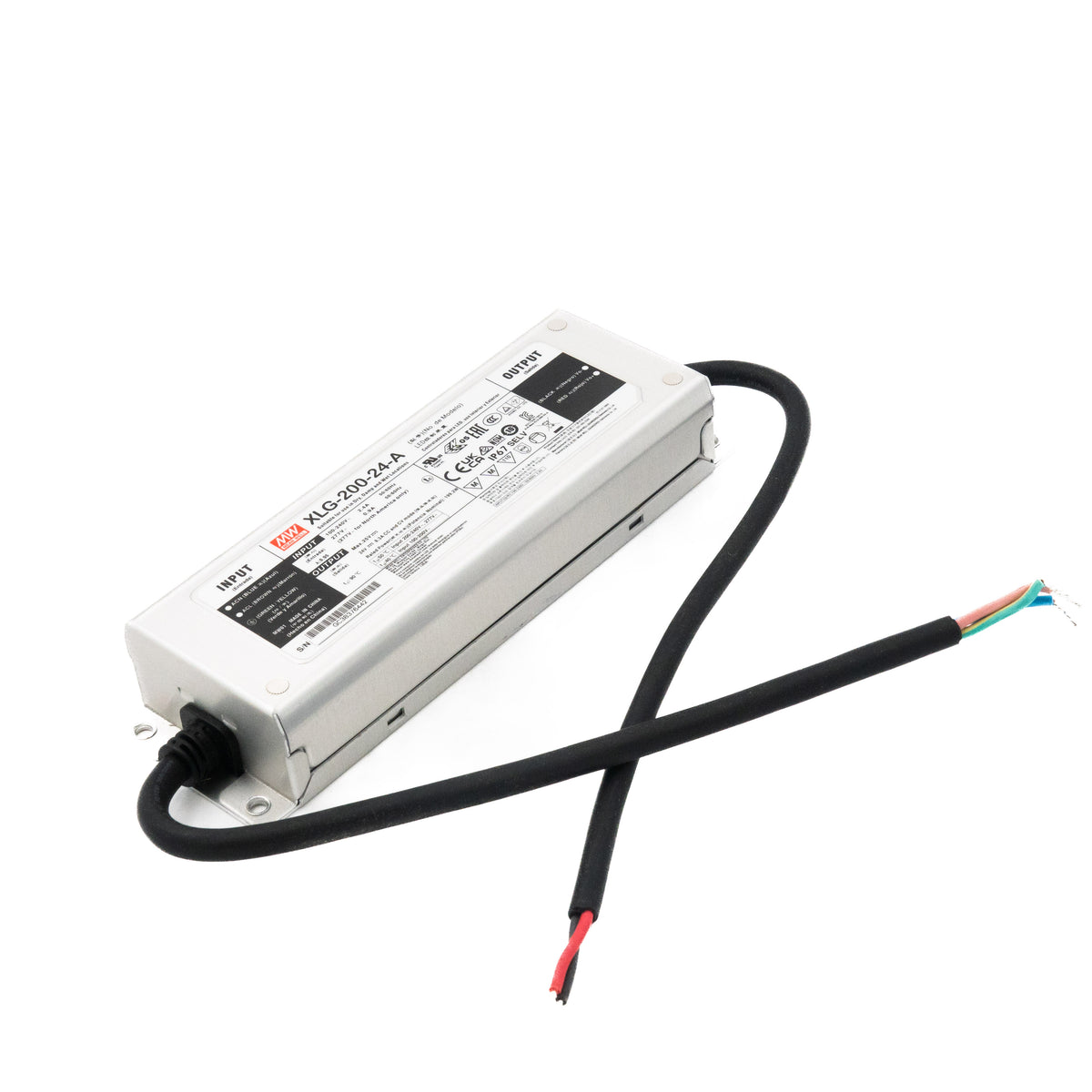

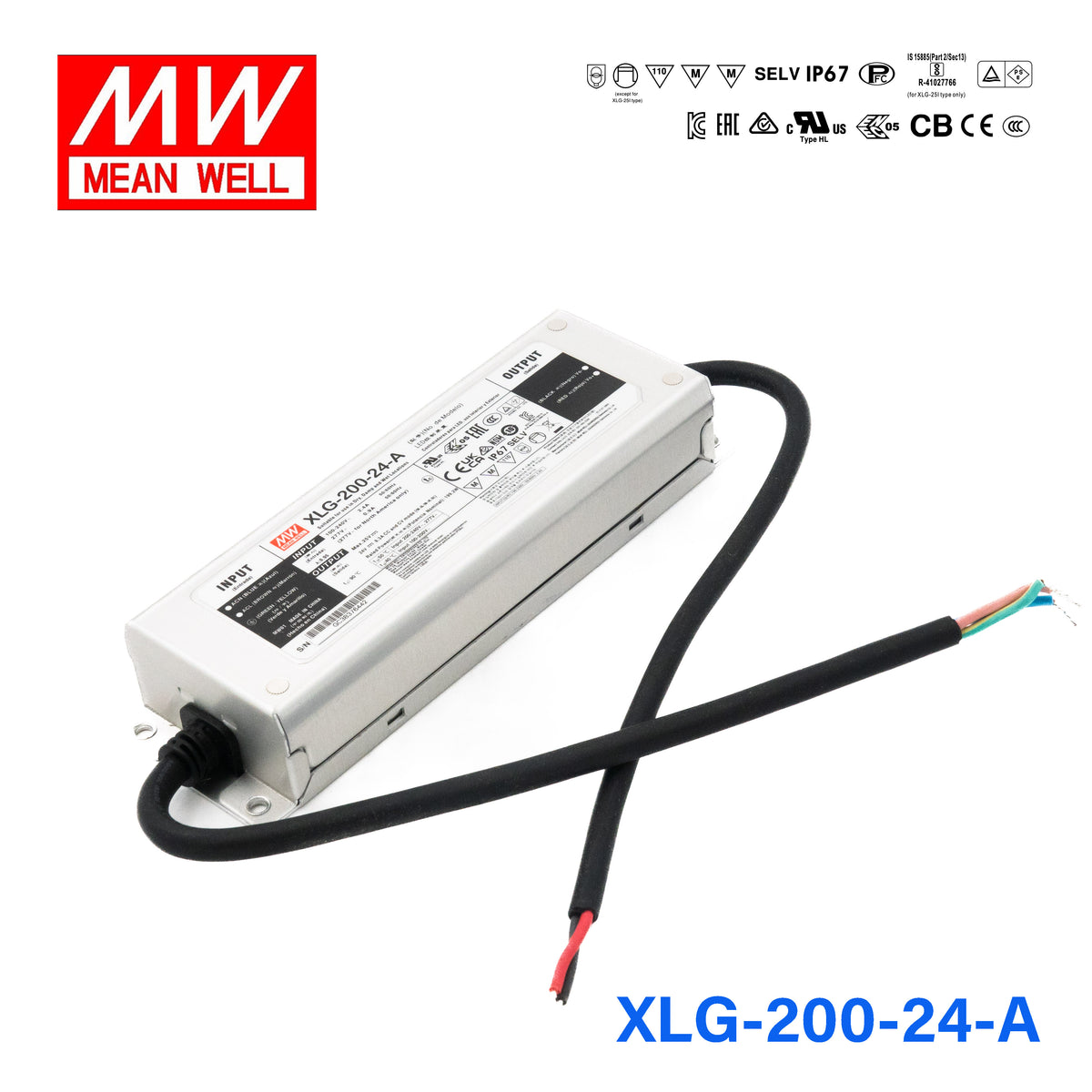

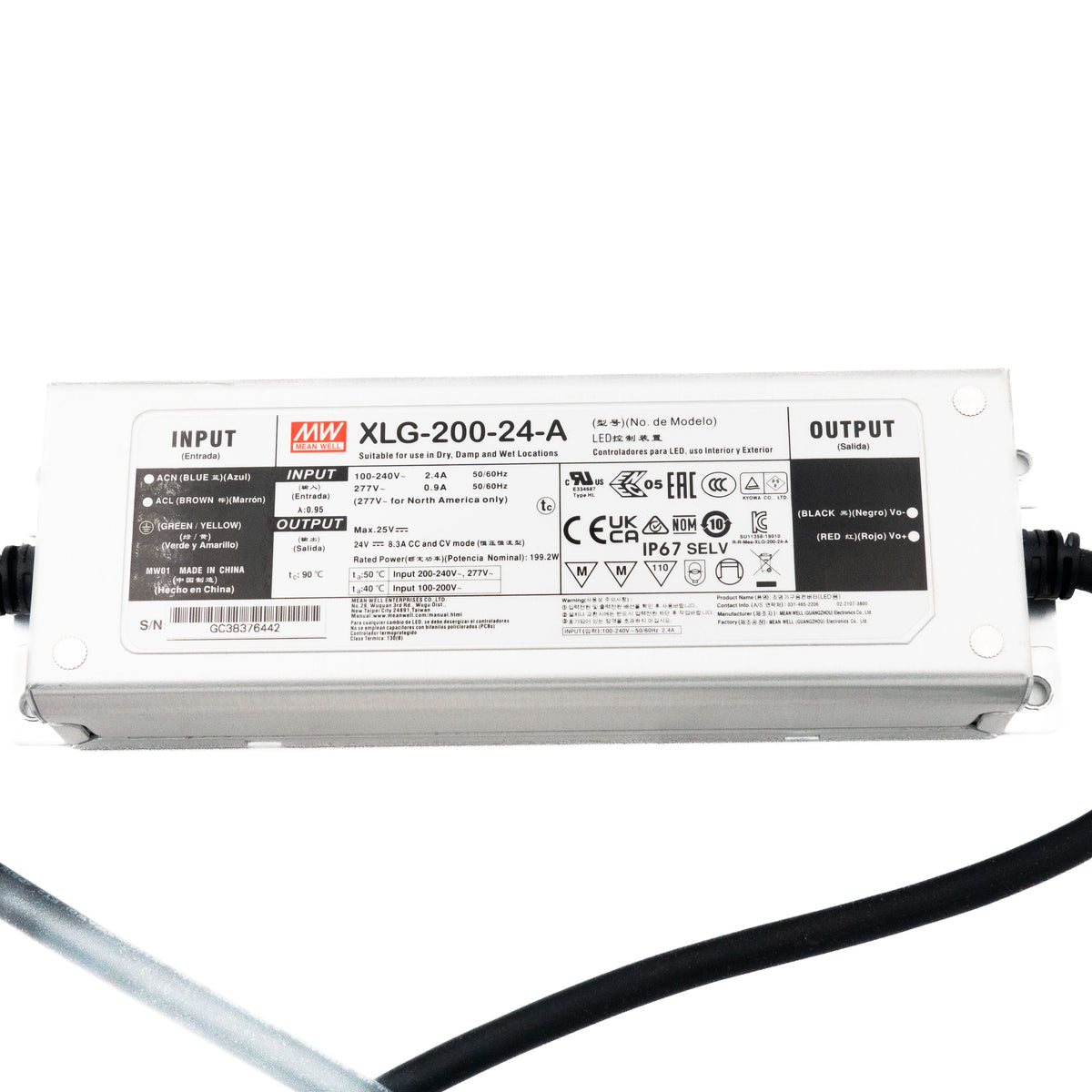

Mean Well XLG-200-24-A Power Supply 200W 24V - Adjustable 8.3A
Overview
XLG-200-24-A is the 24V output model of this series: rated power 199.2W, typical efficiency 94%.
XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world. XLG-200 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 intermational safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305V AC( Class I)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Surge protection with 6KV/4KV (10KV/6KV optional)
- 3 in 1 dimming function (Dim to off and Isolation design)
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: OVP/SCP/OCP/OTP
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT (Default)
- 8.3A
- RATED POWER
- 199.2W
- CONSTANT CURRENT REGIONNote.2
- 16.8~ 24V
- RIPPLE & NOISE (max.)Note.3
- 240mVp-p
- CURRENT ADJ. RANGE
- Adjustable for A-Type only (via the built-in potentiometer)
- CURRENT ADJ. RANGE
- 4.15 ~ 8.3A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1%
- SETUP, RISE TIMENote.6
- 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
- HOLD UP TIME (Typ.)
- 10ms/ 230VAC 10ms/ 115VAC
INPUT
- VOLTAGE RANGENote.5 (12/24 table), Note.3 (L/H table)
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
- TOTAL HARMONIC DISTORTION
- THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
- EFFICIENCY (Typ.)
- 94%
- AC CURRENT
- 2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD POWER CONSUMPTION
- No load power consumption <0.5W(for standard version)
PROTECTION
- OVER CURRENT
- 110~160% for CV type,95~108% for other type
- OVER CURRENT
- CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
- SHORT CIRCUIT
- CV-type: Hiccup mode only; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27 ~ 34V Shut down output voltage, re-power on to recover
- INPUT OVER VOLTAGE
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-200I series)
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
EMC
- SAFETY STANDARDSNote.7 (12/24 table), Note.5 (L/H table)
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB/T19510.1, GB/T19510.213;EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-200I type only ); NOM-058-SCFI-2017(except for Blank type);IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth(6K/10K option) Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 2300.1K hrs min. Telcordia SR-332 (Bellcore) ; 200.7Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*63*35.5mm (L*W*H)
- PACKING
- 0.85Kg;16pcs /14.2Kg /0.75CUFT
Test conditions and notes16
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE"(Except for CV-type).
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. Only CE/ENEC/CB is available for CV-type. XLG-200I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
- 16. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in class I, Division 2
Downloads
FAQ
Can the XLG-200-24-A power a large 24V LED strip installation in an outdoor environment?
Yes. The XLG-200-24-A is IP67 rated, providing full sealing against dust and temporary water immersion. It is suitable for outdoor LED strip applications in enclosures exposed to rain, condensation, or high humidity without additional weatherproofing.
How many meters of 24V LED strip will the XLG-200-24-A support?
The XLG-200-24-A delivers 199.2W at 24V. For a 10 W/m strip that is approximately 19.9 meters (199.2 ÷ 10); for a 20 W/m strip, about 10 meters (199.2 ÷ 20). Check your strip's rated power per meter and apply a 20% derating margin for safe continuous operation.
Is the XLG-200-24-A suitable for powering 24V LED strips in large retail lightboxes or illuminated displays?
Yes. With 199.2W at 24V, this driver can supply extended 24V LED strip runs used in large-format retail lightboxes, backlit wall graphics, and point-of-purchase displays. The 8.3A output current supports dense or high-wattage 24V strip products.
Can I use the XLG-200-24-A for 24V LED landscape or architectural facade lighting?
Yes. The IP67 enclosure and -40°C to +90°C operating range make this driver appropriate for landscape or facade applications where it will be exposed to weather extremes, freeze-thaw cycles, and high summer temperatures. The compact 199 × 63 × 35.5 mm metal housing fits in standard outdoor junction boxes.
Is the XLG-200-24-A a good choice for 24V LED strip lighting in commercial kitchen environments?
Yes. IP67 protection makes this driver resistant to water spray and steam exposure common in commercial kitchen ventilation areas and under-counter installations. The wide temperature tolerance also accommodates the heat generated in kitchen environments.
How does the XLG-200-24-A compare to the XLG-200-24-AB?
Both models output 199.2W at 24V with 8.3A and share identical IP67 rating, dimensions of 199 × 63 × 35.5 mm, and 100–305VAC input. The XLG-200-24-AB adds 3-in-1 dimming capability (0-10V, PWM, resistance) that the XLG-200-24-A does not have. All other specs and certifications are the same.
