Mean Well PLM-12-350, 350mA Constant Current with PFC - Terminal Block

Name: Mean Well PLM-12-350, 350mA Constant Current with PFC - Terminal Block
Brand: Mean Well
SKU: PLM-12-350
Price: 16.5 USD
Availability: InStock

$16.50 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

PLM-12-350 is the model of this series: rated current 0.35A, rated power 12.6W, typical efficiency 85%.

PLM-12 is a 12W economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM-12 provides a high Power Factor value greater than 0.9. In addition, with the low no load power consumption below 0.5W, and the setup time less than 500ms, PLM-12 is complied with the ErP regulation required by European Union for lighting fixtures. PLM-12 is a class Ⅱ(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation.PL M-12 series, which operates from 110~295VAC.The series is constant current output design,supplying models with the current of 350mA, 500mA, 700mA and 1050mA, respectively.

Features

Specifications

PLM-12-350Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

CONSTANT CURRENT REGION^Note.5: 22 ~ 36V
RATED CURRENT: 0.35A
NO LOAD OUTPUT VOLTAGE(max.): 42V
RATED POWER: 12.6W
RIPPLE & NOISE (max.)^Note.2: 3.6Vp-p
CURRENT ACCURACY^Note.3: ±5.0%
SETUP TIME: 500ms / 115VAC, 230VAC at full load;

INPUT

VOLTAGE RANGE^Note.4: 110 ~ 295VAC 156 ~ 417VDC;
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.97/115VAC,PF≥0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.): 85%
AC CURRENT: 0.15A/115VAC 0.08A/230VAC 0.07A/277VAC;
INRUSH CURRENT(Typ.): COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 160 units (circuit breaker of type B) / 160 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.06%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, EAC TP TC 004,IP30 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C(≥60% load);BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level, criteria B(surge 2KV),EAC TP TC 020

OTHERS

MTBF: 7872.3K hrs min. Telcordia SR-332 (Bellcore) ; 598.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 145*38*22mm (L*W*H)
PACKING: 0.126Kg;60pcs/8.6 Kg/0.48CUFT

Certifications & ratings

Input Voltage: 110 ~ 295VAC
Class: Class Ⅱ

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Please see "AC input voltage drop vs. output current characteristics" table.
4. Derating may be needed under low input voltage, please check the static characteristic for more details.
5. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
8. The models certified by CCC (GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) are optional models. Please contact your MEAN WELL sales for more information.

Technical drawings

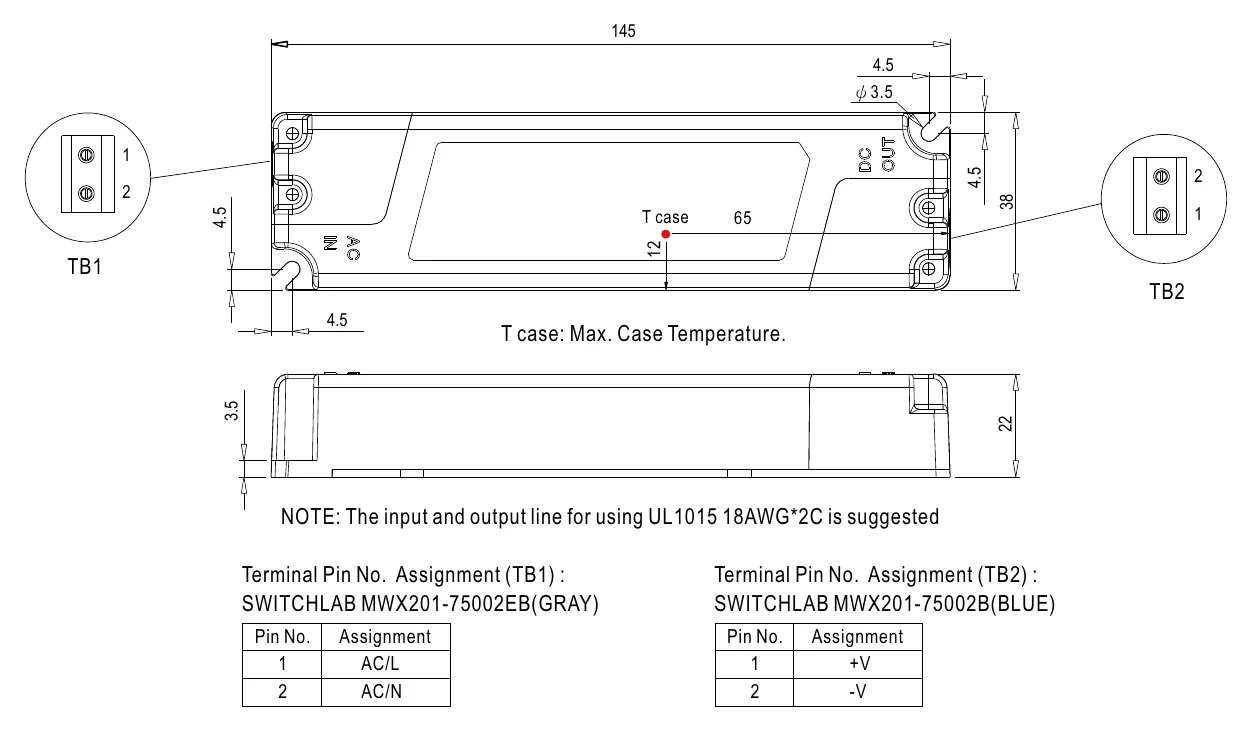

PLM-12-350 Mechanical Specification — Mechanical Specification

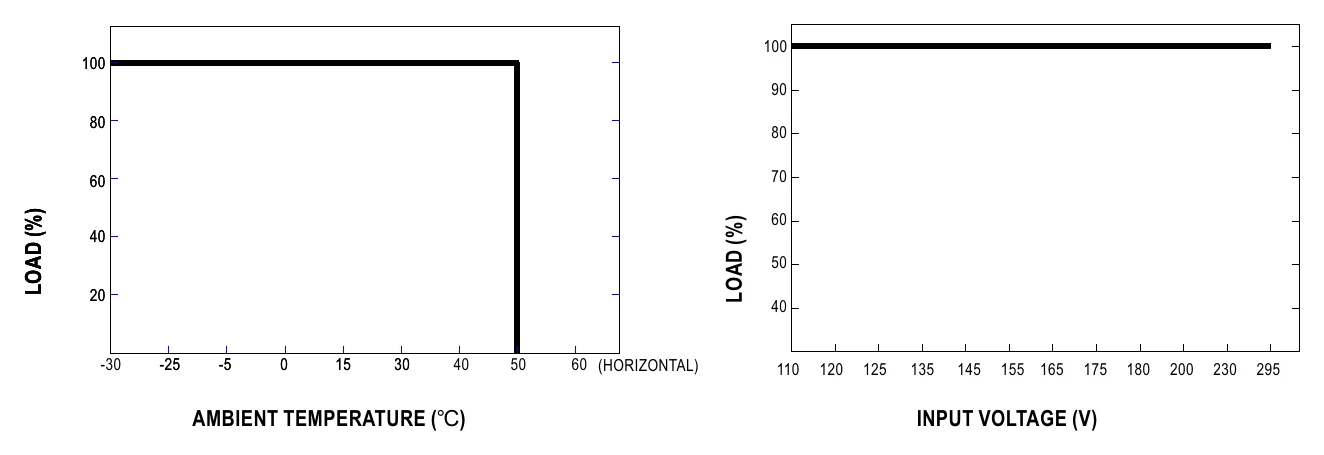

PLM-12-350 Derating Curve — Derating Curve

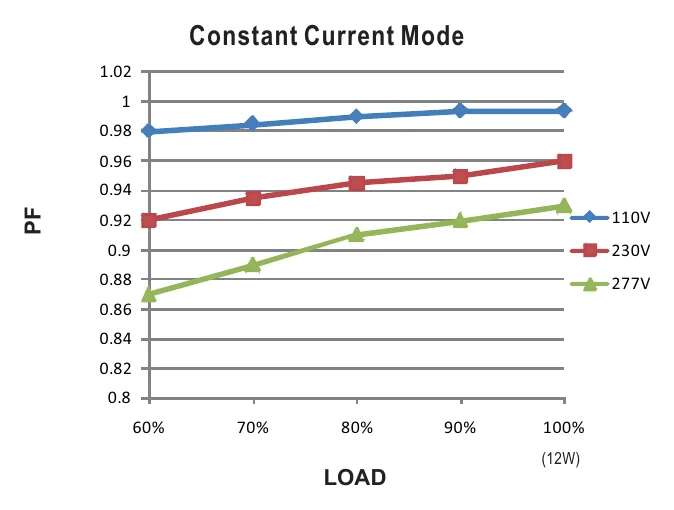

PLM-12-350 Power Factor Characteristic — Power Factor Characteristic

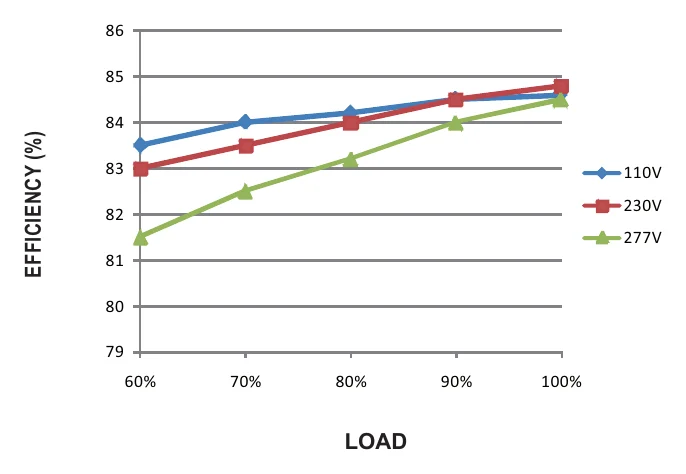

PLM-12-350 EFFICIENCY vs LOAD (500mA Model) — EFFICIENCY vs LOAD (500mA Model)

Typical applications

Indoor LED lighting
LED office lighting
LED commercial lighting
LED decorative lighting

Downloads

Certificates8

Mean Well PLM-12-25 CCC Certificate PDF Download

Mean Well PLM-12-25 ENEC Certificate PDF Download

Mean Well PLM-12-25 CB Certificate PDF Download

Mean Well PLM-12-25 EMC Certificate PDF Download

Mean Well PLM-12-25 UK Certificate PDF Download

Mean Well PLM-12-25 CE Certificate PDF Download

Mean Well PLM-12-25 ERP Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well PLM-12-350 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the PLM-12-350 with a 350mA LED downlight?

Yes, if the downlight is designed for 350mA constant current input and its LED load fits the 22-36V CC range. This 12.6W model is for constant current LED loads, not for constant voltage fixtures.

Is the PLM-12-350 a good fit for LED signage modules with longer series strings?

It can be, provided the signage module assembly is built for 350mA constant current and the total forward voltage stays within 22-36V. That higher CC range makes it more suitable for longer series LED strings than the lower-voltage 12W PLM variants.

Can this driver power a small LED array that needs lower current and higher string voltage?

Yes, that is the kind of load this model is aimed at when the array is rated for 350mA constant current and falls within 22-36V. Its 12.6W output is better aligned with modest-power arrays than with larger LED assemblies.

What should I check before pairing the PLM-12-350 with an LED module?

Confirm that the LED module requires 350mA constant current and that the combined LED forward voltage is within the 22-36V CC range. The actual number of LEDs depends on each LED's forward voltage, so compatibility is based on current and total voltage, not a fixed count.

Can the PLM-12-350 be used across a wide ambient temperature range?

It is rated for -30°C to +50°C operation, which supports use in a broad range of indoor or protected applications. It is a Class II design rated IP30, so the surrounding enclosure and exposure conditions still matter.
