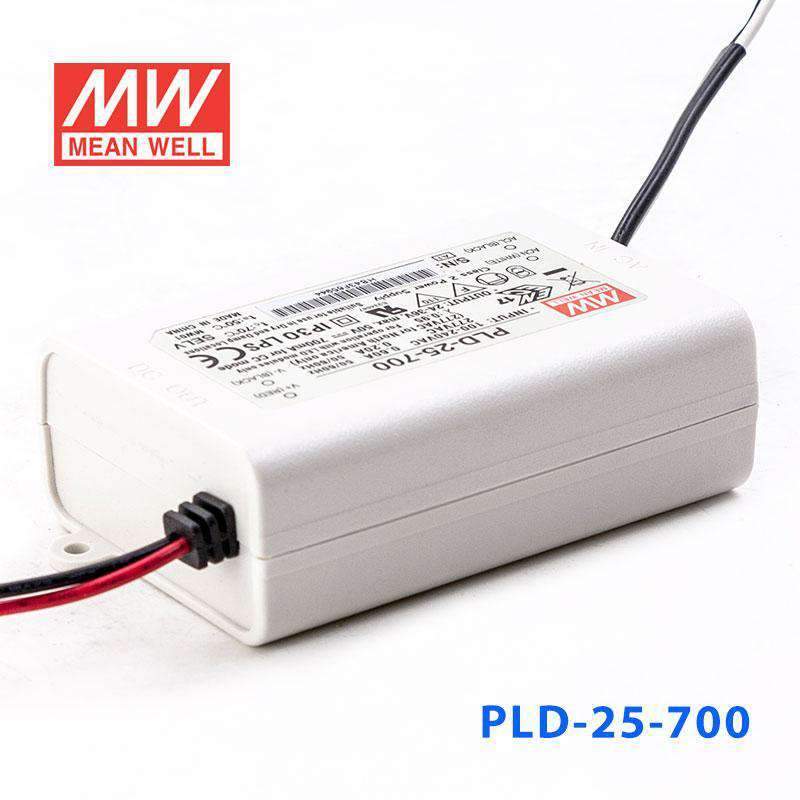

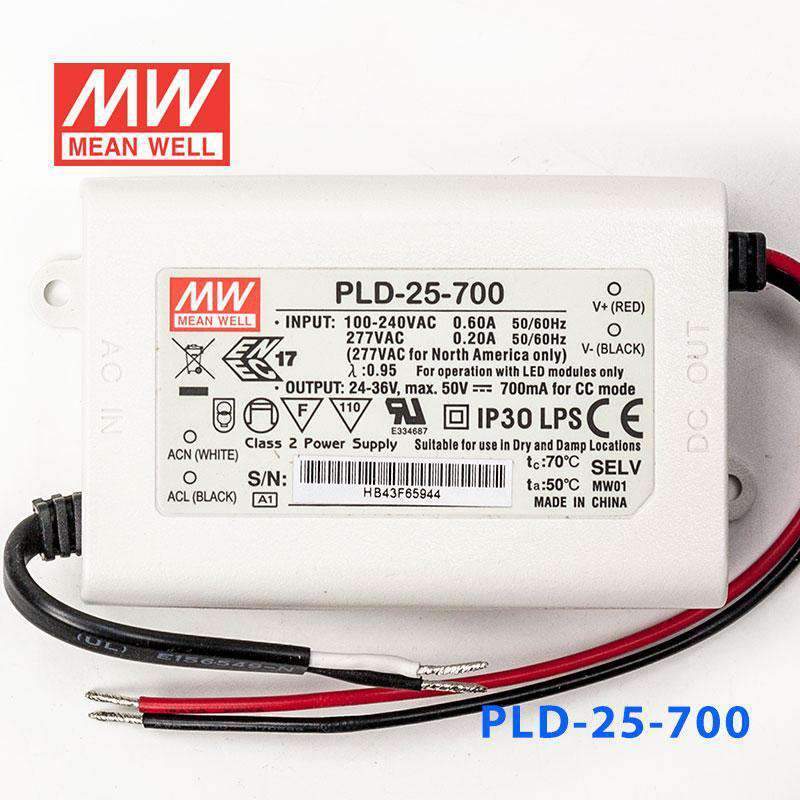

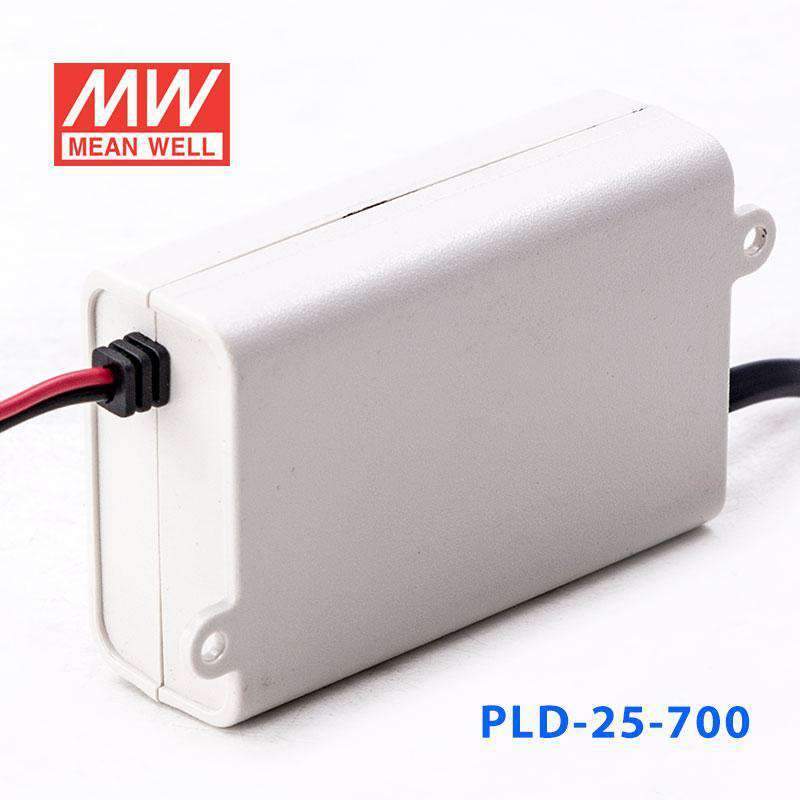

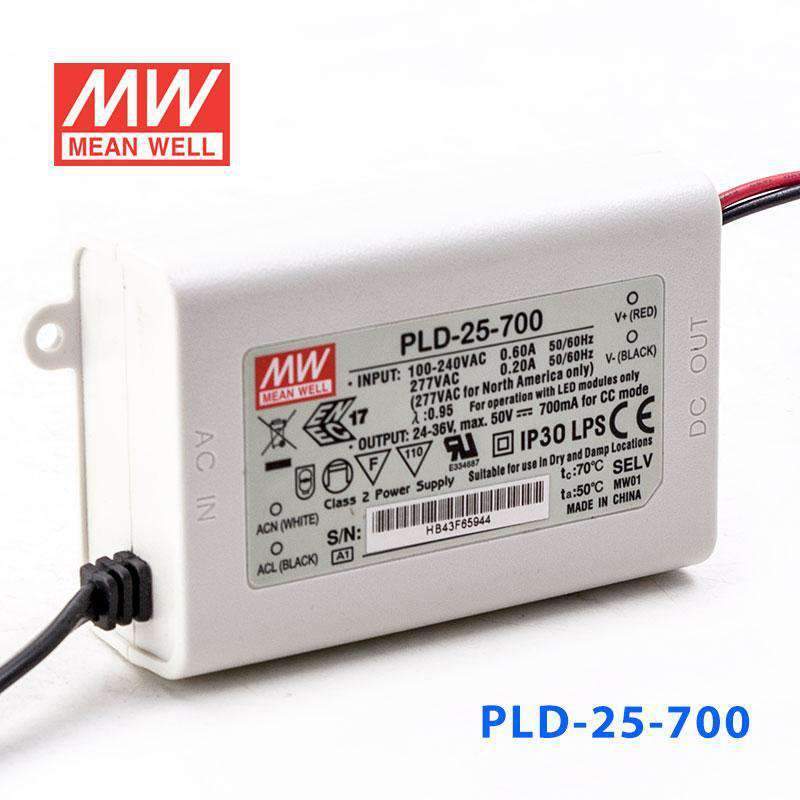

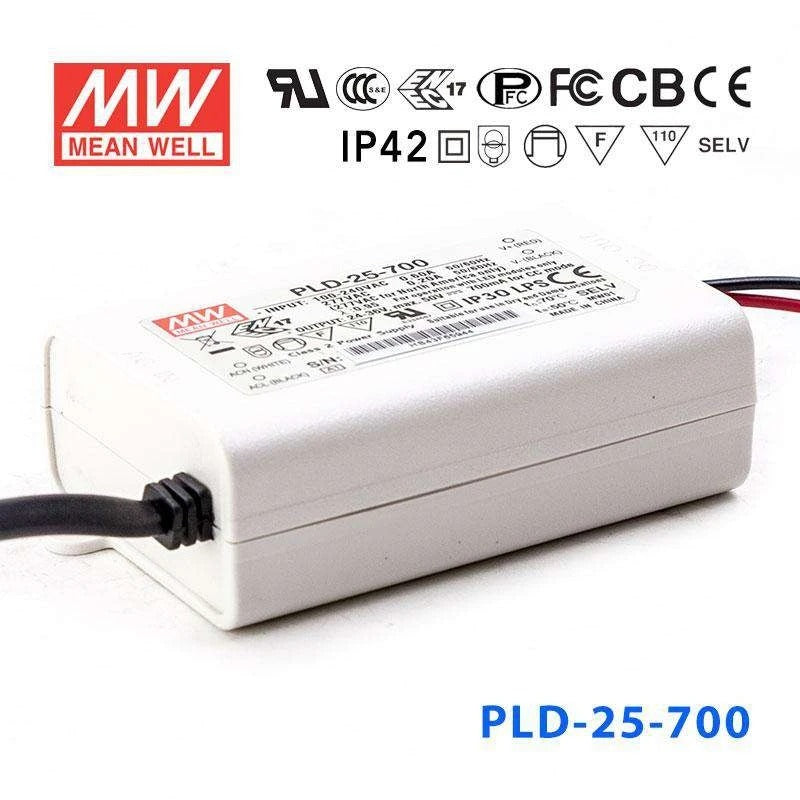

Mean Well PLD-25-700 Power Supply 25W 700mA
Overview
PLD-25-700 is the model of this series: rated current 700mA, rated power 25.2W, typical efficiency 86%.
Features
- Universal AC input / Full range (up to 295VAC)
- Built-in active PFC function
- Constant current design
- Protections: Short circuit / Over temperature
- Cooling by free air convection
- Fully isolated plastic case
- Class 2 Power Unit
- Class Ⅱ power unit, no FG
- IP42 design
- Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
- 100% full load burn-in test
- Low cost
- High reliability
- Suitable for dry / damp locations
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- OPERATING VOLTAGE RANGE
- 24 ~ 36V
- CURRENT ACCURACY
- ±5.0%
- RATED POWER
- 25.2W
- RIPPLE & NOISE (max.)Note.1
- 2.7Vp-p
- NO LOAD OUTPUT VOLTAGE (max.)
- 50V
- SETUP TIME
- 500ms / 230VAC 2000ms / 115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 295VAC 127 ~ 417VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.98/115VAC, PF>0.92/230VAC, PF>0.91/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
- TOTAL HARMONIC DISTORTION
- THD< 20% when output loading≧70% at 115VAC/230VAC input and output loading≧80% at 277VAC input
- EFFICIENCY (Typ.)
- 86%
- AC CURRENT (Typ.)
- 0.6A/115VAC 0.3A/230VAC 0.2A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 25A(twidth=75μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 72 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.5mA / 240VAC
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed.
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, BS EN/EN 62384, EAC TP TC 004, IP42 approved ; design refer to UL60950-1
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≦75% load) ; BS EN/EN61000-3-3, FCC part 18 non-consumer equipment, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 5524.2K hrs min. Telcordia SR-332 (Bellcore) ; 968.2Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 84*57*29.5mm (L*W*H)
- PACKING
- 0.19Kg; 72pcs/14.7Kg/0.75CUFT
Test conditions and notes5
- 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
- 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
- 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Downloads
Certificates5
Test reports1
Catalogues1
FAQ
Can I use the PLD-25-700 for a 700mA LED downlight?
Yes, this model is intended for constant current LED loads at 700mA. It is suitable when the downlight's total forward voltage falls within the 24-36V constant current range and the load stays within 25.2W.
Will the PLD-25-700 work with a small COB LED array?
It can work with a COB or small LED array if the array is specified for constant current operation at 700mA. The total forward voltage of the array must stay within 24V to 36V, since this is not a constant voltage driver.
Is this driver appropriate for compact illuminated signage?
It may be used for compact signage only when the LED modules are built for constant current at 700mA. Constant voltage signage modules are not the right match, and the total LED load must remain within 25.2W.
Can the PLD-25-700 be used in protected indoor commercial fixtures?
Yes, its IP42 rating suits protected indoor fixture environments. It also supports operating temperatures from -30°C to +60°C (with derating), but IP42 is not intended for direct weather exposure.
What kind of LED load is compatible with the PLD-25-700?
The PLD-25-700 delivers constant current at 700mA across a 24-36V CC output range. The number of LEDs depends on each LED's forward voltage, so the correct match is determined by the load's combined forward voltage rather than a specific LED quantity.
What is the difference between the PLD-25-700 and the other 25W PLD drivers?
The PLD-25-700 is the 700mA member of the 25W group, with a 24-36V CC range and 25.2W output. Other 25W versions are PLD-25-350 at 350mA, 40-58V, 20.3W; PLD-25-1050 at 1050mA, 16-24V, 25.2W; and PLD-25-1400 at 1400mA, 12-18V, 25.2W.
