Mean Well

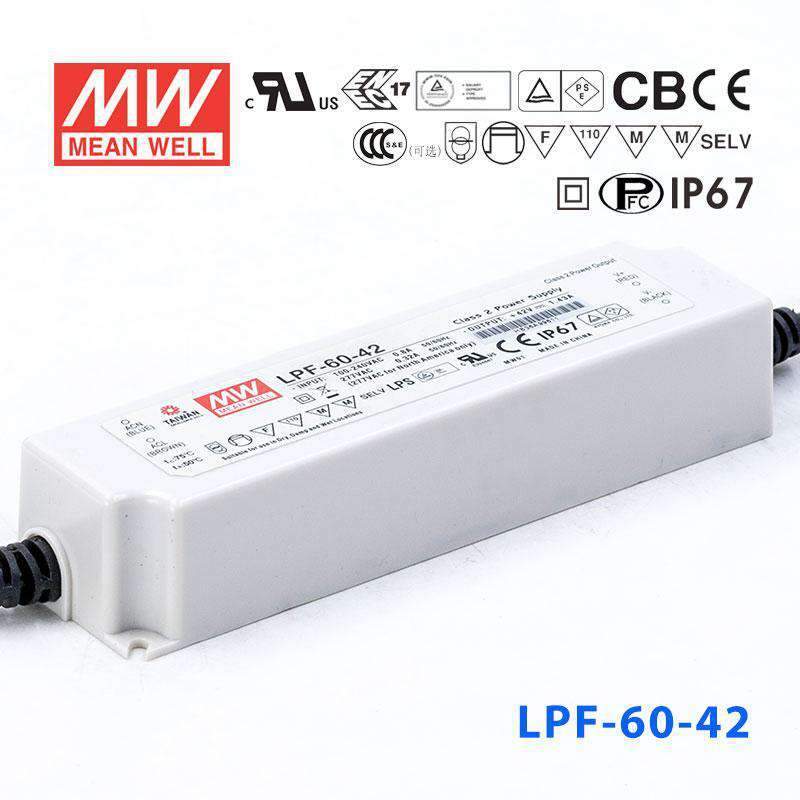

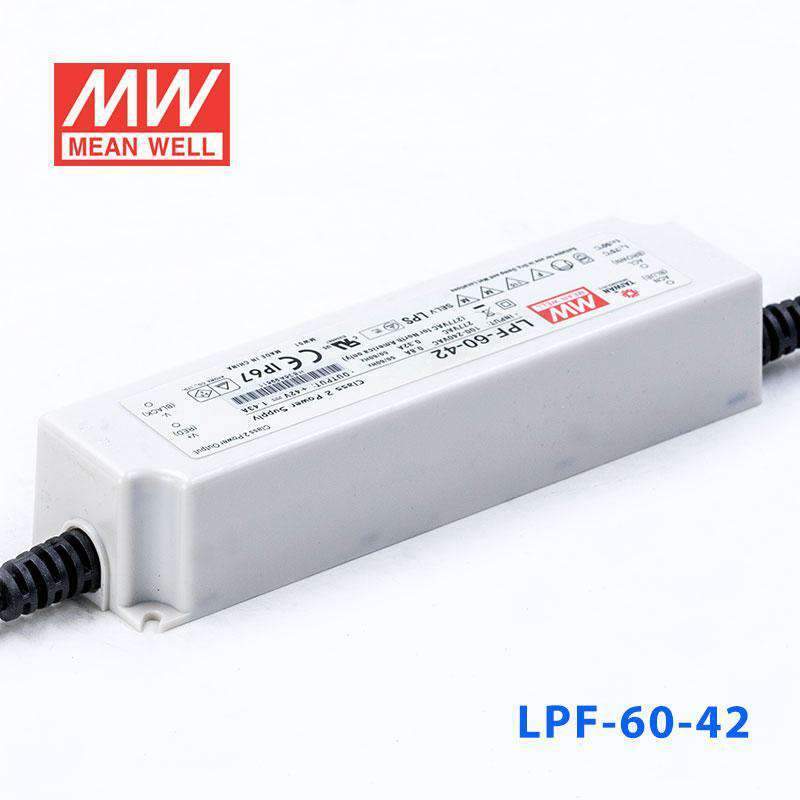

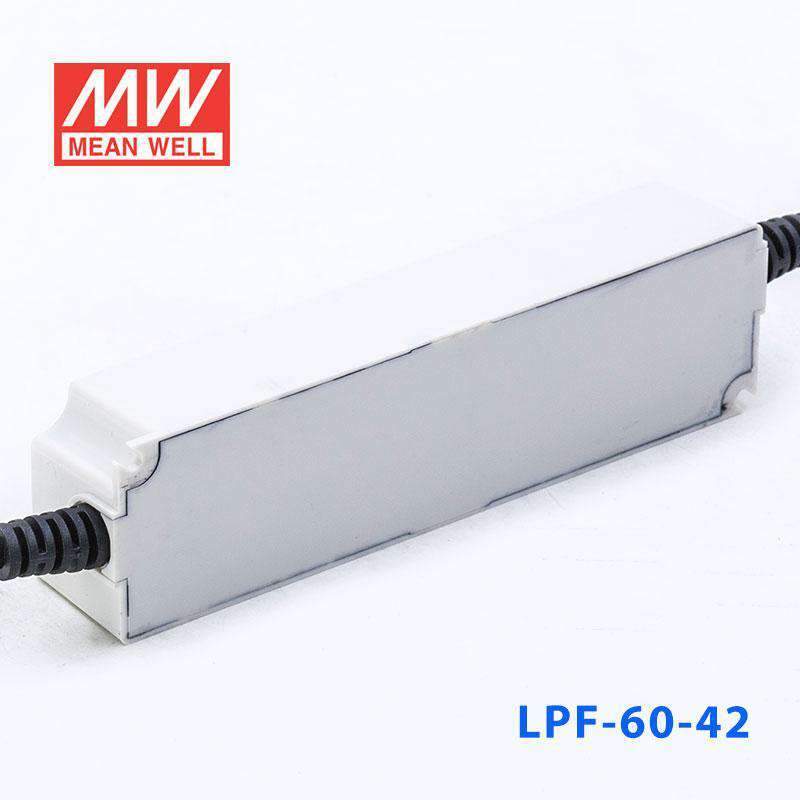

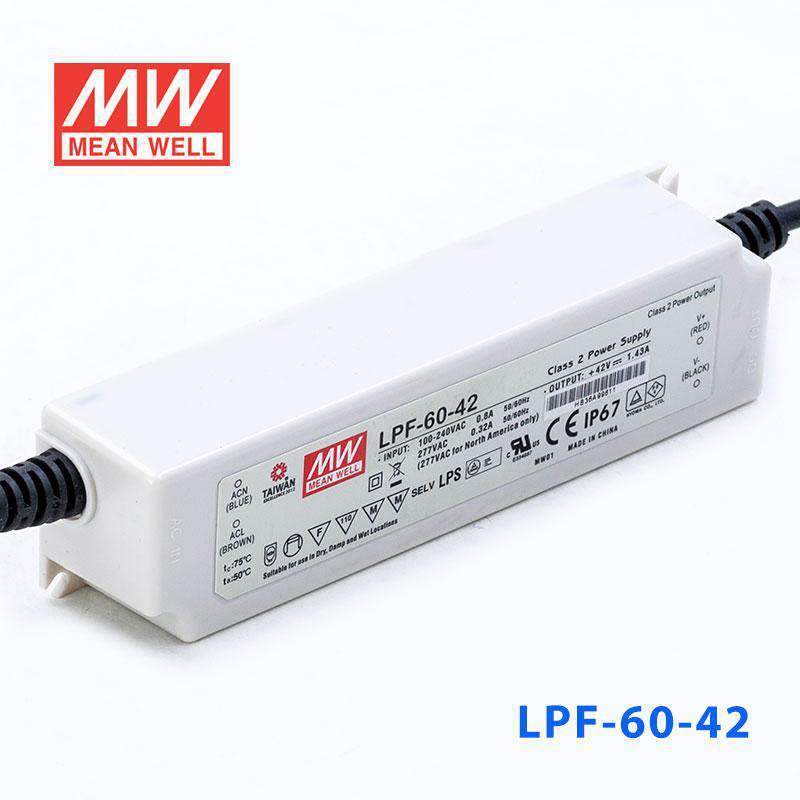

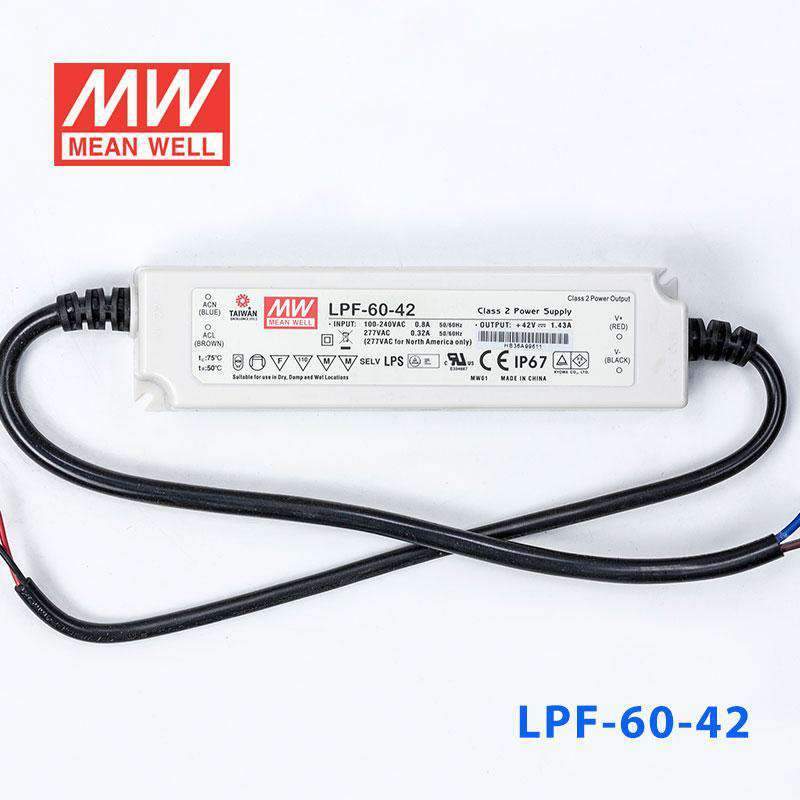

Mean Well LPF-60-42 Power Supply 60W 42V 1.43A

fully isolated plastic caseIP67Class II design without FG
SKU LPF-60-42
$37.96 USD
Shipping calculated at checkout.

Select model — 10 in this family

LPF-60-42
In stock
|

Overview

LPF-60-42 is the 42V output model of this series: rated current 1.43A, rated power 60.06W, typical efficiency 90%.

LPF-60 series is a 60W AC/DC LED driver featuring the dual modes constant voltage and constant current output. LPF-60 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations.

Features

  • Constant Voltage + Constant Current mode output
  • Plastic housing with Class II design
  • Built-in active PFC function
  • Class 2 power unit
  • Fully encapsulated with IP67 level
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

LPF-60-42Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
42V
CONSTANT CURRENT REGIONNote.2
25.2 ~ 42V
RATED CURRENT
1.43A
RATED POWERNote.5
60.06W
RIPPLE & NOISE (max.)Note.3
250mVp-p
VOLTAGE TOLERANCENote.4
±4.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)
90%
AC CURRENT
0.8A / 115VAC 0.4A / 230VAC 0.32A/277VAC
INRUSH CURRENT(Typ.)
COLD START 55A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
46 ~ 54V
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.
Tcase=+80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67, J61347-1, J61347-2-13, BIS IS15885 (for 24V only) , EAC TP TC 004, GB/T19510.1,GB/T19510. 213 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF
3786.9K hrs min. Telcordia SR-332 (Bellcore) ; 440.6Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
162.5*43*32mm (L*W*H)
PACKING
0.45Kg; 32pcs/15.4Kg/0.93CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

LPF-60-42 BLOCK DIAGRAM
BLOCK DIAGRAM
LPF-60-42 OUTPUT LOAD vs TEMPERATURE
OUTPUT LOAD vs TEMPERATURE
LPF-60-42 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
LPF-60-42 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
LPF-60-42 LIFE TIME
LIFE TIME
LPF-60-42 MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
LPF-60-42 Recommend Mounting Direction
Recommend Mounting Direction

Typical applications

  • LED panel lighting
  • LED downlight
  • LED decorative lighting
  • LED tunnel lighting
  • Moving sign

Downloads

FAQ

Can I use the LPF-60-42 for a 42V LED lighting load?

Yes, if the 42V lighting product does not exceed 60.06W or 1.43A. The driver supplies 42V constant voltage and has a 25.2-42V constant current region, so the load needs to be compatible with one of those modes.

Is this driver appropriate for 42V outdoor sign or display lighting?

It can be appropriate for 42V sign or display lighting when the modules are 42V constant voltage or 25.2-42V constant current types and remain within the 60.06W, 1.43A limit. Its IP67 rating is relevant for outdoor conditions where water exposure is possible.

Can the LPF-60-42 be used for exterior architectural lighting fixtures?

Yes, provided the fixture's LED engine is designed for 42V constant voltage or constant current input within the 25.2-42V range. The driver also has a Tcase working range of -40°C to +80°C (with load derating at higher temperatures), which helps in exposed architectural environments.

Is the LPF-60-42 suitable for wet or outdoor environments?

Yes, it has an IP67 waterproof rating, so it is intended for outdoor and wet-location use. That rating is the key specification for resistance to water and dust exposure around the driver body.

How much 42V LED strip can this driver run?

The maximum output is 60.06W total at 42V, with a maximum current of 1.43A. To estimate strip length, divide 60.06W by the strip's watts per meter, and check your strip rated power per meter before choosing a final run length.

What other LPF-60 models are available besides the 42V version?

Other LPF-60 outputs are 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 48V 1.25A 60W, and 54V 1.12A 60.48W, alongside this 42V 1.43A 60.06W model. All share the same 90-305VAC input, IP67 rating and 162.5 x 43 x 32 mm case.
