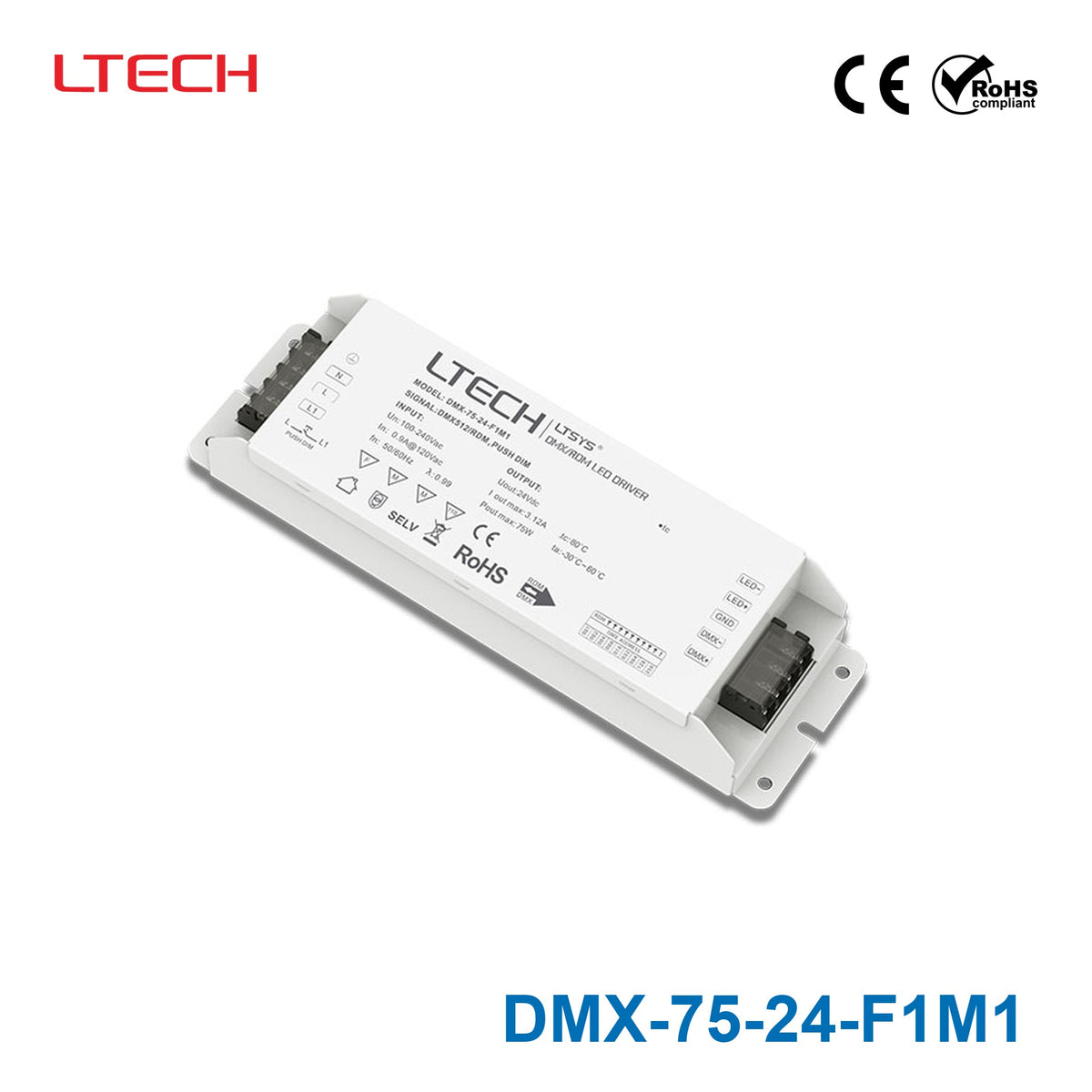

Ltech DMX-75-24-F1M1 75W 24VDC CV DMX LED Driver - DMX dimmable 3.12A

Name: Ltech DMX-75-24-F1M1 75W 24VDC CV DMX LED Driver - DMX dimmable 3.12A
Brand: Ltech
SKU: DMX-75-24-F1M1
Price: 72.96 USD
Availability: InStock

SKU DMX-75-24-F1M1

$72.96 USD ~~$142.34~~

Shipping calculated at checkout.

In stock

The DMX-75-24-F1M1 is a 24V constant-voltage LED driver for LED lighting applications that need DMX dimming. It is intended for indoor lamp use and fits projects where stable 24VDC output and digital dimming control are required.

Input 100~240VAC. Operating temperature -30~+60°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 100~240VAC
✓Dimming: DMX
✓Output voltage: 24V
✓Rated output current: 3.12A
✓Rated power: 75W
✓Operating temperature: -30~+60°C
✓Certifications: CE, ROHS
✓Dimensions: 204 x 62 x 34mm
✓5 year warranty

Frequently Asked Questions

What kind of LED application is the Ltech DMX-75-24-F1M1 designed for?

Does this LED driver support DMX512 and RDM?

Yes. This model supports DMX512 control and includes RDM remote device management protocol support. It is built for bi-directional DMX512 signal communication, which makes it suitable for systems that use RDM-capable control environments.

What are the main electrical ratings of the DMX-75-24-F1M1?

This model is rated at 75W output with a 24VDC constant-voltage output. Its rated current is 3.12A, making it appropriate for 24V LED loads that stay within those output limits.

How does the dimming performance compare to basic non-DMX LED drivers?

Unlike a basic fixed-output power supply, the DMX-75-24-F1M1 is designed for DMX dimming with PWM digital dimming control. It supports a 0-100% dimming range, flicker-free performance, and can start LEDs at 0.1%, which makes it better suited to lighting control applications than a non-dimmable driver.

What protection features are included in this driver?

The DMX-75-24-F1M1 includes short circuit, over-heat, and overload protection. The product description also states that short circuit protection recovers automatically, helping protect the driver during fault conditions.

Is the DMX-75-24-F1M1 suitable for demanding temperature conditions?

This driver is rated for operation from -30°C to 60°C. That gives it a relatively wide operating temperature range for indoor LED applications, but the final suitability still depends on the ambient conditions of the specific enclosure or fixture.

What warranty is offered for this model?

The listed warranty period for the Ltech DMX-75-24-F1M1 is 5 years. For buyers comparing long-term reliability and lifecycle value, that is a useful differentiator for this specific model.
