Mean Well HLG-480H-C1750B LED Driver | 480W 1750mA - Dimmable

Name: Mean Well HLG-480H-C1750B Power Supply 480W 1750mA - Dimmable
Brand: Mean Well
SKU: HLG-480H-C1750B
Price: 153.39 USD
Availability: InStock

Overview

HLG-480H-C1750B is the model of this series: rated current 1750mA, rated power 480W, typical efficiency 95%.

HLG-480H-C series is a 480W LED AC/DC driver featuring the constant current mode and high voltage output. HLG-480H-C operates from 90~305VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Moreove, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. HLG-480H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Environment-adaptive driving capability
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off,isolated design); Smart timer dimming; Low temperature light-on; Junction box
Typical lifetime>62000 hours (Note.7)
7 years warranty

Specifications

HLG-480H-C1750BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1750mA
RATED POWER: 480W
CONSTANT CURRENT REGION^Note.2: 137~274V
OPEN CIRCUIT VOLTAGE (max.): 340V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 700~1400mA 875~1750mA 1050~2100mA 1400~2800mA 1750~3500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧40% /115VAC, 230VAC, 277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 5A / 115VAC 2.45A / 230VAC 2A / 277VAC
INRUSH CURRENT(Typ.): COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current, recovers automatically after fault condition is removed
OVER VOLTAGE: 345 ~ 382V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%); BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1350.9K hrs min. Telcordia SR-332(Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*125*43.8mm (L*W*H)
PACKING: 2.8Kg;4pcs/12.2Kg/0.55CUFT

Certifications & ratings

Type: HL
IP level: IP65 IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

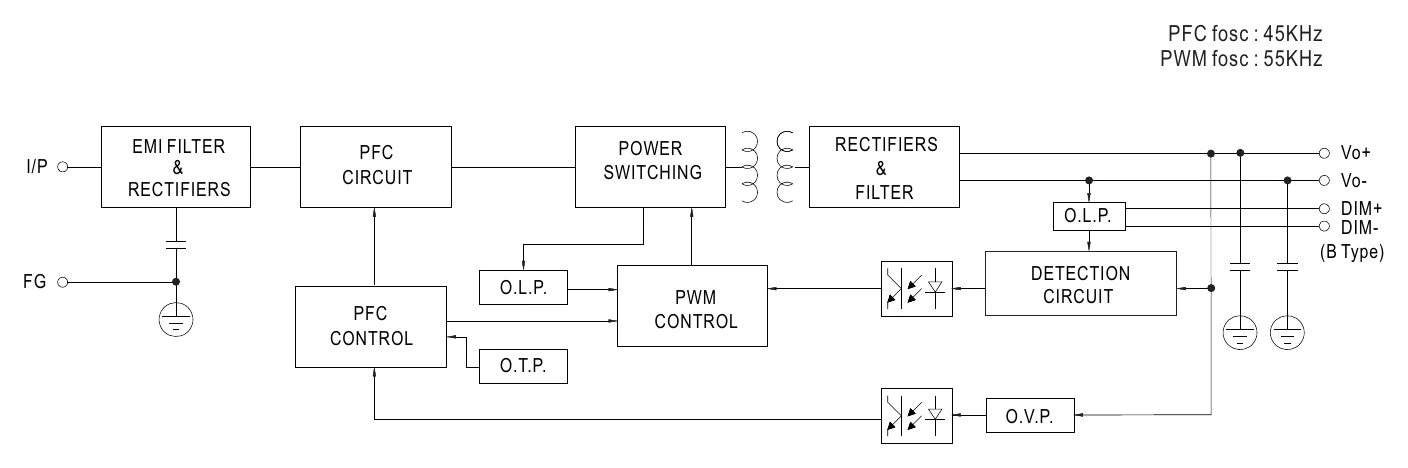

HLG-480H-C1750B BLOCK DIAGRAM — BLOCK DIAGRAM

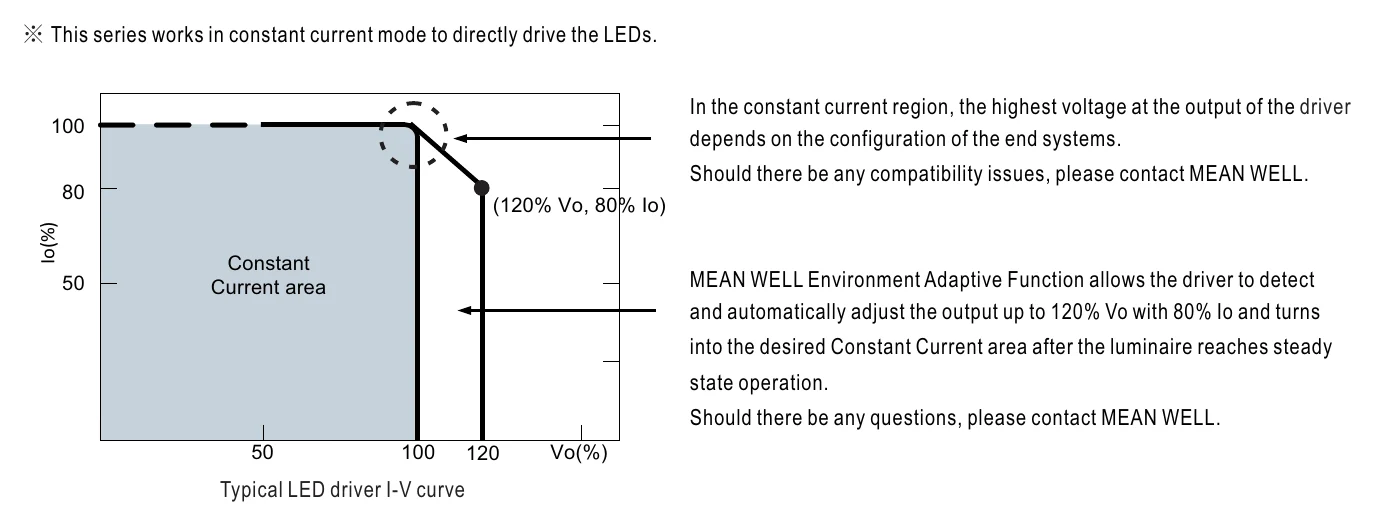

HLG-480H-C1750B DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

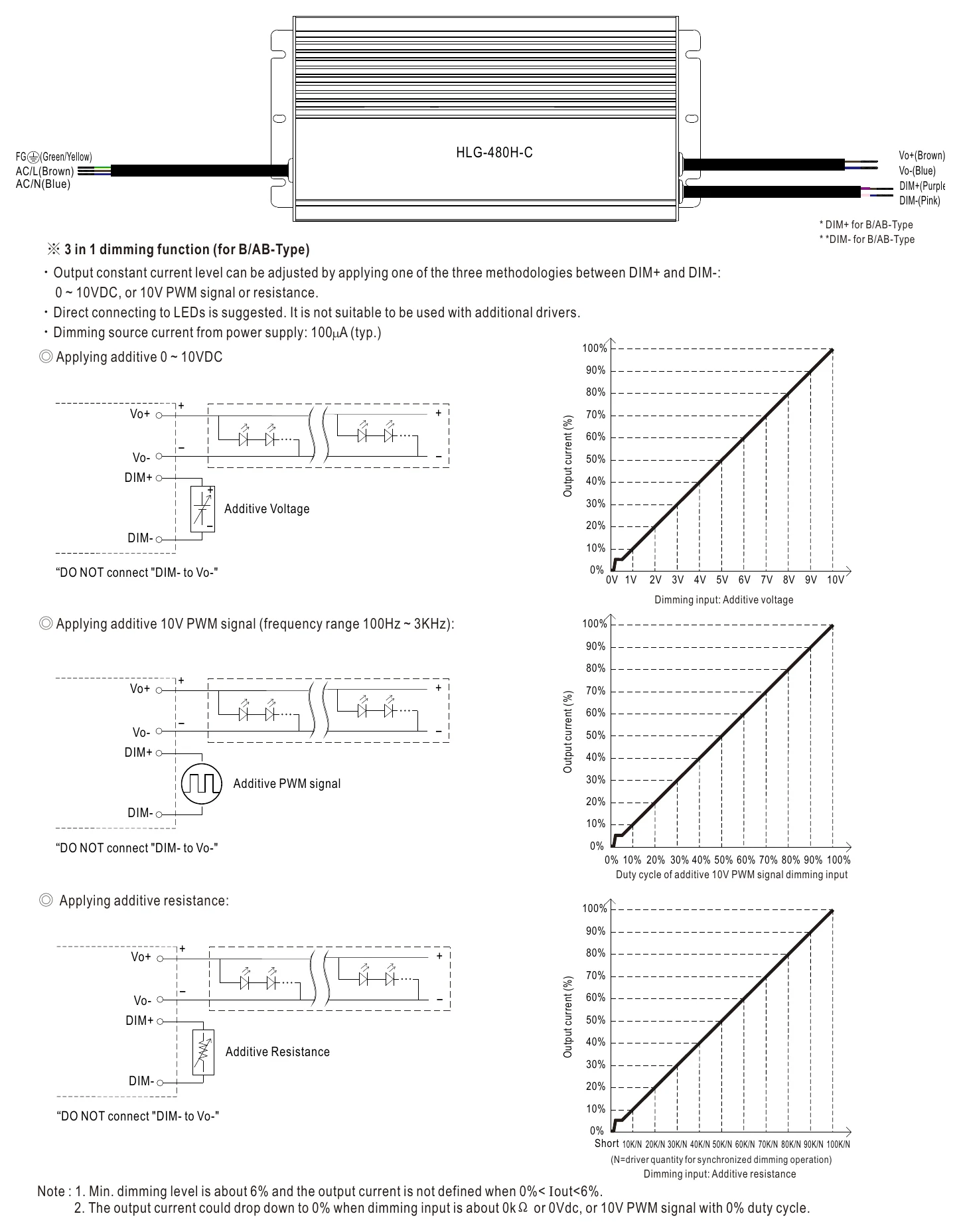

HLG-480H-C1750B DIMMING OPERATION — DIMMING OPERATION

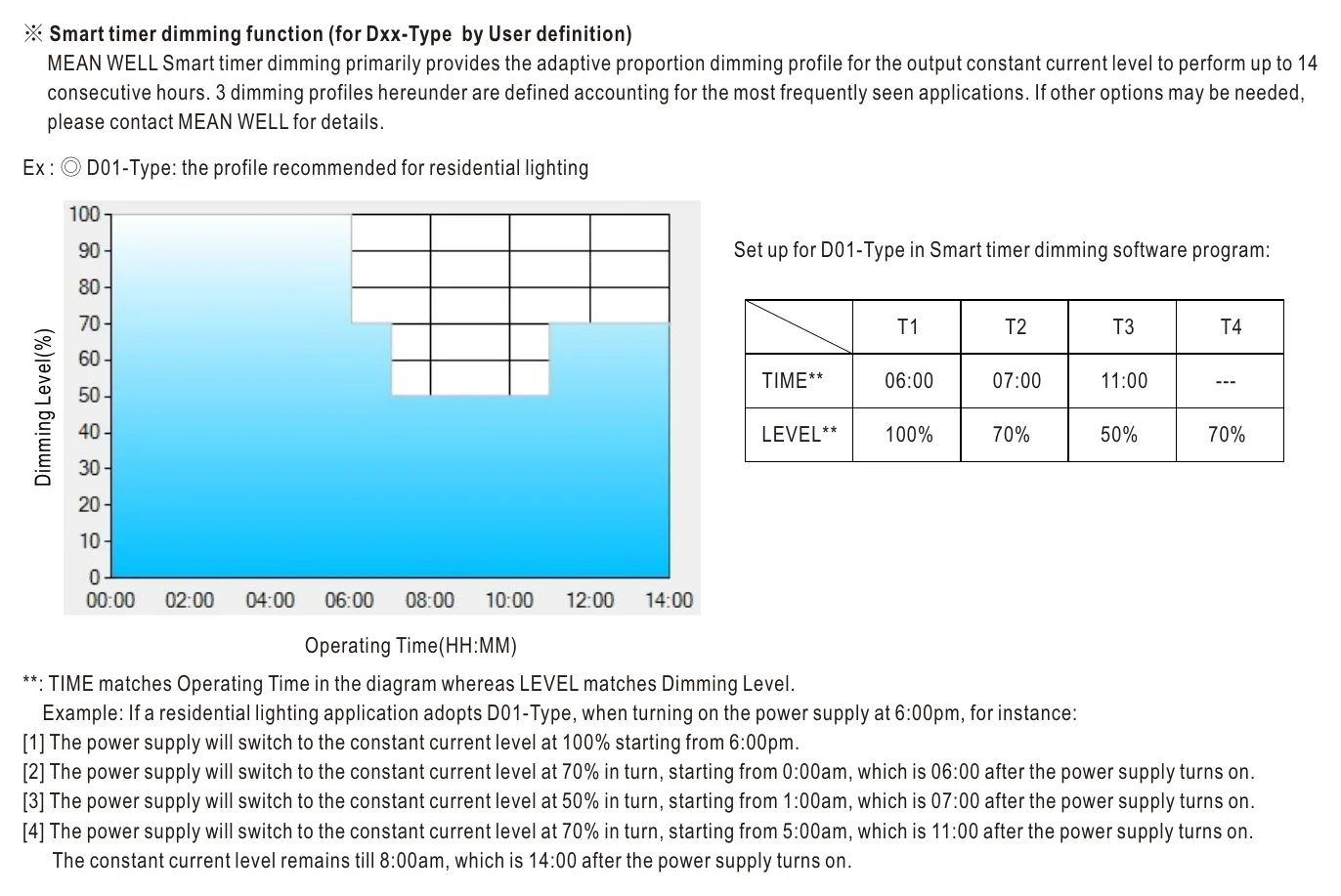

HLG-480H-C1750B ※ Smart timer dimming function (for Dxx-Type by User… — ※ Smart timer dimming function (for Dxx-Type by User…

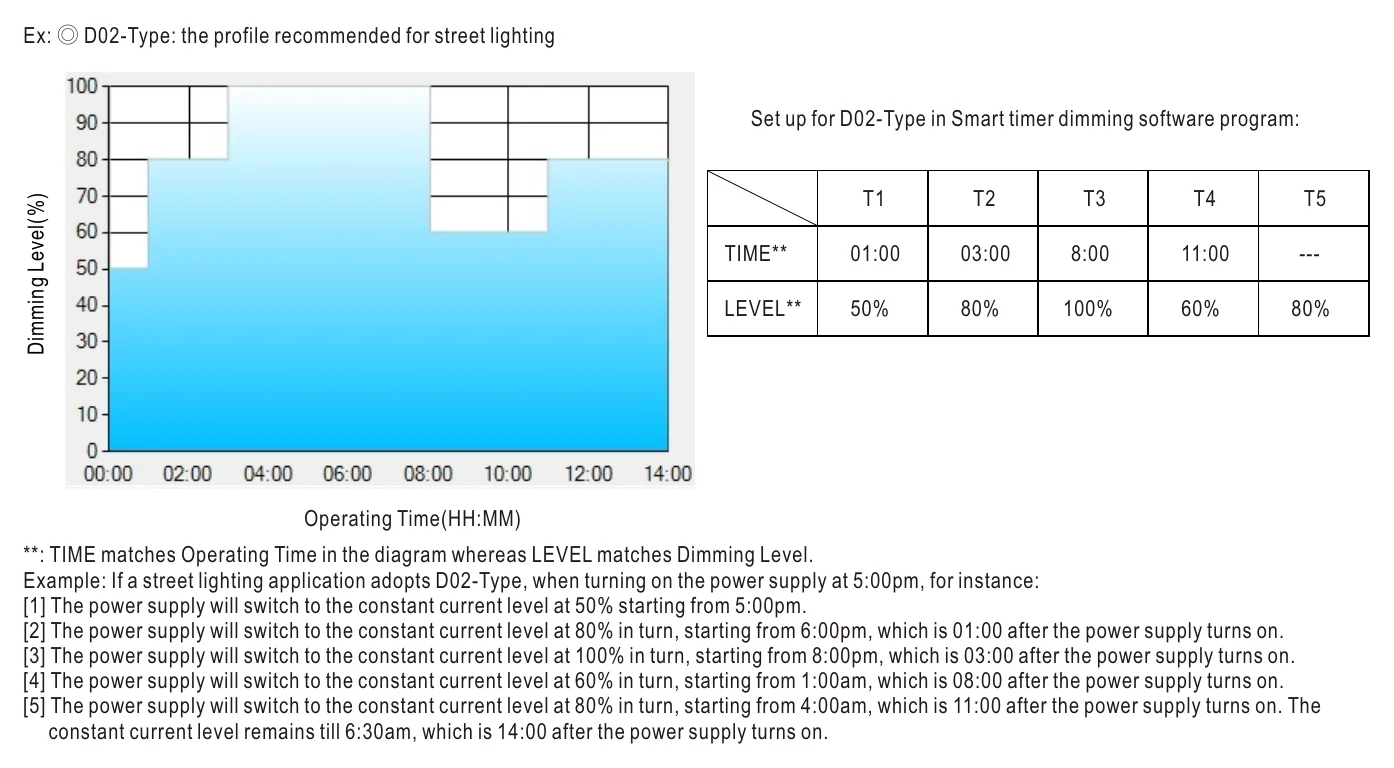

Ex: ◎ D02-Type: the profile recommended for street lighting

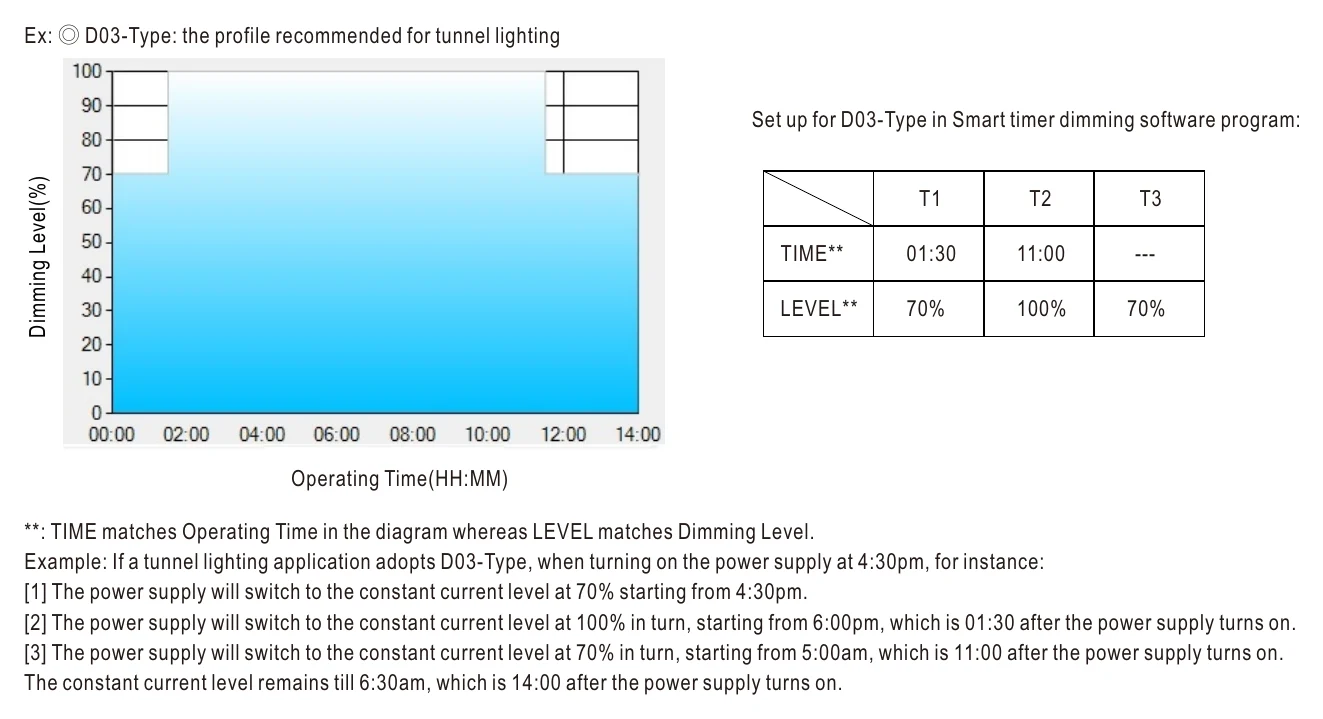

Ex: ◎ D03-Type: the profile recommended for tunnel lighting

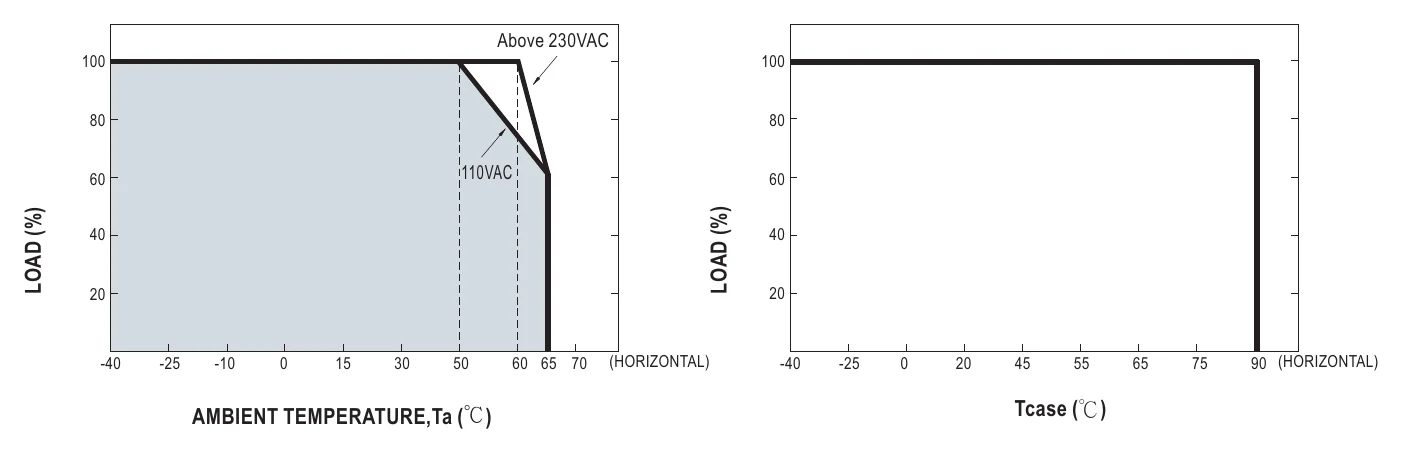

HLG-480H-C1750B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

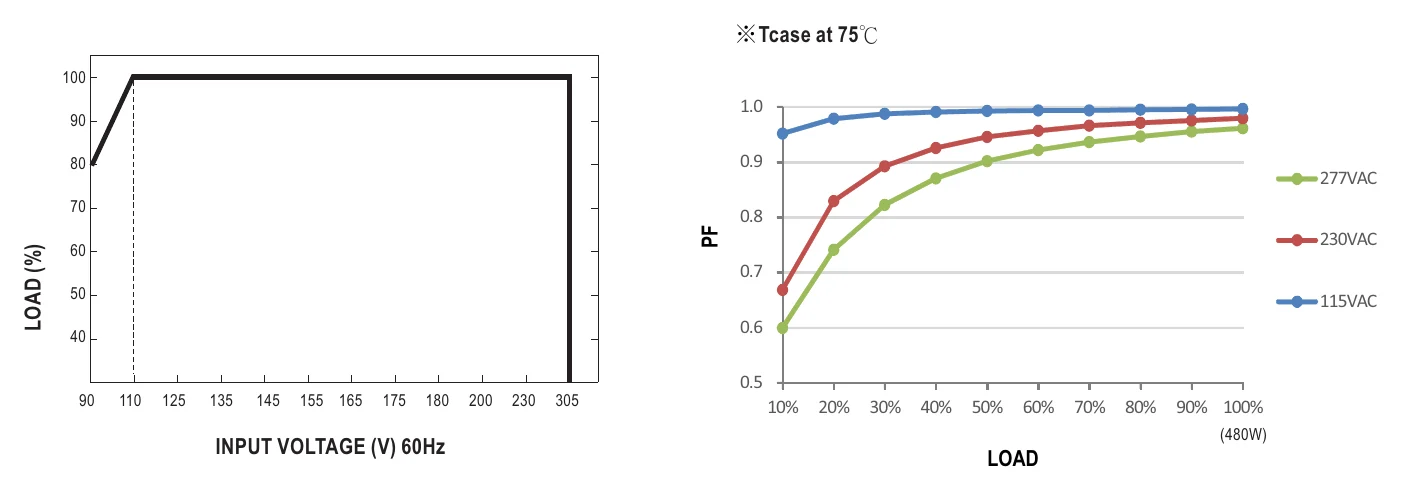

HLG-480H-C1750B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

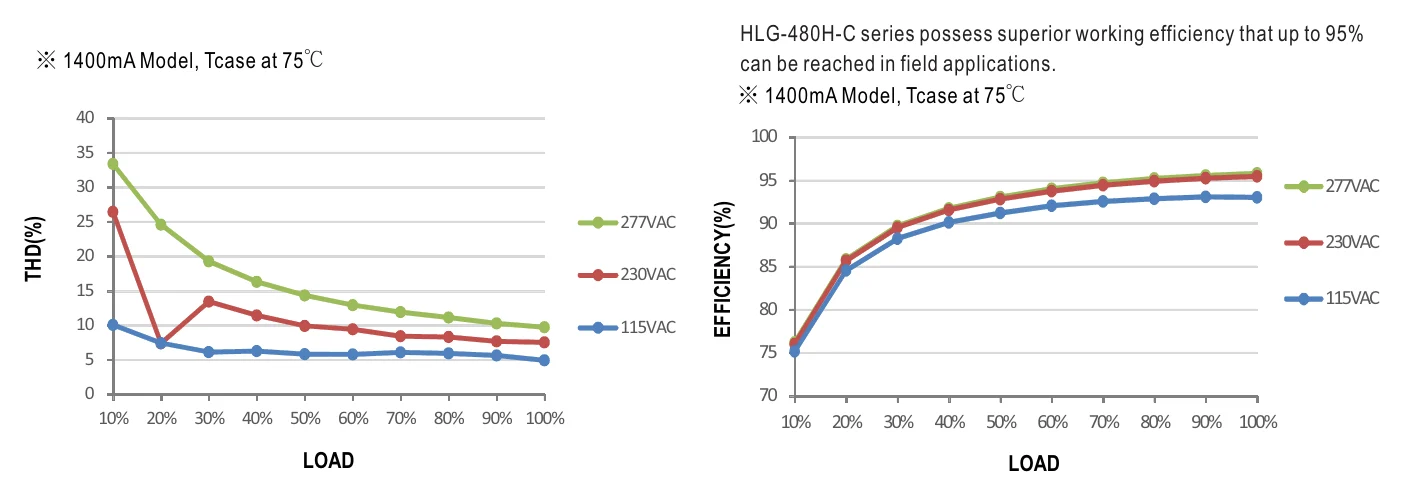

HLG-480H-C1750B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

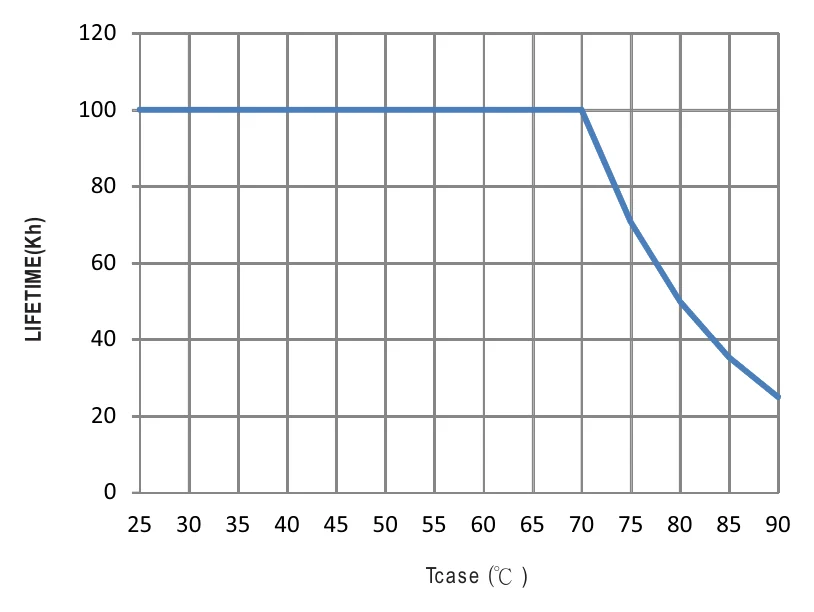

HLG-480H-C1750B LIFETIME(Kh) — LIFETIME(Kh)

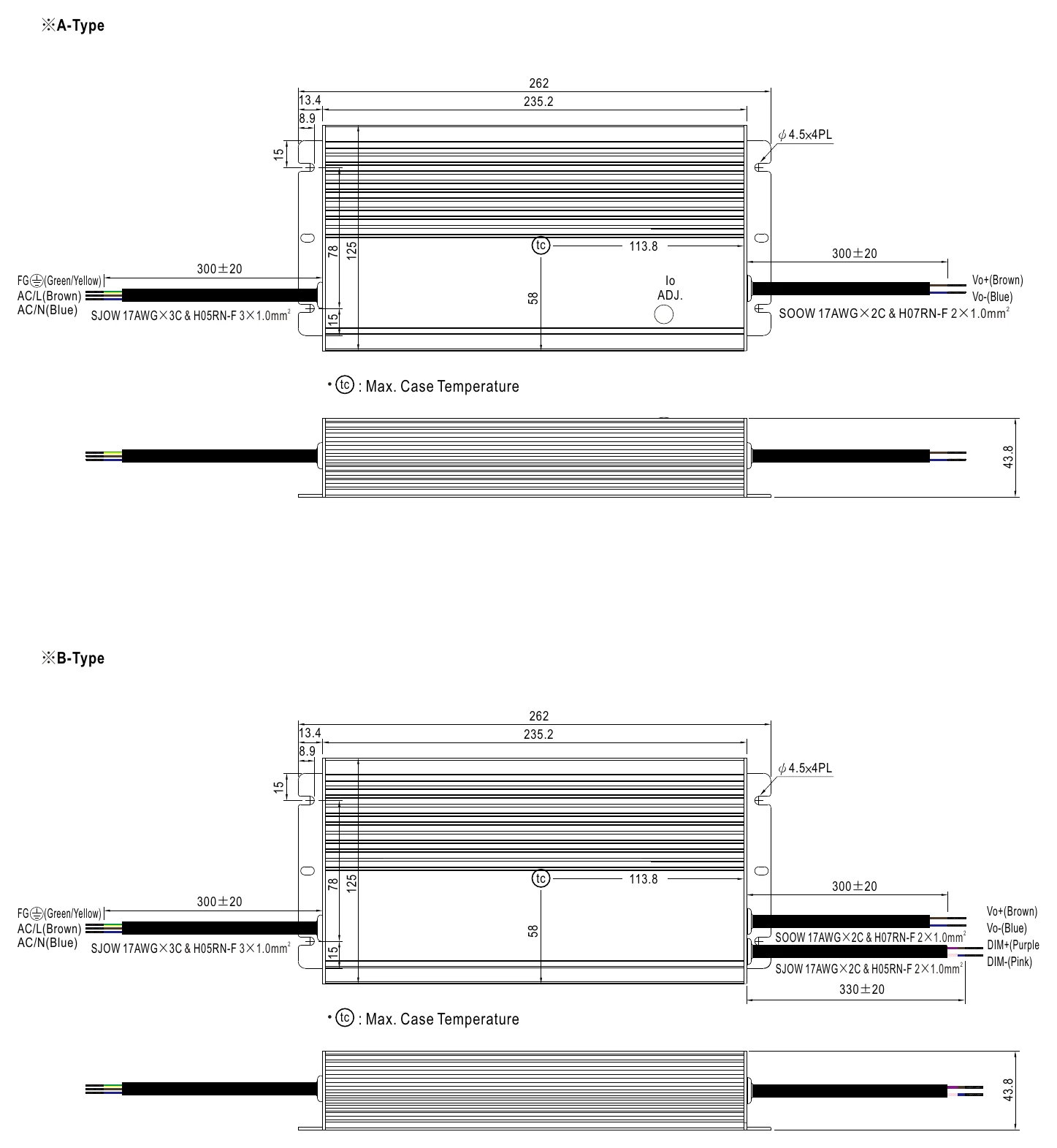

HLG-480H-C1750B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

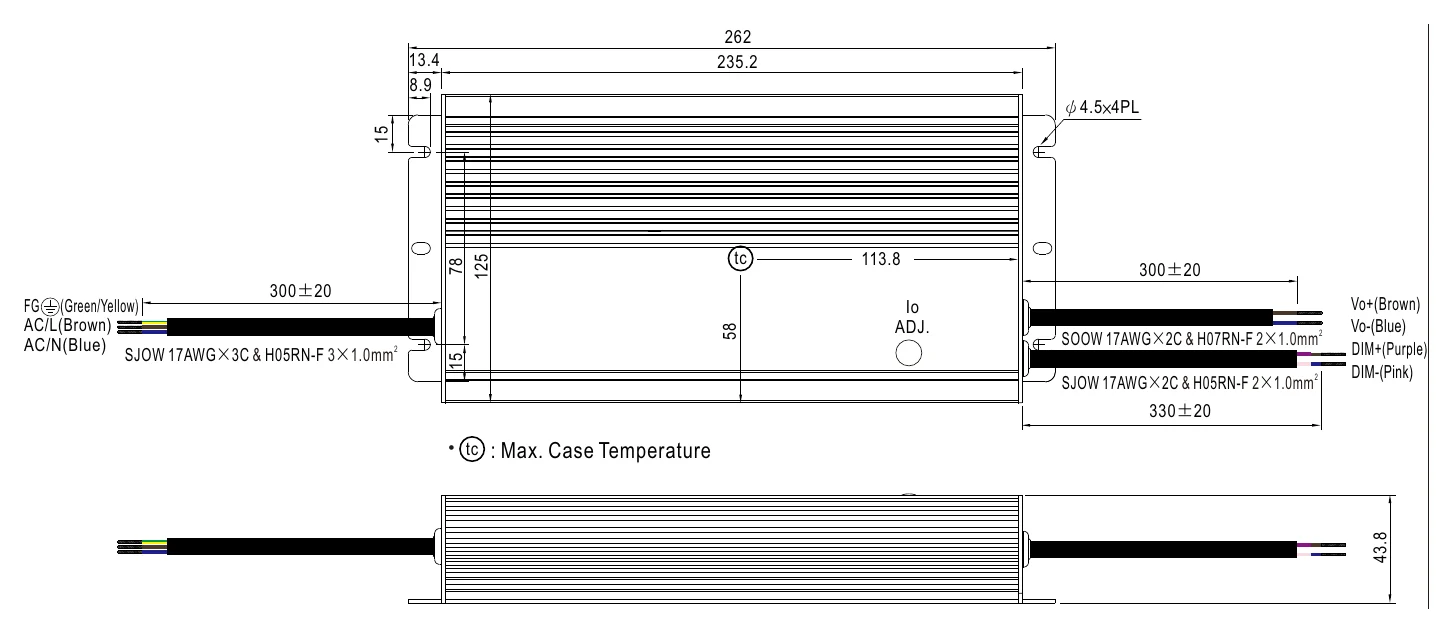

HLG-480H-C1750B Illustration (page 10) — Illustration (page 10)

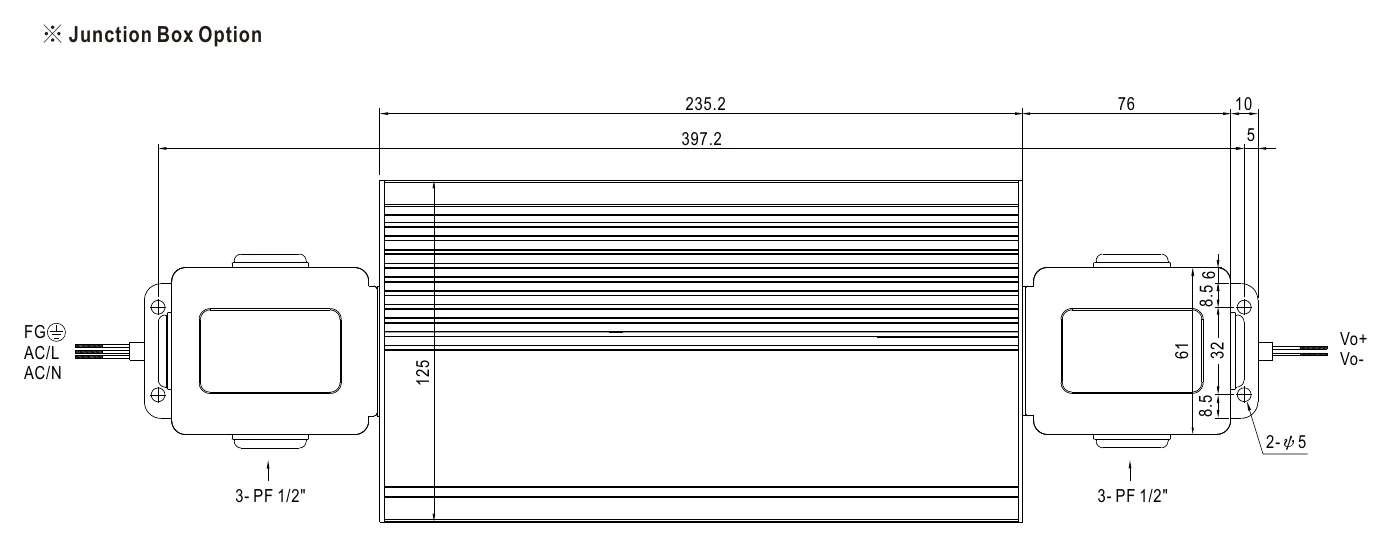

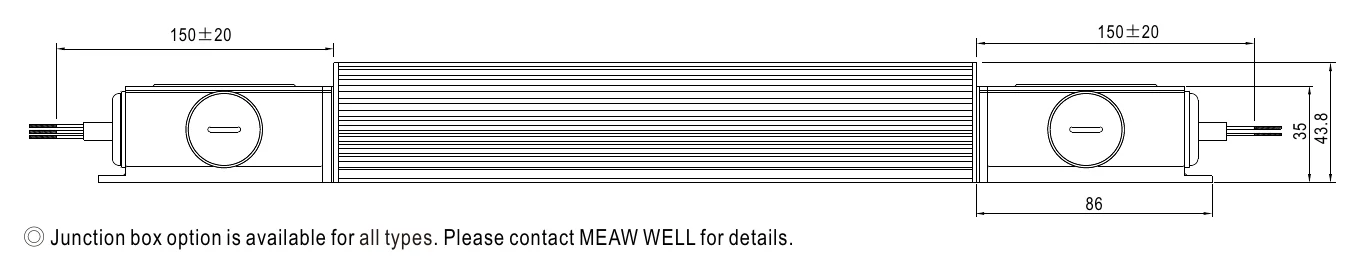

HLG-480H-C1750B ※ Junction Box Option — ※ Junction Box Option

HLG-480H-C1750B ※ Junction Box Option (2) — ※ Junction Box Option (2)

Typical applications

LED Harboure
LED greenhouse lighting
LED statium lighting
LED mining lighting
Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location

Downloads

Certificates7

Mean Well HLG-480H-C-ENEC Certificate PDF Download

Mean Well HLG-480H-C-CCC Certificate PDF Download

Mean Well HLG-480H-C-CB Certificate PDF Download

Mean Well HLG-480H-C-EMC Certificate PDF Download

Mean Well HLG-480H-C-CE-dec Certificate PDF Download

Mean Well HLG-480H-C-UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well HLG-480H-C1750 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-480H-C1750B for dimmable LED street lighting projects?

Yes. The HLG-480H-C1750B delivers 480W at 1750mA constant current with a built-in dimming input (0-10V, 10V PWM or resistance). This supports midnight dimming and adaptive lighting programs commonly used in municipal street lighting to reduce energy consumption during low-traffic hours. The IP65 rating protects the driver inside pole-top housings.

Is the HLG-480H-C1750B suitable for large commercial LED panel ceiling installations with dimming?

Yes. At 480W and 1750mA, it can drive high-power LED panel arrays in commercial ceilings, lobbies, or atriums. The B suffix provides external dimming via 0-10V, 10V PWM or resistance, which integrates with building management systems for daylight-responsive or scheduled brightness control.

Can the HLG-480H-C1750B power dimmable LED modules in large illuminated signage?

Yes. The 1750mA constant current output with a voltage range of 137-274V can drive long series strings of high-power sign LEDs. The dimming input allows automated brightness scheduling, such as reducing sign intensity after business hours or dimming in response to ambient light sensors.

What is the CC voltage range of the HLG-480H-C1750B and how does it affect LED compatibility?

The constant current regulation range is 137-274V. Your total series LED string voltage must fall within this window for the driver to maintain a steady 1750mA. The number of LEDs you can connect depends on each LED's forward voltage. If the string voltage falls outside this range, the driver is not specified to regulate current properly.

Can the HLG-480H-C1750B handle high-temperature environments near LED fixtures?

Yes, within limits. Its working case temperature (Tcase) range is -40 to +90 degrees Celsius, with output load derating at higher temperatures per the sheet's load vs temperature curve, so it can be mounted near heat-generating LED fixtures as long as the tc point stays within limits. Typical life of >62,000 hours applies at a tc of about 75°C or less.

What is the difference between the HLG-480H-C1750A, C1750AB, and C1750B?

All three share the same 480W / 1750mA core specs with a CC voltage range of 137-274V and at least an IP65 rating. The C1750A has output adjustment via built-in potentiometer but no dimming input. The C1750AB offers both potentiometer adjustment and external 0-10V/10V PWM/resistance dimming. The C1750B provides external dimming input only without the adjustment potentiometer.
