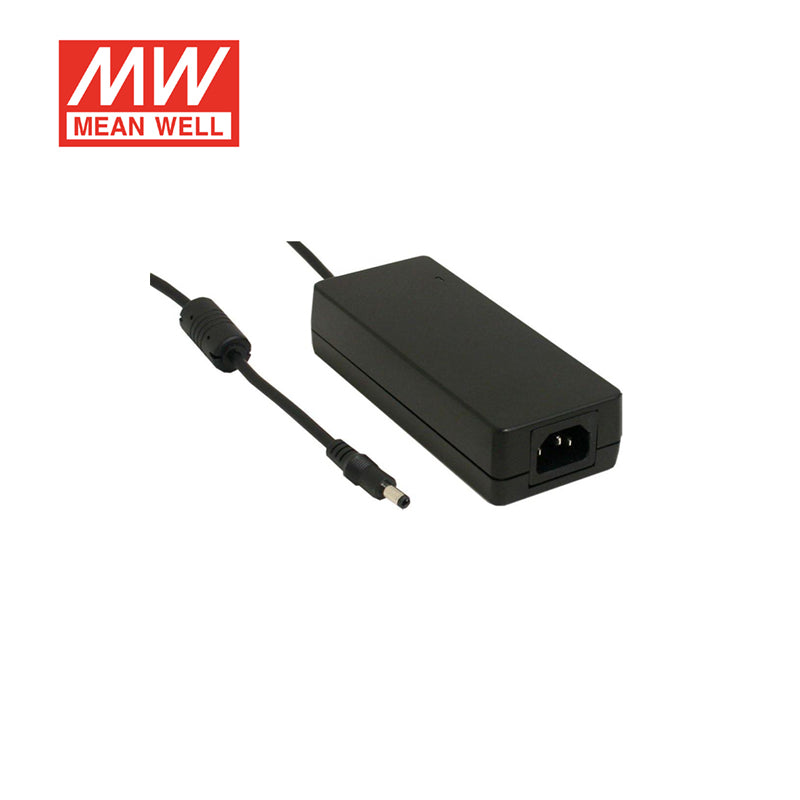

Meanwell GS90A15-P1M Power Adaptor
$20.36 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption<0.5W |
| Energy efficiency Level V |
| Comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP |
| 3 pole AC inlet IEC320-C14 |
| Class I power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over Temperature |
| Pass LPS |
| Fully enclosed plastic case |
| LED indicator for power on |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 1.0% |
| Load regulation (max.) | ± 5.0% |
| Overload protection Range | 110 ~ 150% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4242VDC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -30 ~ +50 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1, CSA C22.2, TUV EN60950-1 , CCC GB4943 approved |
| Dimension (LxWxH) (mm) | 145*60*32mm (L*W*H) |
| Packing | 0.45Kg; 30pcs/14.05Kg/1CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well GS Series
-
Power Rating90 Watt
-
Output Voltage15 Volt
-
Rated Current6 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,cUL,EAC,FCC
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
