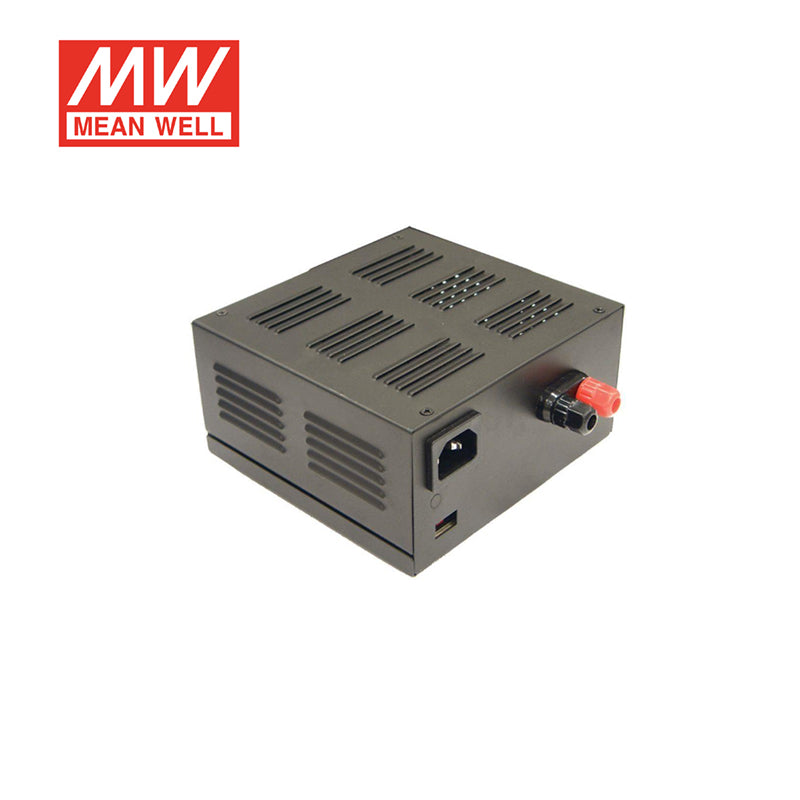

Meanwell ESP-120-27 Power Supply - 110W 27V 4A - Desktop
$37.21 USD
Unit price /
Unavailable
Description
Description
Features
| AC input range selected by switch |
| Protections: Short circuit / Overload / Over voltage / Over Temperature |
| Battery under/Over coltage and polarity protections(ESC only) |
| Forced air cooling by built-in DC fan(240W only) |
| Fixed switching frequency at 25KHz |
| 3 color LED loading indicator |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 2.0% |
| Overload protection Range | 105 ~ 135% rated output power |
| Overload protection Type | Fold back current limiting, recovers automatically after fault condition is removed |
| Over-voltage protection | Constant voltage limiting, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -10 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | CSA1010.1(UL3101-1,IEC1010-1,EN61010-1) approved |
| Dimension (LxWxH) (mm) | 150*140*86mm (L*W*H) |
| Packing | 1.38Kg; 8pcs/12Kg/1.1CUFT(ESC-120) |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well ESP Series
-
Power Rating108 Watt
-
Output Voltage13.5 Volt
-
Rated Current8 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EN,UL
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length5.91 in
-
Width5.51 in
-
Height3.39 in
-
Weight3.04 lb
