Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

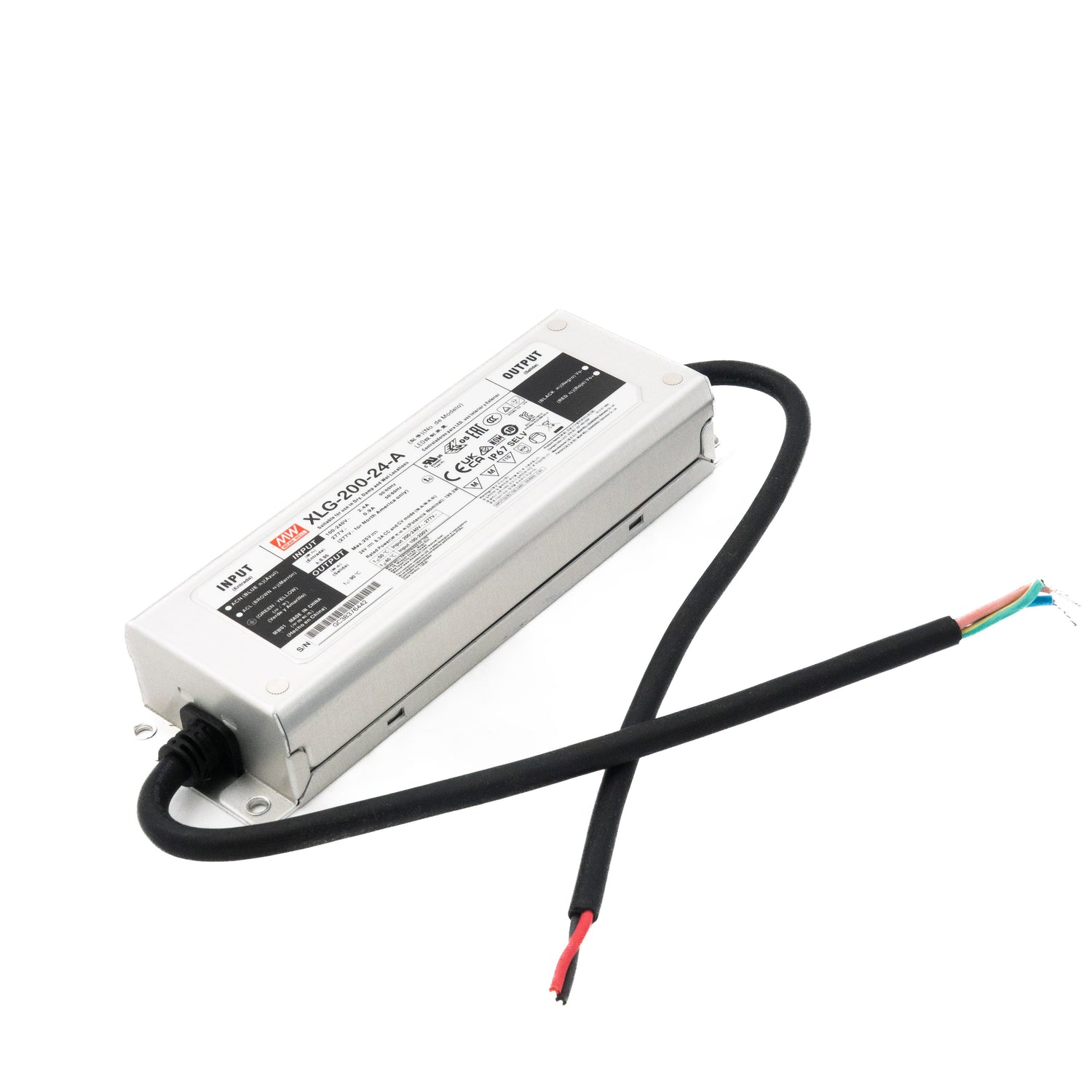

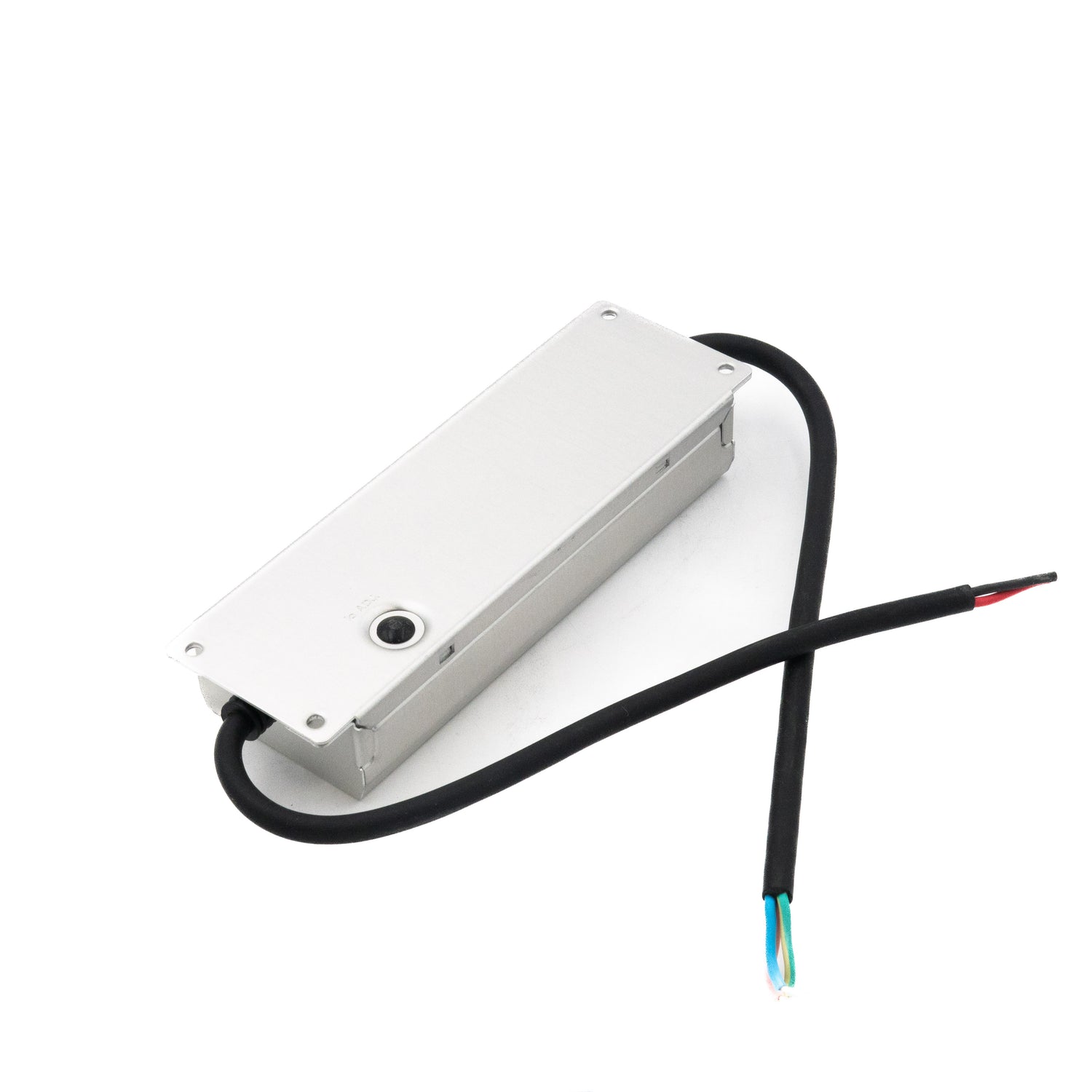

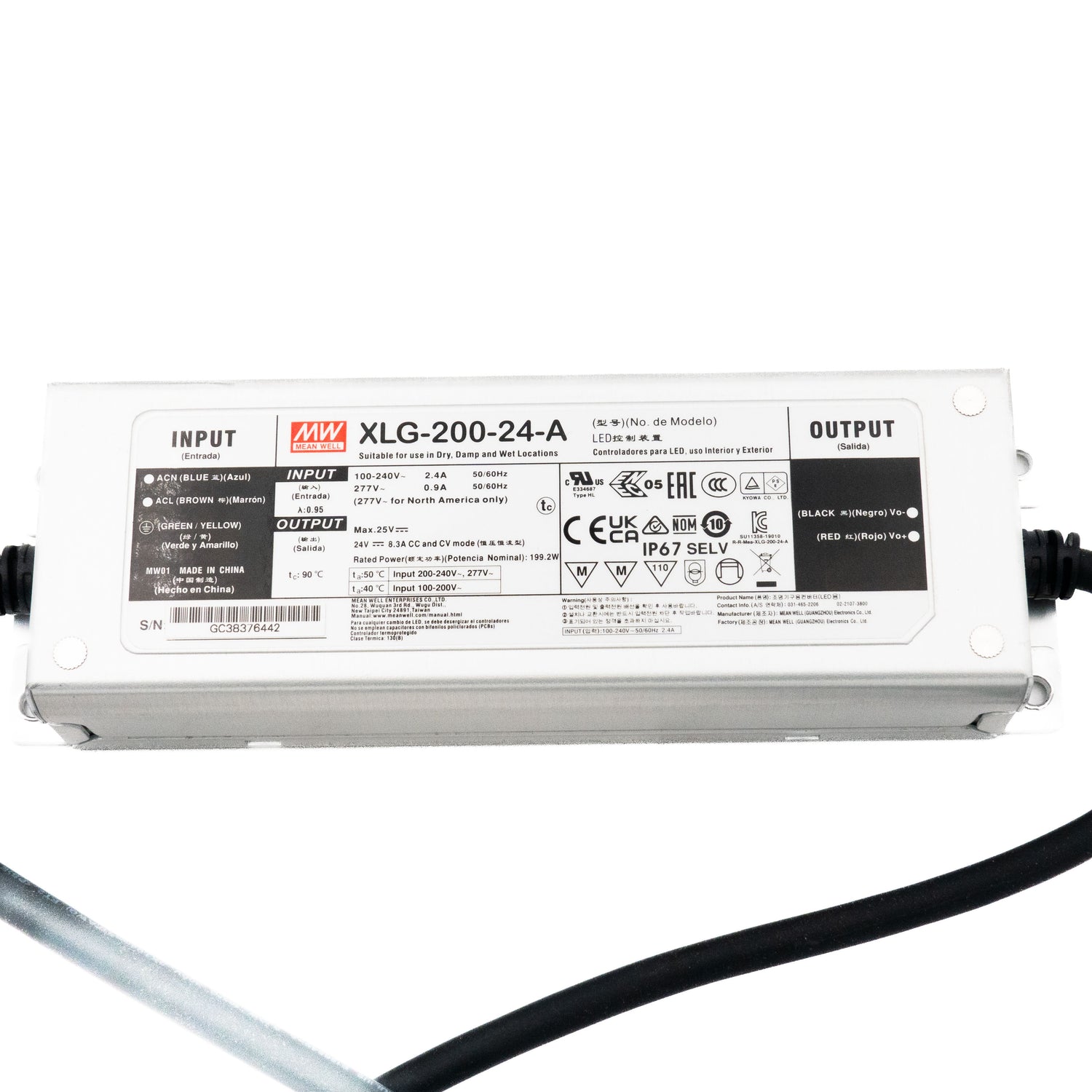

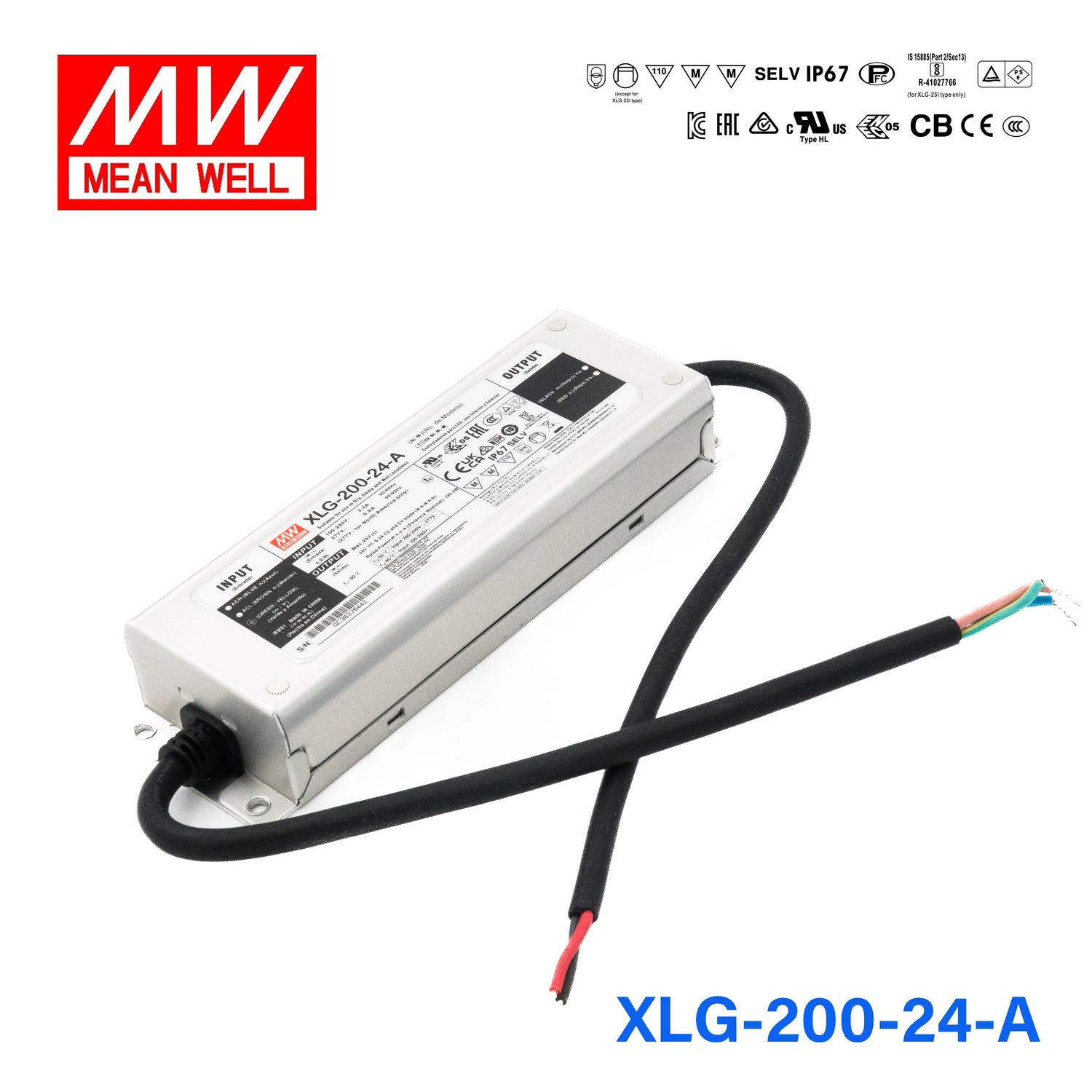

Mean Well XLG-200-24-A Power Supply 200W 24V - Adjustable

$45.32 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

The XLG-200-24 is a 200W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).

Key Features

  • Input voltage range: 100~305VAC
  • 3.75KVAC reinforced I/O isolation
  • Cooling by free air convection
  • Wide operating temperature: -40~+90℃
  • Protections: Short circuit / Over voltage / Over temperature
  • Active PFC — meets international energy efficiency regulations
  • Safety approvals: Note.7 UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384;GB19510.1,GB19510.14; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29) ,KC61347-1,KC61347-2-13 IS15885(Part2/Sec13);IP67
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    XLG Series
  • Power Rating
    199.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    8.3 Ampere
  • Input Voltage
    100V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    7.83 in
  • Width
    2.48 in
  • Height
    1.4 in
  • Weight
    1.87 lb

File Downloads

::specification::
