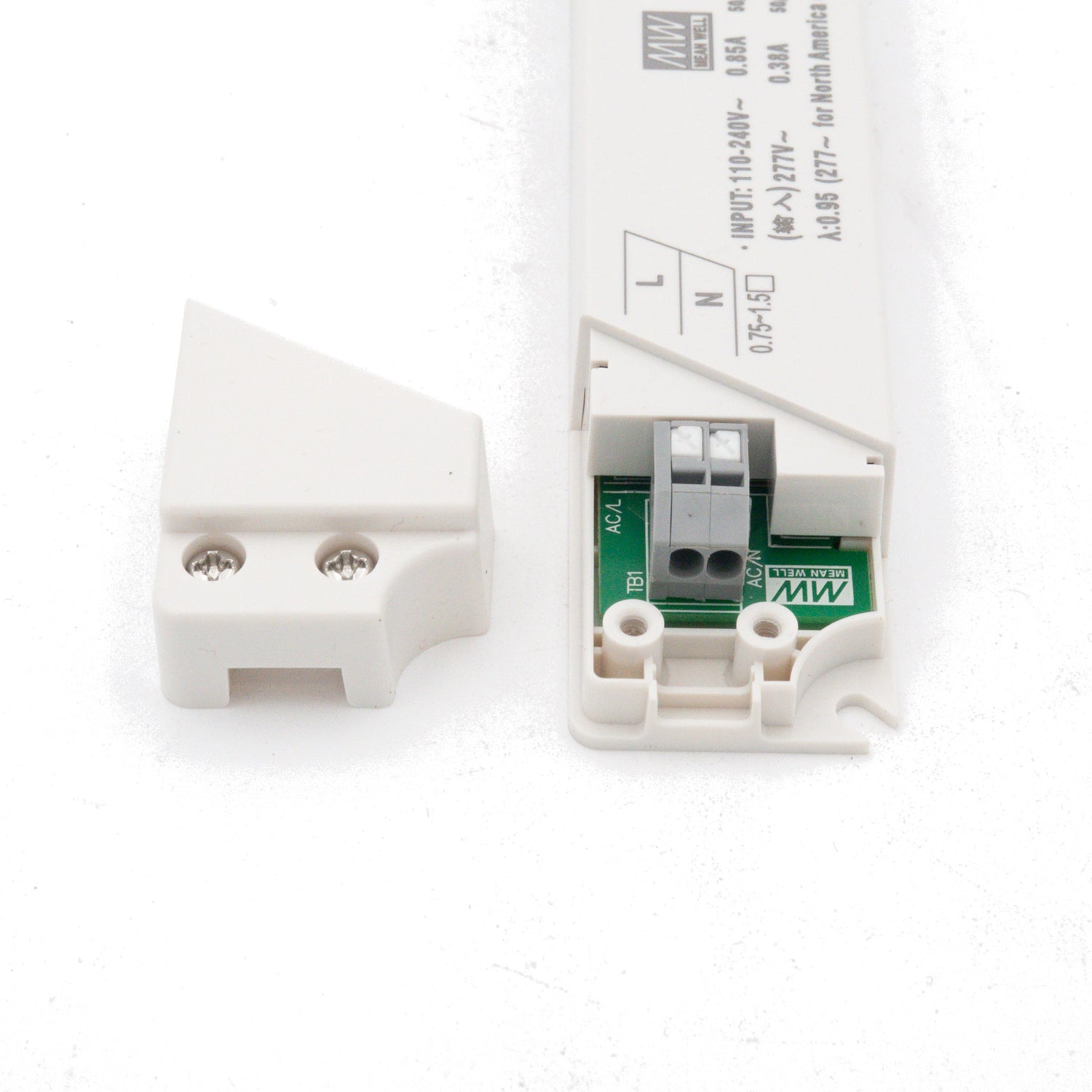

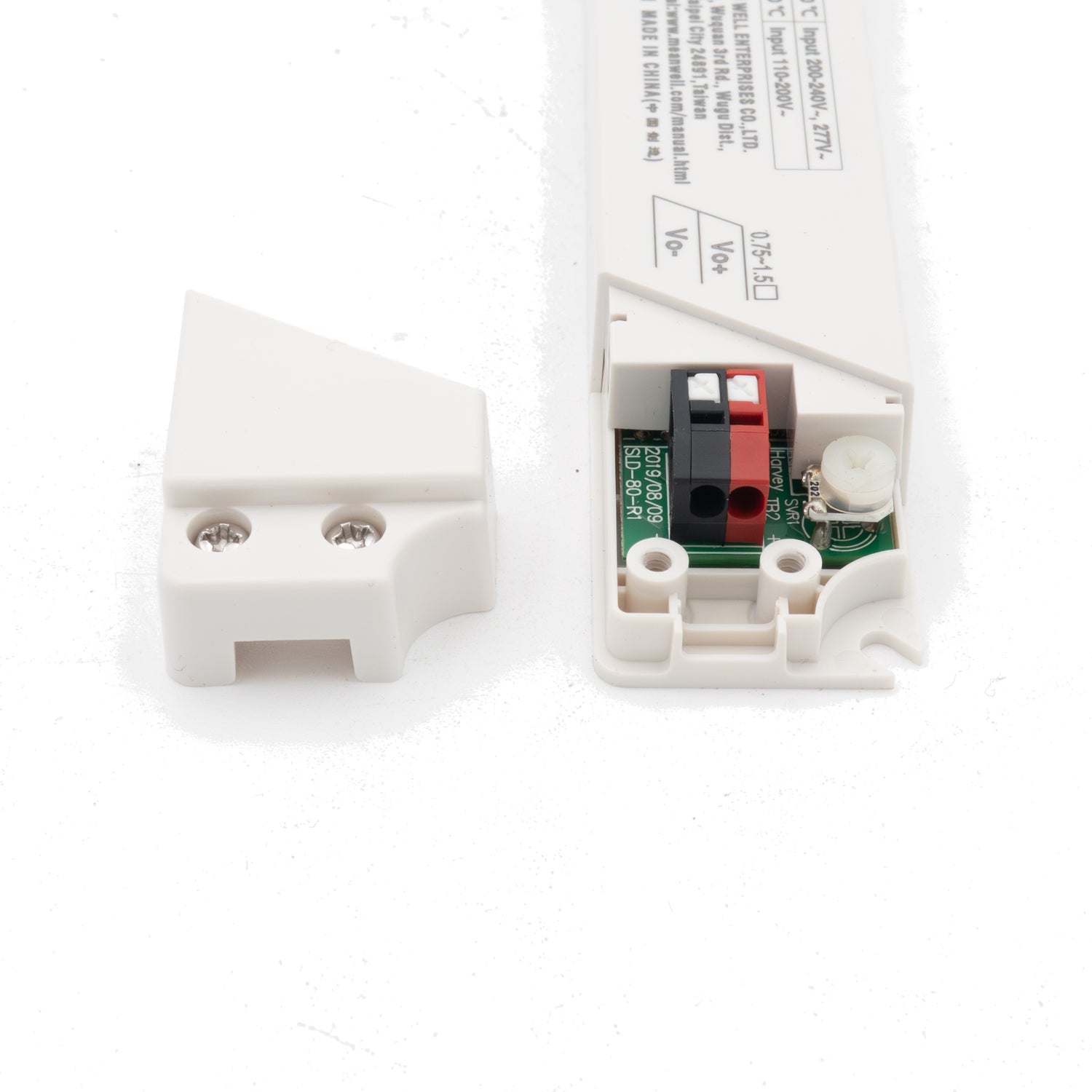

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

Mean Well SLD-150-24 Constant Voltage + Constant Current Driver, Slim Type, 144W 24V

$35.87 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Constant Voltage + Constant Current mode output(12/24V)
Constant power mode output(56V)
Wide input range 120-305VAC with PFC function
Compliance with BS EN/EN61347/EN60335-1 regulations
CLass II power unit
Slin and Compact housing Design
Surge protection with 6KV/4KV
No load power consumption <0.5W(12/24V)
5 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    SLD Series
  • Power Rating
    150 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    6.3 Ampere
  • Input Voltage
    120V~305V
  • Standards Met
    CB,CE,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -25°C~85°C
  • Warranty
    5 Year
  • Length
    12.99 in
  • Width
    1.38 in
  • Height
    0.87 in
  • Weight
    0.68 lb
