Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

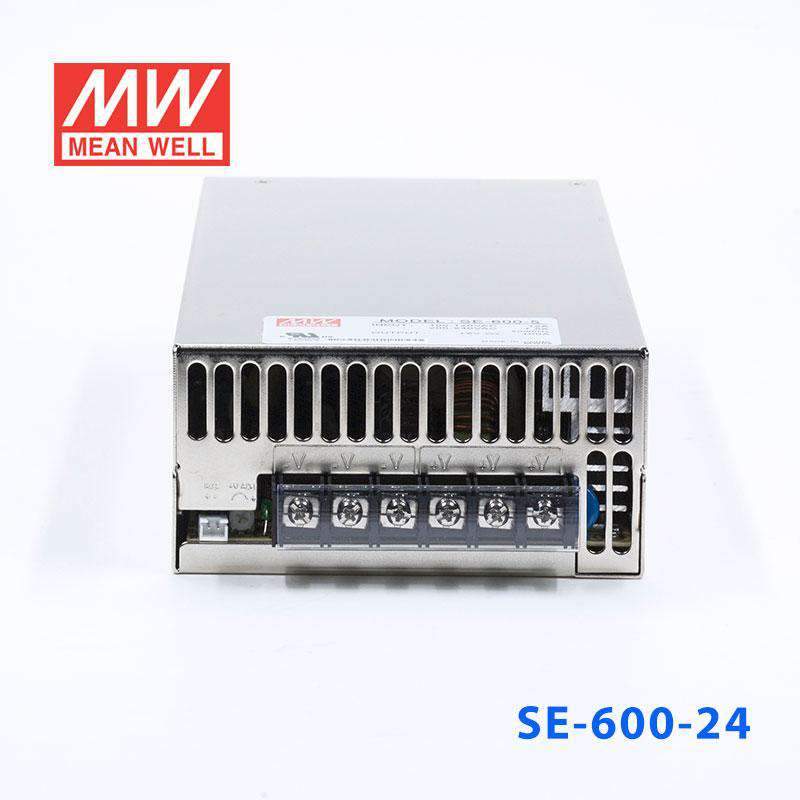

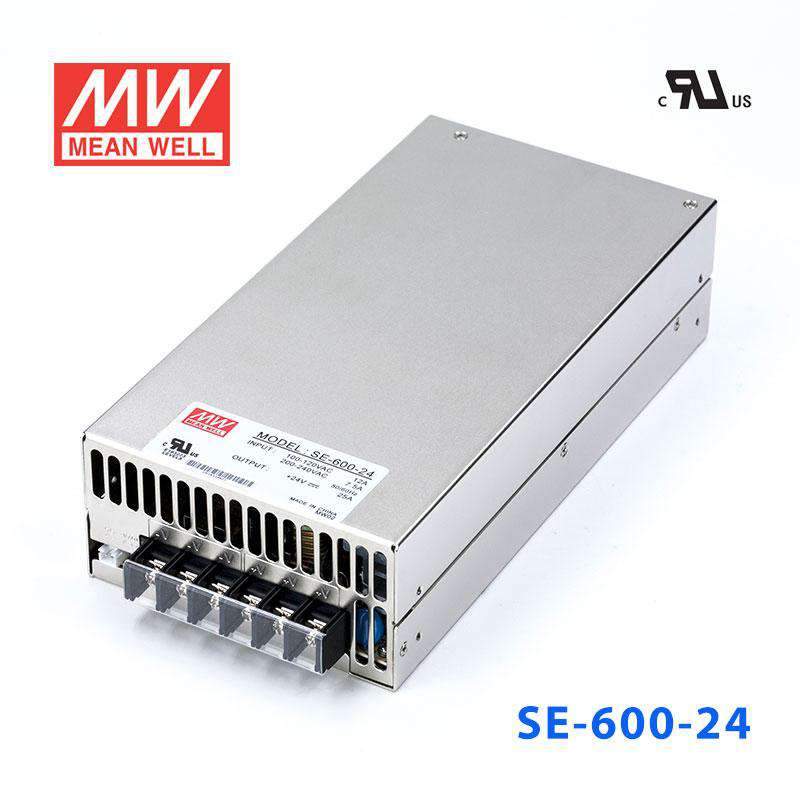

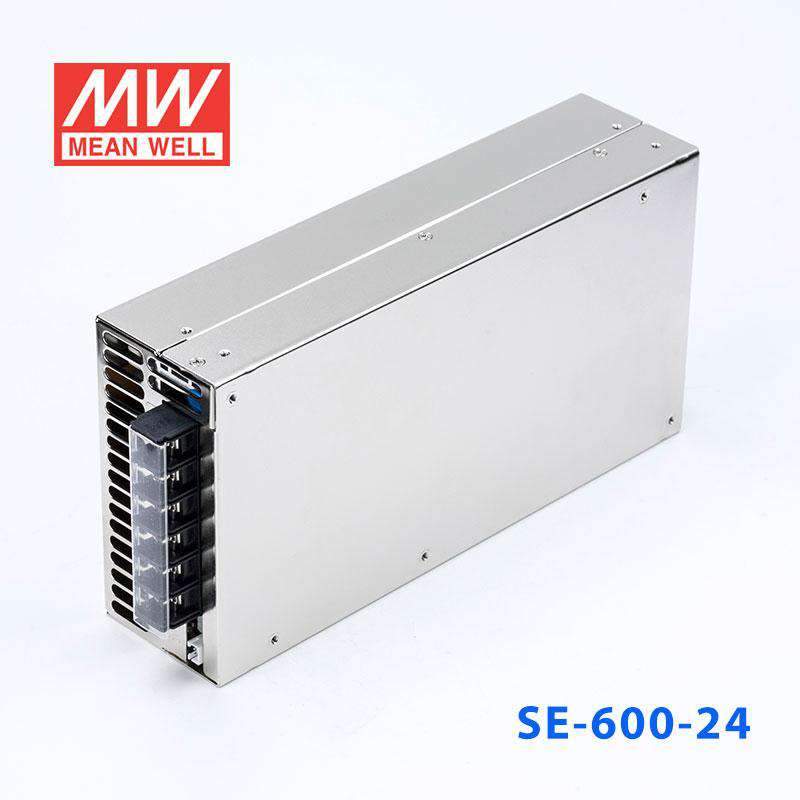

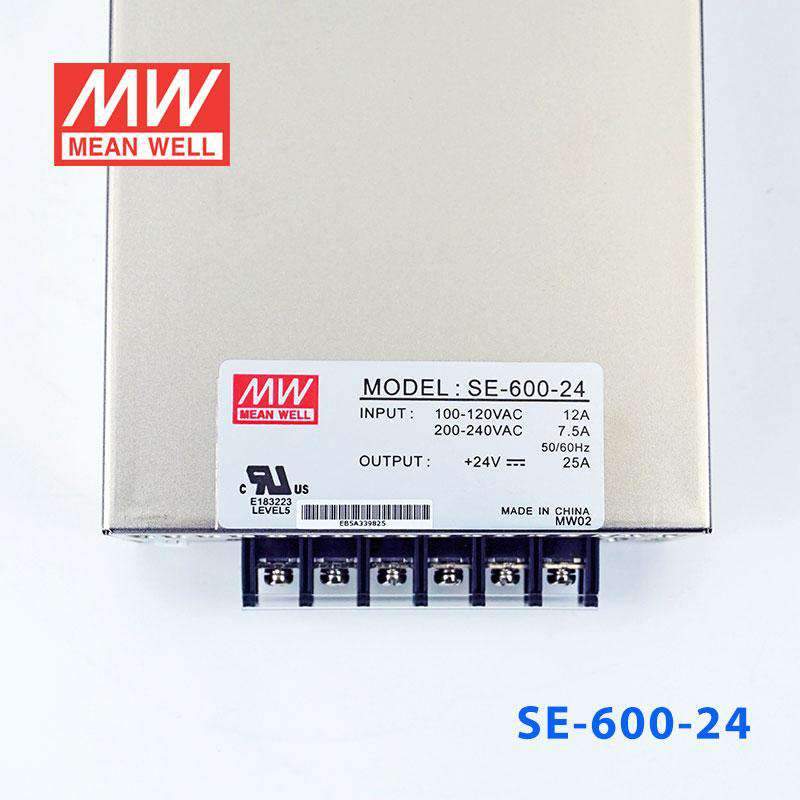

Mean Well SE-600-24 Power Supply 600W 24V
$96.51 USD
Unit price /
Unavailable
Description
Description
Features

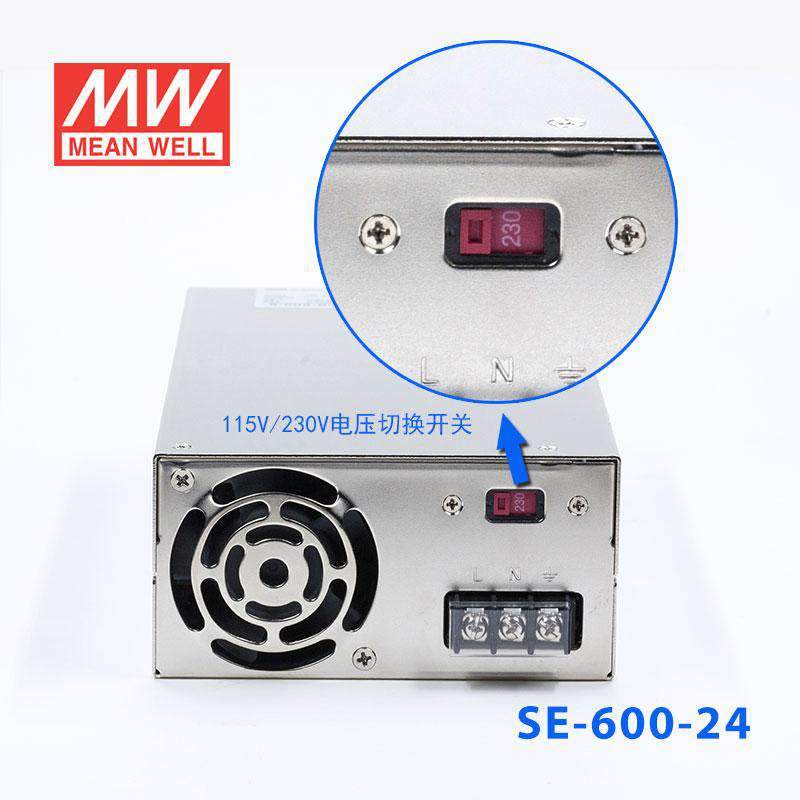

| AC input selectable by switch |
| 100% full load burn-in test |
| LED indicator for power on |
| Built-in remote sense function |
| Forced air cooling by built-in DC fan |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| 2 years warranty |
General Specification
| AC input voltage range | 90~132VAC / 180~264VAC selected by switch (600~1000W) |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~125% |
| Overload protection Type | Shut down o/p voltage, re-power on to recover |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute |
| Working temperature | -20~+60°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | Design refer to EN55022 class B |
| Connection | Terminal block with cover for input and output (SE-1000/1500: copper pillars for output) |
| Dimension (LxWxH) | 247x 127x 63.5 |
| Case No. | 926A |
| Packing | 6pcs / 13.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesSE Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length9.72 in
-
Width5 in
-
Height2.5 in
-
Weight4.63 lb
