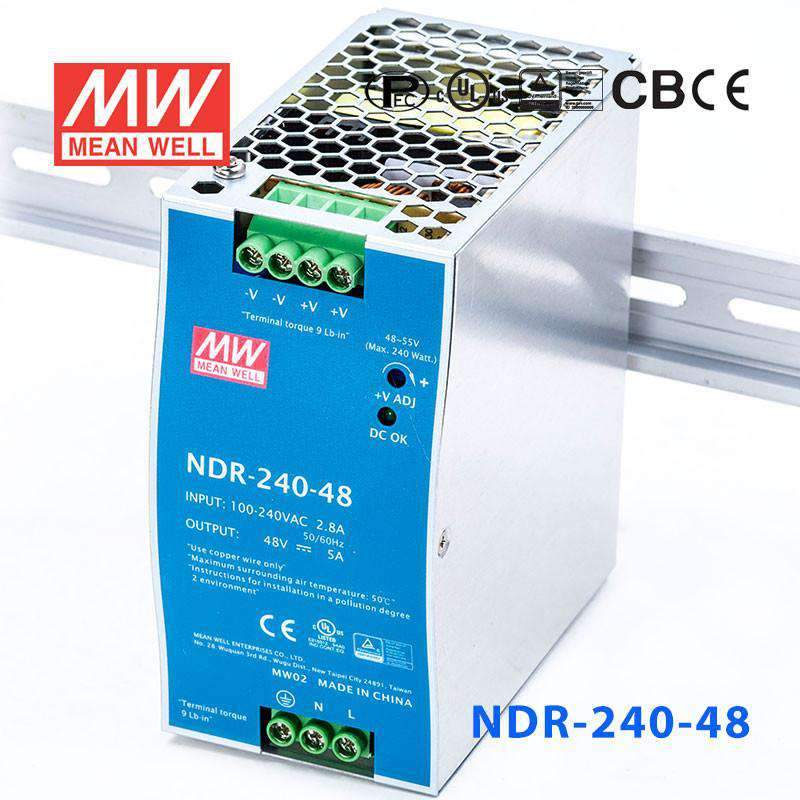

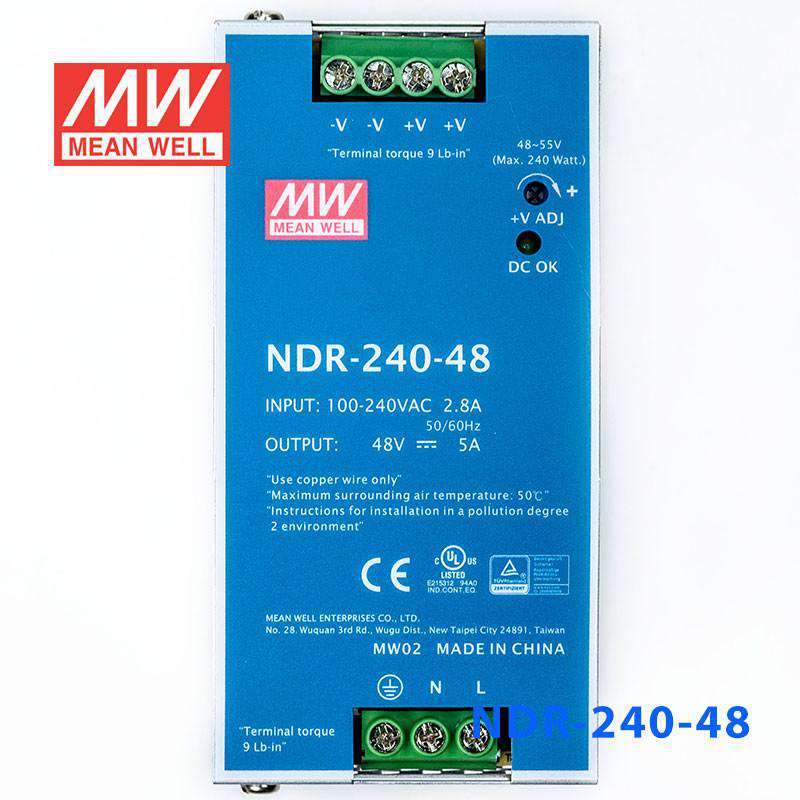

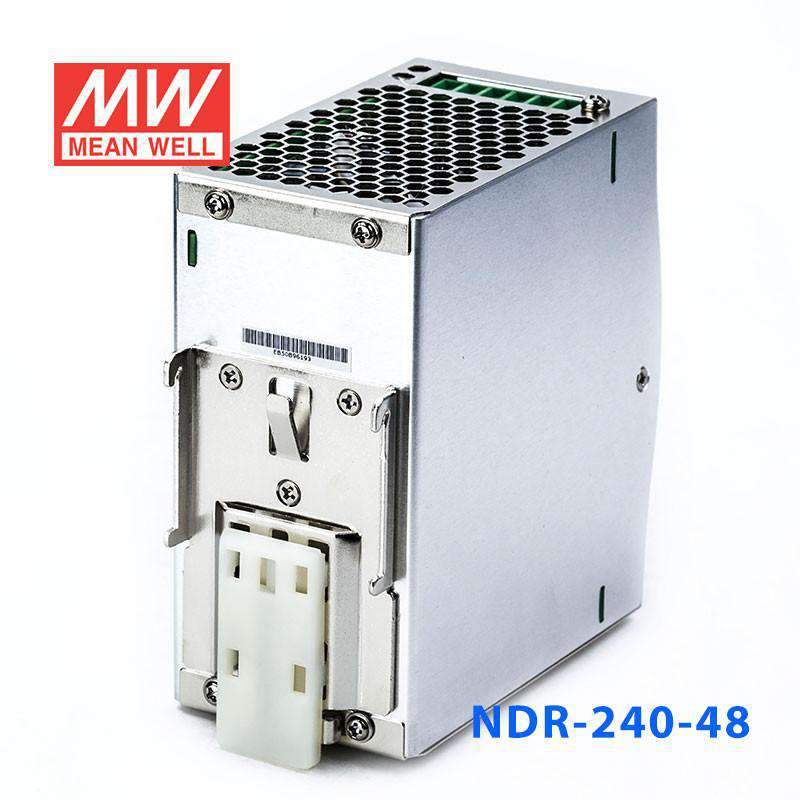

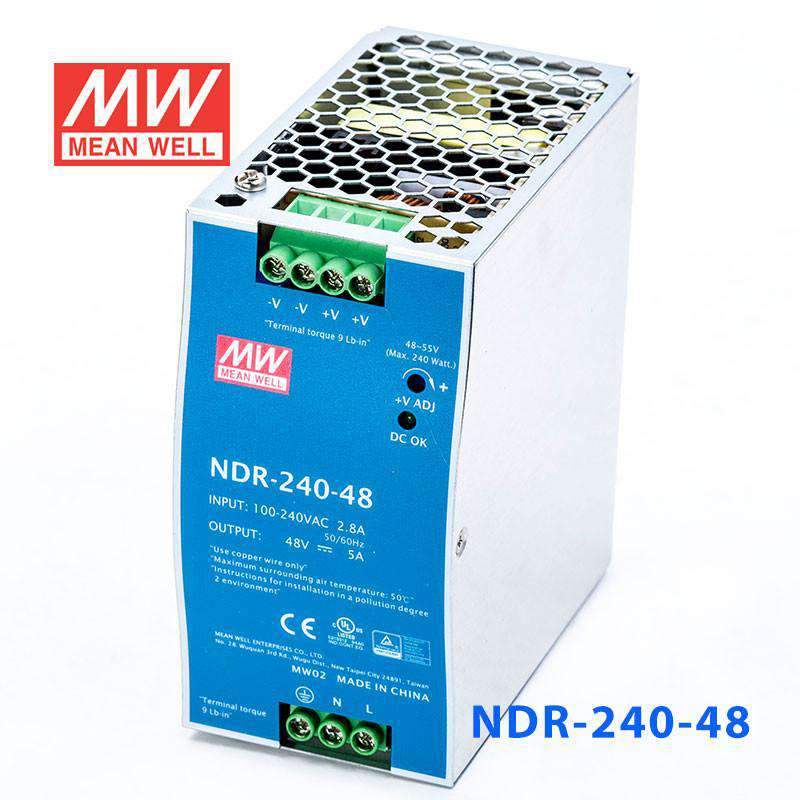

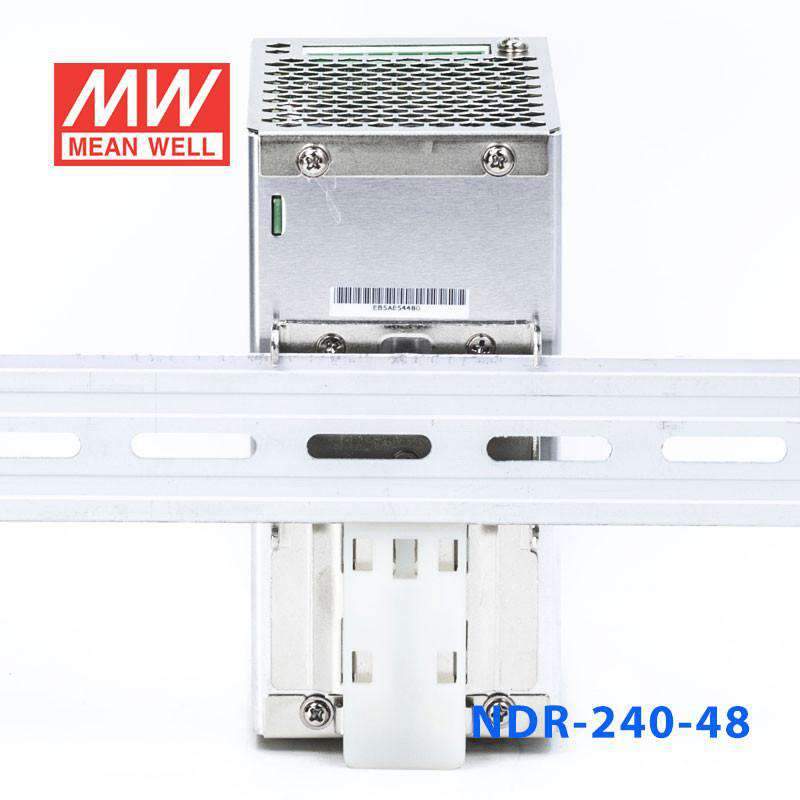

Mean Well NDR-240-48 Single Output Industrial Power Supply 240W 48V - DIN Rail

$69.18 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

The NDR-240 is a 240W Mean Well power converter (input range: 90~264VAC).

Key Features

  • Input voltage range: 90~264VAC
  • DC output voltage adjustable ±10%
  • 3KVAC reinforced I/O isolation
  • Cooling by free air convection
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Active PFC — meets international energy efficiency regulations
  • Safety approvals: Ul508, TUV EN60950-1
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    NDR Series
  • Power Rating
    240 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    4.93 in
  • Width
    4.47 in
  • Height
    2.56 in
  • Weight
    2.2 lb

File Downloads

::specification::
