Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

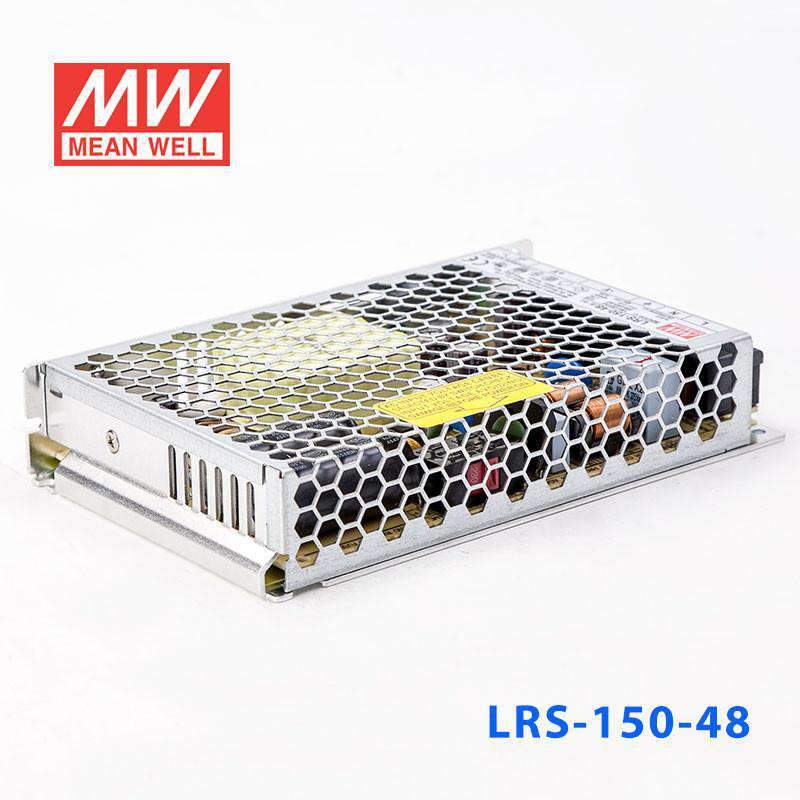

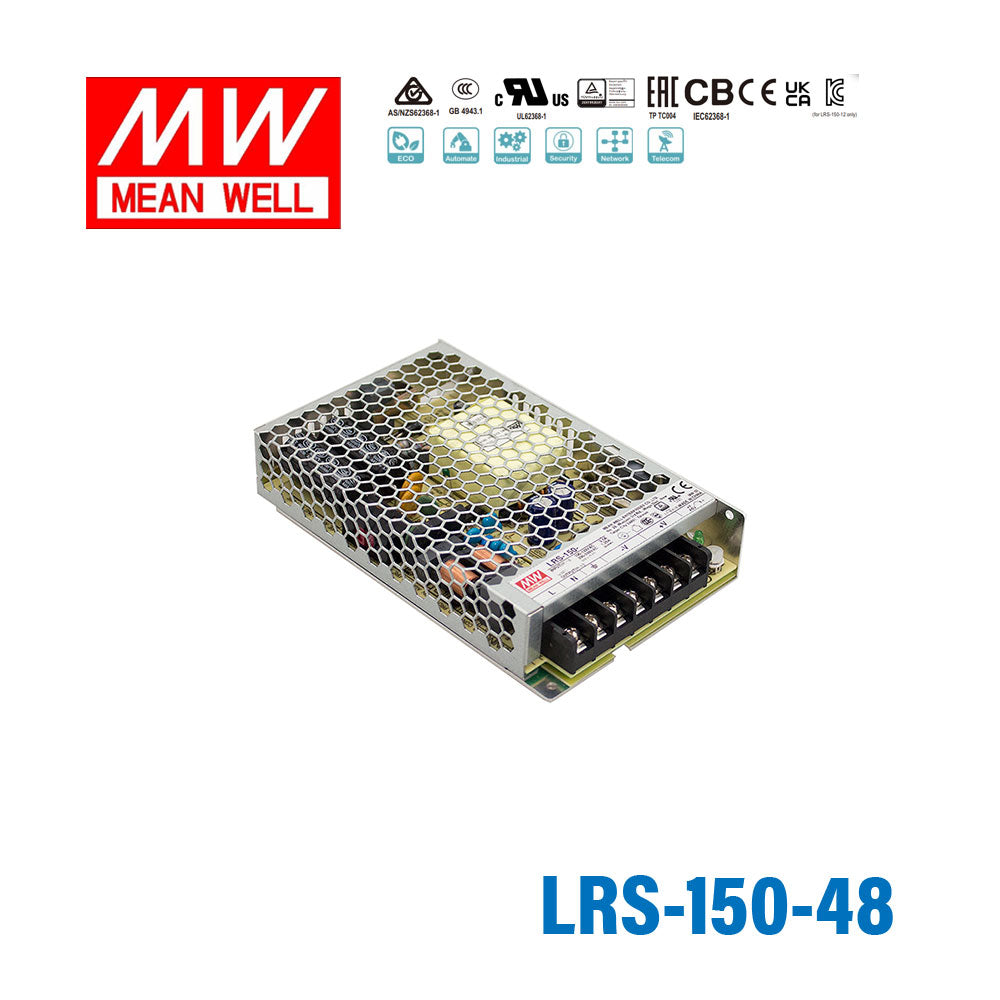

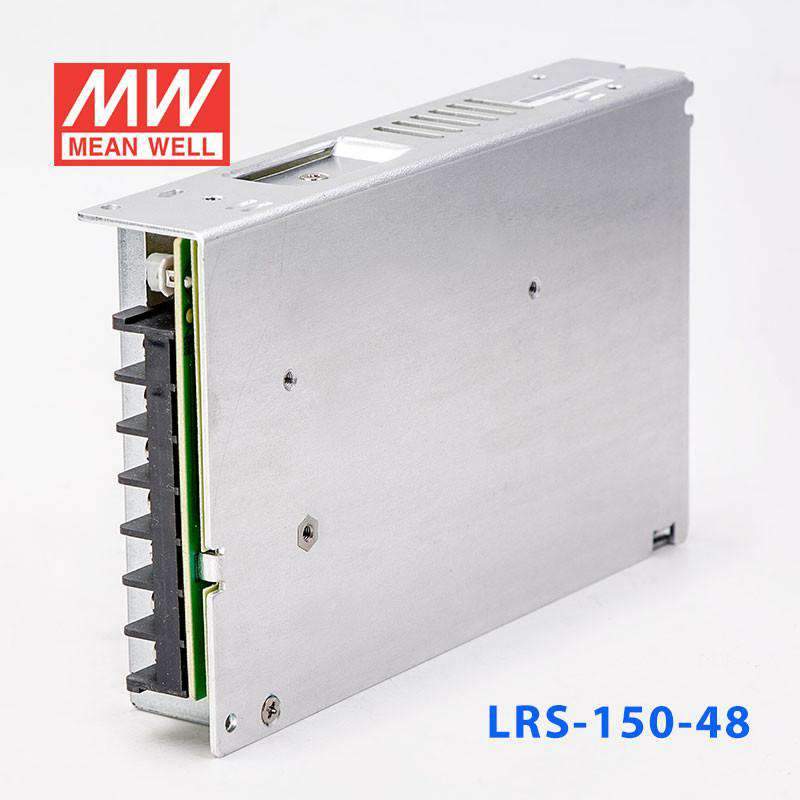

Mean Well LRS-150-48 Power Supply 150W 48V

Name: Mean Well LRS-150-48 Power Supply 150W 48V
Brand: Mean Well
SKU: LRS-150-48
Price: 25.04 USD
Availability: InStock

$25.04 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

No load power consumption <0.5W for 150W; <0.75W for 200W/350WAC input selectable by switchWithstand 300VAC surge input for 5 secondsUltra compact and 1U low profileWithstand 5G vibration testHigh operating temperature up to 70oCProtections: Short circuit / Overload / Over voltage / Over temp.Cooling by free air convection (150W/200W); forced air cooling by built-in DC fan (350W)Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances (150W)Operating altitude up to 5000 metersLED indicator for power onHigh efficiency, long life and high reliabilityLow cost3 years warranty

Key Features

✓115 / 230VAC by switch
✓Cold start, 60A at 230VAC
✓±10% by potentiometer
✓110%~140%
✓Hiccup mode, auto-recovery
✓115%~145% rated output voltage
✓Shut down o/p voltage, re-power on to recover
✓I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC
✓-30~+70°C (refer to output derating curve)
✓UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
✓EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

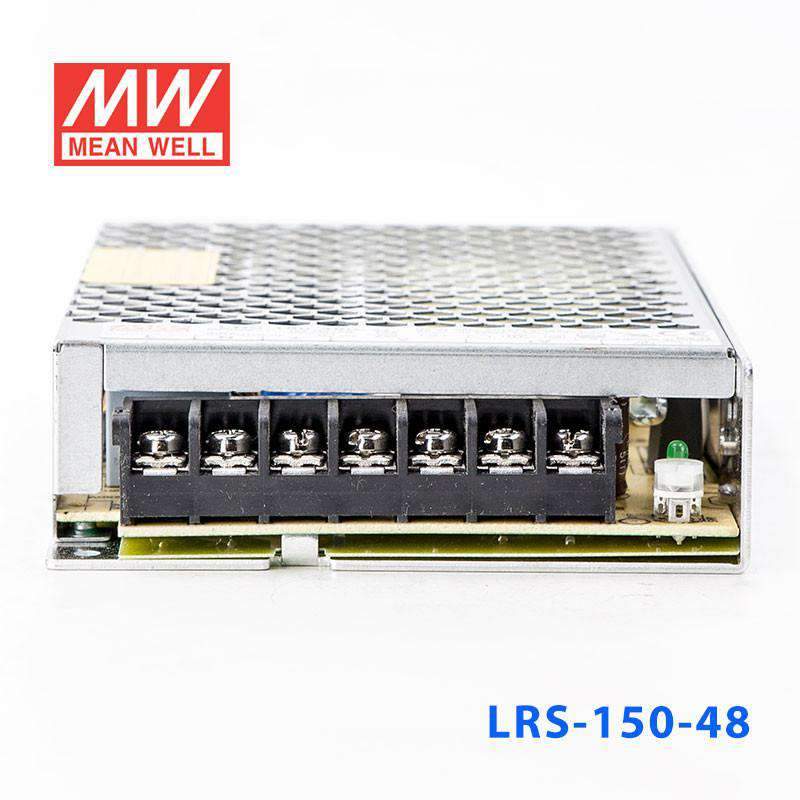

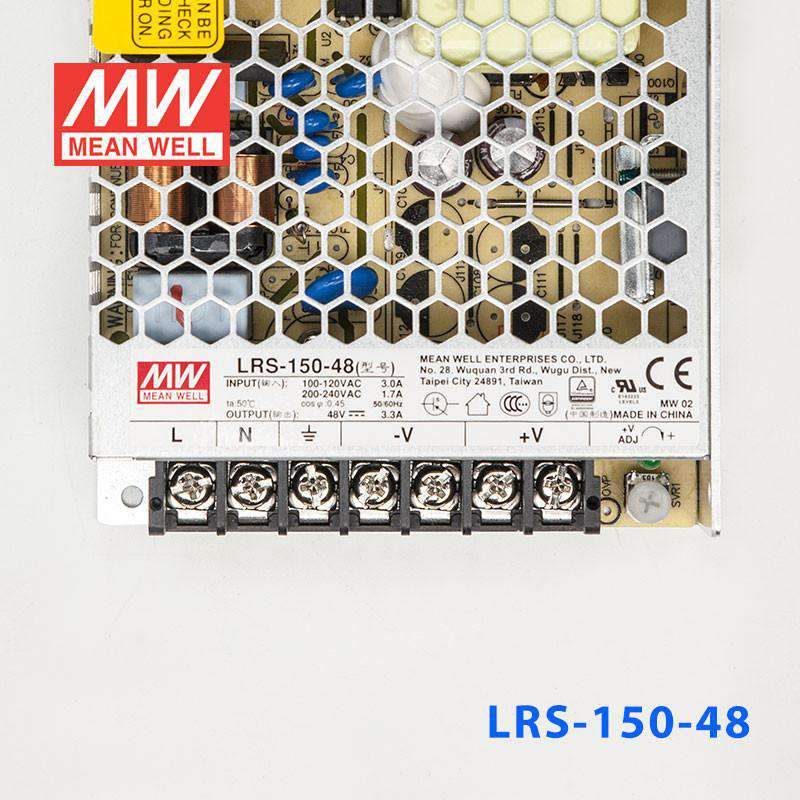

✓7P/9.5mm pitch terminal block
✓159x 97x 30

Specifications

Brand

Mean Well
Series

LRS Series
Power Rating

158.4 Watt
Output Voltage

48 Volt
Rated Current

3.3 Ampere
Input Voltage

85V~264V
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

6.26 in
Width

3.82 in
Height

1.18 in
Weight

0.93 lb

File Downloads
