Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

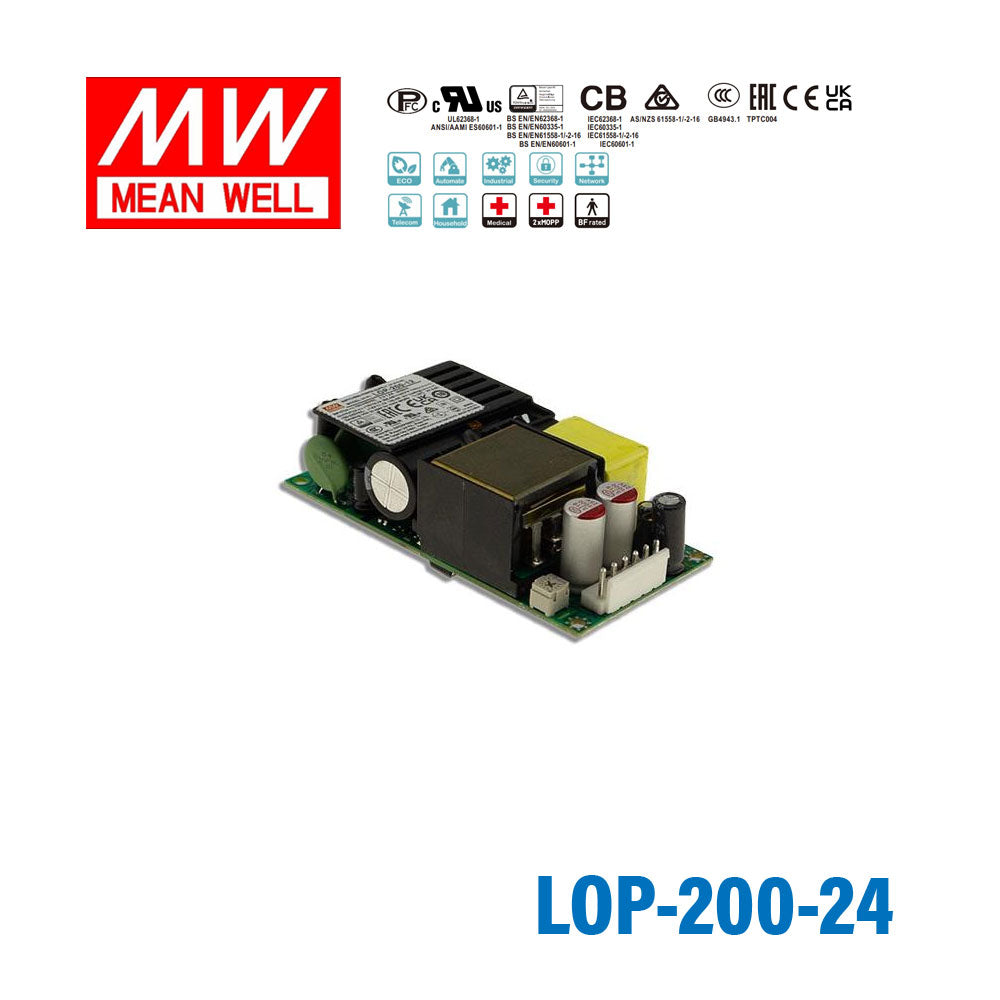

Mean Well LOP-200-24 200W 4"×2" Low Profile Open Frame Po...
$65.06 USD
Unit price /
Unavailable
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓4"x2" compact size with low profile (25.4mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
- ✓150% peak load @ 3s
- ✓140W convection, 200W with FAN 10.98CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 94%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current5.9 Ampere
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1 in
-
Weight0.46 lb
