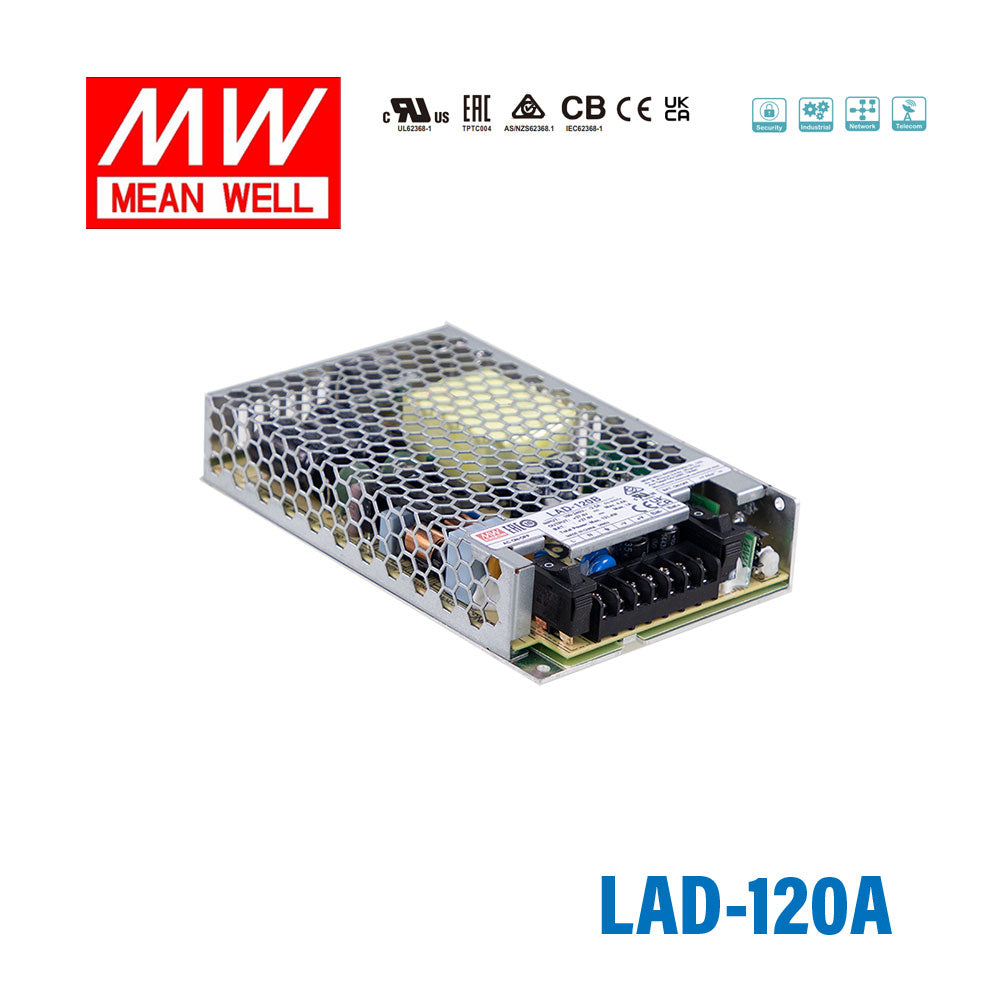

Mean Well LAD-120A Security/Fire Alarm PSU with Battery Charger/UPS...
$38.73 USD
Unit price /
Unavailable
Description
Description
Features
| Built-in battery charger and UPS function |
| TTL signals for status detection: AC OK, Battery disconnect, Battery reverse polarity, Battery low, Battery full and Discharge |
| Forced UPS mode for battery maintenance |
| Protections: Short circuit/Overload/Over voltage/Over temperature/Battery low voltage/Battery reverse polarity (No damage) |
| -20 ~ +60°C wide operating temperature |
| Output voltage adjustable (-2%~+5%) for CH1 by VR |
| Suitable for lead acid and lithium-ion batteries |
| Design refer to GB17945 system requirement |
| 1U low profile (30mm) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start 30A at 115VAC, 60A at 230VAC |
| Overload protection | CH1:105 ~ 135% CH2:90 ~ 110% |
| Over voltage protection | CH1:15.5 ~ 18V |
| Setup, rise, hold up time | 500ms, 40ms/230VAC 500ms, 40ms/115VAC at full load |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -20~+60°C |
| Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010 |
| EMC standards | EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8 |
| Dimension (LxWxH) | 159x97x30 |
| Packing | 0.42Kg; 30pcs/13.6Kg/0.77CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesLAD Series
-
Power Rating120 Watt
-
Output Voltage13.8 Volt
-
Rated Current7.7 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,EMC,RCM,SAA
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.93 lb
