Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

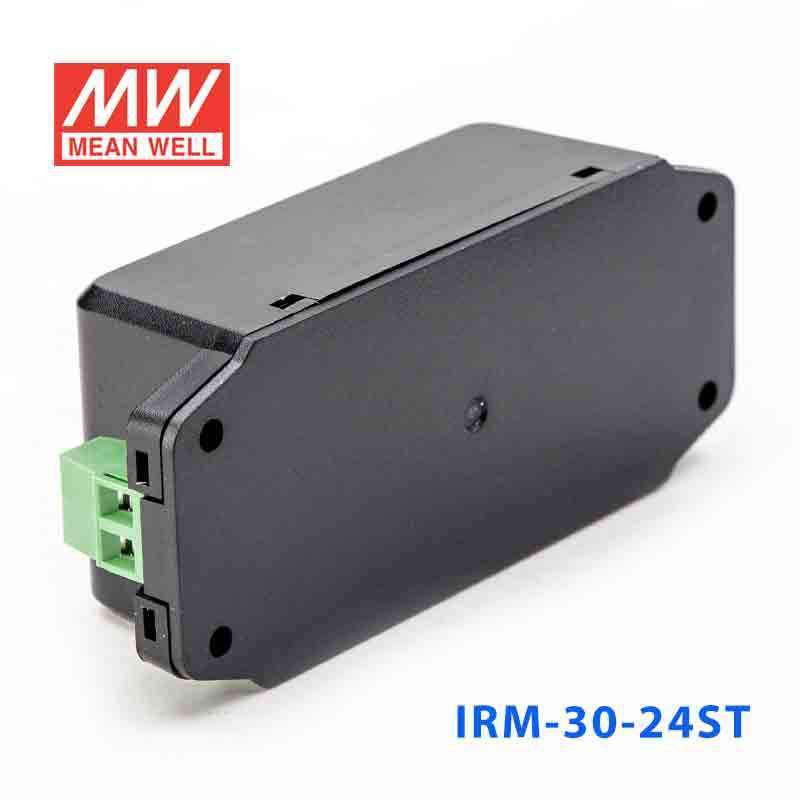

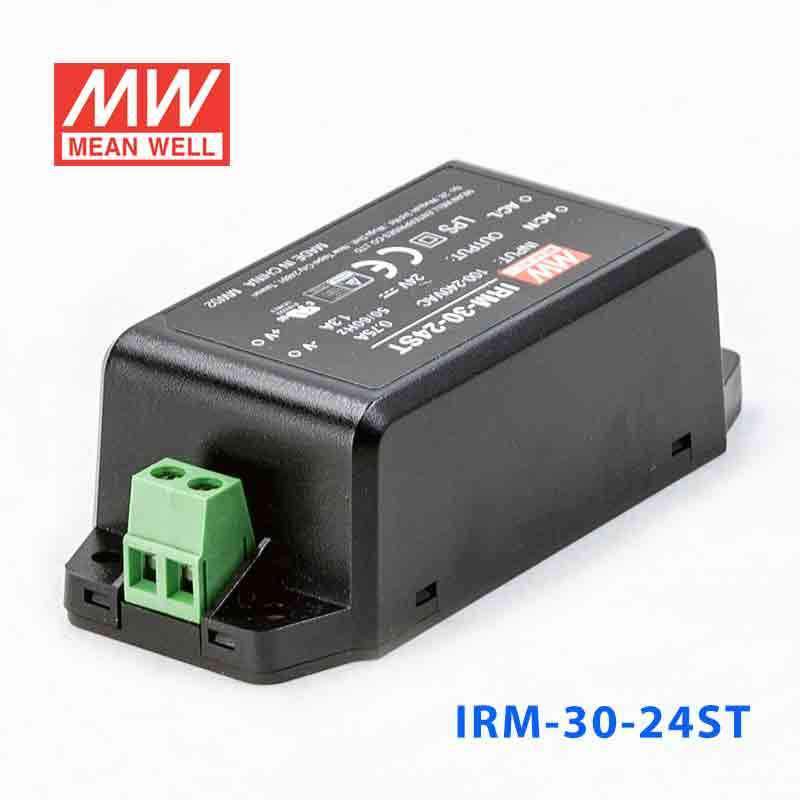

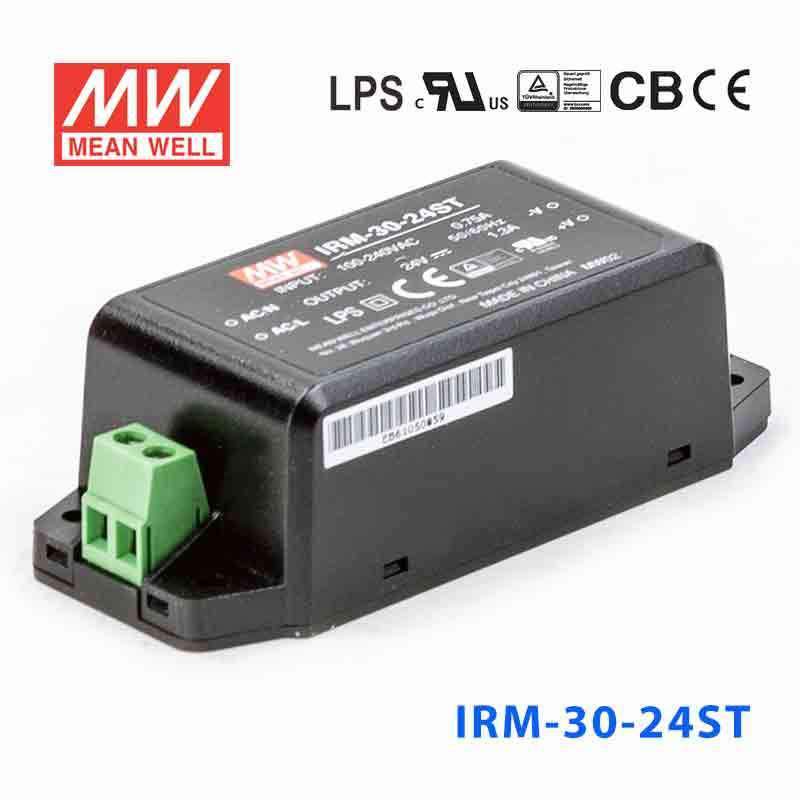

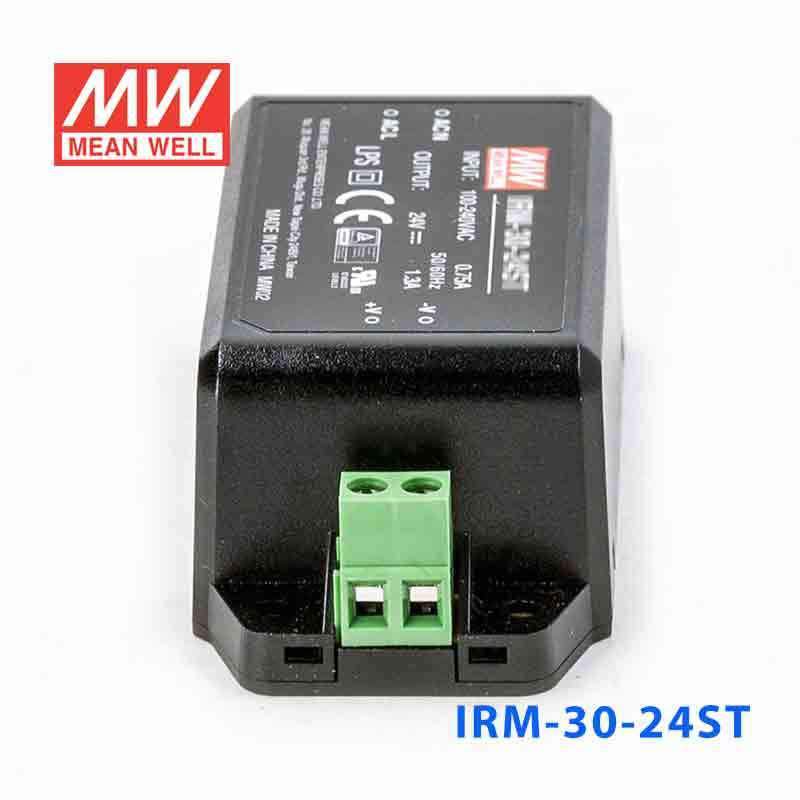

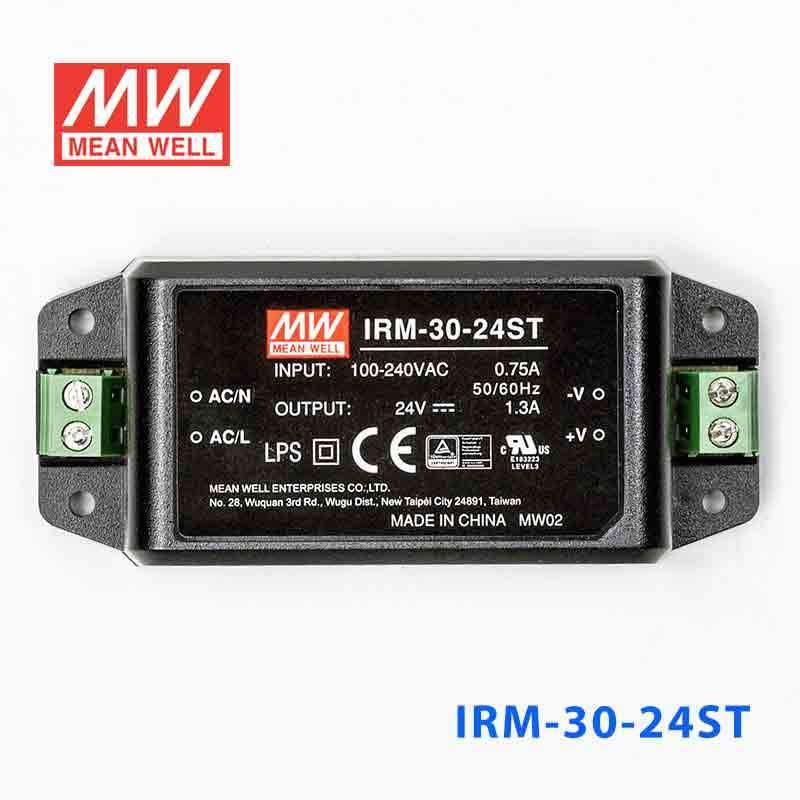

Mean Well IRM-30-24ST Switching Power Supply 30W 24V 1.3A - Encapsu...
$18.09 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Miniature size, high power density |
| Cooling by free air convection |
| Isolation class II |
| Fully isolated plastic case |
| Withstand 5G vibration test |
| Low cost, high reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 25A at 115VAC, 45A at 230VAC |
| Setup, rise, hold up time | 1000ms, 30ms, 40ms |
| Overload protection | 105%~160% |
| Over voltage protection | 105%~135% |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.75mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 4 industrial pins |
| Dimension (LxWxH) | 52.4x 27.2x 24 |
| Vibration | PCB mounting: 69.5x 39x 24; Screw I/O: 91x 39.5x 28.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating31.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.3 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.58 in
-
Width1.56 in
-
Height1.12 in
-
Weight0.25 lb
File Downloads
File Downloads
::specification::
