Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

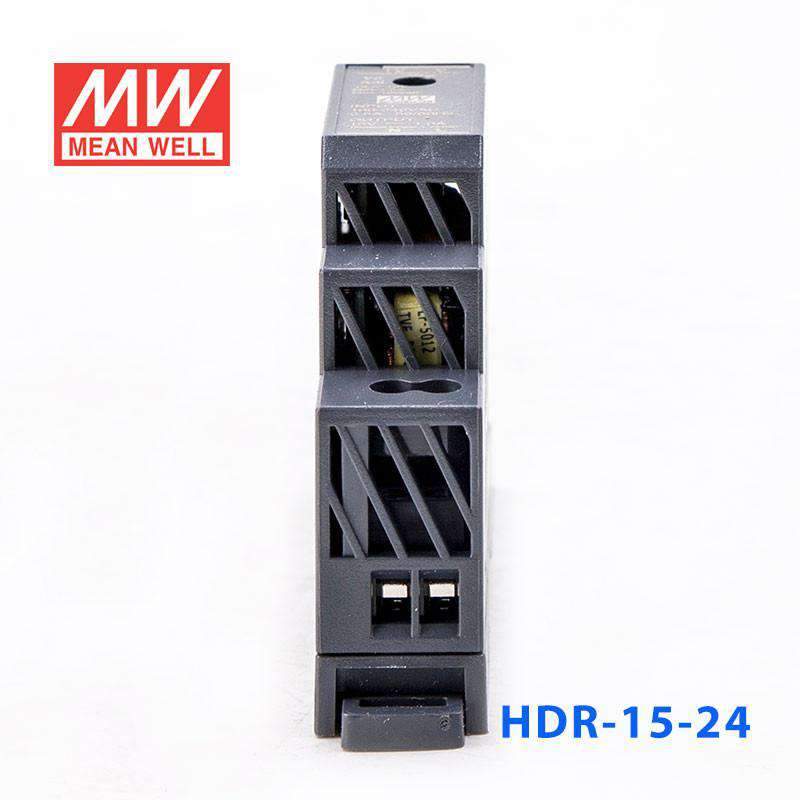

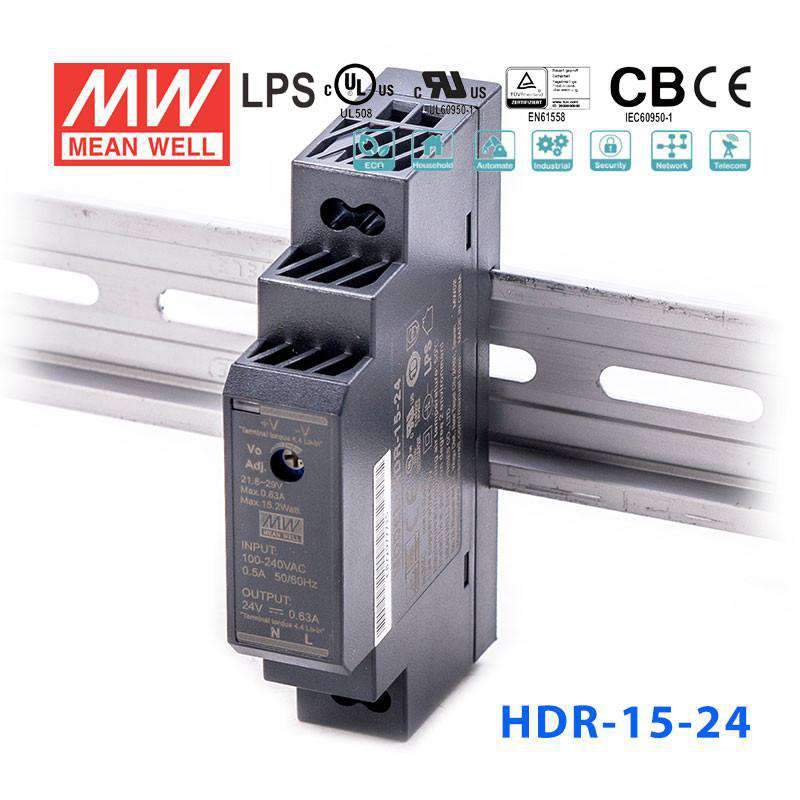

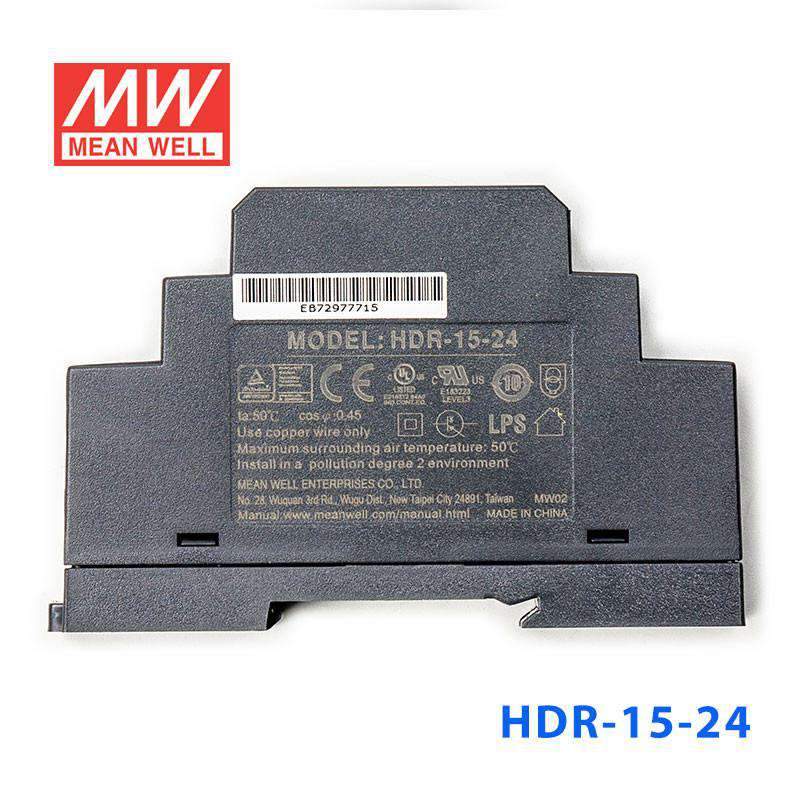

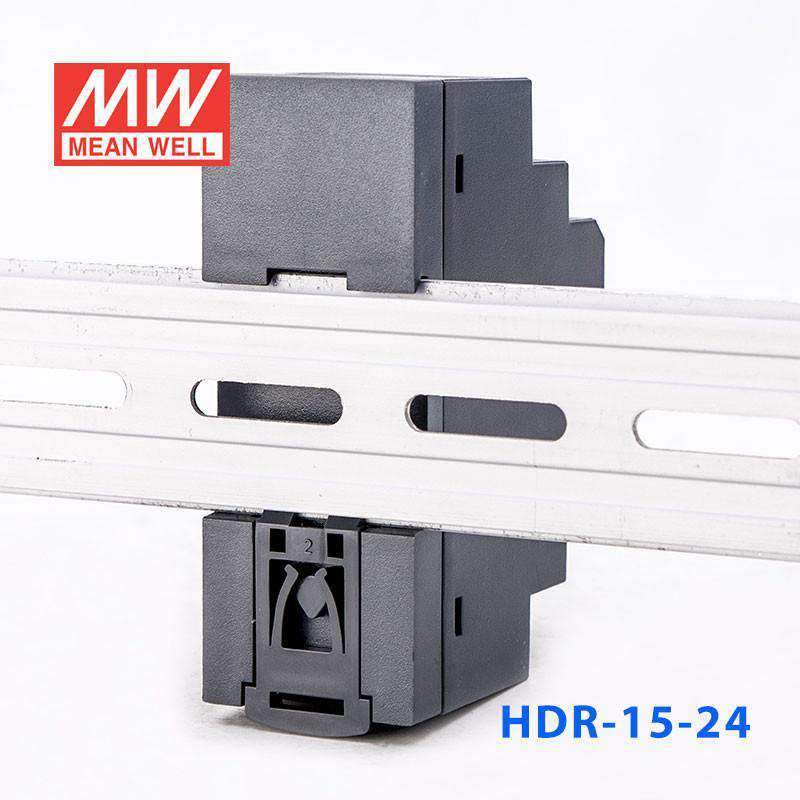

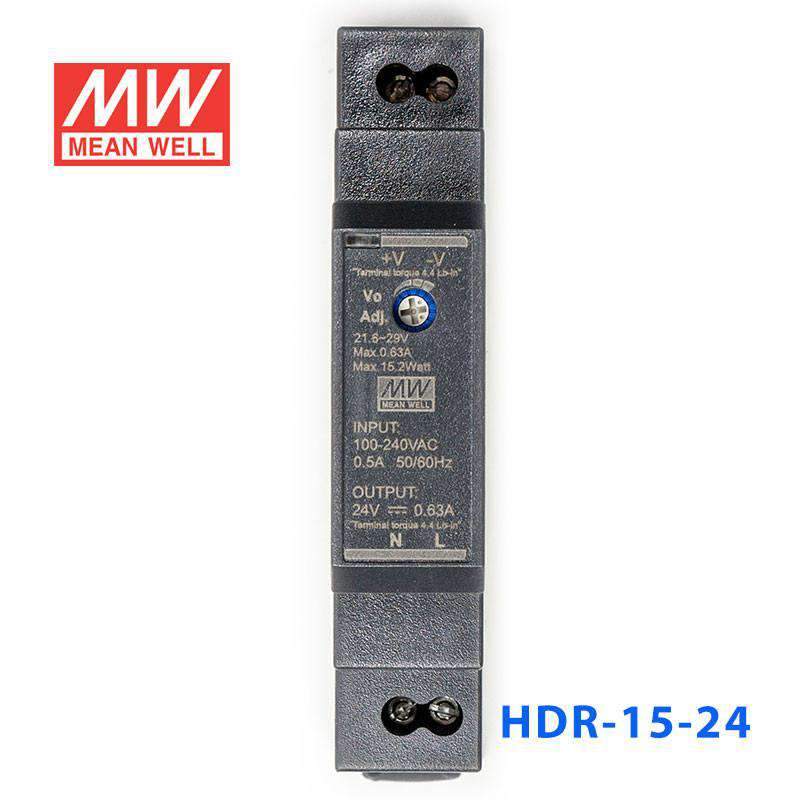

Mean Well HDR-15-24 Ultra Slim Step Shape Power Supply 15W 24V - DI...
$16.91 USD
Unit price /
Unavailable
Description
Description
The HDR-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15.2 Watt
-
Output Voltage24 Volt
-
Rated Current0.63 Ampere
-
Input Voltage85V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height0.69 in
-
Weight0.16 lb
