Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

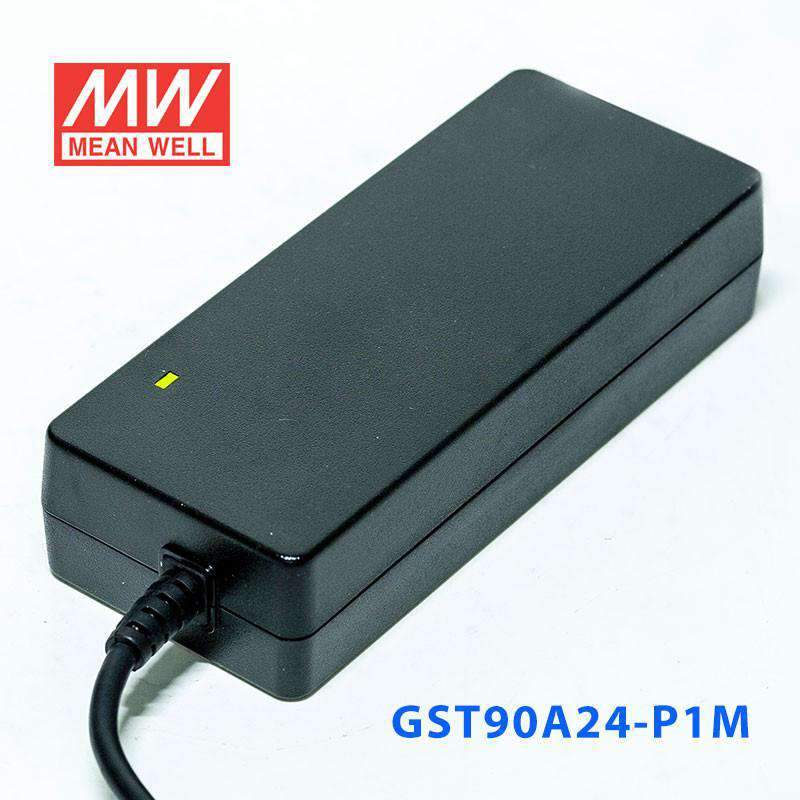

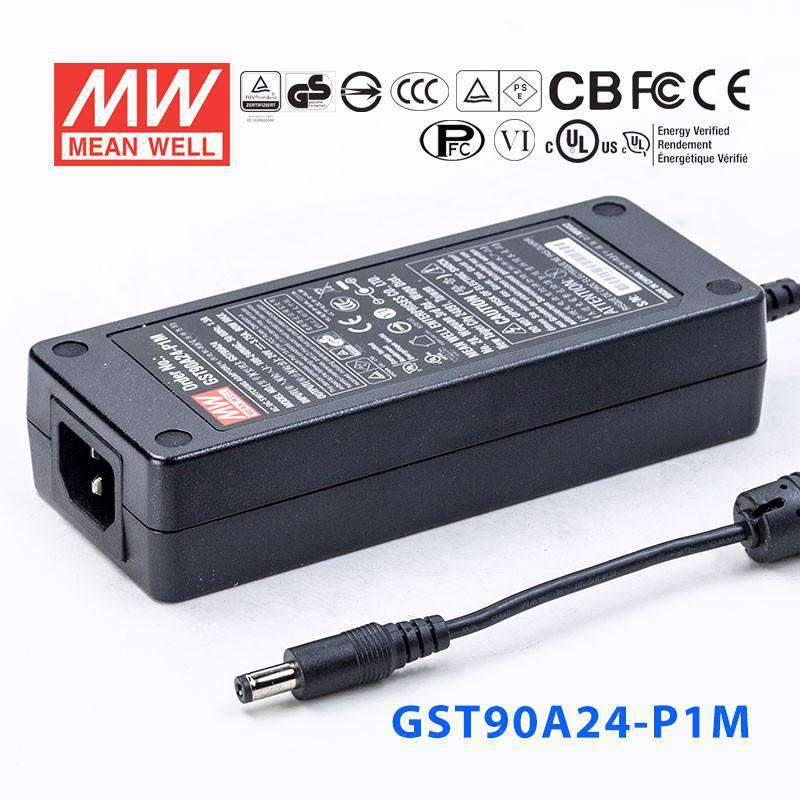

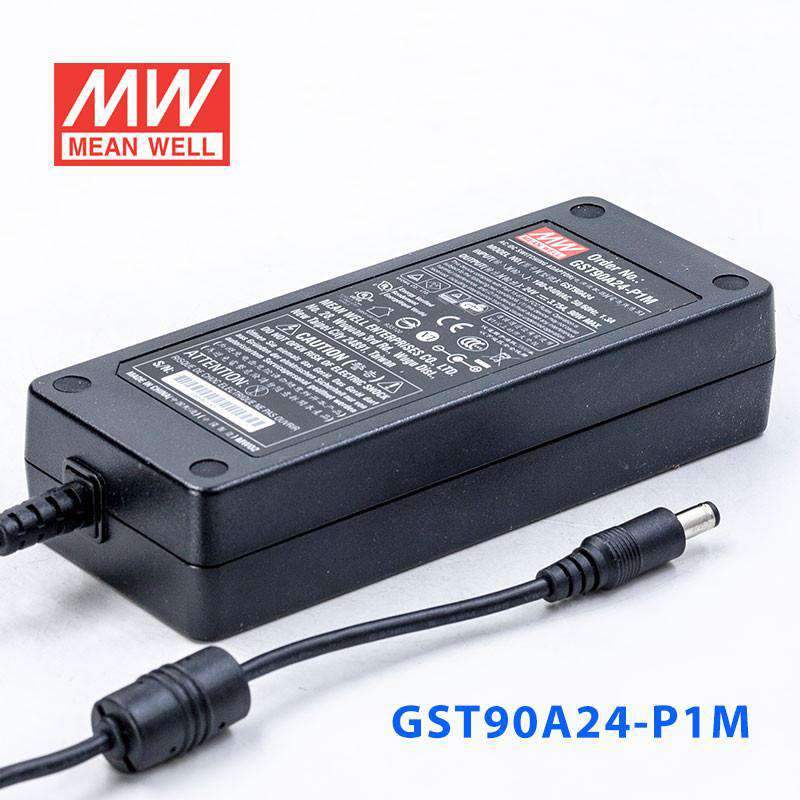

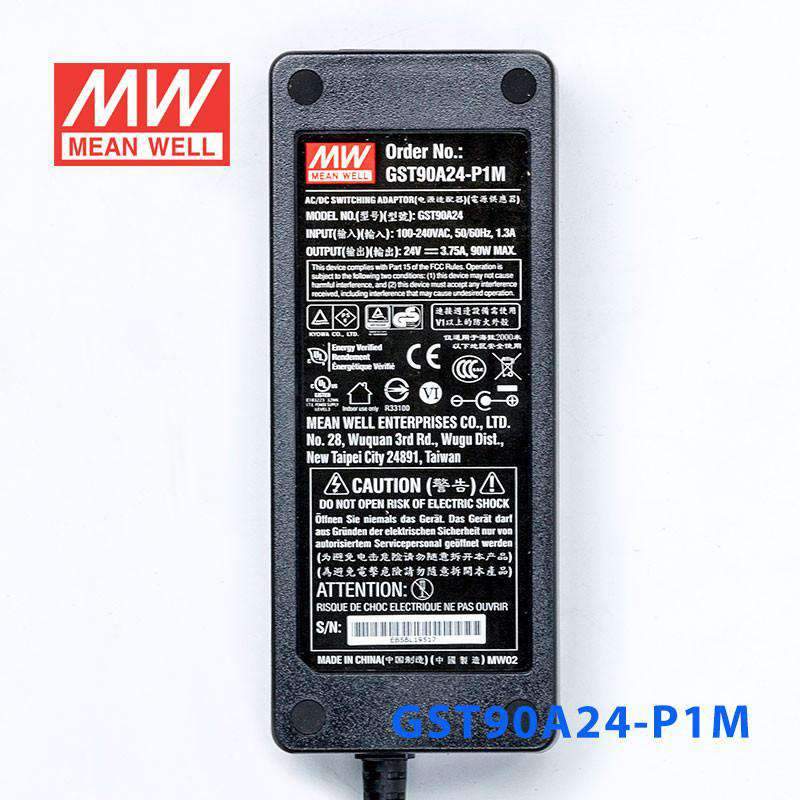

Mean Well GST90A24-P1M Power Supply 90W 24V
$36.12 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.075W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |

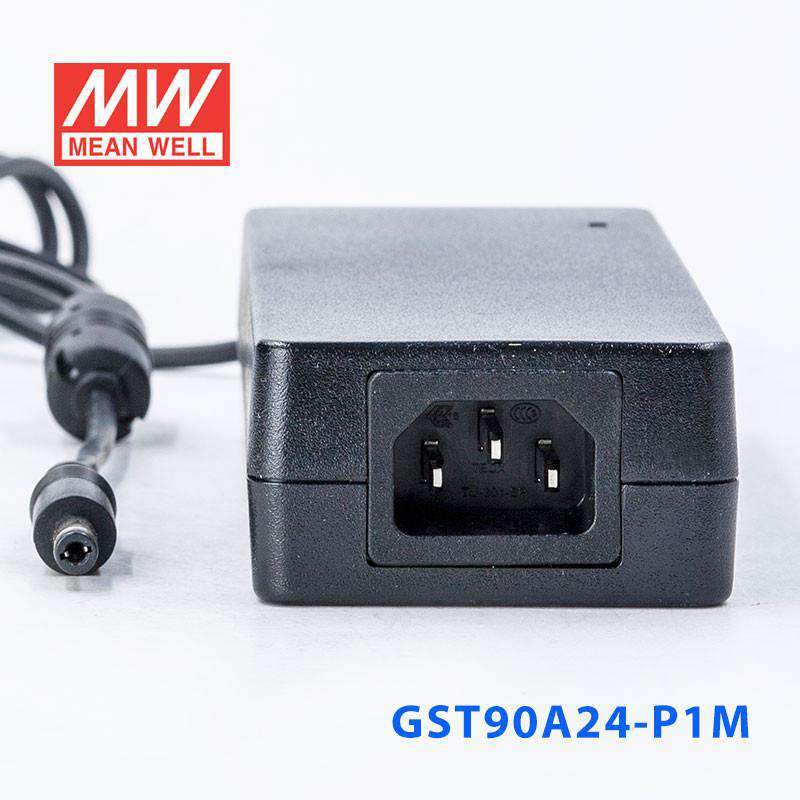

| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| Built-in active PFC function |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC 127~370VDC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -40~+85°C (refer to output derating curve ) |
| Safety standards | UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL1185, 14AWG for 12~15V; 120cm of UL1185, 16AWG for 19~48V |
| Dimension (LxWxH) | 145x 60x 32mm |
| Standard DC plug | P1M: 2.5ID x 5.5OD x11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage90V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.71 in
-
Width2.36 in
-
Height1.26 in
-
Weight0.99 lb
