Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

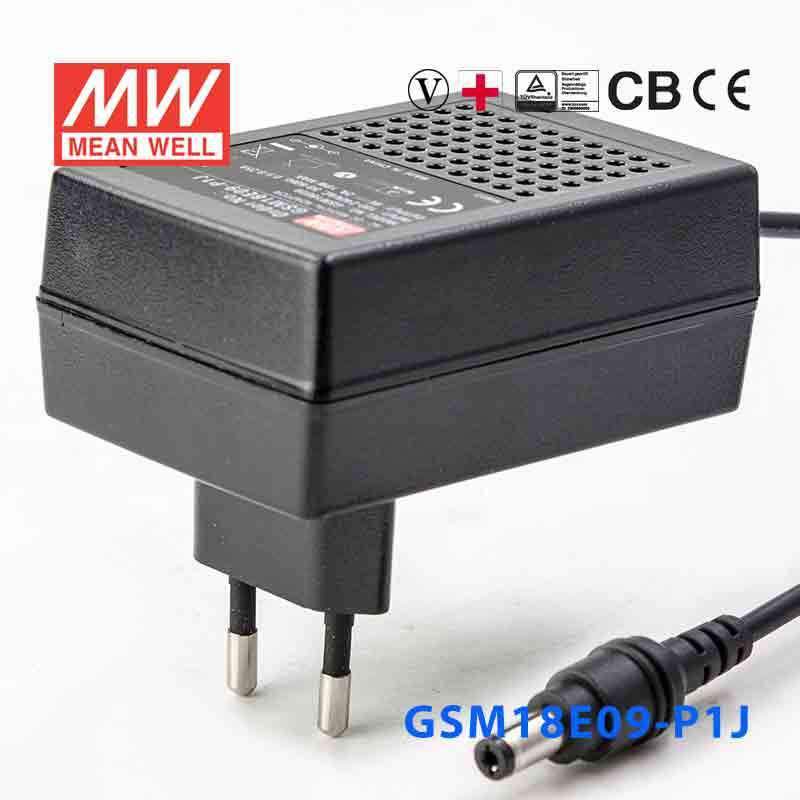

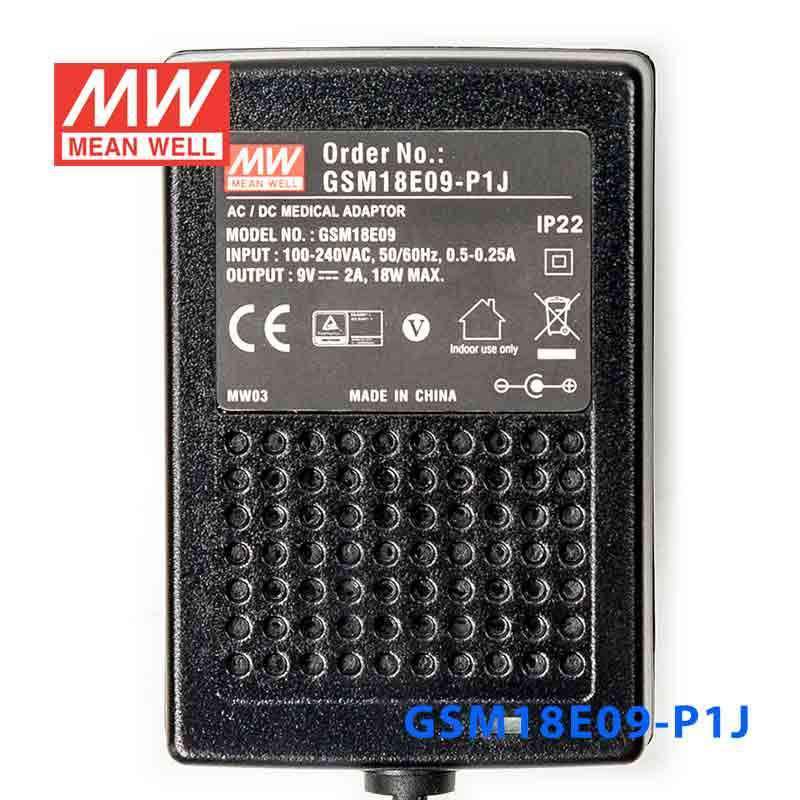

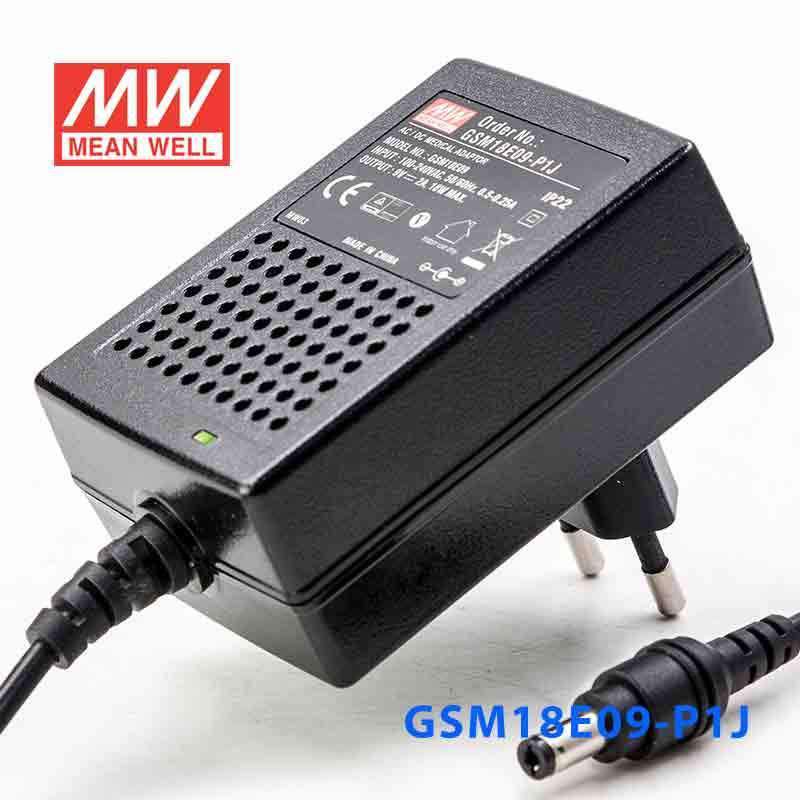

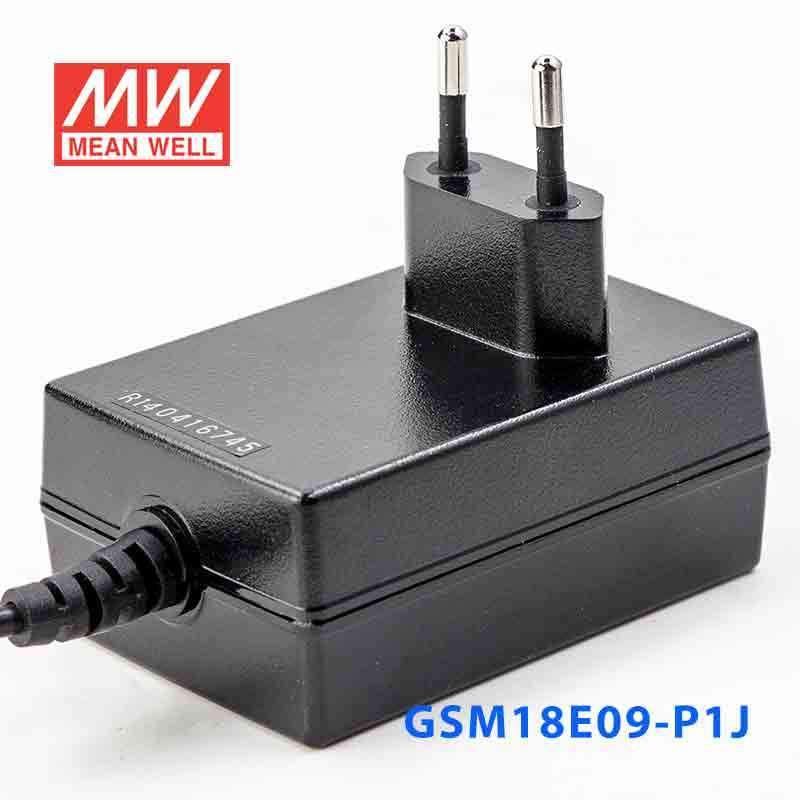

Mean Well GSM18E09-P1J Power Supply 18W 9V
$20.48 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| 2 pole EURO plug |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <50uA |
| No load power consumption < 0.1W |
| High efficiency up to 88% |
| Class II power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| Energy efficiency Level VI |
| Optional lock type DC plug |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 55A at 230VAC |
| Overload protection | 105%~170% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4KVAC |
| Working temperature | -25~+60°C (refer to output derating curve ) |
| Safety standards | TUV EN60601-1,EN60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2,EN55024,EN61204-3 |
| Length of output cable | 120cm of UL1185, 16AWG for 5~9V ; 180cm of UL1185, 18AWG for 12~48V |
| Dimension (LxWxH) | 79x54x 33mm |
| Standard DC plug | P1J: 2.1øx5.5øx11mm / C+, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage9 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.44 lb
