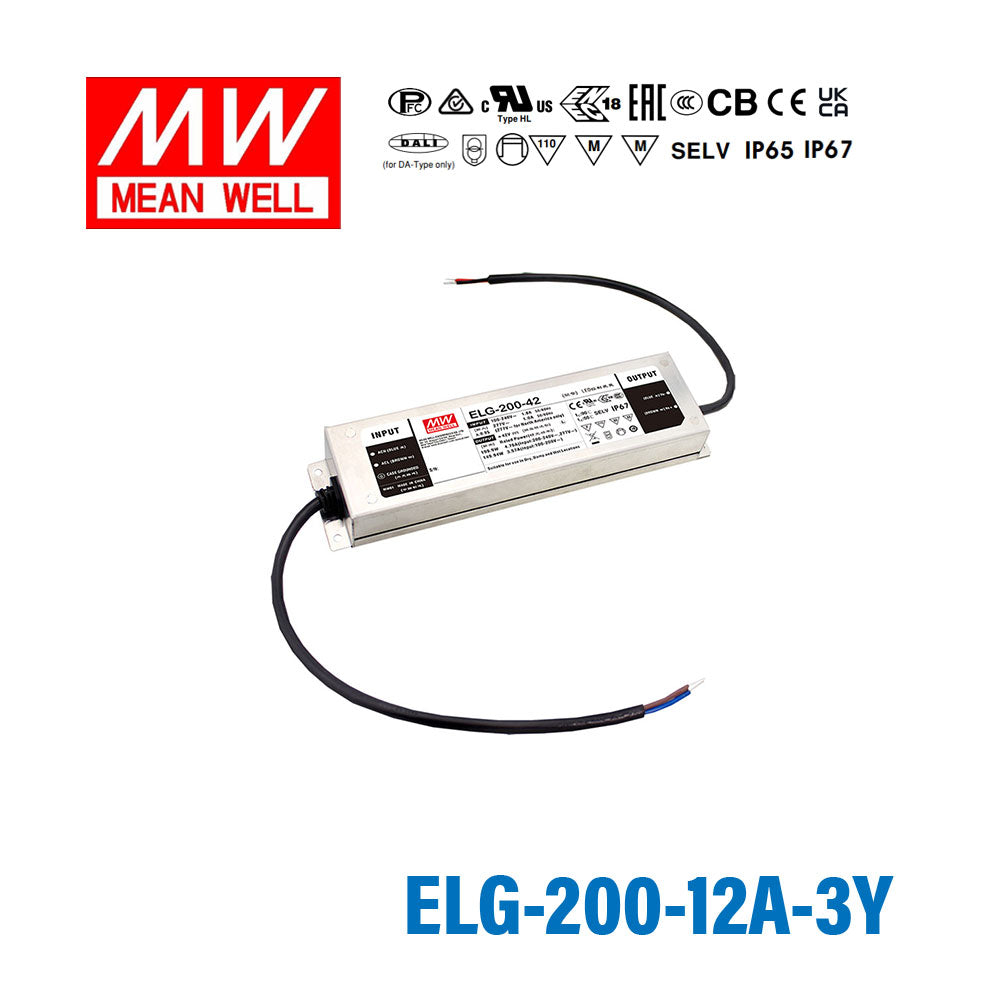

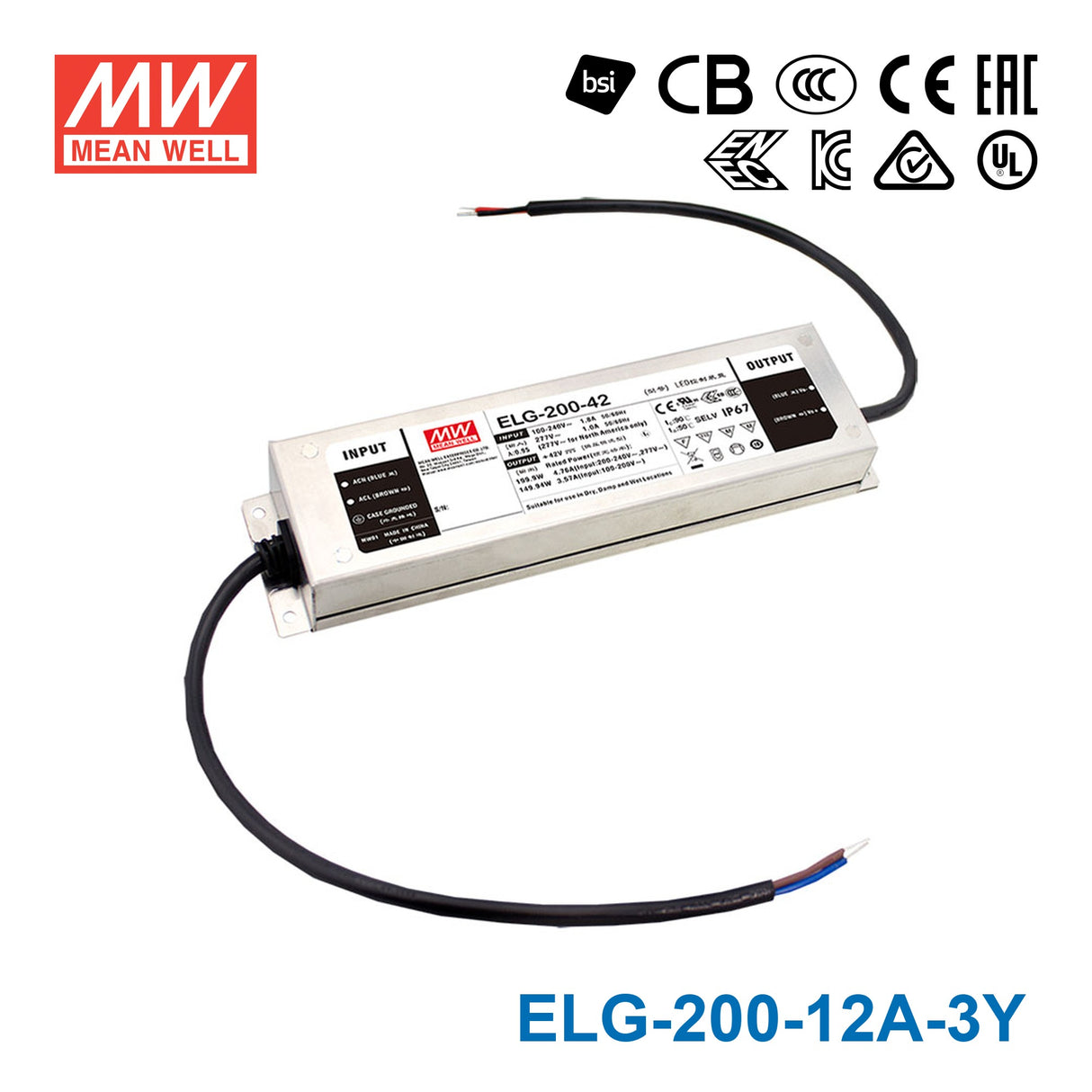

Mean Well ELG-200-12A-3Y Power Supply 192W 12V - Adjustable 16A — 3-Wire Input (with Earth)

Name: Mean Well ELG-200-12A-3Y Power Supply 192W 12V - Adjustable 16A — 3-Wire Input (with Earth)
Brand: Mean Well
SKU: ELG-200-12A-3Y
Price: 51.37 USD
Availability: InStock

$51.37 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

ELG-200-12A-3Y is the 12V output model of this series: rated current 16A, typical efficiency 90%.

ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-12A-3YSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.2: 6 ~ 12V
RATED CURRENT: 16A
RATED POWER 200VAC ~ 305VAC: 192W
RATED POWER 100VAC ~ 180VAC: 144W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 11.2 ~ 12.8V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 8 ~ 16A
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/ 115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT: 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION^Note.7: No load power consumption <0.5W for Blank / A -Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.5 ~ 18V Shut down output voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +90℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB/T19510.1,GB/T19510.213; IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ;BS EN/ EN61000-3-3;GB/T 17743,GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2391.4K hrs min. Telcordia SR-332 (Bellcore) ;204.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5mm (L*W*H)
PACKING: 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes15

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. No load/standby power consumption is specified for 230VAC input.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B).
14. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
15. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-12A-3Y Block Diagram — Block Diagram

ELG-200-12A-3Y DIMMING OPERATION — DIMMING OPERATION

ELG-200-12A-3Y OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

ELG-200-12A-3Y STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-12A-3Y TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-12A-3Y MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-12A-3Y E L G - 2 0 0 series — E L G - 2 0 0 series

ELG-200-12A-3Y ‧tc : Max. Case Temperature — ‧tc : Max. Case Temperature

ELG-200-12A-3Y Dimensions (mm) — Dimensions (mm)

ELG-200-12A-3Y ※ A-Type (for other models) — ※ A-Type (for other models)

ELG-200-12A-3Y ※ AB-Type (for 12V model) — ※ AB-Type (for 12V model)

ELG-200-12A-3Y ※ AB-Type (for other models) — ※ AB-Type (for other models)

ELG-200-12A-3Y ※ B/DA-Type (for 12V model) — ※ B/DA-Type (for 12V model)

Typical applications

LED street lighting
LED architectural lighting
LED bay lighting
LED floodlighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-200-12A-3Y datasheetELG-200-SPEC.PDF · 2026-07-06 edition PDF Download

FAQ

What distinguishes the ELG-200-12A-3Y from the standard ELG-200-12A?

The ELG-200-12A-3Y is the 3-wire input variant of the ELG-200-12A. Both share the same 192W / 12V / 16A output, IP65 rating, potentiometer-adjustable output, and -40°C to +90°C case temperature range. The 3Y version uses a three-conductor AC input cable (AC/N, AC/L and PE), and the sheet advises connecting the case to PE for complete EMC performance and safe use.

Can the ELG-200-12A-3Y power 12V LED strips in an outdoor architectural lighting project?

Yes. The ELG-200-12A-3Y outputs 12V at up to 16A (192W) and carries an IP65 water-resistance rating, making it appropriate for sheltered outdoor architectural lighting. At 192W, a 10W/m LED strip allows approximately 19 meters per driver; check your strip's rated power per meter for an accurate figure.

Is the ELG-200-12A-3Y suitable for use in outdoor enclosures exposed to rain?

The ELG-200-12A-3Y is IP65 rated, protecting it against low-pressure water jets from any direction. It is suitable for weatherproof enclosures, covered outdoor cabinets, and similar installations that may experience rain splash but not submersion.

Can the ELG-200-12A-3Y drive 12V LED strips in a large-format illuminated sign?

Yes. With 192W at 12V and 16A, the ELG-200-12A-3Y can drive substantial LED strip runs inside large-format signs. The adjustable output also allows fine-tuning of brightness to match the specific LED strip load. Always account for derating in high-ambient enclosures.

Does the ELG-200-12A-3Y operate across global mains voltages?

Yes. The ELG-200-12A-3Y accepts 100–305VAC input, covering standard residential and commercial voltages in North America (120V), Europe (230V), and US commercial (277V) without any configuration change. Note that output is rated 144W at 100–180VAC versus 192W at 200–305VAC.

What is the operating temperature range of the ELG-200-12A-3Y?

The ELG-200-12A-3Y is rated for a case temperature (Tcase) of -40°C to +90°C. In ambient terms, the 12V model running in constant-current mode at rated current can work up to 50°C, with load derating per the output load vs temperature curve. This covers cold-storage facilities and unheated outdoor enclosures in winter climates.
