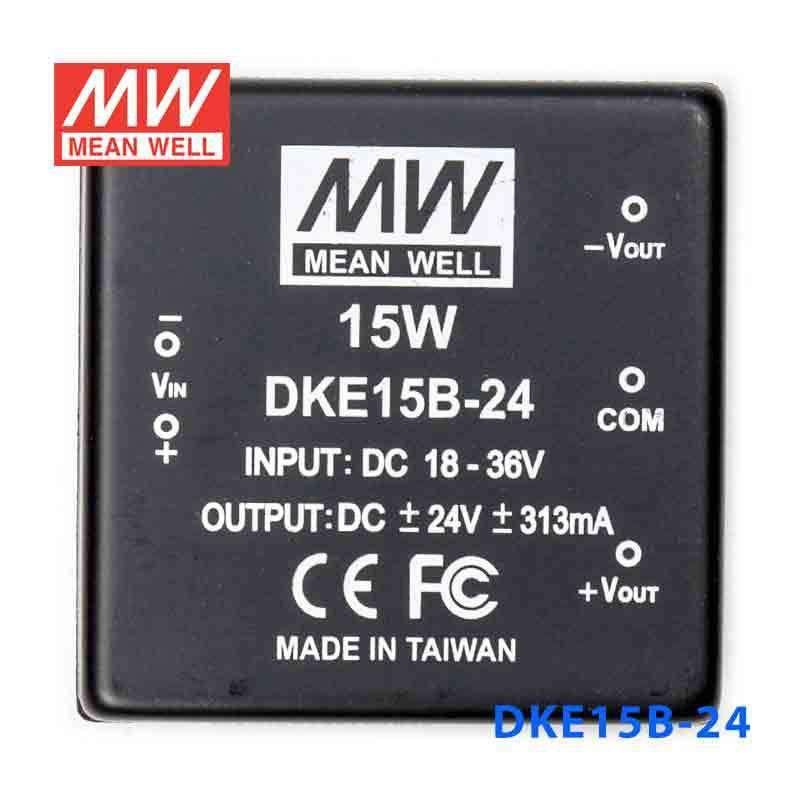

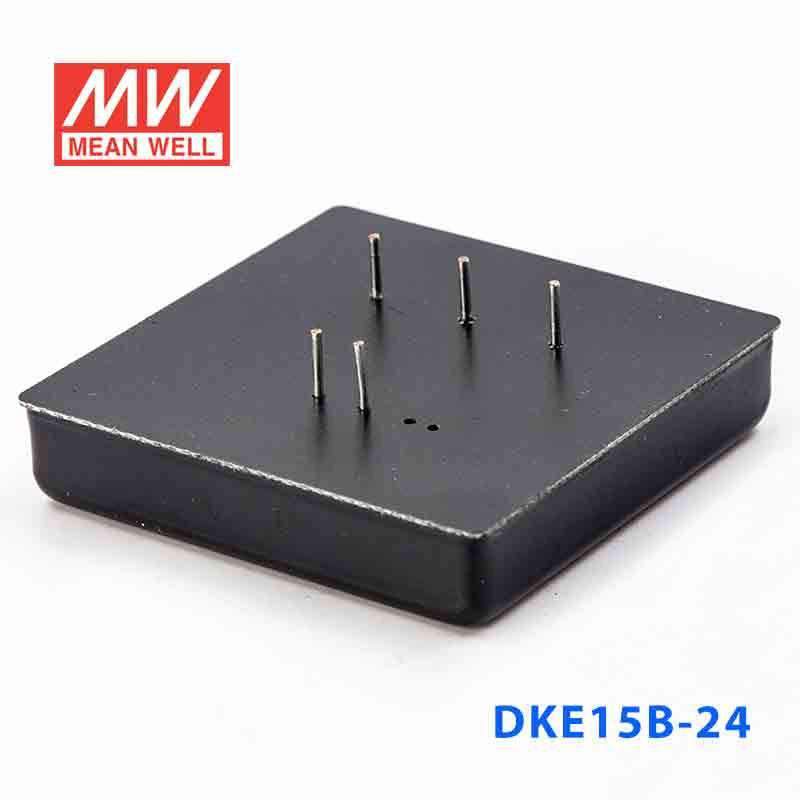

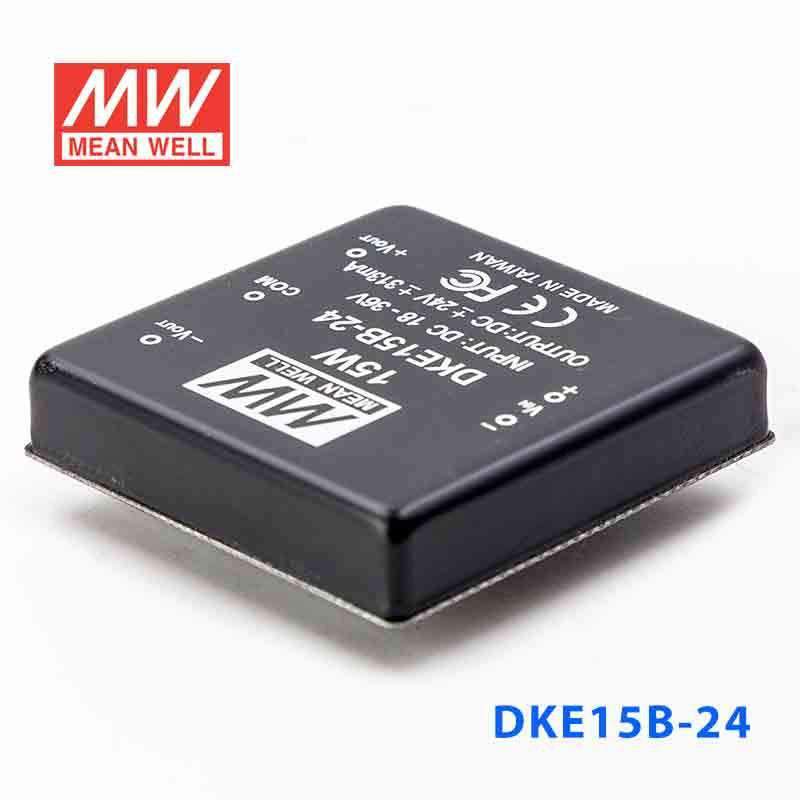

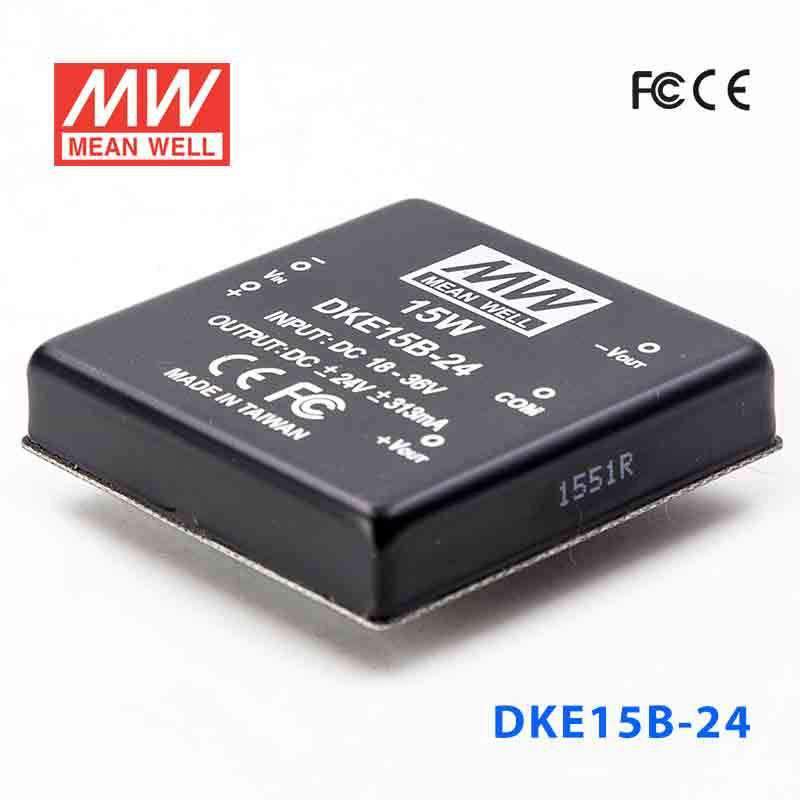

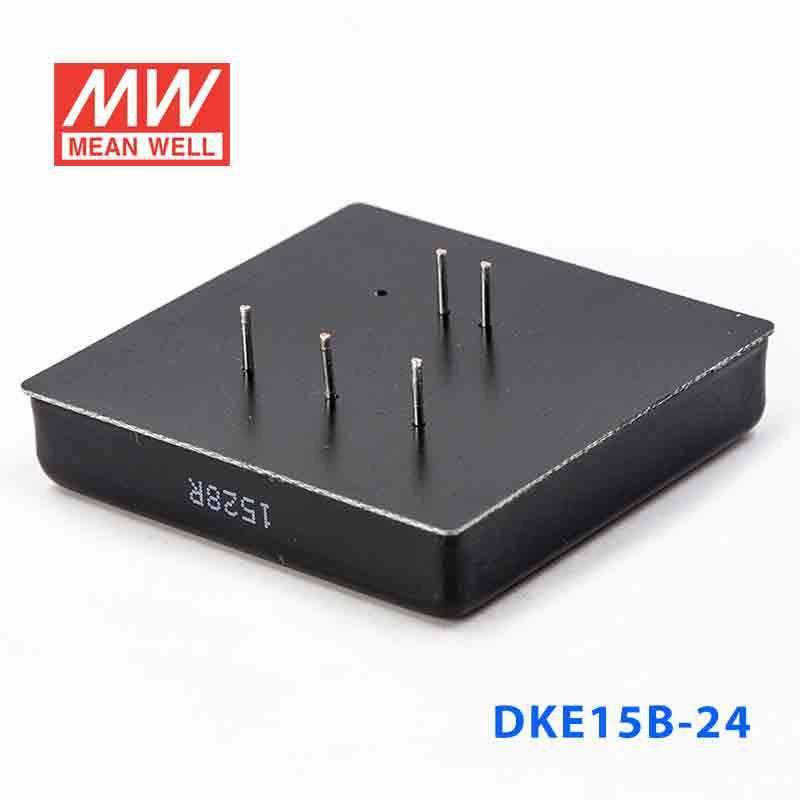

Mean Well DKE15B-24 DC-DC Converter - 15W - 18~36V in ±24V out 313mA
Overview
DKE15B-24 is the ±24V output model of this series: rated power 15W, typical efficiency 84%.
Features
- 2:1 wide input range
- 4:1 wide input range(optionl)
- 1500VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±24V
- CURRENT RANGE
- ±31.3 ~ ±313mA
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p
- LINE REGULATIONNote.3
- ±0.3%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 150KHz min.
INPUT
- VOLTAGE RANGE
- 18~36VDC
- EFFICIENCY (Typ.)
- 84%
- DC CURRENT Full load
- 800mA
- DC CURRENT No load
- 20mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVER CURRENT
- 160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25~+71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ ( 0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 300Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*50.8*11.0mm or 2"*2"*0.43" inch (L*W*H)

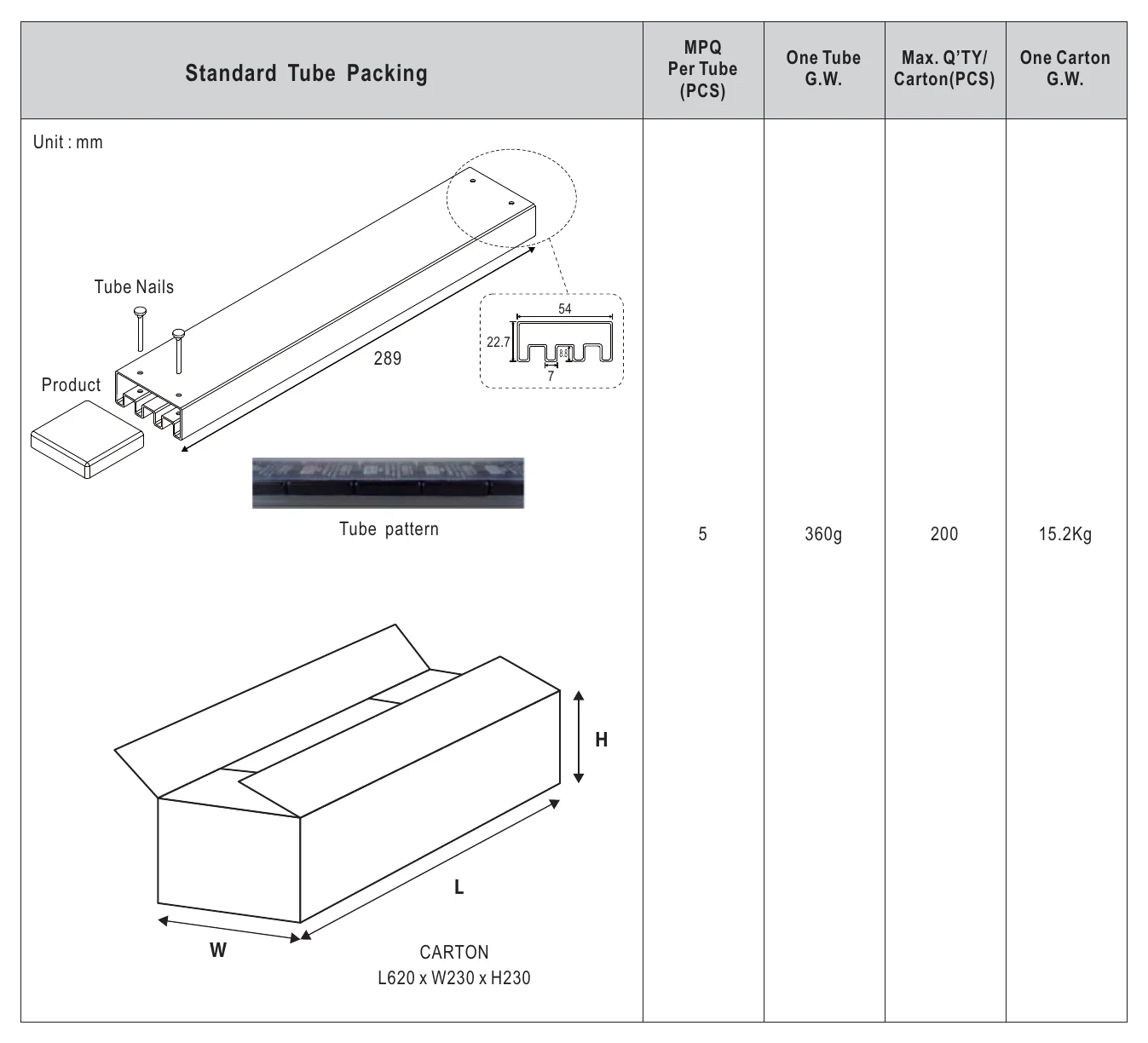

- PACKING
- 60g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

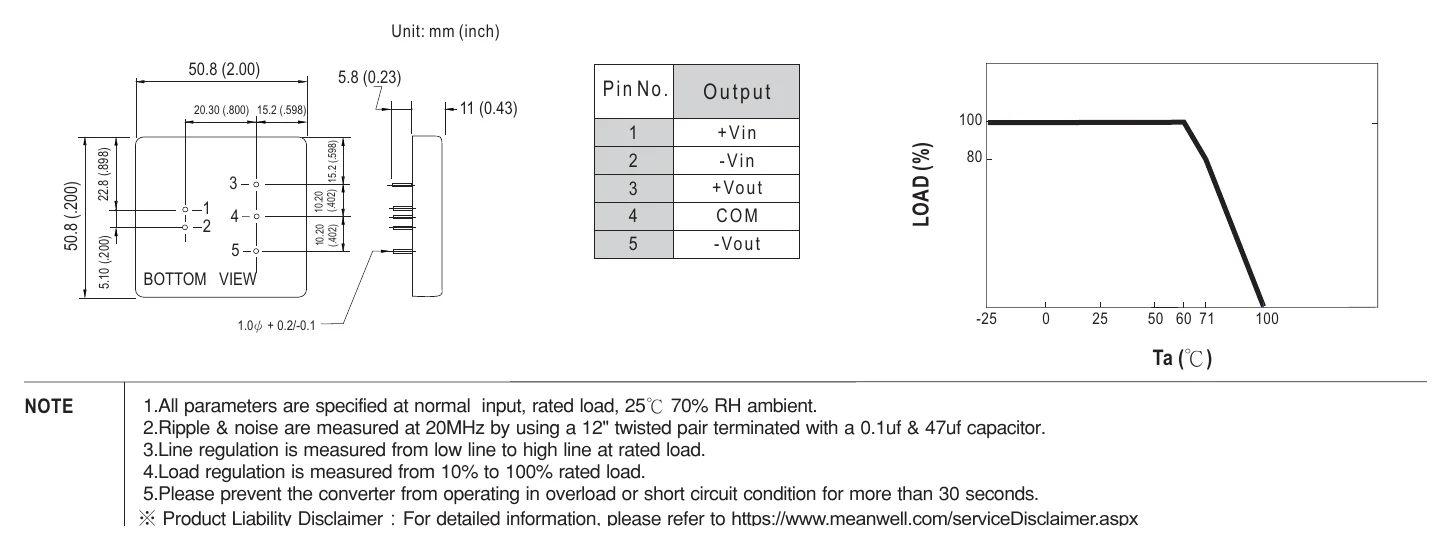

Technical drawings
Downloads
FAQ
Can I use the DKE15B-24 for industrial control electronics that need a ±24V rail?
Yes, this model is intended for applications that need a ±24V constant-voltage output and fit within a 15W power budget. It accepts 18-36VDC input, so it is best matched to industrial control or interface electronics operating in that input range.
Is the DKE15B-24 appropriate for automation or communications interface boards?
It can be used where an interface board requires a regulated ±24V output rather than a lower-voltage rail. The unit provides 15W total output power and is designed for systems with 18-36VDC input available.
Can this converter work in compact embedded or OEM equipment?
Yes, its 50.8 x 50.8 x 11.0 mm size and 60 g weight make it suitable for compact embedded or OEM assemblies. It is a better fit for low-power ±24V sections than for larger loads because the converter is rated at 15W.
Can the DKE15B-24 be used in unprotected outdoor enclosures?
The operating temperature range is -25°C to +71°C (with load derating per the derating curve), so the temperature spec is broad enough for many controlled environments. However, no IP rating is provided, so the listed specs do not support direct exposure to outdoor dust or water.
What is the difference between the DKE15B-24 and the other DKE15B versions?
All DKE15B models are 15W converters with 18-36VDC input, but they differ by output. The DKE15B-05 is ±5V at up to ±1500mA, the DKE15B-12 is ±12V at up to ±625mA, the DKE15B-15 is ±15V at up to ±500mA, and the DKE15B-24 is ±24V at up to ±313mA.
