Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

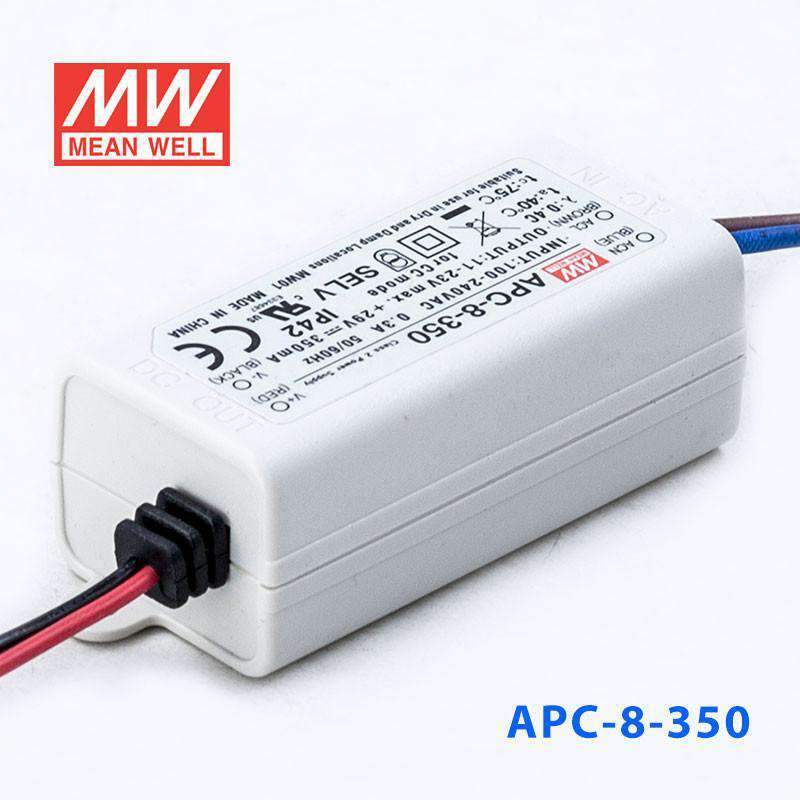

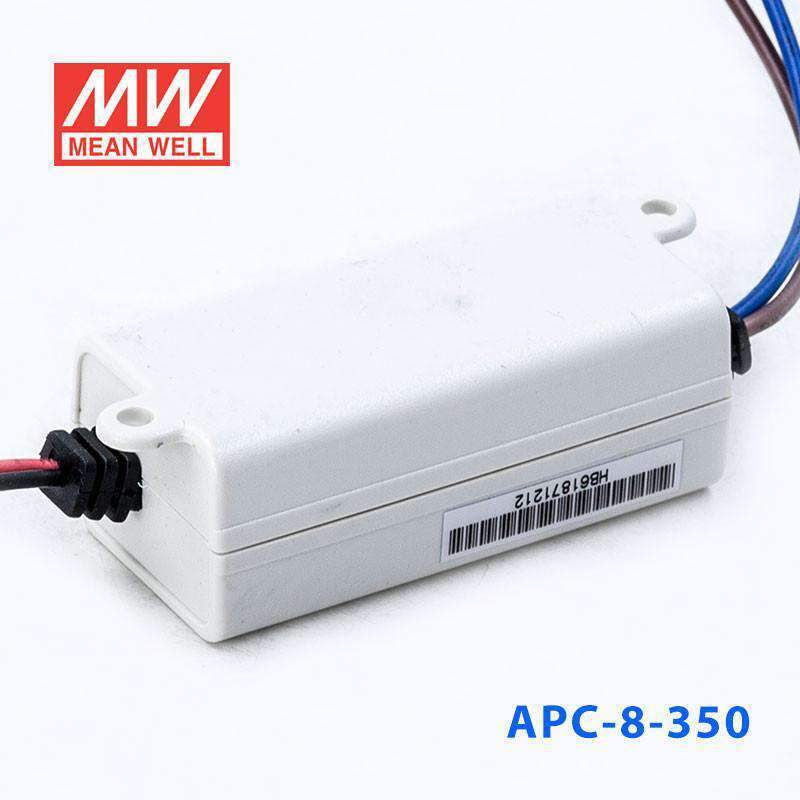

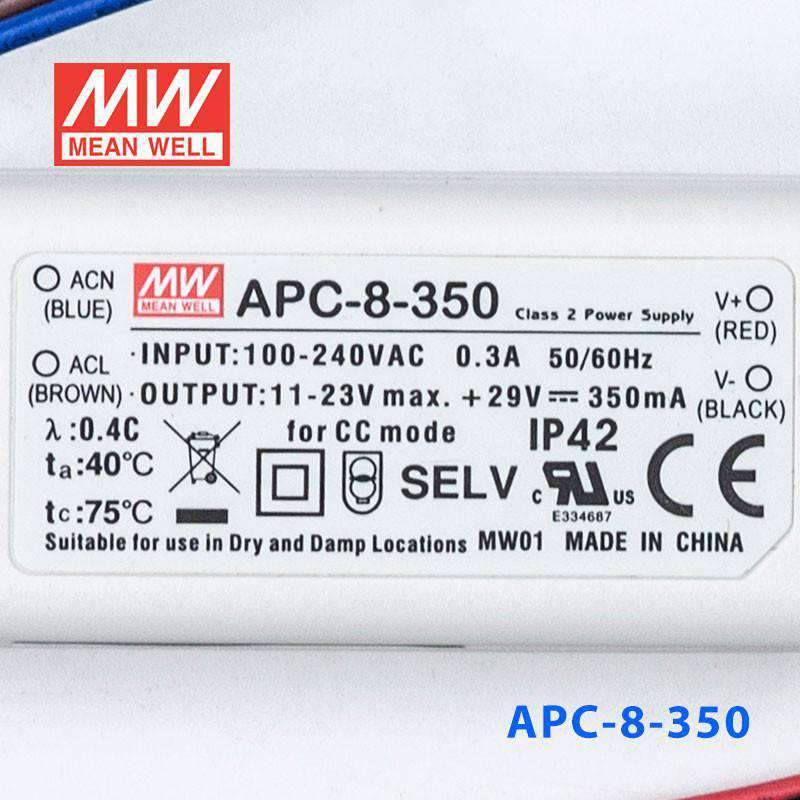

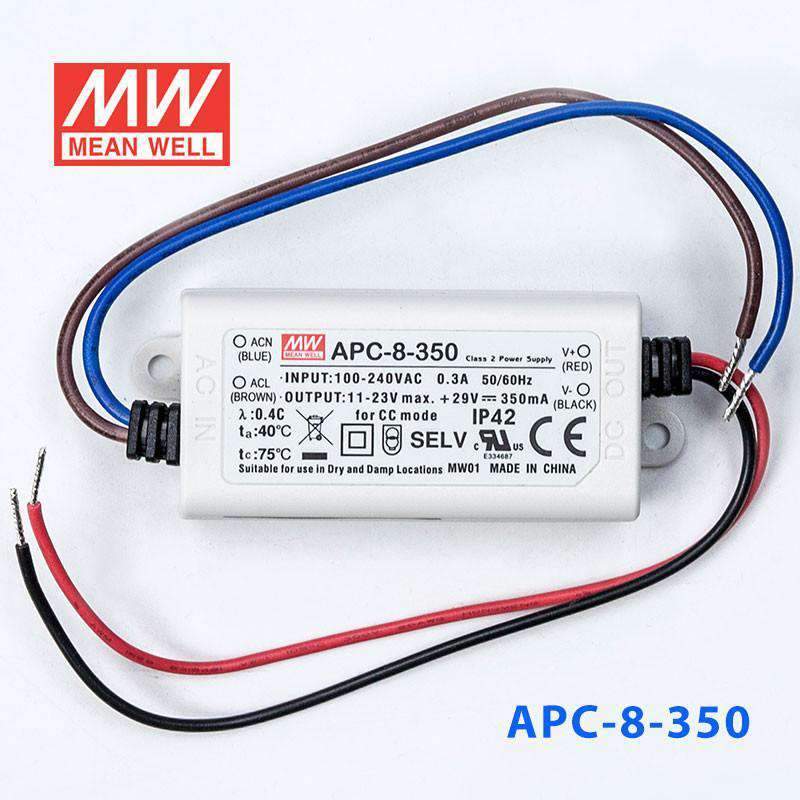

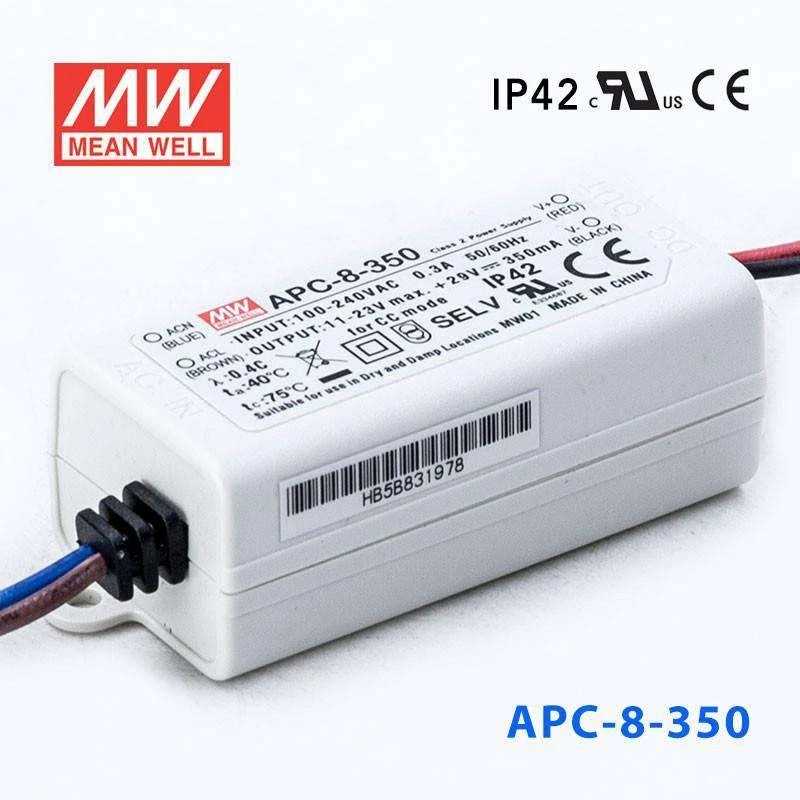

Mean Well APC-8-350 Power Supply 8W 350mA
$6.91 USD
Unit price /
Unavailable
Description
Description
The APC-8 is a 8W Mean Well. DIN rail power converter with a 60mm profile. and an input range of 16~32V.
Key Features
- ✓ 60mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 16~32V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Short circuit
- ✓ Safety approvals: Note.7 UL8750,CSA C22.2 No.250.0-08
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating8.05 Watt
-
Output Voltage23 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length2.36 in
-
Width1.18 in
-
Height0.93 in
-
Weight0.11 lb
