Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

Archilight LED Strip ProPlus RGB SPI Digital Pixel Programmable 60LEDs/m (/3.28Ft) 12W/m (/3.28Ft) 24V IP20 - RGB Multicolour - 5m, 16.4 FT Package, Unit Price showing per metre (per 3.28 Ft)

SKU CC5050-0602400GLE-RGBSPI
$10.09 USD
Shipping calculated at checkout.
In stock
|

Overview

Features

  • Plus Series using top quality material such as Epistar/San'an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc. as standard configuration.
  • Pixel Control Series with external programmable smart IC WS2811, appropriate for pixel controllable application by SPI signal.
  • Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.

Specifications

CC5050-0602400GLE-RGBSPISpecifications from the official datasheetDownload datasheet PDF

Specification

Product No.
CC5050-0602400GLE-RGBSPI
Dimension (L*W*H)
5000*10*2mm [197*0.4*0.08in.]
IP Rating
IP20 [dry]
Lumen Flux±10%
340lm/M [104lm/ft.]

General Specification

Standard Length
power: 5M[16.4ft.] (power fed on one side) data: depend on pixel controller being usage
Min. Unit & LED QTY
100mm [3.94in.] & 6 LEDs
LED Type
SMD5050 RGB
LED QTY
60LED/M [18LED/ft.]
PCB Type
2oz white FPC, OSP (Plus)
Operating Ambient
Ta: -20~45℃
Warranty
3 years (Plus)
Lifespan
36kh (L70B50@Tc≤65℃, Tc is temperature of LED pin)

Photoelectric Specification

Power±10%
12W/M [3.66W/ft.]
Input Voltage & Current
24VDC
LED Current
R:18mA, G:18mA, B:18mA
LED CCT & Wavelength
R:620~630nm, G:515~525nm, B:465~475nm
Beam Angle
120°
Dimming Method
PWM (Support SPI controller and DMX-SPI decoder.)

Certifications & ratings

Certification marks
CE, CB, RoHS
Test conditions and notes5
  1. 1: Applying with extra heat sink is not necessary with self-cooling capacity.
  2. 2: 3M 300LSE yellow adhesive tape attached on backside, is standard configuration of Plus Series.
  3. 3: One end of 200mm brown/yellow/white silicon cable or waterproof connector kit according to specific IP rating, is standard configuration of Plus Series.
  4. 4: Transparent reel and silvery ESD bag, are standard configuration of Plus Series.
  5. 5: Installation accessories such as clip, screw, plug etc. are all optional base on specific demand.

Technical drawings

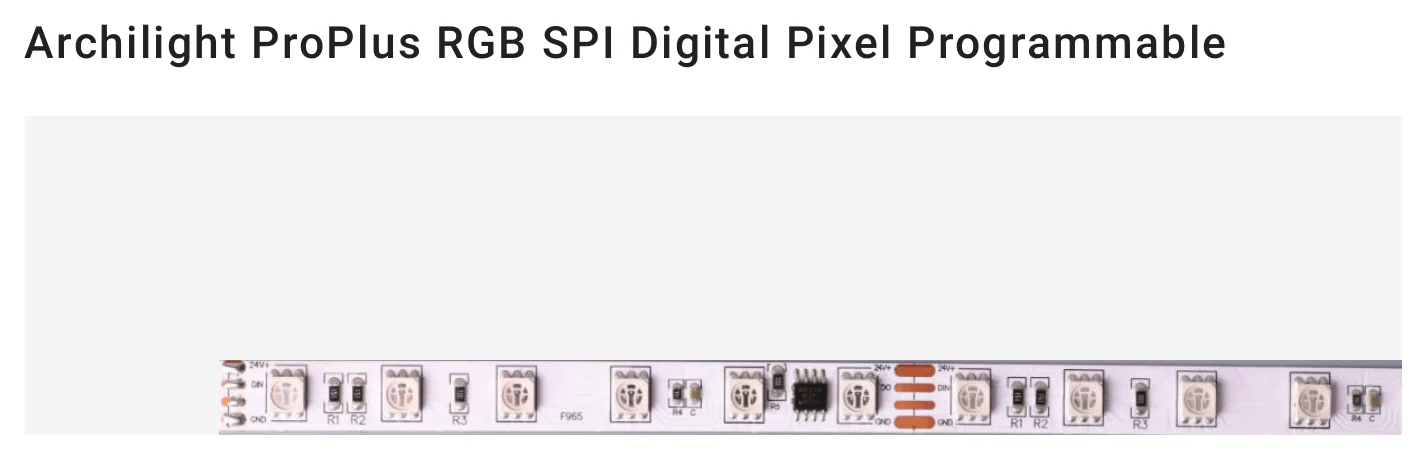

CC5050-0602400GLE-RGBSPI Archilight ProPlus RGB SPI Digital Pixel Programmable
Archilight ProPlus RGB SPI Digital Pixel Programmable

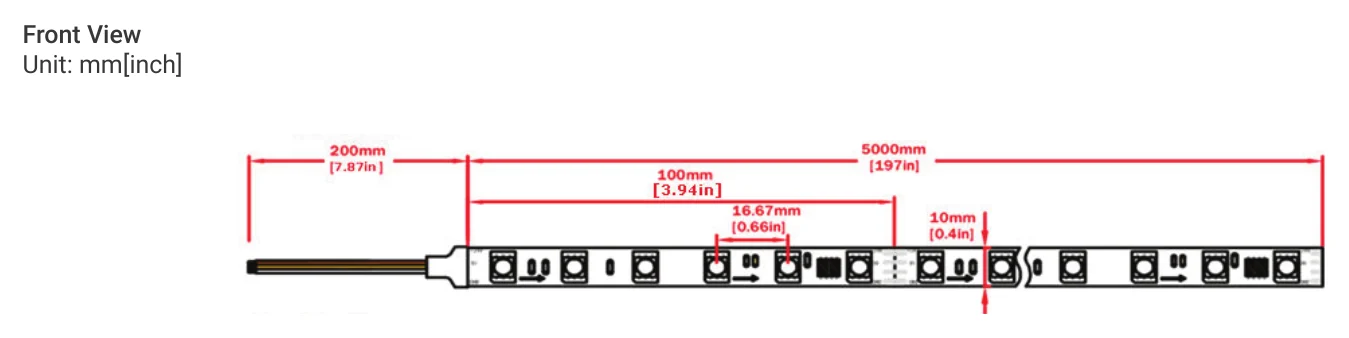

CC5050-0602400GLE-RGBSPI Front View
Front View

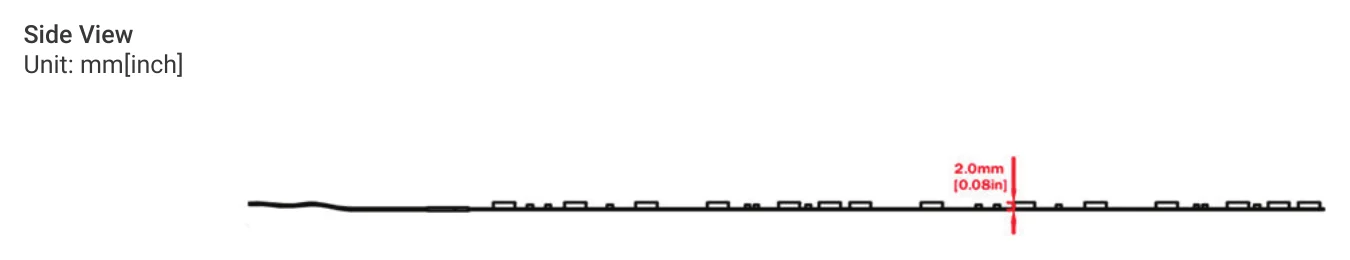

CC5050-0602400GLE-RGBSPI Side View
Side View

Downloads

FAQ

What type of LED strip is the Archilight ProPlus RGB SPI Digital Pixel Programmable range?

This is a 24V RGB digital pixel LED strip designed for SPI control. It uses WS2811 smart IC technology for pixel-controllable lighting effects and is built as a 5 metre reel with pricing shown per metre.

Where is this LED strip typically used?

This strip is suited to interior decorative and architectural lighting where dynamic RGB effects are needed. Typical applications include backlighting, shelves, cabinets, showcases, signage, ceilings, corridors, theatres, and other commercial or residential feature lighting areas.

What performance should buyers expect from this LED strip?

The strip runs at 12W per metre and uses 60 LEDs per metre. It delivers up to 340 lumens per metre with a 120 degree beam angle, making it appropriate for broad, even accent lighting rather than narrow spotlighting.

Is a driver included with this product?

No, the driver is not included with this LED strip. Buyers should account for a suitable separate driver when specifying the product for a project.

Is this LED strip suitable for exposed outdoor or wet-area use?

No, this version is rated IP20, so it is intended for dry indoor environments. It is better suited to protected interior applications where the strip will not be exposed to water or heavy dust.

What are the physical dimensions of the strip?

The strip is 10 mm wide and 2 mm high. These compact dimensions make it easier to specify for shallow profiles and discreet linear lighting details where space is limited.

What does SPI control mean for this product compared with a standard non-digital RGB strip?

SPI control means the strip is designed for programmable pixel effects rather than only uniform colour changes across the whole length. This makes it a better fit for projects that need animated, segmented, or individually controlled lighting effects.

What warranty is offered on this LED strip family?

The strip comes with a 3 year warranty. That makes it suitable for buyers who need a digital LED strip for longer-term commercial or architectural lighting specifications.
