Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

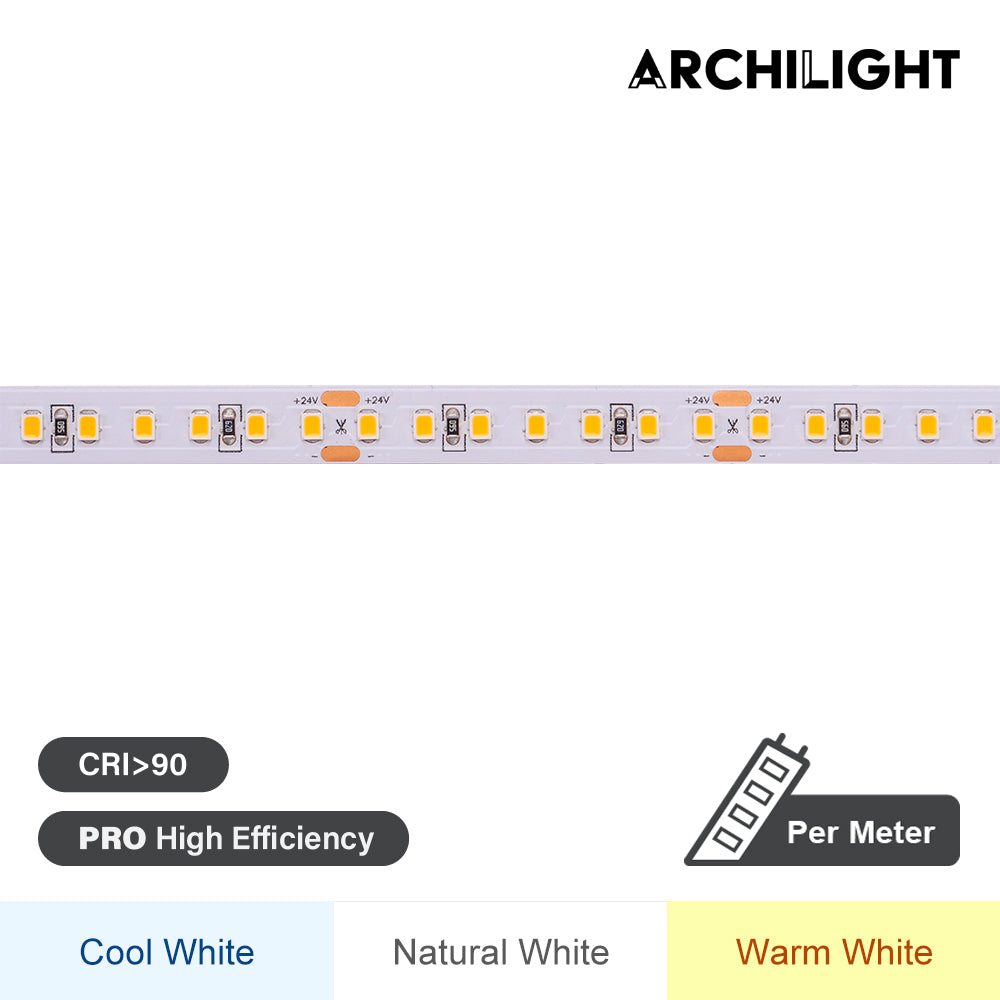

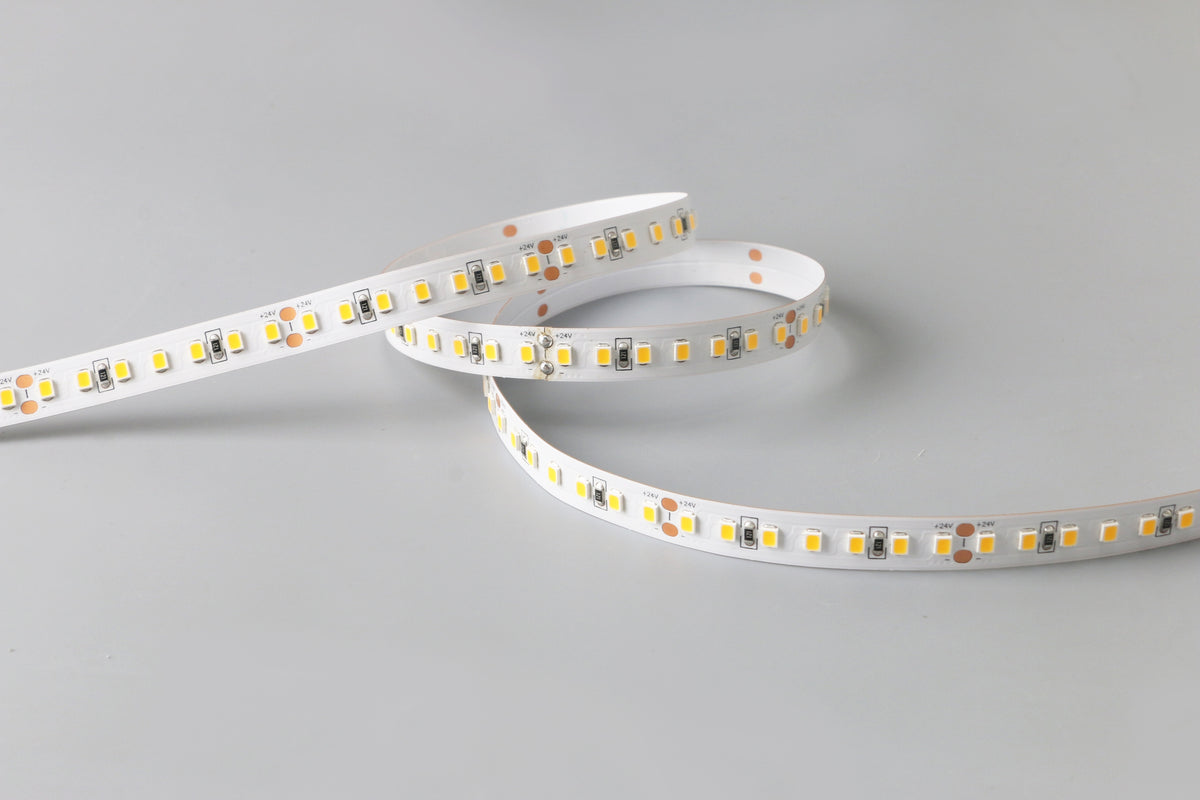

Archilight LED Strip Pro High-efficiency 140LEDs/m (/3.28Ft) 15W/m (/3.28Ft) 24V IP20 CRI>90 - 5m, 16.4 FT Package, Unit Price showing per metre (per 3.28 Ft)

Name: Archilight LED Strip Pro High-efficiency 140LEDs/m (/3.28Ft) 15W/m (/3.28Ft) 24V IP20 CRI>90 - 5m, 16.4 FT Package, Unit Price showing per metre (per 3.28 Ft)
Brand: Archilight
SKU: 2835-1402400GLE-WW
Price: 5.1 USD
Availability: InStock

SKU 2835-1402400GLE-WW

$5.10 USD

Shipping calculated at checkout.

Configure — 3 variants

2835-1402400GLE-WW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

Plus Series using top quality material such as Epistar/San’an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc. as standard configuration.
Hi-Efficacy Series with 7 LEDs per section, create high brightness output under same power consumption as luminary light engine.
Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.

Specifications

Archilight LED Strip Pro High-efficiency 140LEDs/m (/3.28Ft) 15W/m (/3.28Ft) 24V IP20 CRI>90 - 5m, 16.4 FT Package, Unit Price showing per metre (per 3.28 Ft)Specifications from the official datasheetDownload datasheet PDF

Variants

SKU
2835-1402400GLE-WW

Specification

Dimension (L*W*H): 5000*10*1mm [197*0.4*0.04in.]
IP Rating: IP20 [dry]
Lumen Flux±10% @CR90&4000K&15W: 1700lm/M [518lm/ft.]
Light Eff. @CR90&4000K&15W: 113lm/W

General Specification

Standard Length: 5M [16.4ft] (power fed on one side)
Min. Unit & LED QTY: 50mm [1.97in.] & 7 LEDs
LED Type: SMD2835 white LED
LED QTY: 140LED/M [43LED/ft.]
PCB Type: 2oz white FPC, OSP
Operating Ambient: Ta: -20~45℃
Warranty: 5 years
Lifespan: 50kh (L70B50@Tc≤65℃, Tc is temperature of LED pin)

Photoelectric Specification

Power±10%: 15W/M [4.57W/ft.]
Input Voltage & Current: 24VDC
LED Current: 33~38mA/LED@17W
LED CCT & Wavelength: 3000/4000/6000K
SDCM: ErP & ANSI Norm, 3 step
CRI: Ra≥90
Beam Angle: 120°
Dimming Method: PWM (dimmable driver like RF, Bluetooth, 0/1-10V, Triac, DALI, DMX, WIFI etc.)

Certifications & ratings

Certification marks: CE, CB, RoHS, TÜV

Test conditions and notes6

1: Luminous flux for CCT 3000K is 5% lower, for CCT 6000K is the same, compared with 4000K.
2: Applying with extra heat sink for cooling, it’s proposed for IP20.
3: Applying with extra heat sink is not necessary with self-cooling capacity.

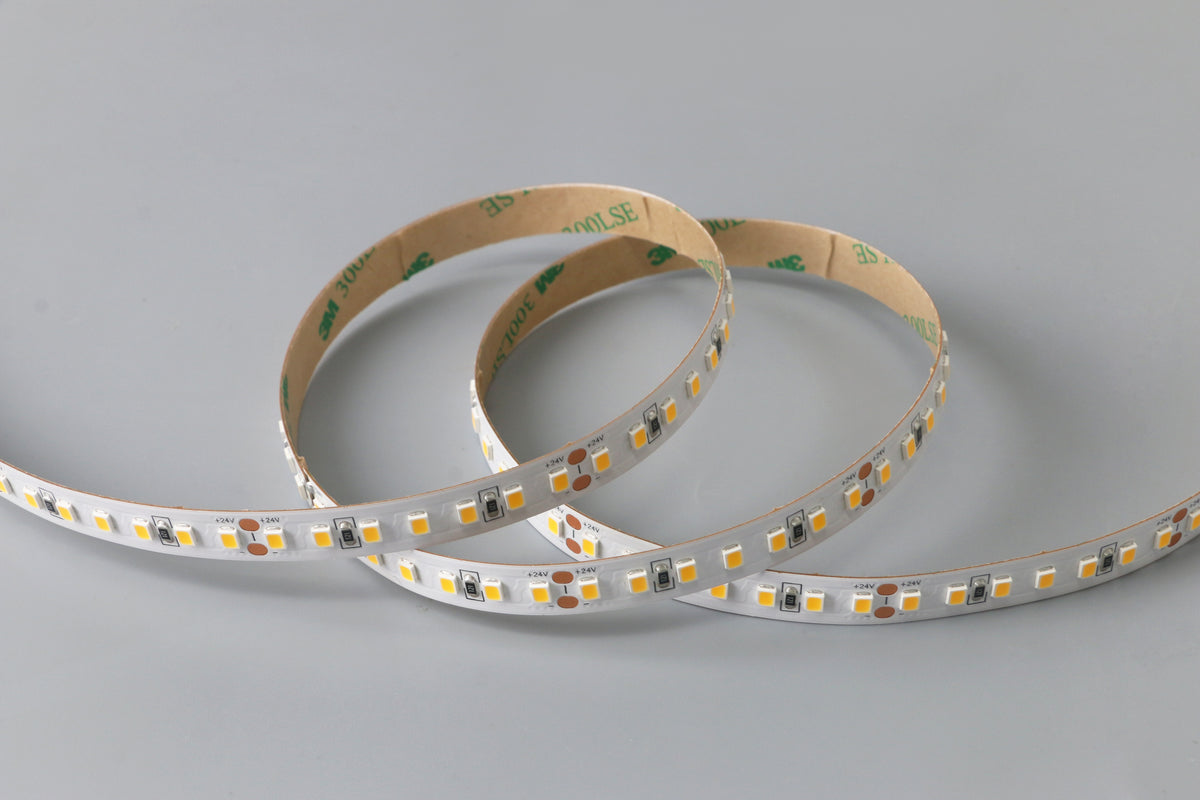

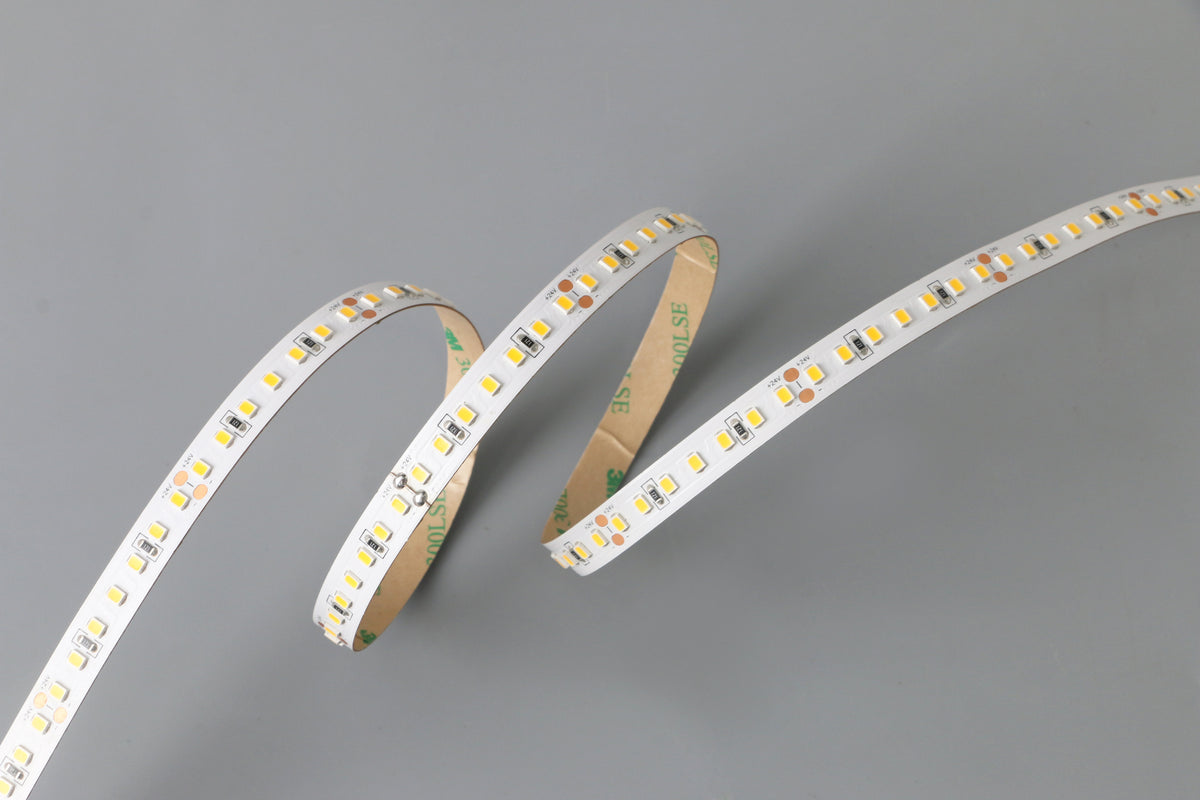

4: 3M 300LSE yellow adhesive tape attached on backside, is standard configuration of Plus Series.

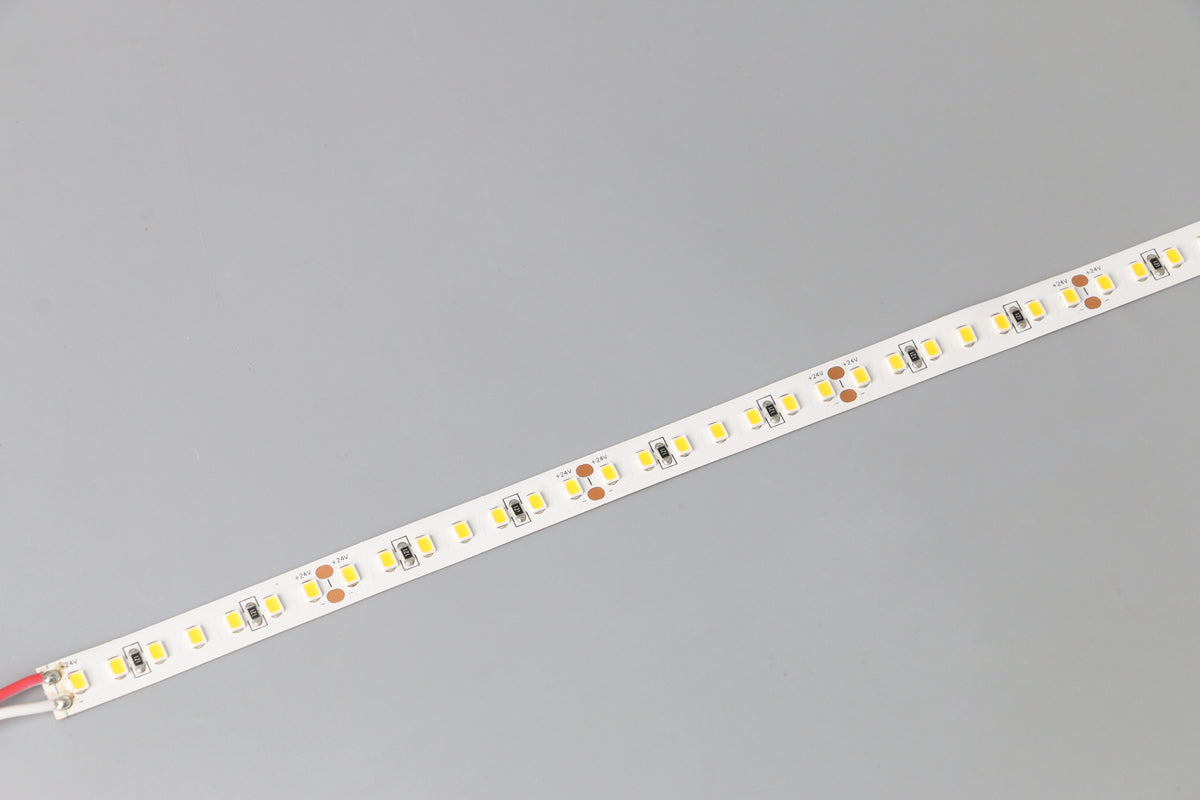

5: One end of 200mm red/white silicon cable or waterproof connector kit according to specific IP rating, is standard configuration of Plus Series.
6: Transparent reel and silvery ESD bag, are standard configuration of Plus Series.

Technical drawings

Archilight LED Strip Pro High-efficiency 140LEDs/m (/3.28Ft) 15W/m (/3.28Ft) 24V IP20 CRI>90 - 5m, 16.4 FT Package, Unit Price showing per metre (per 3.28 Ft) Front View — Front View

Downloads

Datasheet1

Archilight LED Strip Pro High-efficiency 140LEDs/m (/3.28Ft) 15W/m (/3.28Ft) 24V IP20 CRI>90 - 5m, 16.4 FT Package, Unit Price showing per metre (per 3.28 Ft) datasheet2835_1402400GLE_V605.pdf PDF Download

Catalogues2

LED Strip Selection Guide PDF Download

Related Files- LED Comprison Form PDF Download

FAQ

What are the main specifications of the Archilight LED Strip Pro High-efficiency family?

This LED strip family runs on 24V DC and uses 15W per metre. It is supplied as a 5 metre roll, has 140 LEDs per metre, offers CRI over 90, and can be cut every 50 mm. The strip is 10 mm wide and rated IP20.

What is the difference between the available colour temperature options in this product family?

This parent family includes 3000K, 4000K, and 6000K variants. The 3000K option is a warmer light output, while 4000K and 6000K provide progressively cooler light. Based on the child variant data, the 4000K and 6000K versions are rated at 1700 lm, while the 3000K version is rated at 1615 lm.

Is this LED strip suitable for indoor or outdoor use?

This strip is rated IP20, so it is intended for indoor use in dry environments. It is better suited to applications such as cabinets, showcases, signage, hotels, and other interior lighting projects. It is not described here as a weatherproof or outdoor-rated strip.

Does this LED strip include a driver, and can it be dimmed?

A driver is not included with this product family. The strip is listed as dimmable with optional dimming control, and the product description states it supports PWM dimming when paired with a compatible driver. That means dimming capability depends on the power setup selected for the project.

What types of projects is this LED strip best suited for?

This family is designed for high-efficiency linear lighting in residential and commercial settings. The product description specifically highlights showcases, cabinets, billboards, signage, hotels, and garden-related lighting applications, along with both direct and indirect lighting uses. Its high CRI and multiple colour temperature options also make it suitable where visual quality matters.

What does the package size and unit pricing mean for this product?

The product is supplied as a 5 metre, 16.4 foot package. The listing states that the displayed unit price is shown per metre, even though the supplied pack length is the full 5 metre roll. This helps buyers compare strip cost on a per-metre basis while ordering the standard roll length.
